DOUBLE-ACTING CYLINDER ISO-6432
DOUBLE-ACTING CYLINDER ISO-6432
DOUBLE-ACTING CYLINDER ISO-6432
DOUBLE-ACTING CYLINDER ISO-6432

DOUBLE-ACTING CYLINDER ISO-6432

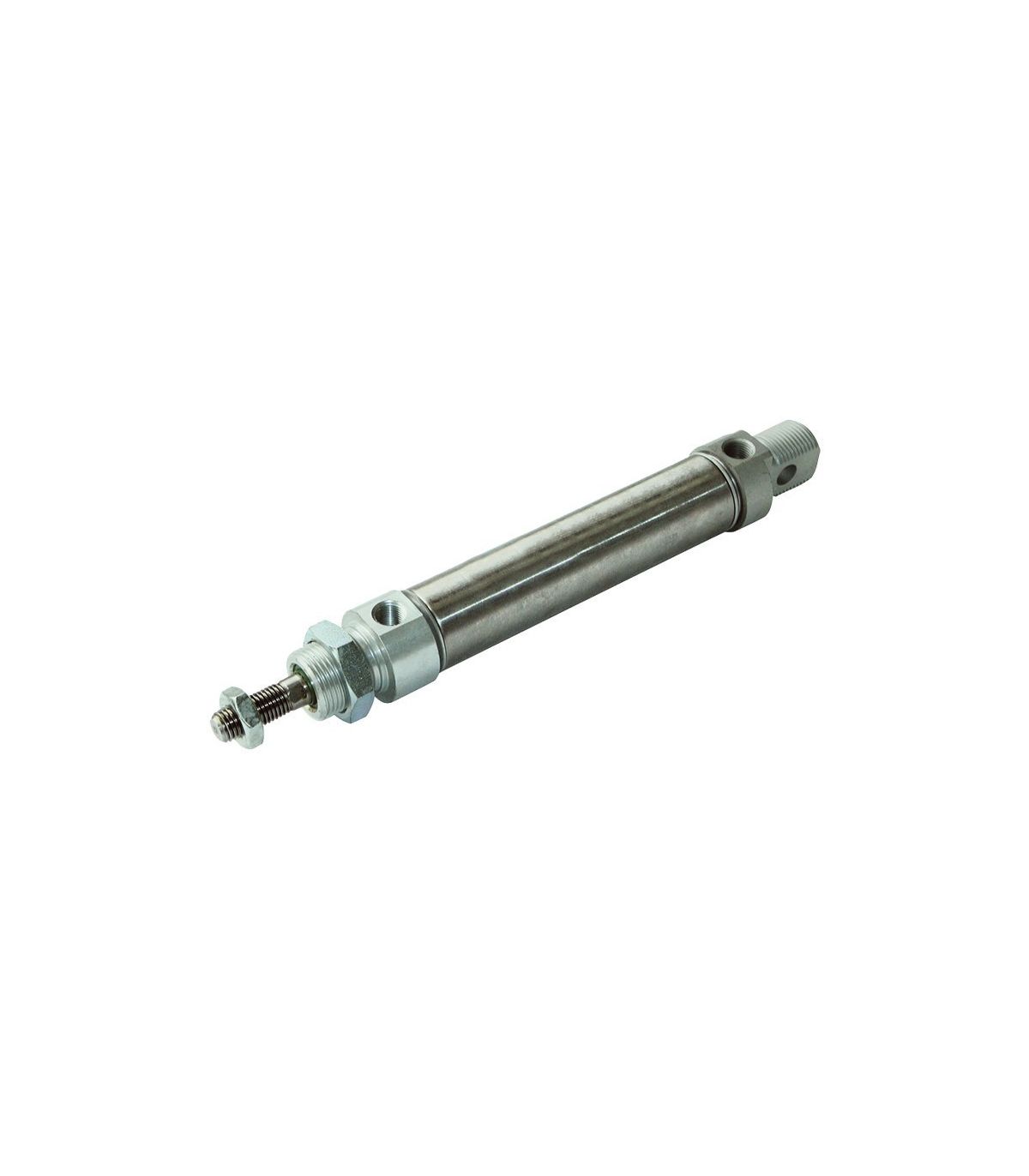

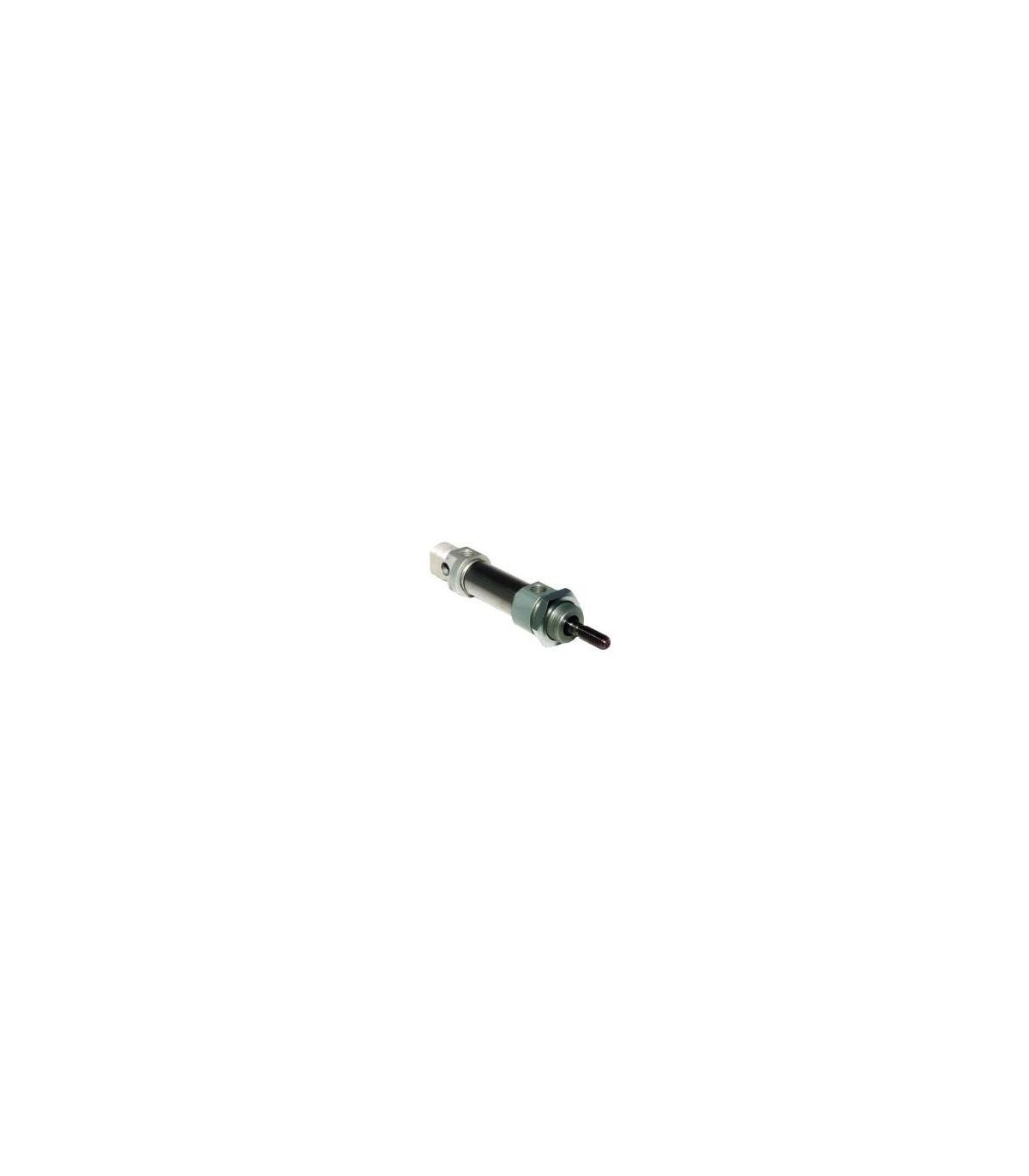

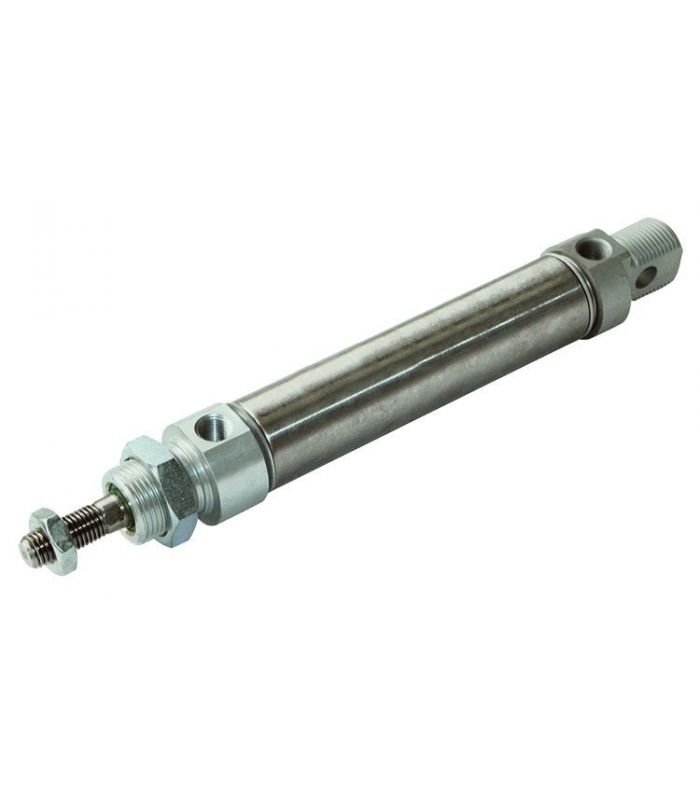

The ISO-6432 double-acting cylinder with elastic cushioning is ideal for demanding applications requiring a compact, precise, and small-profile cylinder. These cylinders, with their small, round profile, produce linear motion using compressed air.

Technical information:

  • Provided for magnetic detection.
  • Shirt in Inox-304
  • Cylinder heads in anodized aluminum.
  • Polyurethane seals that ensure low friction operation and long lifespan.
  • It is supplied with a stem nut and a bottom nut.
  • Pressure 10 bar.
  • Operating temperature -20ºC / 70ºC

Check out other races and configurations

€30.89 (tax included)
€25.53 (tax excl.)
BORE x STROKE
  • Ø8-10
  • Ø8-25
  • Ø8-50
  • Ø8-80
  • Ø8-100
  • Ø10-10
  • Ø10-25
  • Ø10-50
  • Ø10-100
  • Ø12-10
  • Ø12-25
  • Ø12-50
  • Ø12-80
  • Ø12-100
  • Ø12-125
  • Ø12-160
  • Ø12-200
  • Ø16-10
  • Ø16-25
  • Ø16-50
  • Ø16-80
  • Ø16-100
  • Ø16-125
  • Ø16-160
  • Ø16-200
  • Ø20-10
  • Ø20-25
  • Ø20-50
  • Ø20-80
  • Ø20-100
  • Ø20-125
  • Ø20-160
  • Ø20-200
  • Ø20-250
  • Ø20-320
  • Ø25-10
  • Ø25-25
  • Ø25-50
  • Ø25-80
  • Ø25-100
  • Ø25-125
  • Ø25-160
  • Ø25-200
  • Ø25-250
  • Ø25-320
  • Ø25-400
  • Ø25-500
Reference:
50010004
Description

double-acting cylinder ISO-6432

The ISO 6432 double-acting pneumatic cylinder is a linear actuator designed to convert compressed air energy into reciprocating mechanical motion. Compliant with the international standard ISO 6432 , this type of cylinder features standardized dimensions that ensure interchangeability between different manufacturers.

Operation

This cylinder uses compressed air to move the piston in both forward and reverse strokes, providing constant force in both directions and greater work efficiency compared to single-acting cylinders. Ideal for repetitive positioning, clamping, pushing, or transport operations on automated production lines.

Technical advantages

  • High durability and corrosion resistance
  • Smooth and precise linear movement
  • Minimal maintenance and long service life
  • Compatible with magnetic proximity sensors
  • Easy installation and replacement thanks to its standardized design

Applications

  • Industrial automation
  • Packaging and labeling machinery
  • Assembly systems
  • Pneumatic handling and transport
  • Process control equipment

Ømm TO A1 B C D D1 D3 AND F G G1 G2 G3 K L L2 N CH R M
8 M4 4 M12x1.25 16 8 9.27 15 4 12 64 74 36 46 16 12 21 6 M5 86
10 M4 4 M12x1.25 16 8 11.27 15 4 12 64 74 36 46 16 12 21 6 M5 86
12 M6 6 M16x1.5 19 12 13.27 18 6 16 75 88 38 48 22 18 27 9 5 M5 104
16 M6 6 M16x1.5 19 12 17.27 18 6 16 82 93 44 53 22 18 27 9 5 M5 109
20 M8 8 M22x1.5 27 16 21.27 25.5 8 20 95 111 51.5 67 24 20 32 12 7 1/8"G 131
25 M10x1.25 10 M22x1.5 30 16 26.5 28.5 8 22 104 118 52 68 28 22 36 12 9 1/8"G 140
