BALL JOINT STEM ISO-6432
BALL JOINT STEM ISO-6432
BALL JOINT STEM ISO-6432
BALL JOINT STEM ISO-6432

BALL JOINT STEM ISO-6432

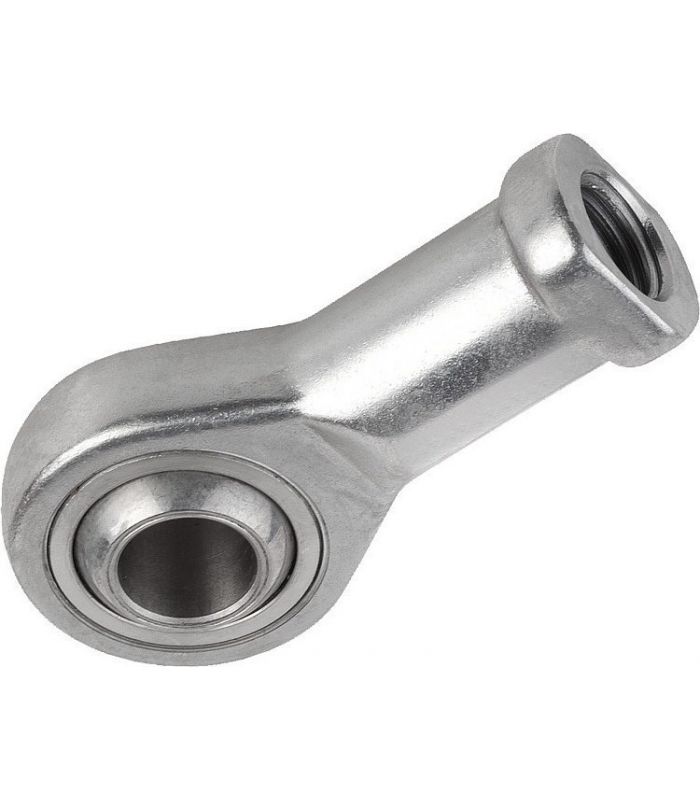

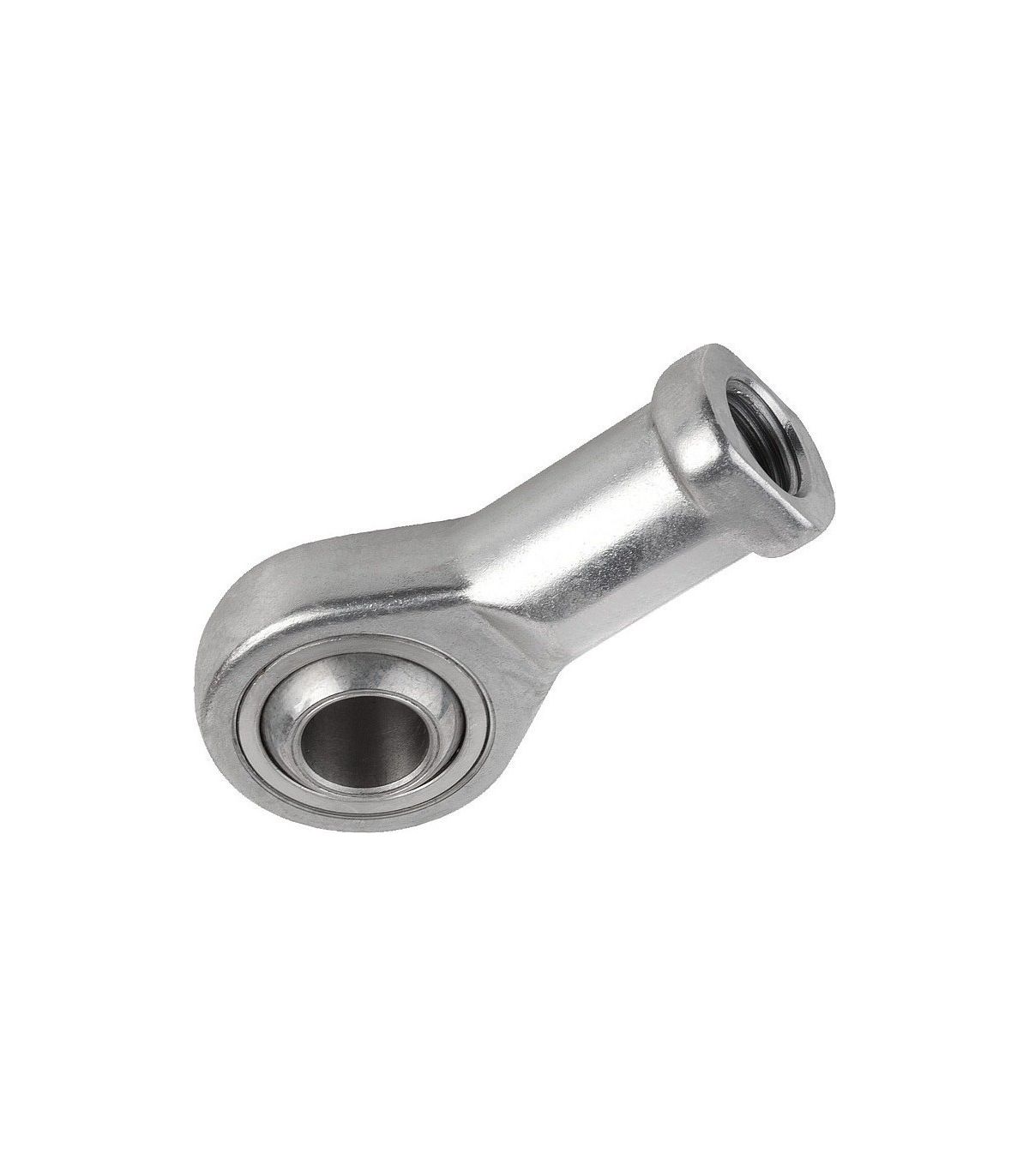

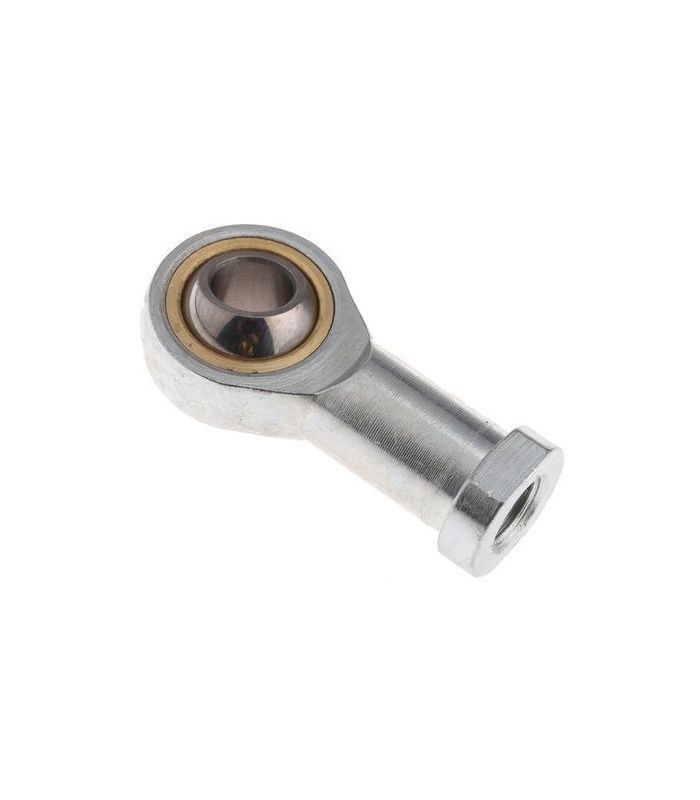

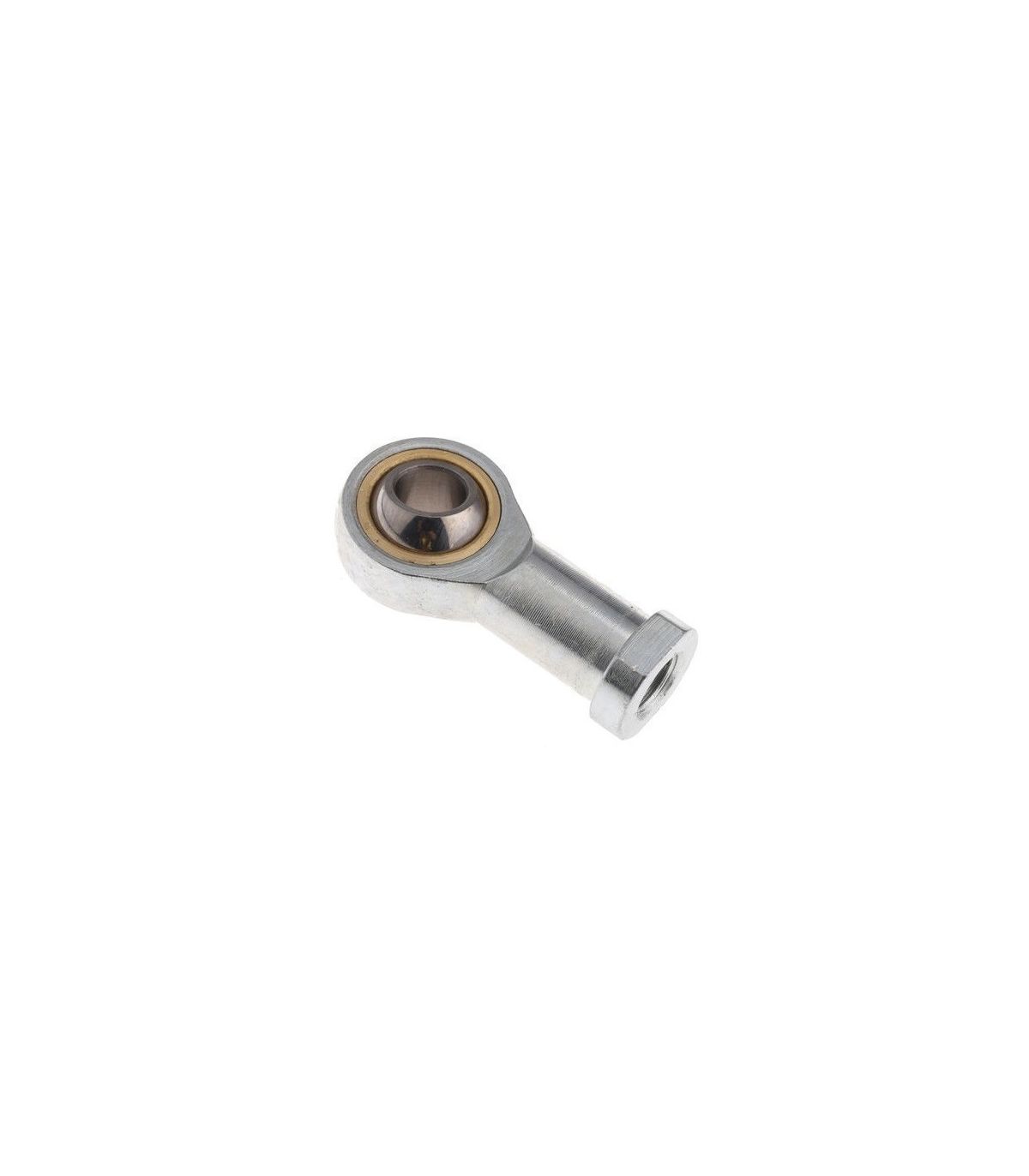

ISO-6432 rod end

It is a mechanical component specifically designed to connect the rod of an ISO-6432 pneumatic cylinder to other elements of a machine or system.

Its main function is to allow angular movement of the stem. The spherical surface allows rotation in multiple directions.

It is attached to the cylinder rod by means of a thread or a retention system, and to the other element by means of a threaded hole or a pin.

Applications: Industrial automation, agricultural machinery, medical equipment

Technical data sheet:

  • Manufactured according to DIN ISO 12240-4 (DIN 648-K)
  • Self-lubricated, maintenance-free.
  • Reduced clearance increase during operation.
  • Possibility of operation in contact or immersed in oil.
  • Operating temperature -30ºC / 150ºC.

Ball joint selection is by cylinder diameter.

€7.24 (tax included)
€5.98 (tax excl.)
DIAMETERS
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 16
  • Ø 20
  • Ø 25
Reference:
53010005
Description

ISO-6432 rod end

Product Details
53010005
