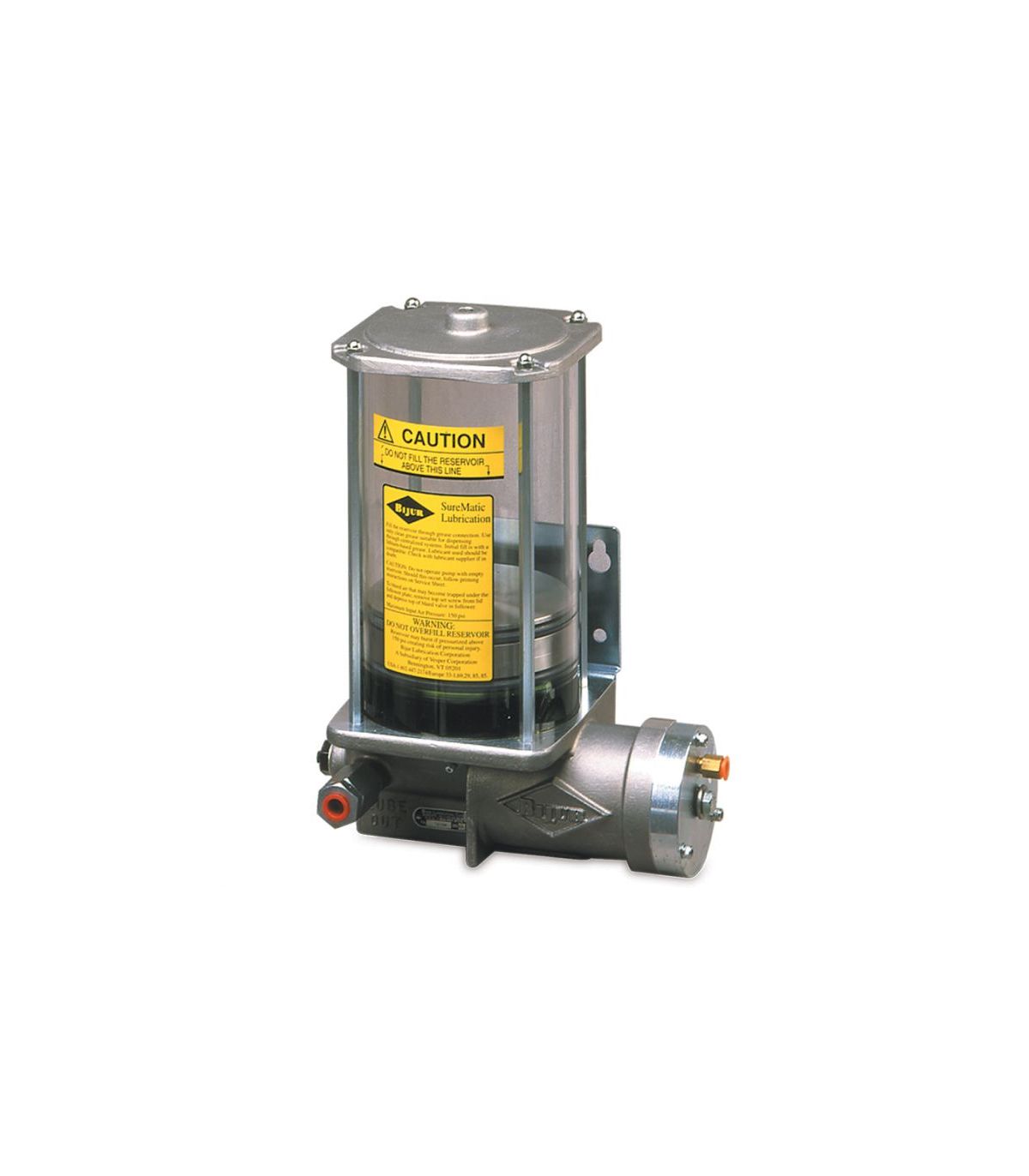

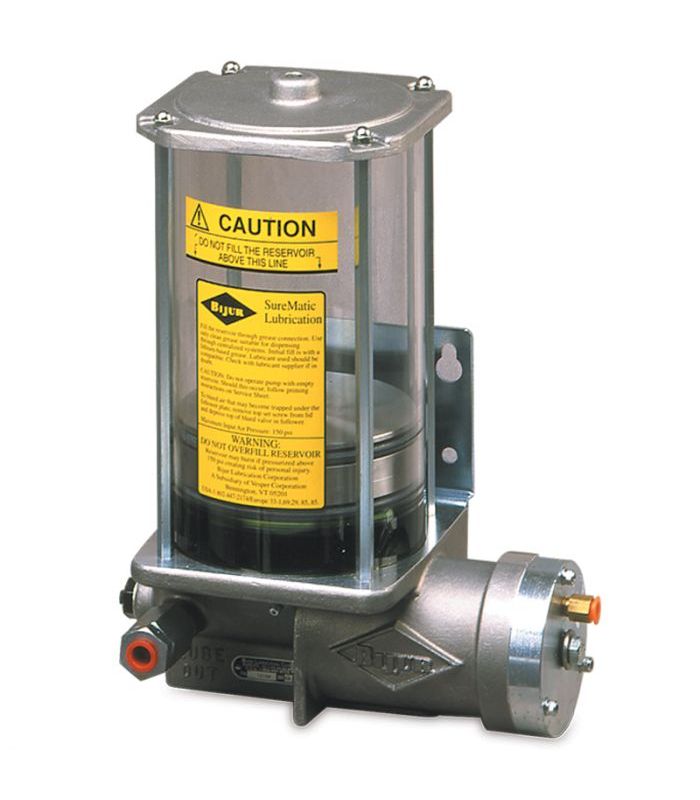

SUREMATIC PNEUMATIC GREASE PUMP
SUREMATIC PNEUMATIC GREASE PUMP
SUREMATIC PNEUMATIC GREASE PUMP
SUREMATIC PNEUMATIC GREASE PUMP

SUREMATIC PNEUMATIC GREASE PUMP

SUREMATIC GREASE PUMP

It is a single-acting, pneumatically controlled piston pump. It is designed for Lubricationfeeding, progressive system, equipped with a minimum level electrical control and large refill connection.

FUNCTIONING

The SUREMATIC pump must be piloted with a 3/2-way valve. The flow rate is adjustable by modifying the stroke of the regulation screw.

CHARACTERISTICS

  • Tank capacity, 2 - 3 - 5 Kg.
  • Air pressure 3-10 bar.
  • Pressure ratio 18/1.
  • Outlet pressure 180 bar (max)
  • Flow rate per stroke, adjustable from 1 to 8 cm³
  • Operating frequency, 65 cycles/min .
  • Operating temperature 10ºC / 50ºC
  • Grease to use; grade 000 to grade 2
  • Empty weight 9.5 Kg.

Read moreShow less
€782.63 (tax incl.)
€646.80 (tax excl.)
CHOOSE MODEL
  • 3 liters
Reference:
63040064
Description

BOMBA ENGRASE NEUMATICA SUREMATICBOMBA ENGRASE NEUMATICA SUREMATIC

Read moreShow less
Product Details
63040064
