FLAT FLANGE
FLAT FLANGE
FLAT FLANGE
FLAT FLANGE

FLAT FLANGE

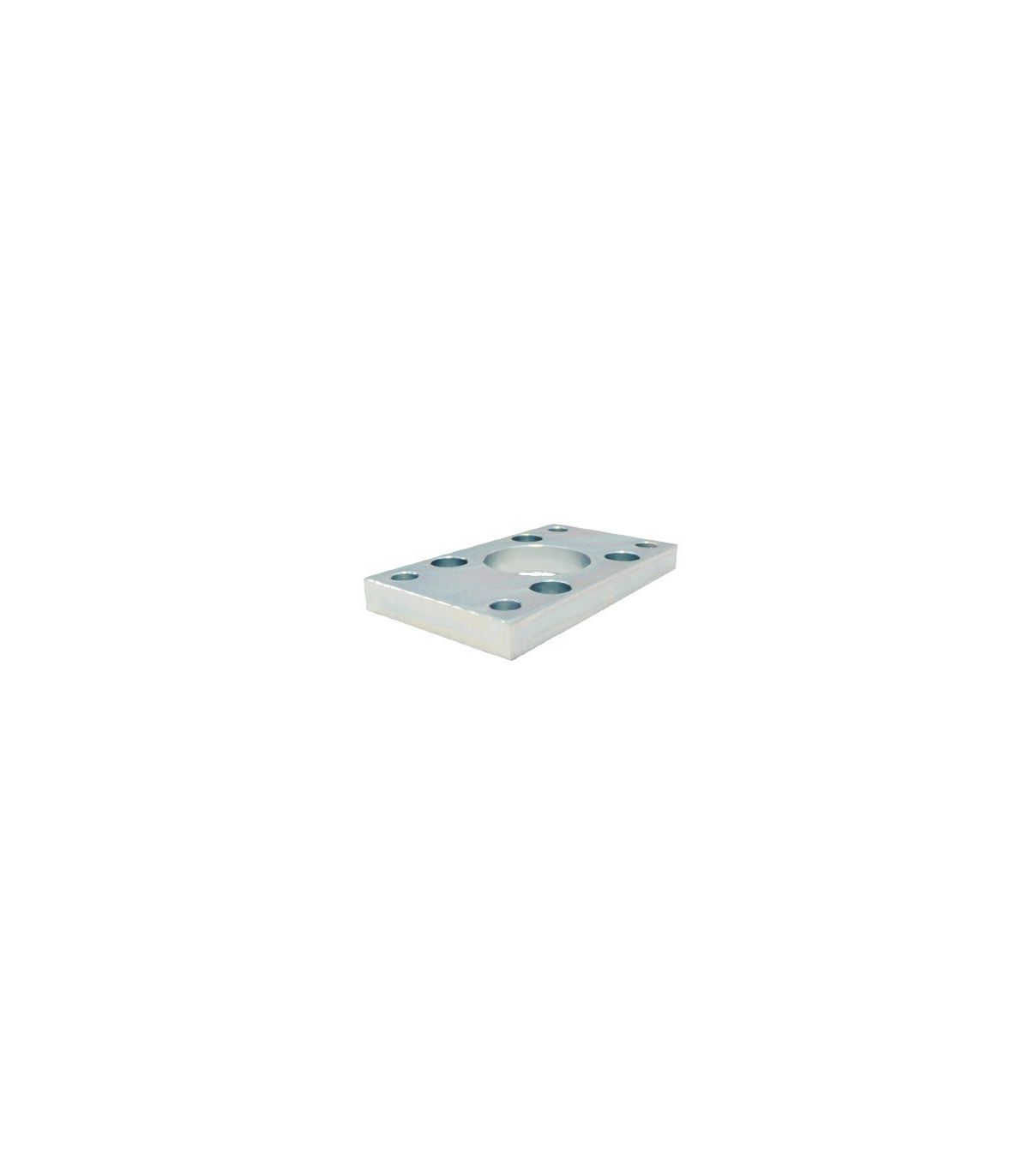

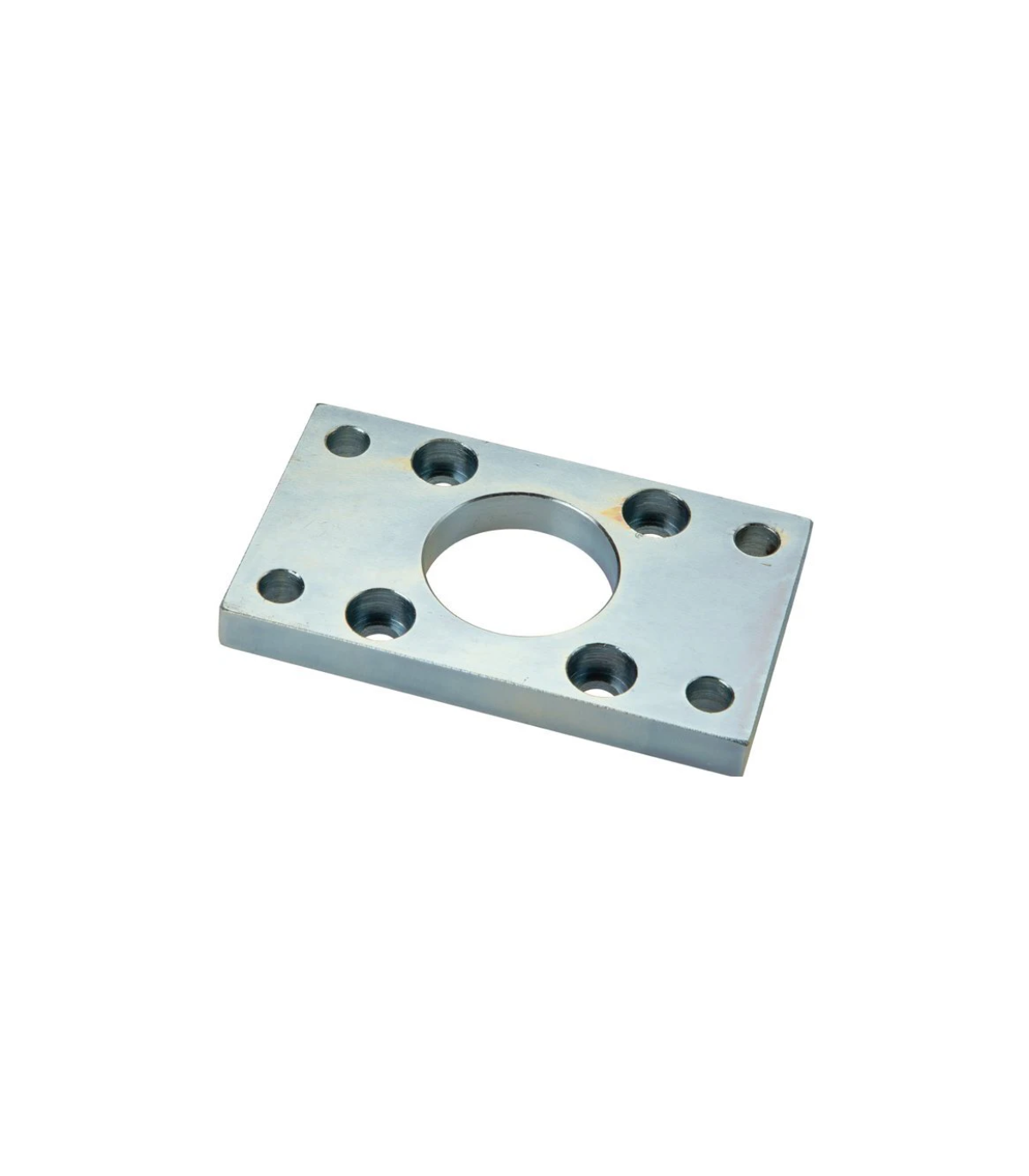

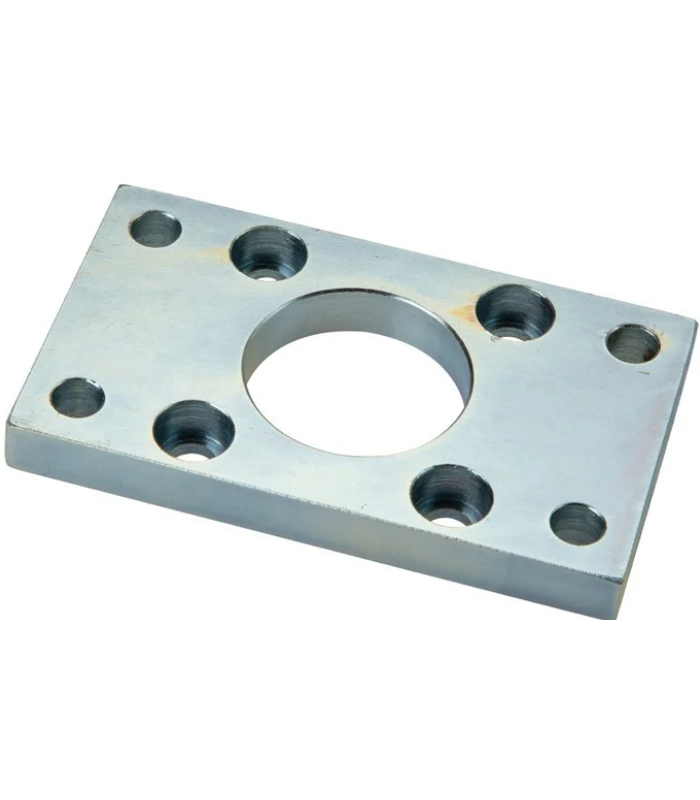

A flat flange is a connecting component used in automation systems and industrial machinery, specifically in the attachment of pneumatic and hydraulic cylinders.

Applications: Industrial automation, Robotics, Packaging machinery, Material handling equipment and any system requiring linear motion driven by cylinders.

Technical sheet:

  • It complies with ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
  • Corrosion resistance class KBK -2
  • Ambient temperature -40 / 150 °C
  • Free of copper and PTFE
  • Made of galvanized steel.
  • Supplied with screws.
€12.40 (tax included)
€10.25 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
  • Ø 160
  • Ø 200
Reference:
53060018
Description

Flat flange

Product Details
53060018
