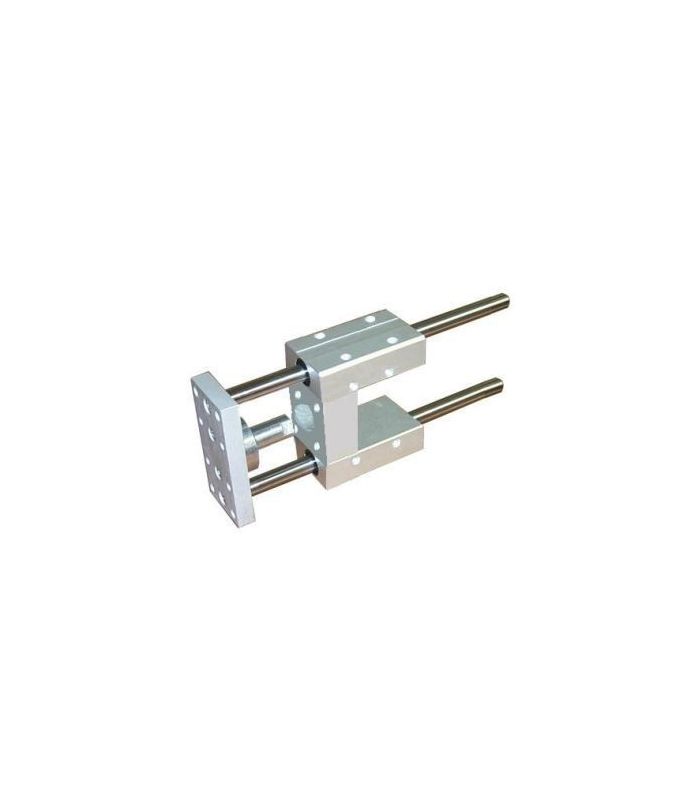

GUIDED UNIT U BUSHINGS ISO-15552
GUIDED UNIT U BUSHINGS ISO-15552
GUIDED UNIT U BUSHINGS ISO-15552
GUIDED UNIT U BUSHINGS ISO-15552

GUIDED UNIT U BUSHINGS ISO-15552

GUIDANCE UNIT

  • Monobloc assembly, metal body (anodized aluminum)
  • Silver gray or black color
  • 4 self-lubricated sintered bronze smooth bushings
  • 2 chrome-plated steel guide columns
  • Scraper seals at the level of the guide columns
  • High quality components that give it excellence

BENEFITS:

  • High allowable loads
  • Great guidance precision
  • Great robustness of the whole
  • Engagement of the cylinder rod in the guide unit
  • Alignment compensating device.
  • ADAPTABLE CYLINDER
  • ISO 6431 ISO15552 Standards Made of profiled tube or braces.
  • With or without pneumatic cushioning
  • Whether or not intended for magnetic position detectors.
SPECIFICATIONS:
  • MAX SPEED 1 m/s
  • FLUID: Filtered air or neutral gas, lubricated or NOT
  • ALLOWABLE PRESSURE: 10 bar maximum
  • TEMPERATURE - 10º C, + 70º C
  • MINIMUM STROKE: 10 mm
CHECK PRICES FOR OTHER CAREERS

€196.63 (tax included)
€162.50 (tax excl.)
BORE x STROKE
  • Ø32-50
  • Ø32-100
  • Ø32-160
  • Ø32-200
  • Ø32-250
  • Ø32-320
  • Ø32-400
  • Ø40-50
  • Ø40-100
  • Ø40-160
  • Ø40-200
  • Ø40-250
  • Ø40-320
  • Ø40-400
  • Ø40-500
  • Ø50-50
  • Ø50-100
  • Ø50-160
  • Ø50-200
  • Ø50-250
  • Ø50-320
  • Ø50-400
  • Ø50-500
  • Ø63-50
  • Ø63-100
  • Ø63-160
  • Ø63-200
  • Ø63-250
  • Ø63-320
  • Ø63-400
  • Ø63-500
  • Ø80-50
  • Ø80-100
  • Ø80-160
  • Ø80-200
  • Ø80-250
  • Ø80-320
  • Ø80-400
  • Ø80-500
  • Ø100-50
  • Ø100-100
  • Ø100-160
  • Ø100-200
  • Ø100-250
  • Ø100-320
  • Ø100-400
  • Ø100-500
Reference:
531800361
Description

UNIDAD GUIADO U CASQUILLOS ISO-15552UNIDAD GUIADO U CASQUILLOS ISO-15552

Product Details
531800361
Comments
12 other products in the same category:
90° SWING REAR FIXING BALL JOINT

€108.53 (tax excl.)
€131.33 (tax included)
The 90° swivel rear mounting bracket is a mounting accessory designed for the articulated installation of pneumatic cylinders. Its design allows for up to 90° of rotation, offering greater flexibility in applications...
MALE OSCILLATING REAR FIXATION 90

€8.10 (tax excl.)
€9.80 (tax included)
Male swing rear bracket 90 Its function is to connect the cylinder to a structure or support in such a way that it allows angular movement. Applications: Industrial automation, Agricultural machinery, Medical...

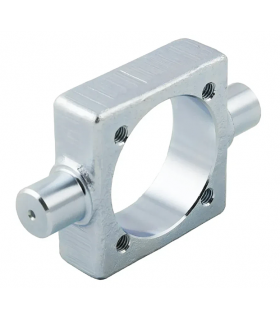

OSCILLATING SIDE HINGE

€103.16 (tax excl.)
€124.82 (tax included)
A swing-out hinge is a mechanical component designed to allow a door, hatch, or cover to swing about a pivot point or lateral axis. It allows limited, controlled movement in an arc around a lateral fixing point....
REAR FIXING SWINGING BALL JOINT ALUMINUM

€43.48 (tax excl.)
€52.61 (tax included)
Rear swing arm aluminium ball joint It is used to connect the end of a pneumatic cylinder to a structure or support, allowing angular movement. It is fixed to the pneumatic cylinder by means of a threaded connection...
BALL JOINT STEM ISO-15552

€5.98 (tax excl.)
€7.24 (tax included)
An ISO-15552 rod end joint is used to connect the rod end of a pneumatic or hydraulic cylinder to a moving component or a fixed structure of a machine. Applications: Industrial Automation, Processing Machinery,...
COMPENSATING BALL ALIGNMENT ISO 15552

€22.42 (tax excl.)
€27.13 (tax included)
Alignment compensating ball joint. Prevents breakage of the cylinder rod in case of misalignment. Made of galvanized steel. Steel ball joint and bearing. Angular movement 10º Radial tolerance up to 2 mm. Selection by...
VDMA CYLINDER STEM NUT ISO-15552

€0.25 (tax excl.)
€0.30 (tax included)
The VDMA ISO-15552 cylinder rod nut is used to secure the rod of a pneumatic or hydraulic cylinder in its position, preventing unwanted movements and ensuring the tightness of the system. The nut is also used to...
ANCHOR FOR INTERMEDIATE HINGE

€69.19 (tax excl.)
€83.72 (tax included)
The intermediate hinge bracket is a mounting accessory designed to secure pneumatic cylinders, allowing controlled oscillating movement during operation. It is installed in the center of the cylinder body and acts as...
GUIDED UNIT H BUSHINGS ISO 15552

€175.55 (tax excl.)
€212.42 (tax included)
GUIDANCE UNIT Monobloc assembly, metal body (anodized aluminum) Silver gray or black color 4 self-lubricated sintered bronze smooth bushings 2 chrome-plated steel guide columns Scraper seals at the level of the guide...
CYLINDER GASKET KIT ISO 15552

€27.75 (tax excl.)
€33.58 (tax included)
An ISO 15552 cylinder seal kit is a set of sealing components specifically designed for pneumatic cylinders that comply with the ISO 15552 standard. These seals prevent compressed air leaks, keep out contaminants from...

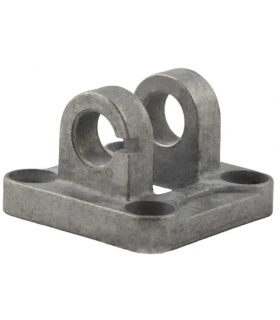

NARROW SWING FIXTURE
