SQUARE BRACKET (SINGLE) FOR PNEUMATIC CYLINDER | Buy online at Disumtec

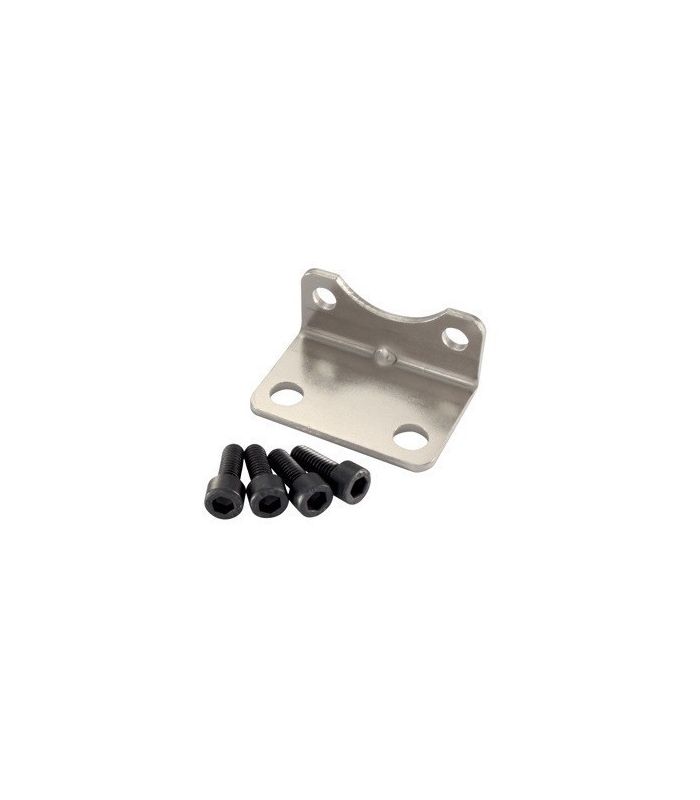

SQUAD (UNITARY)

A bracket is a fixture or support designed to mount a pneumatic cylinder to a surface or other component of an automated system so that the cylinder is perpendicular.

Applications: Industrial machinery, Packaging systems, Assembly lines, Clamping devices

Technical sheet:

  • Corresponds to ISO-15552 standard (also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
  • Corrosion resistance class KBK -2
  • Ambient temperature -40 to 150°C
  • Free of copper and PTFE
  • Made of galvanized steel.
  • Supplied with screws.
Read moreShow less
€5.57 (tax incl.)
€4.61 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
  • Ø 160
  • Ø 200
Reference:
53050018
Description

squadron (unitary)

ESCUADRA (UNITARIA)

Read moreShow less
Product Details
53050018
