CNOMO PCN Trunnions
CNOMO PCN Trunnions
CNOMO PCN Trunnions
CNOMO PCN Trunnions
CNOMO PCN Trunnions
CNOMO PCN Trunnions

CNOMO PCN Trunnions

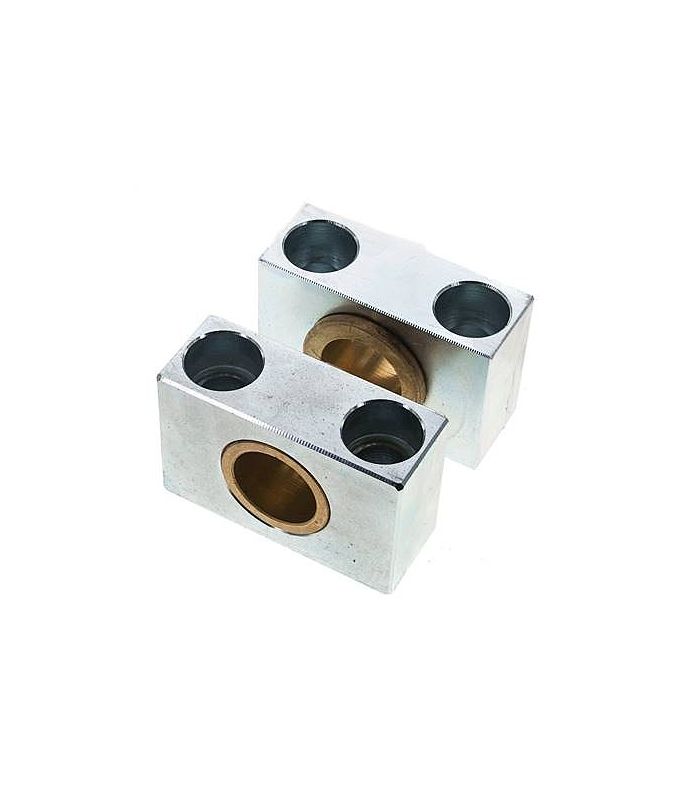

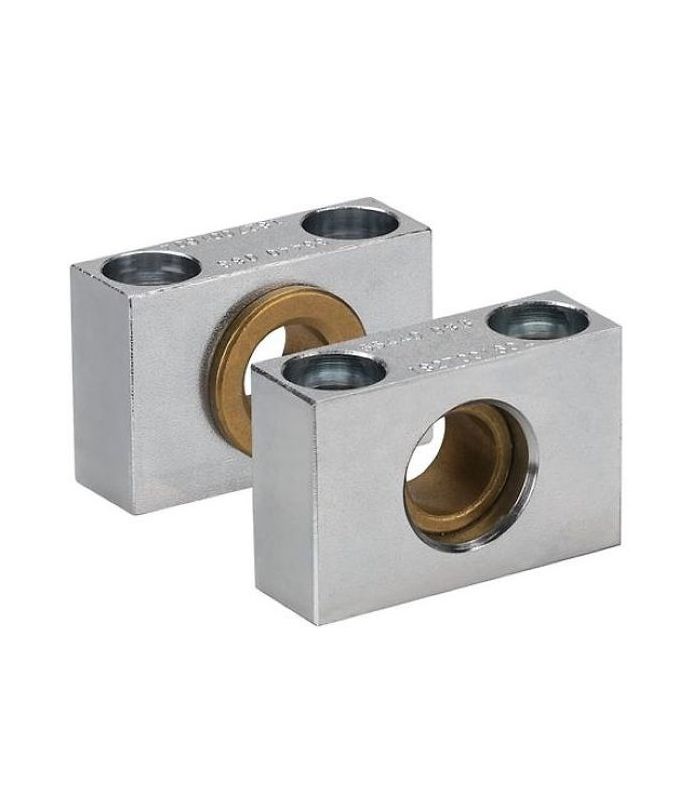

CNOMO PCN trunnions are steel pins or shafts, often with a bronze bushing, designed to fit into CNOMO-compliant intermediate hinges. They provide a secure and durable pivot point for the mounting and movement of pneumatic or hydraulic cylinders in industrial applications.

Technical sheet:

  • Trunnions for CNOMO intermediate hinge
  • Made of steel, bronze cap.
€57.52 (tax included)
€47.54 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
  • Ø 160
  • Ø 200
Reference:
53880019
Description

CNOMO PCN stumps

Product Details
53880019
Comments
