CNOMO CENTER SWING FLANGE
CNOMO CENTER SWING FLANGE
CNOMO CENTER SWING FLANGE
CNOMO CENTER SWING FLANGE
CNOMO CENTER SWING FLANGE
CNOMO CENTER SWING FLANGE

CNOMO CENTER SWING FLANGE

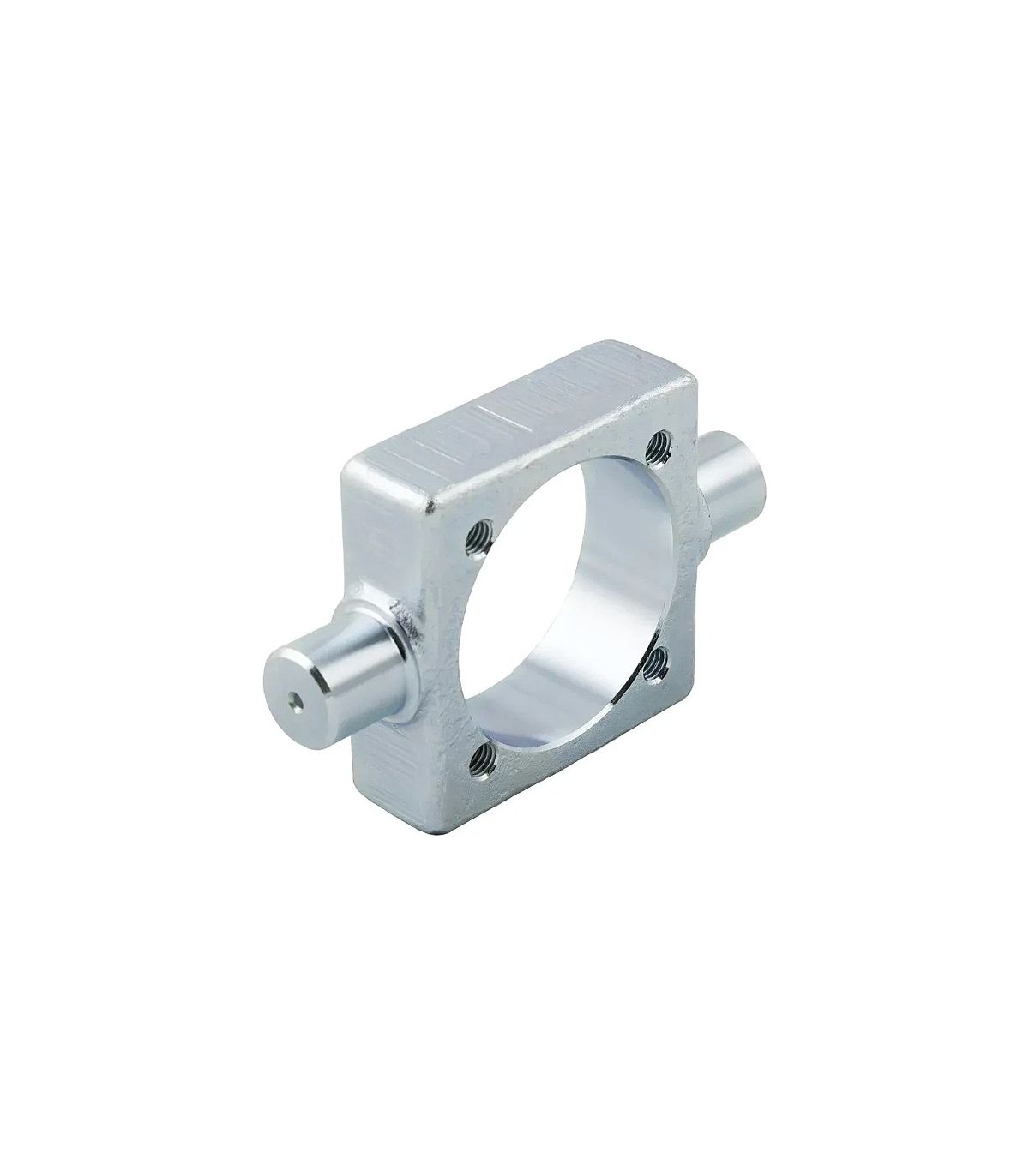

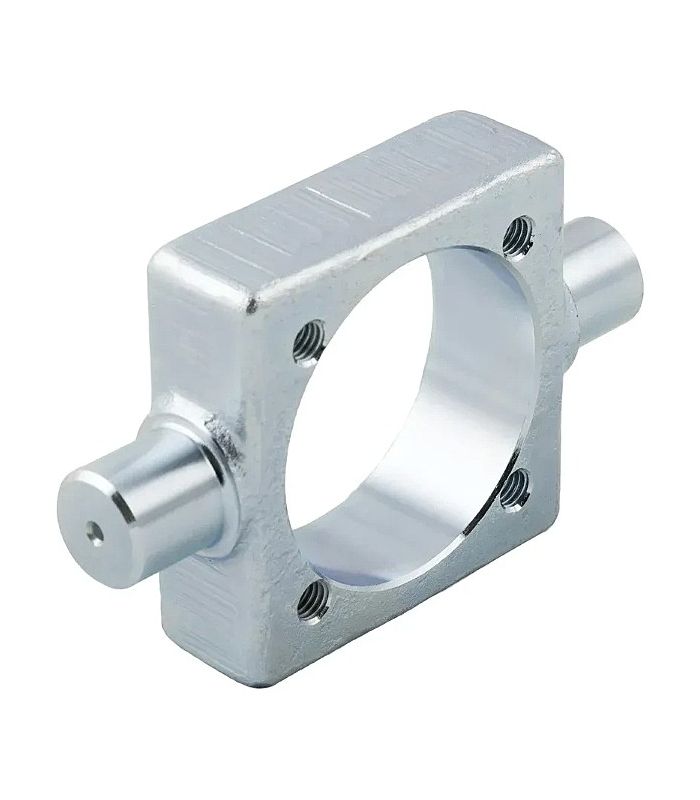

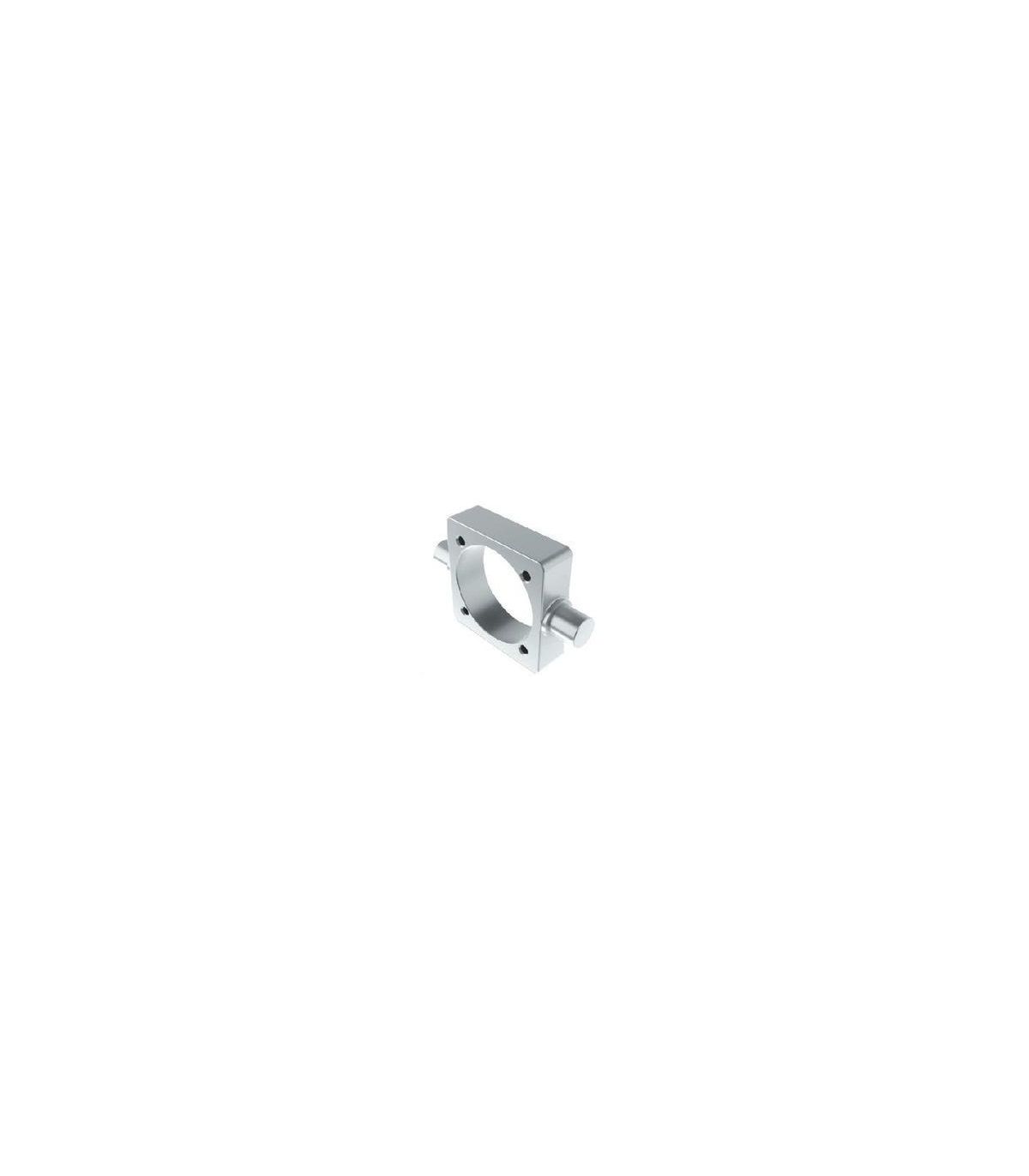

A CNOMO center pivot flange is a mounting accessory that allows a CNOMO pneumatic cylinder to be attached to a structure or machine so that it can pivot or tilt around a center point.

Applications: Automotive machinery, Welding machinery, Clamping devices, Lever and articulated arm systems.

Technical sheet:

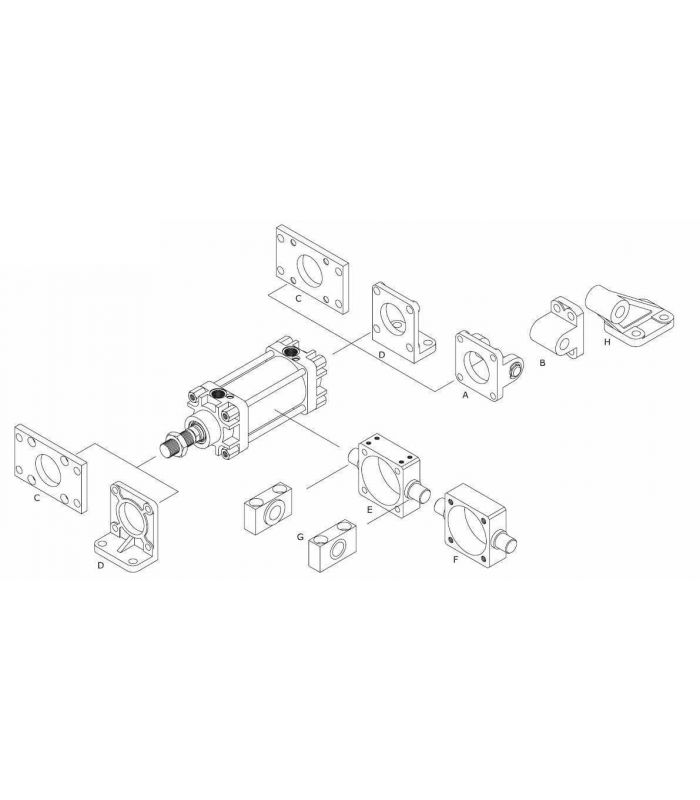

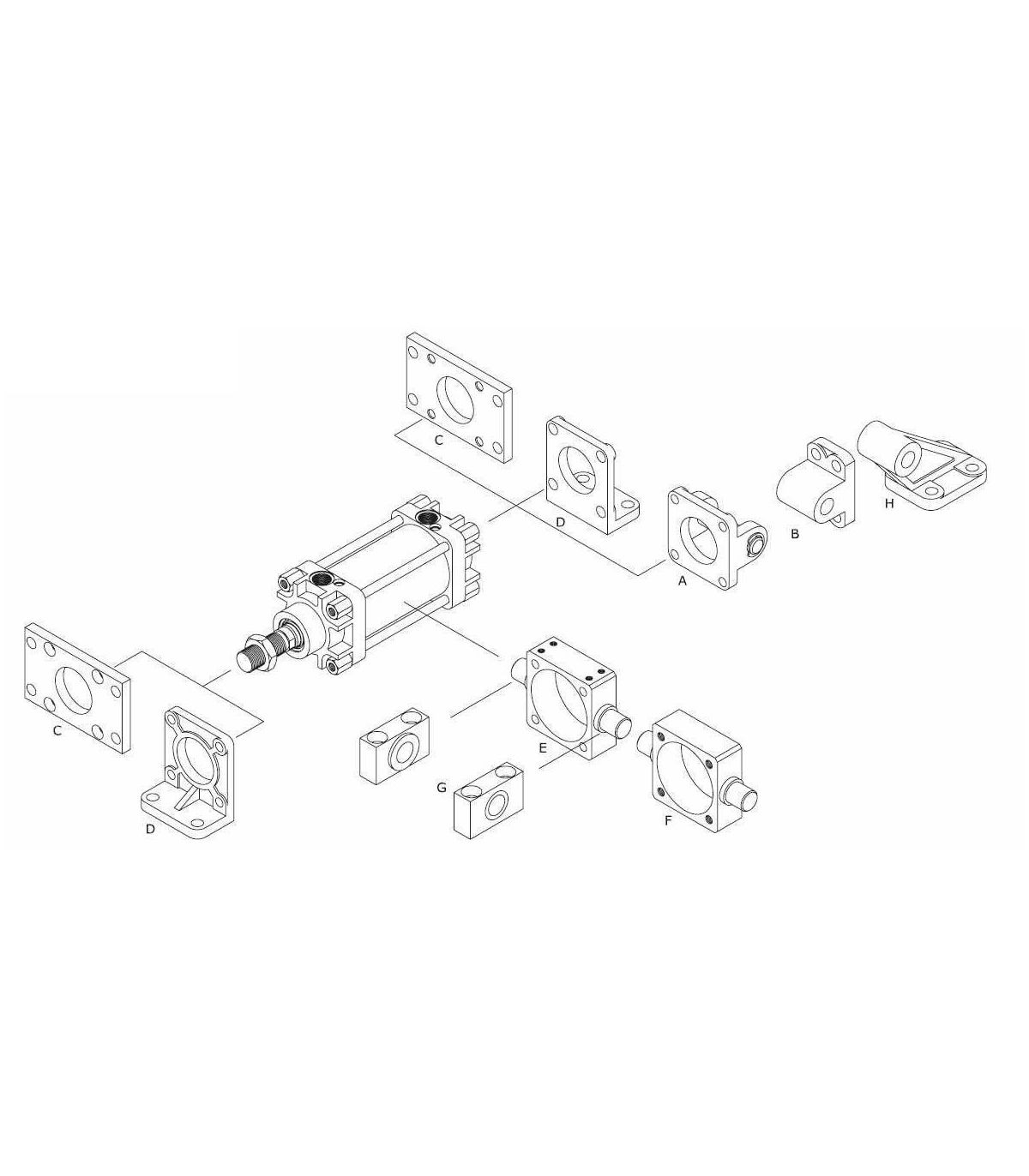

  • Intermediate hinge for CNOMO cylinder
  • Made of steel.
€60.78 (tax included)
€50.23 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
  • Ø 160
  • Ø 200
Reference:
53870019
Description

CNOMO center swing flange

BRIDA OSCILANTE CENTRAL CNOMO

Product Details
53870019
