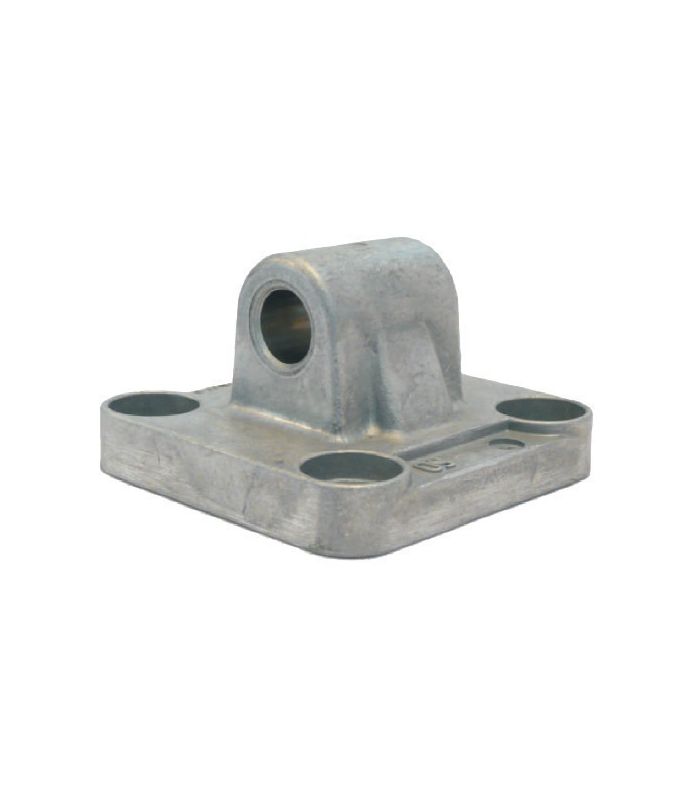

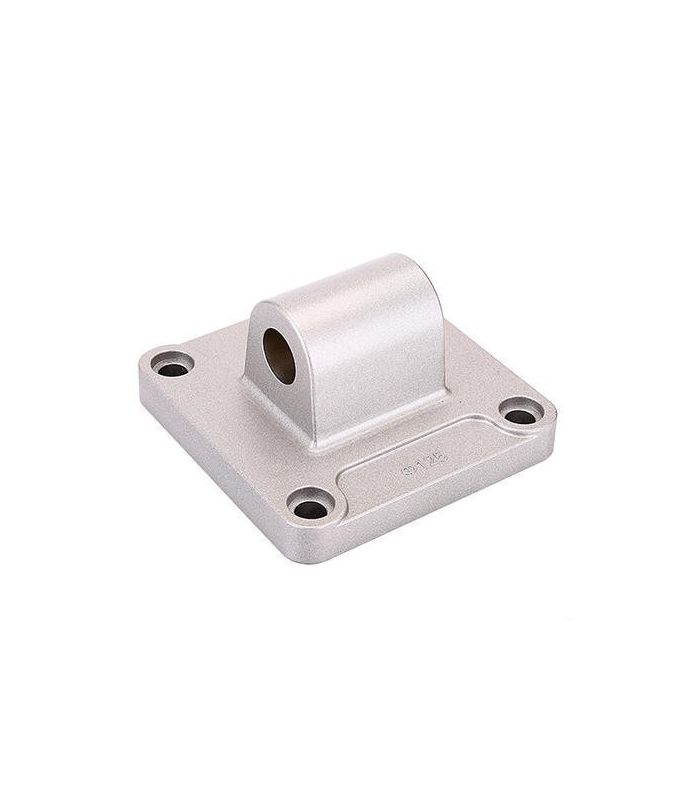

MALE SWING FIXTURE

A male clevis fitting is used in pneumatic or hydraulic systems to connect the end of a cylinder (or similar actuator) to a component or structure. The connection point allows for rotary or angular movement of the cylinder around its axis.

Applications: Agricultural and construction machinery, Industrial vehicles, Industrial automation systems, Packaging and packing machinery, Robotics.

Technical sheet:

Based on ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
Corrosion resistance class KBK -2
Ambient temperature -40 to 150°C
RoHS Compliant
Made of die-cast aluminum
Zinc-plated steel bolts
Zinc-plated steel screw.

€9.61 (tax included)

€7.95 (tax excl.)

DIAMETERS

Reference:

53030018

Description
Comments

Description

male swivel fastener

FIJACION OSCILANTE MACHO

Product Details

Reference 53030018

Comments
