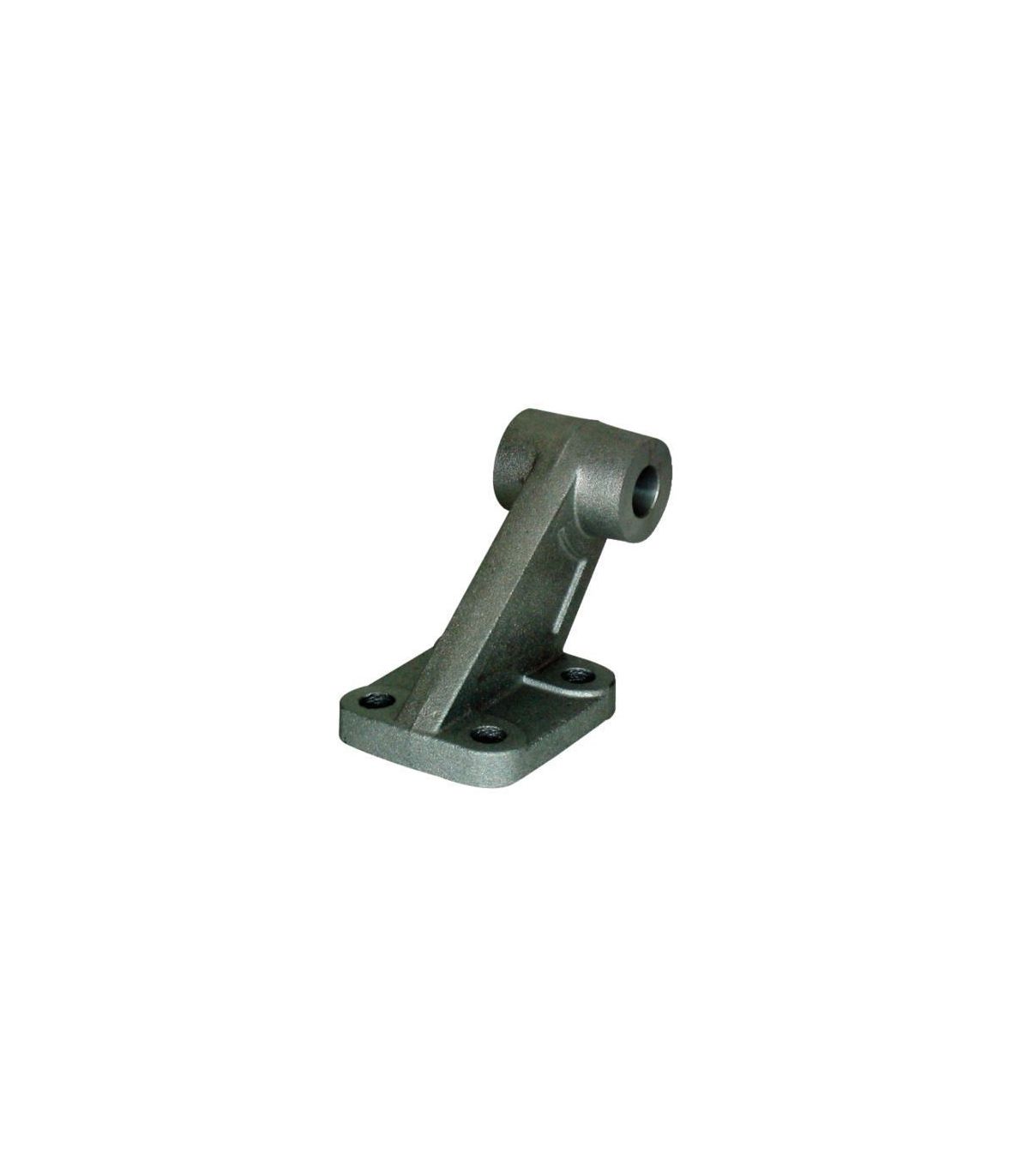

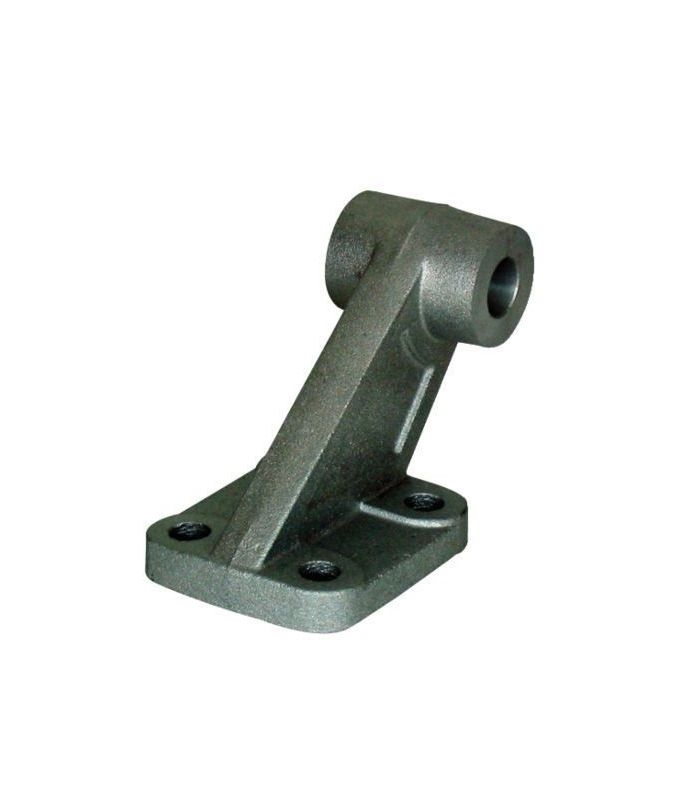

MALE HINGE 90º CNOMO RP107P

90º male hinge CNOMO RP107P

It is a fixing used in pneumatic cylinders, designed to connect the cylinder to other components of a system in a flexible manner.

It is attached to the pneumatic cylinder by means of a 90-degree angled male threaded connection, which is screwed into the corresponding female connection on the cylinder.

Applications: Industrial automation, Agricultural machinery, Medical equipment, Packaging.

Technical data sheet:

Made of aluminum.

€19.54 (tax included)

€16.15 (tax excl.)

DIAMETERS

Reference:

53850019

Description
Comments

Description

90º male hinge CNOMO RP107P

CHARNELA MACHO 90 CNOMO RP107P

Product Details

Reference 53850019

Comments
