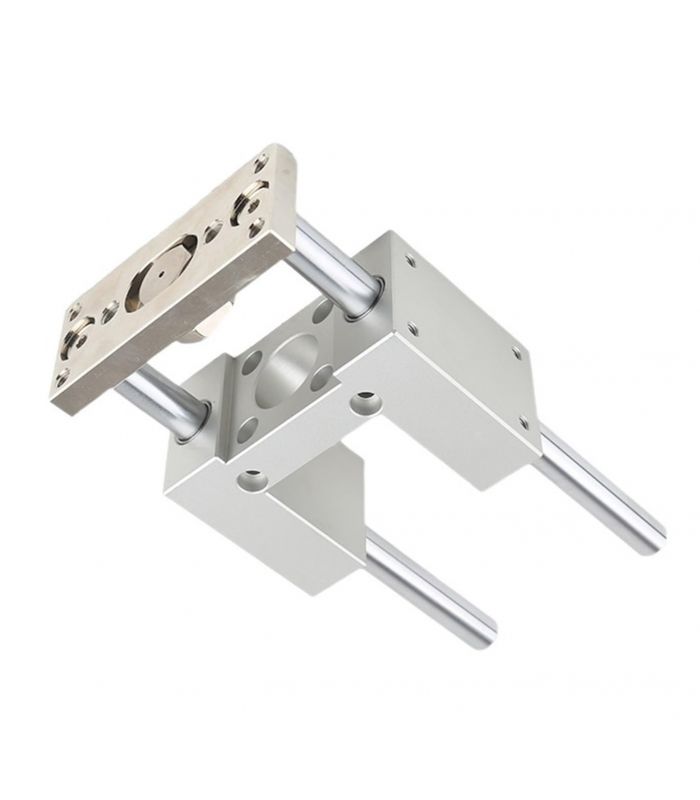

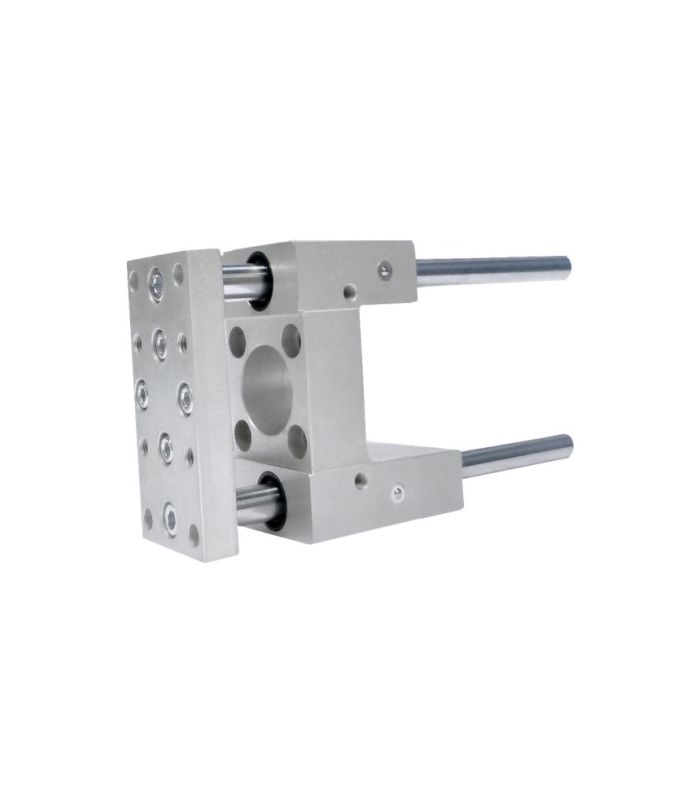

GUIDE UNIT U BUSHINGS ISO-6432
GUIDE UNIT U BUSHINGS ISO-6432
GUIDE UNIT U BUSHINGS ISO-6432
GUIDE UNIT U BUSHINGS ISO-6432

GUIDE UNIT U BUSHINGS ISO-6432

GUIDE UNIT U BUSHINGS ISO-6432

GUIDANCE UNIT:

  • Monobloc assembly, metal body (anodized aluminum)
  • Silver grey or black color
  • 4 self-lubricating sintered bronze plain bushings
  • 2 chrome-plated steel guide columns
  • Scraper seals at the level of the guide columns
  • High quality components that give it excellent performance

FEATURES:

  • High permissible loads
  • High guiding precision
  • Great robustness of the set
  • Coupling the cylinder rod in the guide unit by
  • Alignment compensation device.
  • ADAPTABLE CYLINDER
  • ISO 6432 standards
SPECS:
  • MAX SPEED 1 m/s
  • FLUID: Filtered, lubricated or NOT neutral air or gas
  • ALLOWABLE PRESSURE: 10 bar maximum
  • TEMPERATURE - 10º C + 70º C
  • MINIMUM TRAVEL: 10 mm
* CHECK PRICES FOR OTHER COURSES *
€229.52 (tax included)
€189.69 (tax excl.)
BORE x STROKE
  • Ø20-50
  • Ø20-100
  • Ø20-160
  • Ø20-200
  • Ø20-250
  • Ø20-320
  • Ø25-50
  • Ø25-100
  • Ø25-160
  • Ø25-200
  • Ø25-250
  • Ø25-320
  • Ø25-400
  • Ø25-500
Reference:
53250021
Description

GUIDE UNIT U BUSHINGS ISO-6432

Product Details
53250021
