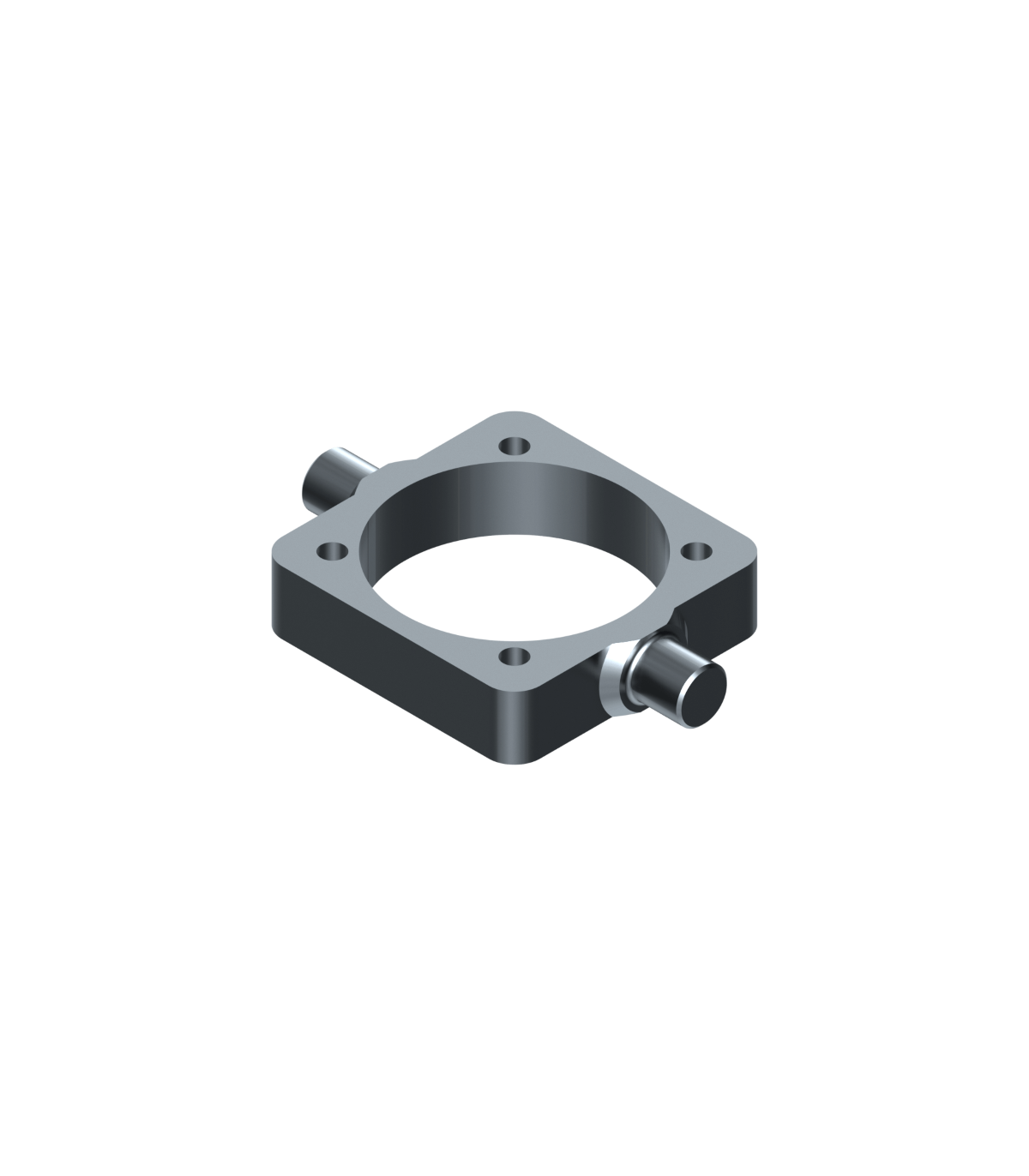

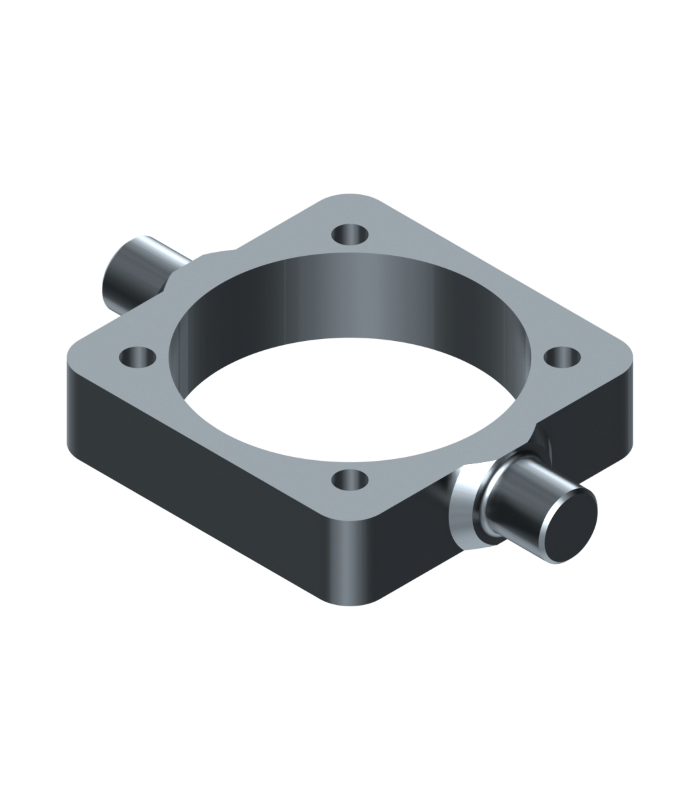

OSCILLATING SIDE HINGE
OSCILLATING SIDE HINGE
OSCILLATING SIDE HINGE
OSCILLATING SIDE HINGE

OSCILLATING SIDE HINGE

A swing-out hinge is a mechanical component designed to allow a door, hatch, or cover to swing about a pivot point or lateral axis. It allows limited, controlled movement in an arc around a lateral fixing point.

Applications: Industrial machinery, Automation equipment, Special vehicles, Electrical or control cabinets, Agricultural industry

Technical sheet:

  • Swing hinge.
  • Front or rear mounting.
  • Made of steel.
€124.82 (tax included)
€103.16 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
Reference:
53380031
Description

swinging side hinge

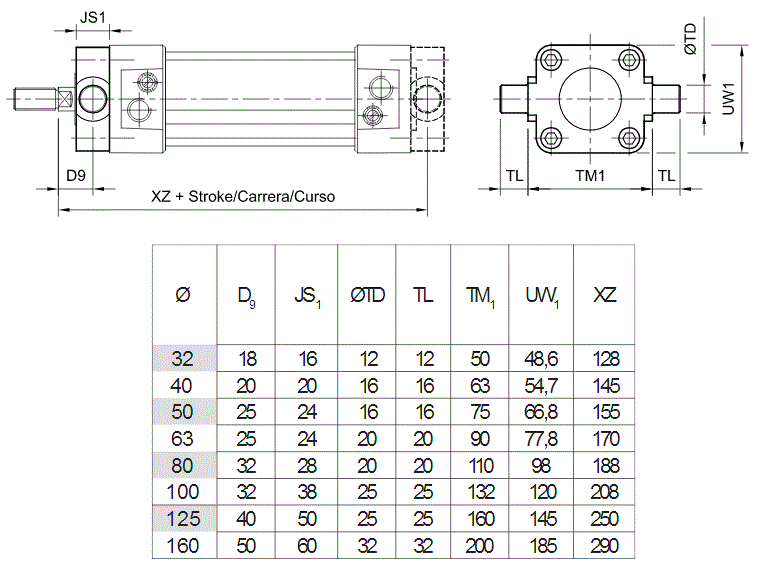

CHARNELA LATERAL OSCILANTE

Product Details
53380031
Comments
