CENTRAL OSCILLATING FIXATION
CENTRAL OSCILLATING FIXATION
CENTRAL OSCILLATING FIXATION
CENTRAL OSCILLATING FIXATION

CENTRAL OSCILLATING FIXATION

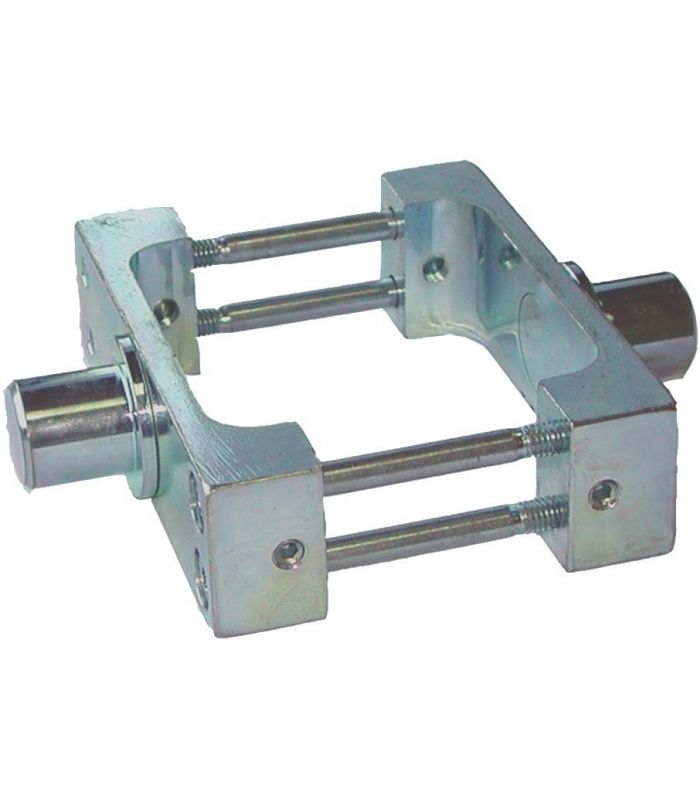

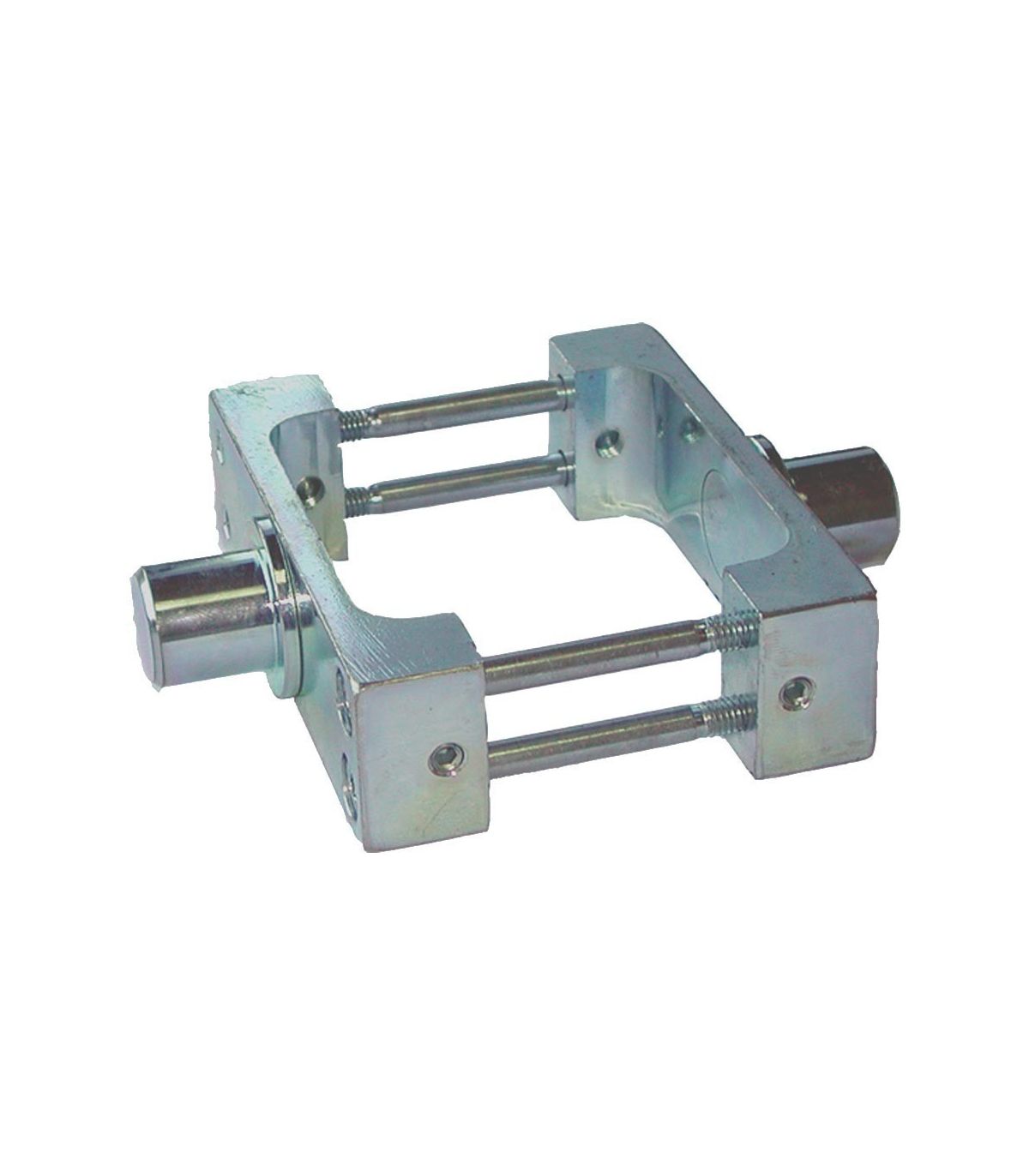

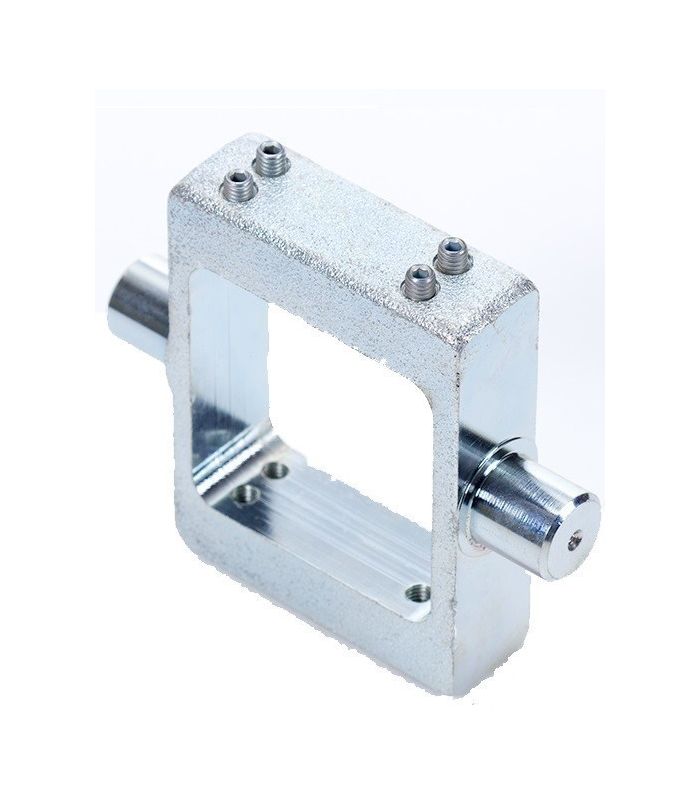

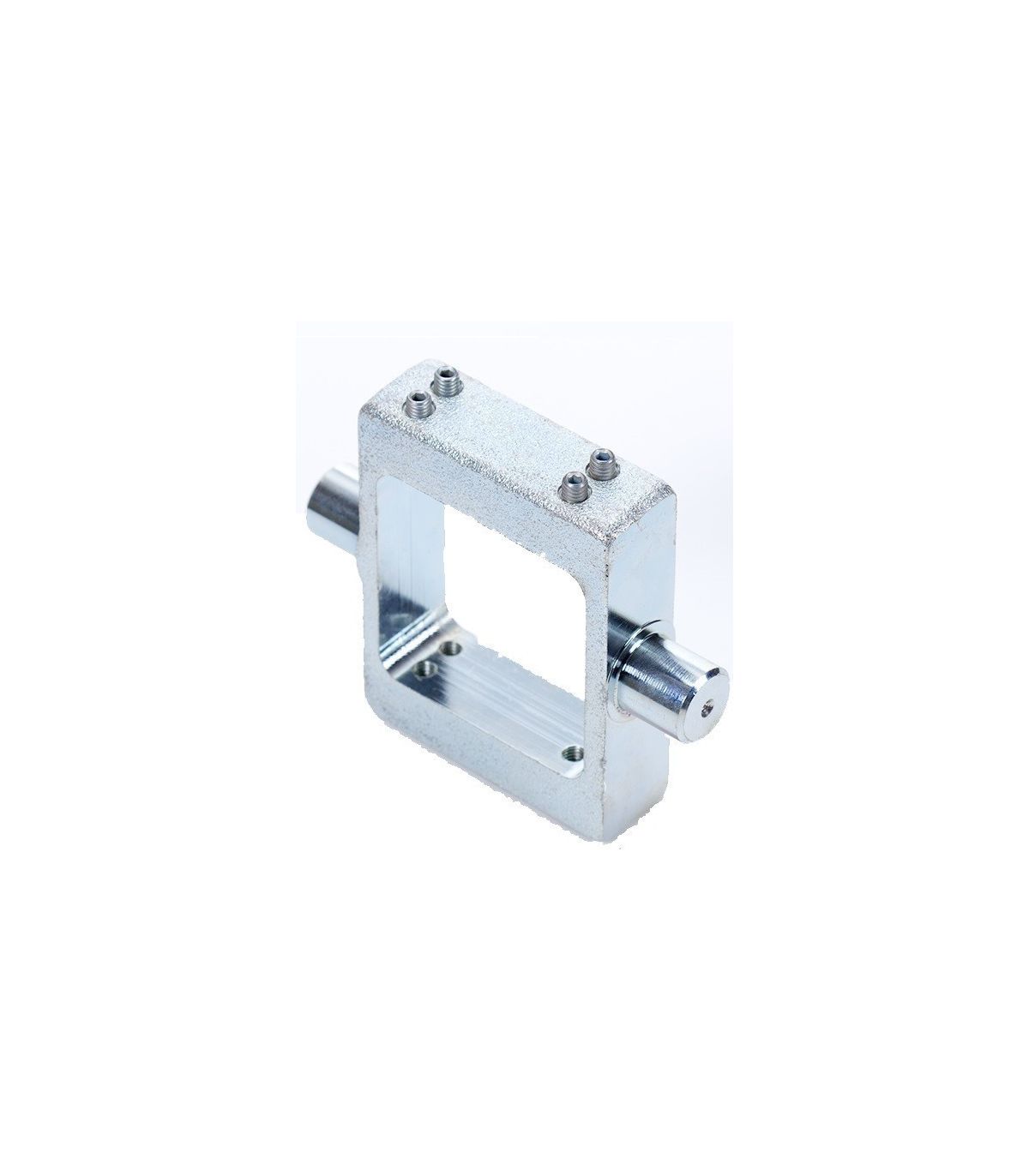

Oscillating central fixation

The central oscillating fixation is an accessory for pneumatic cylinders that allows the cylinder to be fixed and rotated at a central point.

Applications: Industrial automation systems, construction, food industry, automotive industry.

Data sheet:

  • Oscillating hinge for mounting on cylinder.
  • Made of steel.
  • It can be supplied assembled.
€125.20 (tax included)
€103.47 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
Reference:
53120019
Description

Oscillating central fixation

FIJACION CENTRAL OSCILANTE

Product Details
53120019
