BALL JOINT STEM ISO-15552
BALL JOINT STEM ISO-15552
BALL JOINT STEM ISO-15552
BALL JOINT STEM ISO-15552

BALL JOINT STEM ISO-15552

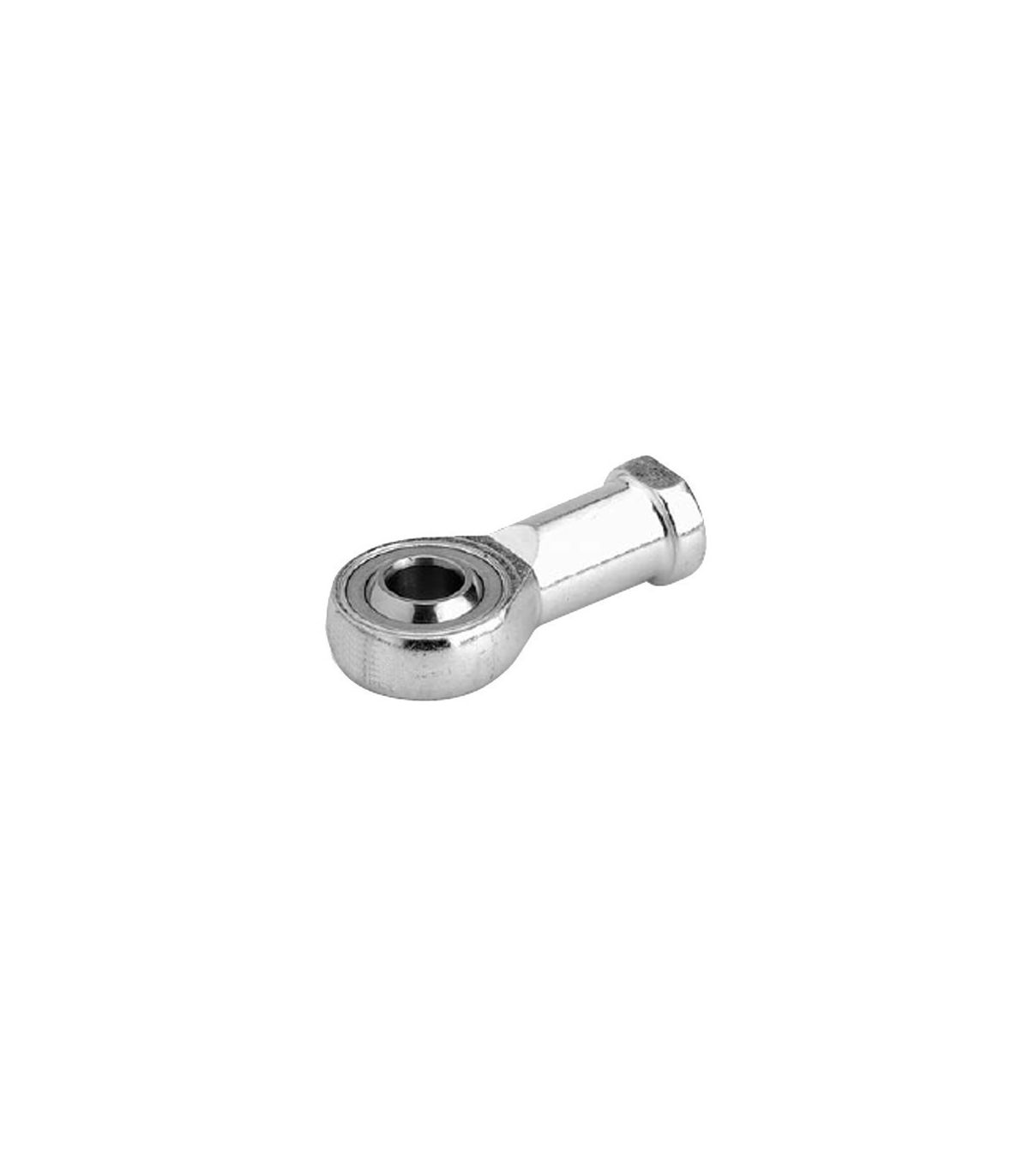

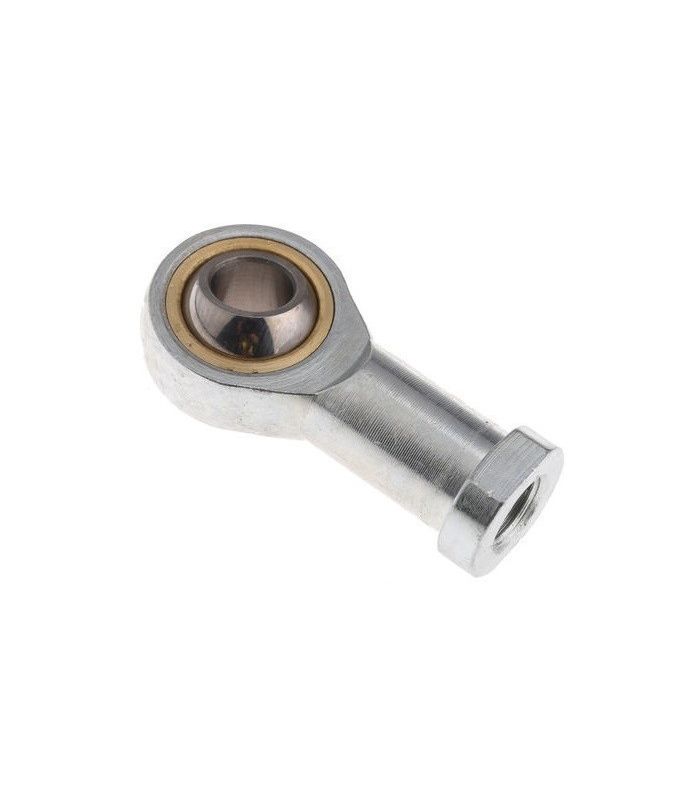

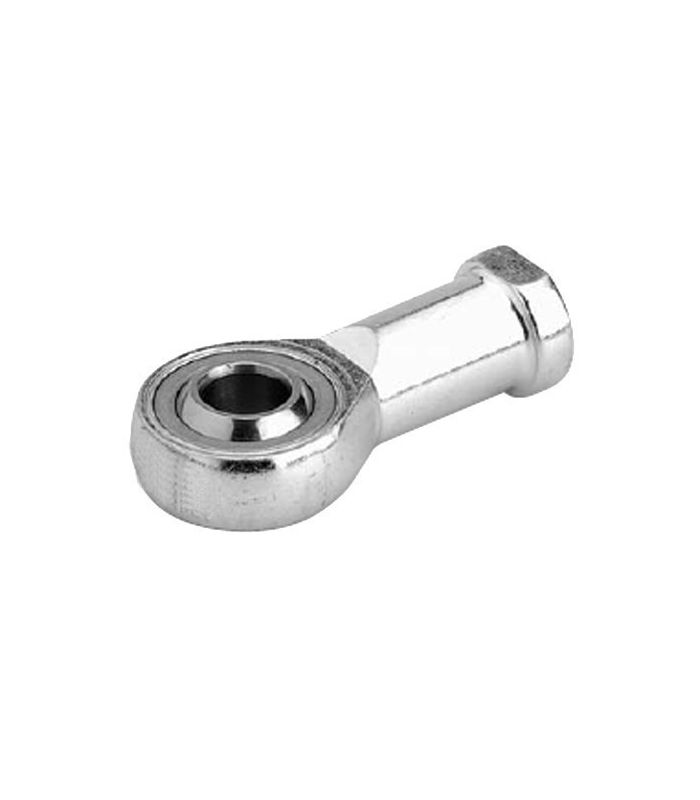

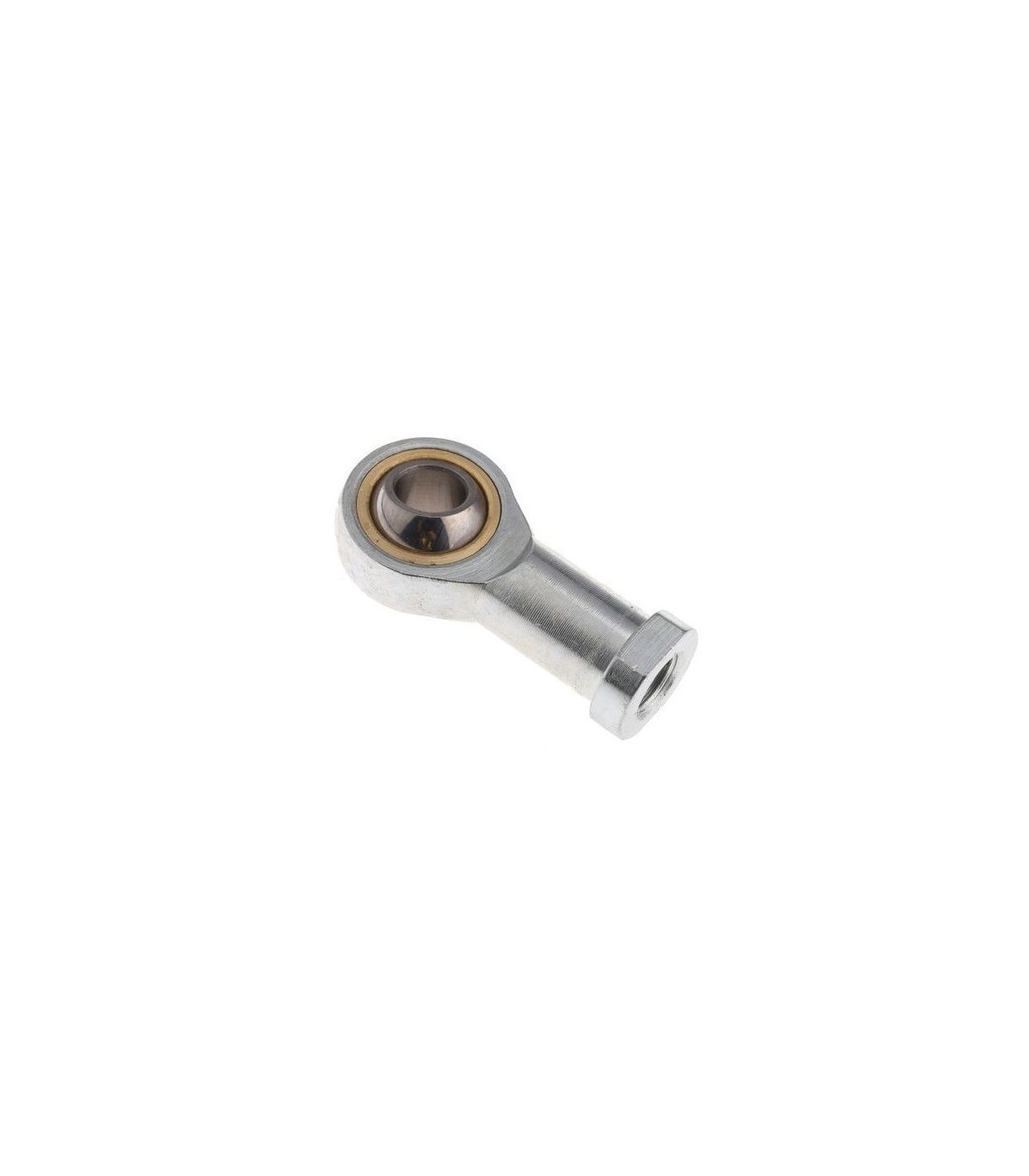

An ISO-15552 rod end joint is used to connect the rod end of a pneumatic or hydraulic cylinder to a moving component or a fixed structure of a machine.

Applications: Industrial Automation, Processing Machinery, Clamping Equipment, Industrial Robotics, Agricultural Machinery and Construction.

Technical sheet:

  • Manufactured according to DIN ISO 12240-4 SERIES K (DIN 648-K)
  • Self-locking, maintenance-free.
  • Reduced increase in clearance during operation.
  • Possibility of operation in contact or immersed in oil.
  • Operating temperature -30ºC / 150ºC
  • Select by cylinder Ø.
€7.24 (tax included)
€5.98 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
  • Ø 125
  • Ø 160
  • Ø 200
Reference:
53010016
Description

ISO-15552 rod end

Product Details
53010016
