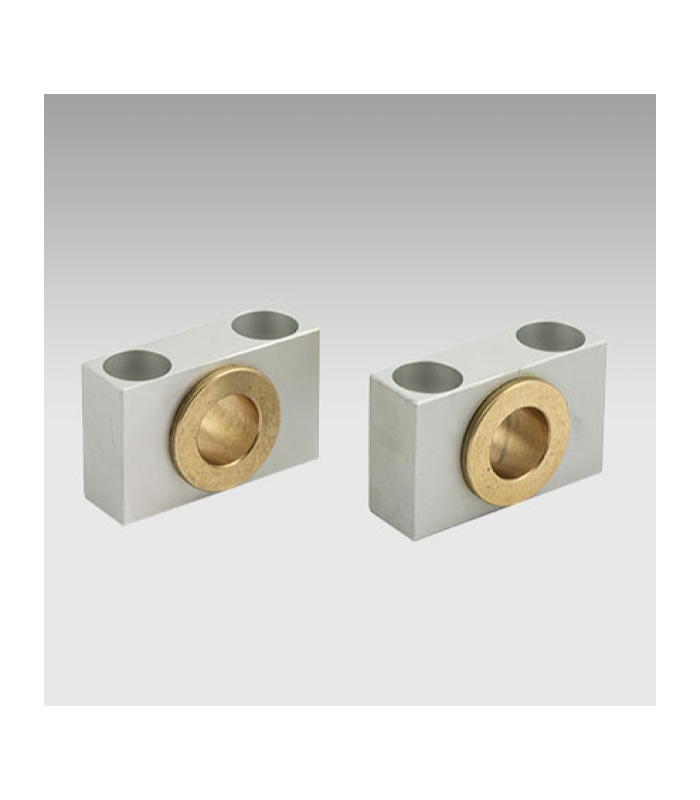

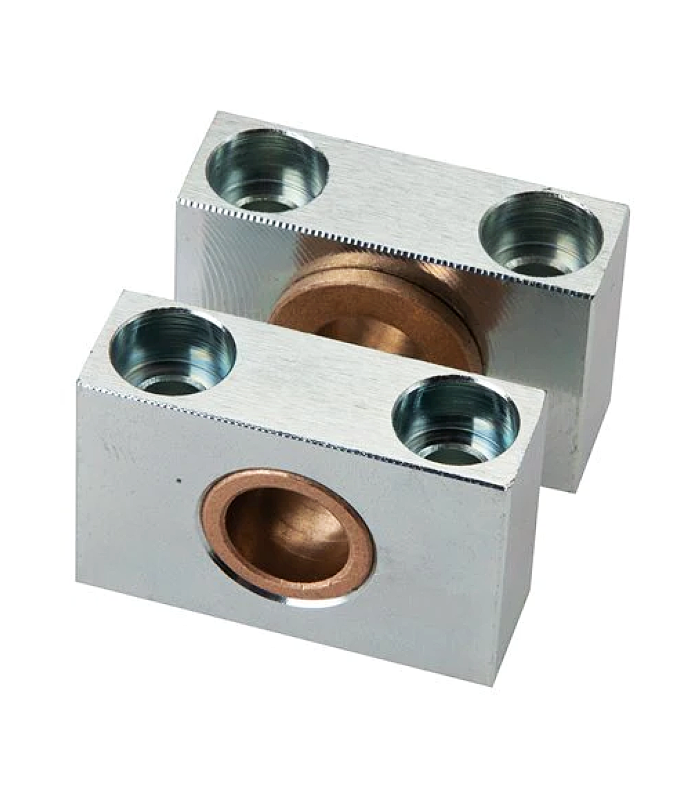

The intermediate hinge bracket is a mounting accessory designed to secure pneumatic cylinders, allowing controlled oscillating movement during operation. It is installed in the center of the cylinder body and acts as a pivot point.
It is suitable for applications where the cylinder works with variable loads or angular movements, as it improves the durability of the assembly and ensures more stable and safe operation.
Main features:
The intermediate hinge anchor is a mounting accessory designed for the articulated installation of pneumatic cylinders. It allows the cylinder to be mounted using an intermediate pivot point, facilitating controlled oscillation during movement and reducing lateral stress on the piston rod.
This type of anchoring is especially suitable for applications where the cylinder performs angular movements or works with slight misalignments, as it helps to extend the actuator's lifespan and improve the stability of the assembly.
Technical specifications for an intermediate hinge anchor:
