HYDRAULIC FITTINGS

  • 60º STEEL HYDRAULIC FITTINGS

    60º STEEL HYDRAULIC FITTINGS

    <h2>60º Hydraulic Fitting. Buy online at the best price</h2><p> <strong>Hydraulic fittings or adapters with a 60 degree angle</strong> are a type of connection used in hydraulic systems. These adapters typically have a tapered shape and are used to connect pipes or hoses in hydraulic applications where a 60-degree angle is required to accommodate the needs of the installation.</p><p> The <strong>Hydraulic Fitting with 60º angled thread</strong> consists of two main parts: the male adapter and the female part. The adapter has one male thread with a 60 degree taper seat on the end, and the other has a female thread with a 60 degree taper seat where the adapter sits.</p><p> When the two parts are joined and tightened correctly, the conical seats engage, creating a tight seal that prevents fluid leaks. Hydraulic adapters with a 60-degree angle can have various configurations, such as male thread or female thread, hose-thread , spherical, screws and can be available in different sizes, 1/8, ¼, 3/8, ½, 5/8, ¾, 1”, 1-1/4, 1-1/2, 2” etc… and different diameters to adapt to the specific needs of the hydraulic system.</p><p> The <strong>oleohydraulic fittings with 60 degree thread</strong> are made of carbon steel, they withstand a temperature between -20ºC and 120ºC. There are links that combine 60 degree threads with others such as BSP, NPT, ORFS, METRICA, JIC/SAE etc... to be able to make all types of splices and adaptations.</p><p> There is a wide range of accessories with this thread, straight fittings, 45º angled, 90º angled, plugs, adapters, tees, unions, wall grommets, etc.</p><p> These adapters are used in a wide variety of hydraulic applications, including heavy machinery systems, industrial equipment, transportation systems and marine applications. They are especially common in hydraulic systems that require angular connections to accommodate curves or conform to system geometry.</p><p> It is important to follow the manufacturer's recommended installation specifications and procedures to ensure proper mounting and reliable performance of 60-degree angle hydraulic adapters. This may include using proper tools and torques, properly cleaning and preparing connecting surfaces, and regularly inspecting connections for leaks or wear.</p>
  • 60º STAINLESS STEEL HYDRAULIC FITTINGS

    60º STAINLESS STEEL HYDRAULIC FITTINGS

    <h2>HYDRAULIC FITTING 60º STAINLESS STEEL. Buy online at the best price</h2><p> <strong>INOX hydraulic fittings or adapters with a 60 degree angle</strong> are a type of connection used in hydraulic systems. These adapters typically have a tapered shape and are used to connect pipes or hoses in hydraulic applications where a 60-degree angle is required to accommodate the needs of the installation.</p><p> The <strong>INOX Hydraulic Fitting with 60º angled thread</strong> consists of two main parts: the male adapter and the female part. The adapter has one male thread with a 60 degree taper seat on the end, and the other has a female thread with a 60 degree taper seat where the adapter sits. When the two parts are joined and tightened correctly, the conical seats engage, creating a tight seal that prevents fluid leaks.</p><p> <strong>INOX hydraulic adapters with a 60 degree angle</strong> can have various configurations, such as male thread or female thread, hose thread, spherical, screws and can be available in different sizes, 1/8, ¼, 3/8, ½, 5 /8, ¾, 1”, 1-1/4, 1-1/2, 2” etc… and different diameters to adapt to the specific needs of the hydraulic system.</p><p> The INOX oleohydraulic fittings with 60 degree thread are made of quality 316 stainless steel, <strong>they withstand a temperature between -40ºC and 200ºC</strong> . There are links that combine 60 degree threads with others such as BSP, NPT, ORFS, METRICA, JIC/SAE etc... to be able to make all types of splices and adaptations. There is a wide range of accessories with this thread, straight fittings, 45º angled, 90º angled, plugs, adapters, tees, unions, wall grommets, etc.</p><p> These adapters <strong>are used in a wide variety of hydraulic applications</strong> , including heavy machinery systems, industrial equipment, transportation systems and marine applications. Food, oil and marine industries They are especially common in hydraulic systems that require angular connections to accommodate curves or conform to the geometry of the system.</p><p> It is important to follow the manufacturer's recommended installation specifications and procedures to ensure proper mounting and reliable performance of 60-degree angle hydraulic adapters. This may include using proper tools and torques, properly cleaning and preparing connecting surfaces, and regularly inspecting connections for leaks or wear.</p>
  • HYDRAULIC FITTINGS DIN 2353

    HYDRAULIC FITTINGS DIN 2353

    <h2>Hydraulic fitting DIN 2353. Buy in our online store at the best price</h2><p> The "ring fitting" or "ring fitting" is a type of connection used in hydraulic and pneumatic systems that complies with DIN standard 2353 or ISO standard 8434. This standard defines the technical specifications for compression fittings with cutting ring for pipes made of stainless steel, carbon steel and other materials, they are part of the most widespread hydraulic union systems in the world. This type of pipe union has prevailed especially in Europe, Asia and South America due to its multiple advantages. Allows connection to all types of equipment, valves, cylinders and peripherals.</p><p> The <strong>DIN 2353 ring fitting</strong> , also known as the EO (Ermeto Original) fitting, is used to connect rigid tubes safely and reliably in hydraulic and pneumatic systems. This type of fitting uses a shear ring, also called a compression ring, which is placed on the outside surface of the tube in a 24-degree cone and is compressed against the seat of the fitting when tightening the nut. This creates a tight joint that prevents leaks and provides a connection resistant to vibration and high pressures. The type of connection is safe against leaks and resistant to loads due to changes in curvature, anticipatory impulses and tube breakage.</p><p> This type of joints can be assembled and disassembled as many times as required. This type of connection has been verified and certified by many certification societies around the world.</p><p> There are 3 varieties of DIN 2353 fittings depending on the pressures they will work with. Low pressure LL series up to 50 bar, light L series up to pressures of 250 bar and the heavy S series that can work up to 800 bar.</p><p> The DIN 2353 ring fitting is widely used in industrial, automotive and aerospace applications where a safe and reliable connection is required for the transport of high-pressure fluids. This type of fitting is known for its compact design, corrosion resistance and ease of assembly and disassembly.</p>
  • JIC HYDRAULIC FITTINGS

    JIC HYDRAULIC FITTINGS

    <h2>JIC/SAE HYDRAULIC FITTING. Buy at the best price</h2><p> The <strong>Hydraulic Fitting with JIC (Joint Industry Council) thread</strong> is another type of connection commonly used in hydraulic systems. The JIC is a thread standard that uses a 37-degree tapered profile at the junction of fittings to create a tight seal and ensure a reliable connection. With flared tube.</p><p> The <strong>Hydraulic Fitting with JIC thread consists of two main parts:</strong> the adapter and the hose. The adapter has a male thread with a 37-degree tapered seat on the end, and the hose has a female thread with a 37-degree tapered seat where the adapter sits. When the two parts are joined and tightened correctly, the conical seats engage, creating a tight seal that prevents fluid leaks.</p><p> The <strong>Hydraulic Fitting with JIC thread is widely used in high pressure hydraulic applications</strong> , such as heavy machinery systems, industrial equipment and transportation systems. It is especially common in aerospace, automotive, and demanding industrial applications.</p><p> The <strong>oleohydraulic fittings with JIC thread are made of carbon steel, they withstand a temperature between -20ºC and 120ºC</strong> . There are links that combine JIC threads with others such as BSPP, NPT, ORFS, METRICA, etc. to be able to make all types of splices and adaptations. There is a wide range of accessories with JIC thread, straight fittings, 45º angled, 90º angled, plugs, adapters, tees, unions, wall grommets, etc.</p><p> As with other types of hydraulic fittings, it is important to follow the manufacturer's recommended installation specifications and procedures to ensure proper mounting and reliable performance of the JIC Threaded Hydraulic Fitting. This may include using proper tools and torques, properly cleaning and preparing connecting surfaces, and regularly inspecting connections for leaks or wear.</p>
  • ORFS HYDRAULIC FITTINGS

    ORFS HYDRAULIC FITTINGS

    <h2>ORFS HYDRAULIC FITTING. Buy online at the best price</h2><p> The <strong>ORFS (O-Ring Face Seal) Threaded Hydraulic Fitting</strong> is a type of connection used in hydraulic systems to ensure a tight and reliable connection. ORFS is a thread standard that uses an O-ring to create a seal between the mating surfaces of the connections, helping to prevent fluid leaks and minimize pressure loss in the system. Initially implemented in the United States, but it has been expanding throughout the world.</p><p> The <strong>ORFS Threaded Hydraulic Fitting consists of two main parts: the adapter and the hose</strong> . The adapter has a male thread with a flat seat on the end where an O-ring is placed, and the hose has a female thread with a flat seat where another O-ring is placed. When the two parts are joined together and properly tightened, the O-rings compress between the mating surfaces, creating a tight seal that prevents fluid leaks.</p><p> The <strong>ORFS Hydraulic Fitting with thread</strong> is used in a wide variety of hydraulic applications, including high pressure systems, being able to work at pressures of up to more than 600 bar, motion control systems, steering systems, braking systems and systems. of transmission. It is widely used in the automotive industry, construction equipment, agricultural machinery and other industrial hydraulic equipment.</p><p> <strong>ORFS threaded oleohydraulic fittings are made of carbon steel</strong> , they withstand a <strong>temperature between -20ºC and 120ºC</strong> . There are links that combine ORFS threads with others such as BSPP, NPT, JIC/SAE, METRICA, etc. to be able to make all types of splices and adaptations. There is a wide range of accessories with ORFS thread, straight fittings, 45º angled, 90º angled, plugs, adapters, tees, unions, wall grommets, etc.</p><p> It is important to follow the manufacturer's recommended specifications and installation procedures to ensure proper mounting and reliable performance of the ORFS Threaded Hydraulic Fitting. This may include using proper tools and torques, correctly selecting O-rings, and regularly inspecting connections for leaks or wear.</p>
Filter By
€1.92 (tax excl.)
ORFS fitting in carbon steel. SAE J1453 Standard Temperature -20 / 120ºC. No leakage. Pressures: Up to 8,630 bar Up to 20,420 bar Up to 24,350 bar Up to 32,210 bar ?
€1.37 (tax excl.)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.
€5.53 (tax excl.)
High pressure GAS thread fitting ( BSP british standard pipe) 60º cone closure termination Manufactured in INOX-316 Max pressure 400 bar. Temperature -40ºC / 200ºC
€0.55 (tax excl.)
Conical closure fitting with 60º BSP thread. Made of carbon steel. White zinc plated. Working temperature -40 / 150ºC. Working pressure 250 bar.
€12.36 (tax excl.)
Working temperature -20 / 120?C. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance. Working pressures ? 6-8-10-12-14 600 bar. ? 16-20-25-30 400 bar. ? 38 315 bar.
€22.44 (tax excl.)
Steel tube according to EN 10305-4. Manufactured without welding in carbon steel, which is a strong and durable material, cold drawn. It is used in high pressure hydraulic circuits and structures. Complies with DIN...
€3.75 (tax excl.)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.
€7.34 (tax excl.)
Tightening nut for DIN-2353 ISO-8434 L series fittings Manufactured in INOX 1.4571 and 1.4404 Pressures, see attached table. Temperature -60ºC / 200ºC.
€4.25 (tax excl.)
Fitting DIN-2353 S straight tube conical thread Working temperature -20 / 120?C. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance Working pressures Ø 6-8-10-12-14 600 bar. Ø 16-20-25-30...
€17.91 (tax excl.)
ORFS fitting in carbon steel. SAE J1453 Standard Temperature -20 / 120ºC. No leakage. See other settings. Pressures: Up to 8,630 bar Up to 20,420 bar Up to 24,350 bar Up to 32,210 bar ?
€7.00 (tax excl.)
High pressure fitting NPT thread Conical closure termination. Manufactured in INOX-316 Max pressure 400 bar. Temperature -40ºC / 200ºC
€1.35 (tax excl.)
Conical closure fitting with 60º BSP thread. Made of carbon steel. White zinc plated. Working temperature -40 / 150ºC. Working pressure 250 bar.
€4.38 (tax excl.)
Working temperature -20 / 120ºC. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance. Working pressures: Ø 6-8-10-12-15 250 bar Ø 18-22 160 Bar Ø 28-35-42 100 Bar
€1.47 (tax excl.)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.
€5.01 (tax excl.)
Working temperature -20 / 120ºC. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance. Working pressures: Ø 6-8-10-12-15 250 bar Ø 18-22 160 Bar Ø 28-35-42 100 Bar
€6.80 (tax excl.)
ORFS series male female swivel 45º elbow fitting SAE J1453 Standard Temperature -20 / 120ºC. No leakage. See other settings. Pressures: Up to Ø8 630 bar Up to Ø20 420 bar Up to Ø24 350 bar Up to Ø32 210 bar
€8.50 (tax excl.)
High pressure fitting GAS-NPT thread GAS thread termination 60º cone closure, conical NPT thread Manufactured in INOX-316 Max pressure 400 bar. Temperature -40ºC / 200ºC See other thread configurations
€1.17 (tax excl.)
Conical closure fitting with 60º BSP thread. Made of carbon steel. White zinc plated. Working temperature -40 / 150ºC. Working pressure 250 bar.
€10.81 (tax excl.)
Working temperature -20 / 120?C. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance. Working pressures ? 6-8-10-12-14 600 bar. ? 16-20-25-30 400 bar. ? 38 315 bar.
€13.20 (tax excl.)

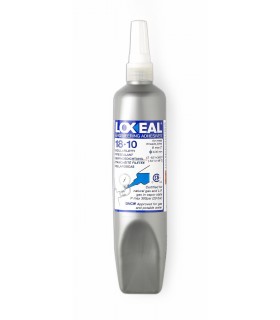

Liquid thread sealant up to 2" Substitute for Teflon tape. Approved for natural gas and steam according to European standard EN 751-1 Easily removable with a tool. Working temperature -55?C / 150?C. Handling time...
€2.04 (tax excl.)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.
€2.30 (tax excl.)
Flat closure fitting with BSPP thread. Made of carbon steel. Working temperature -40 / 150ºC. Working pressure 250 bar.
€4.78 (tax excl.)
ORFS fitting in carbon steel. SAE J1453 Standard Temperature -20 / 120ºC. No leakage. See other settings. Pressures: Up to 8,630 bar Up to 20,420 bar Up to 24,350 bar Up to 32,210 bar ?
€7.50 (tax excl.)
High pressure GAS thread fitting ( BSP british standard pipe) 60º cone closure termination Manufactured in INOX-316 Max pressure 400 bar. Temperature -40ºC / 200ºC
€2.62 (tax excl.)
Working temperature -20 / 120?C. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance. Working pressures 6-8-10-12-14 600 bar. 16-20-25-30 400 bar. 38 315 bar.
€8.88 (tax excl.)
Working temperature -20 / 120ºC. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance. Working pressures: Ø 6-8-10-12-15 250 bar Ø 18-22 160 Bar Ø 28-35-42 100 Bar
€1.02 (tax excl.)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.
€6.57 (tax excl.)
ORFS fitting in carbon steel. SAE J1453 Standard Temperature -20 / 120ºC. No leakage. See other settings. Pressures: Up to 8,630 bar Up to 20,420 bar Up to 24,350 bar Up to 32,210 bar ?
€6.69 (tax excl.)
High pressure GAS thread fitting ( BSP british standard pipe) Cylindrical thread termination Manufactured in INOX-316 Max pressure 400 bar. Temperature -40ºC / 200ºC
€0.55 (tax excl.)
Conical closure fitting with 60º BSP thread. Made of carbon steel. White zinc plated. Working temperature -40 / 150ºC. Working pressure 250 bar.
€5.51 (tax excl.)
Working temperature -20 / 120?C. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance. Working pressures ? 6-8-10-12-14 600 bar. ? 16-20-25-30 400 bar. ? 38 315 bar.
€1.91 (tax excl.)
Working temperature -20 / 120ºC. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance. Working pressures: Ø 6-8-10-12-15 250 bar Ø 18-22 160 Bar Ø 28-35-42 100 Bar
€7.51 (tax excl.)
High pressure GAS thread fitting ( BSP british standard pipe) 60º cone closure termination Manufactured in INOX-316 Max pressure 400 bar. Temperature -40ºC / 200ºC
€10.16 (tax excl.)
Working temperature -20 / 120?C. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance. Working pressures ? 6-8-10-12-14 600 bar. ? 16-20-25-30 400 bar. ? 38 315 bar.
€22.43 (tax excl.)
ORFS fitting in carbon steel. SAE J1453 Standard Temperature -20 / 120ºC. No leakage. See other settings. Pressures: Up to 8,630 bar Up to 20,420 bar Up to 24,350 bar Up to 32,210 bar ?
€3.02 (tax excl.)
SAE J-514 standard fitting (ISO 8434-2) Jointless coupling. Made of carbon steel. Fittings for 37º flared tube High mechanical assembly security. Max. pressure: 6-8-10 450 bar. 12-16-18-20-22 350 bar. 25-30-38 250 bar.
€3.84 (tax excl.)
Conical closure fitting with 60º BSP thread. Made of carbon steel. White zinc plated. Working temperature -40 / 150ºC. Working pressure 250 bar.
€1.64 (tax excl.)
Working temperature -20 / 120ºC. Made of DIN3859-1 drawn steel. ISO 4042 bichromate coating. Corrosion resistance. Working pressures: Ø 6-8-10-12-15 250 bar Ø 18-22 160 Bar Ø 28-35-42 100 Bar
Showing 1-44 of 205 item(s)

Hydraulic fittings. Buy online at the best price

Hydraulic fittings are connections that withstand a lot of pressure and serve to join hoses, tubes or fittings together and allow the connection of different elements in a safe way, through a fixed seal and without leaks in all pressure circuits. Liquid sealant or Teflon tape/thread is usually used.

Types of hydraulic fittings.

Hydraulic fittings Rule DIN-2353:

These fittings comply with the DIN-2353 standard and are used for joints in hydraulic pipe circuits. The closing cone is 24º. The sealing is carried out using a bicone and a nut, which is tightened to the body of the fitting. It has 3 series:

  • LL series for low pressures
  • L series for medium pressures
  • S series: ideal for high pressures

BSP thread adapter hydraulic fittings:

These fittings follow the ISO 228-1 standard, it is also known as BPS thread for its acronym in English British Standard Pipe, gas, parallel, or cylindrical thread. There is also the NPT thread

JIC – UNF thread hydraulic fittings:

This type of fitting is for 37° flared tubes. Widely used in automotive and construction.

JIC fitting:

37° cone, are combined with the different thread standards on the market

UNF fitting:

same type of thread, but without 37º cone

ORFS threaded hydraulic fittings:

This type of fitting is widely used in machines of American origin and is characterized by having a flat hermetic seal using an O-ring in the fitting. Used in the public works industry. Hydraulic fittings are usually made of steel or quality 316 stainless steel.
