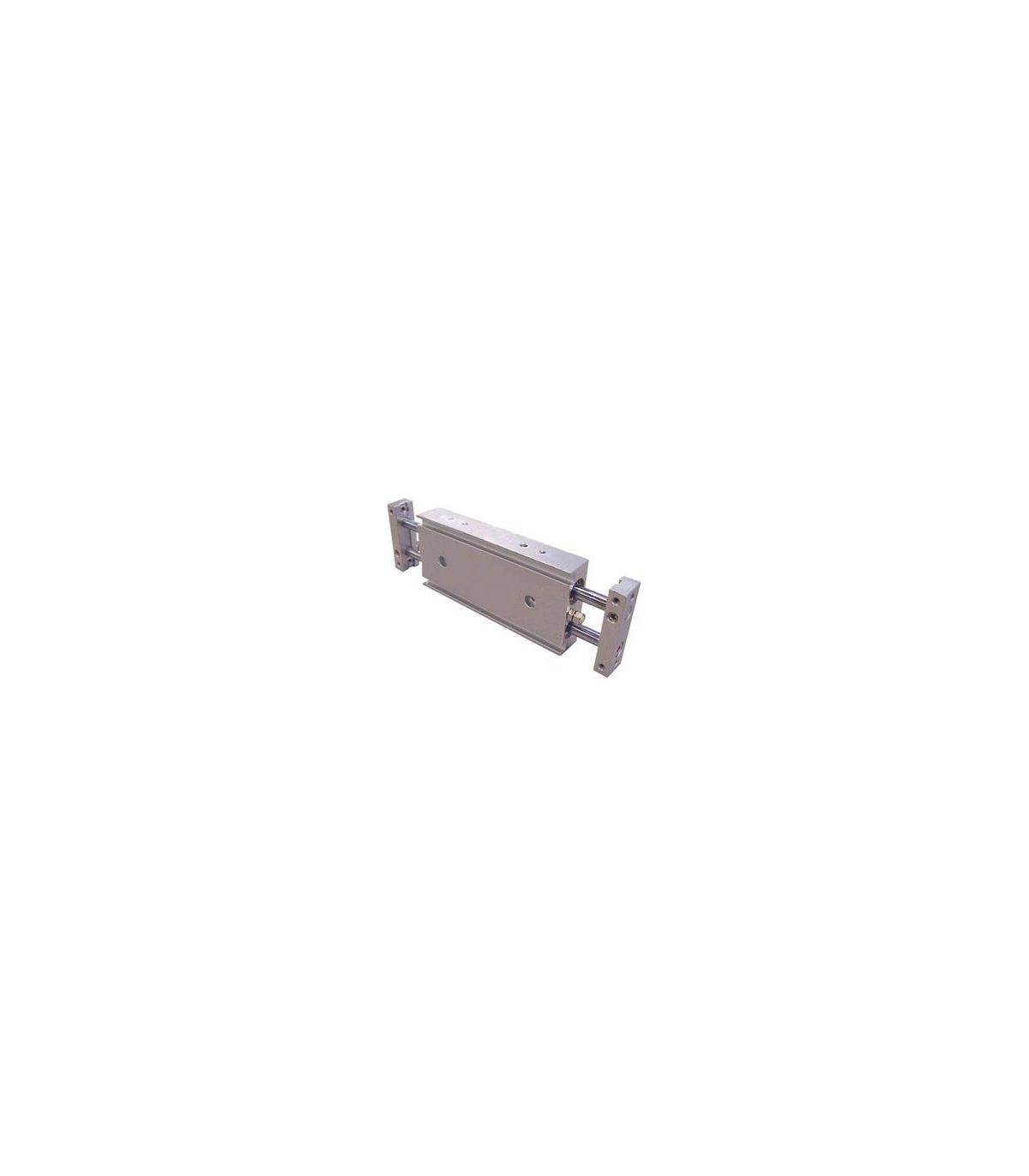

SPS THROUGH GUIDED LINEAR CYLINDER

SPS THROUGH GUIDED LINEAR CYLINDER

Guided cylinder with bushings, through rods.

  • Great precision and high loads.
  • Anti-rotation and development of double the force.
  • Input stroke adjustment.
  • Prepared for magnetic detection.
  • Aluminum body and covers.
  • Axle and guides in Inox-420.
  • Polyurethane joints.
  • Working pressure 1-10 bar.
  • Temperature -0 / 80ºC.
  • Max speed 0.3 m/s.

€499.27 (tax included)
€412.62 (tax excl.)
BORE x STROKE
  • Ø10-10
  • Ø10-25
  • Ø10-50
  • Ø16-10
  • Ø16-25
  • Ø16-50
  • Ø16-80
  • Ø16-100
  • Ø16-125
  • Ø20-10
  • Ø20-20
  • Ø20-25
  • Ø20-30
  • Ø20-40
  • Ø20-50
  • Ø20-60
  • Ø20-80
  • Ø20-100
  • Ø20-125
  • Ø20-160
  • Ø25-10
  • Ø25-20
  • Ø25-25
  • Ø25-30
  • Ø25-40
  • Ø25-50
  • Ø25-60
  • Ø25-80
  • Ø25-100
  • Ø25-125
  • Ø25-160
  • Ø25-200
  • Ø32-10
  • Ø32-20
  • Ø32-25
  • Ø32-30
  • Ø32-40
  • Ø32-50
  • Ø32-60
  • Ø32-75
  • Ø32-80
  • Ø32-100
  • Ø32-125
  • Ø32-160
  • Ø32-200
Reference:
50310010
Description

CILINDRO LINEAL GUIADO PASANTE SPS

Product Details
50310010
