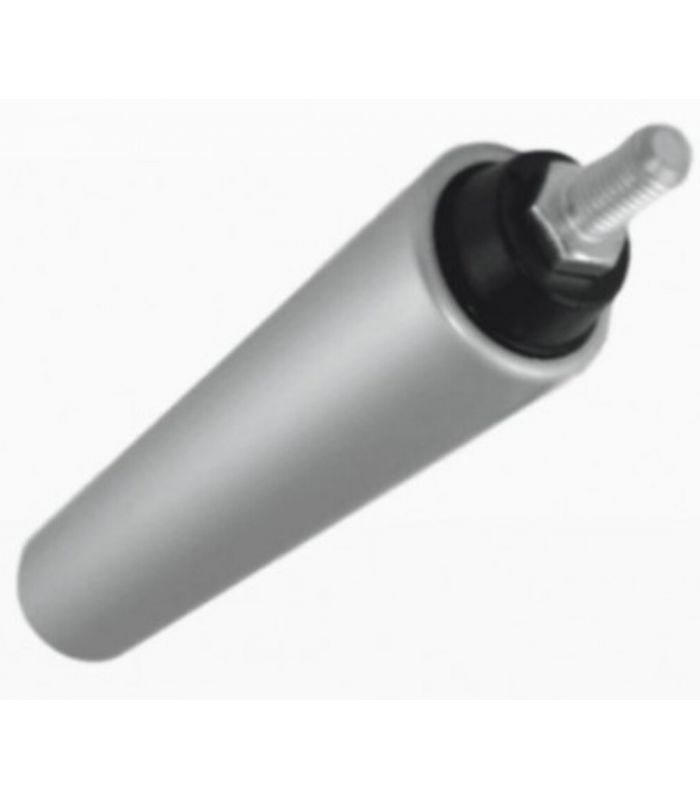

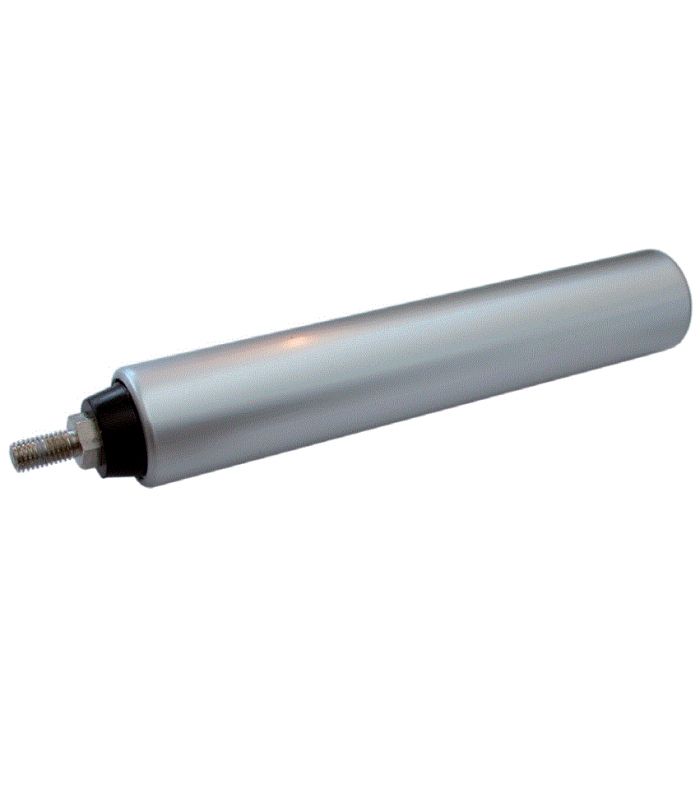

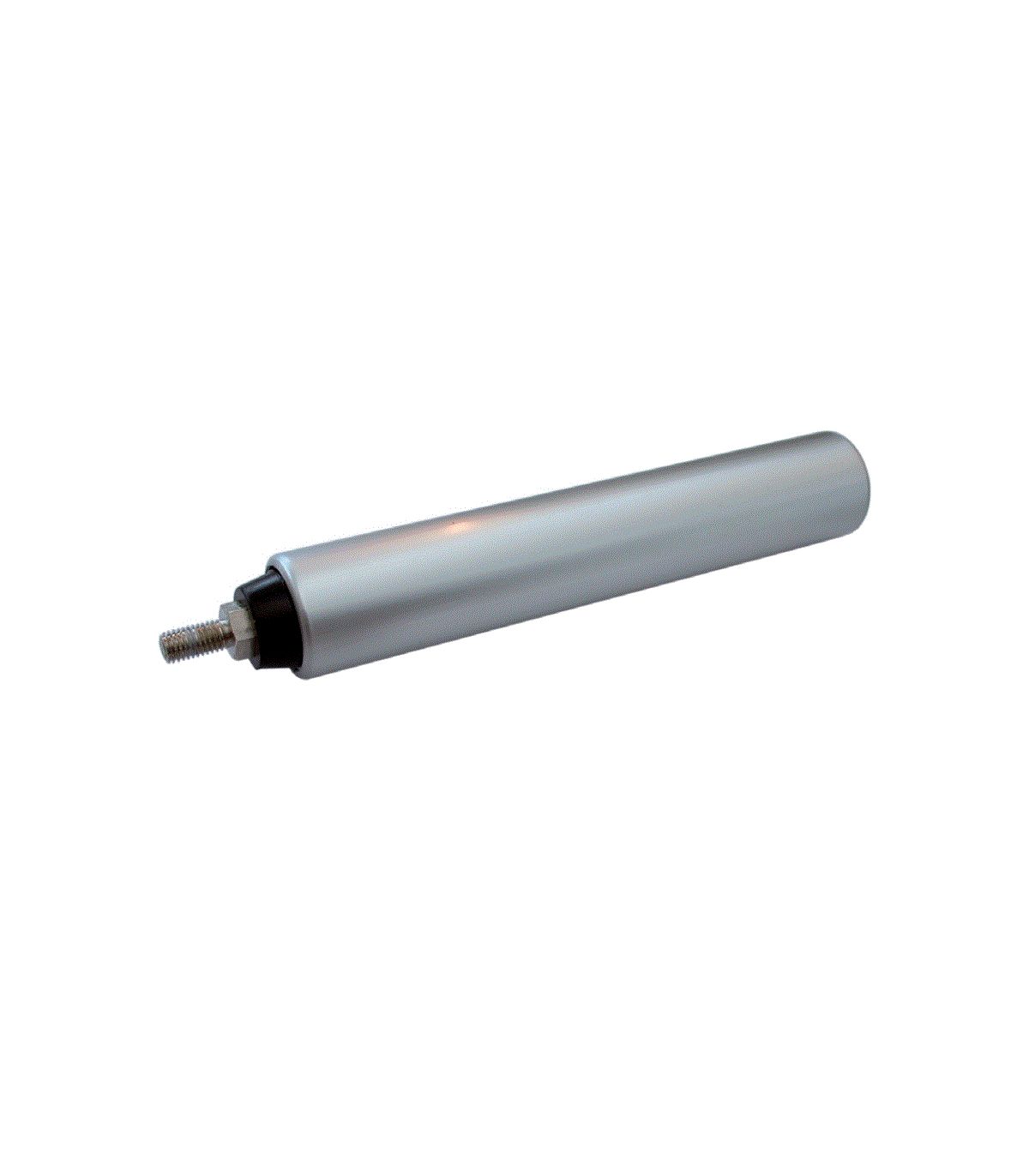

SINGLE ACTING PRESSURE CYLINDER

Technical data sheet for single-acting pressure cylinder:

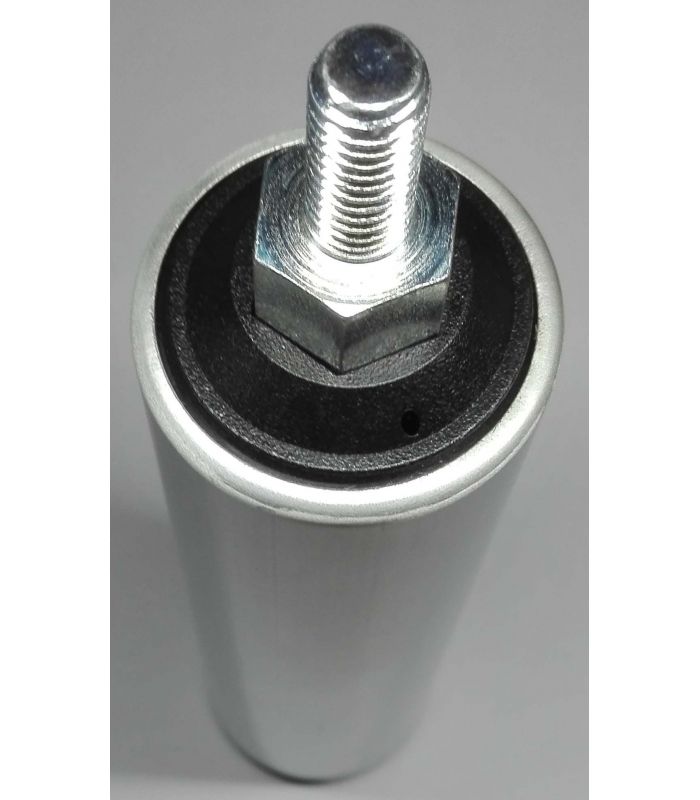

Anti-twist hexagonal stem.
Available in 45 and 40 mm diameters (refers to the outer diameter)
Strokes 70/75 and 115 mm.

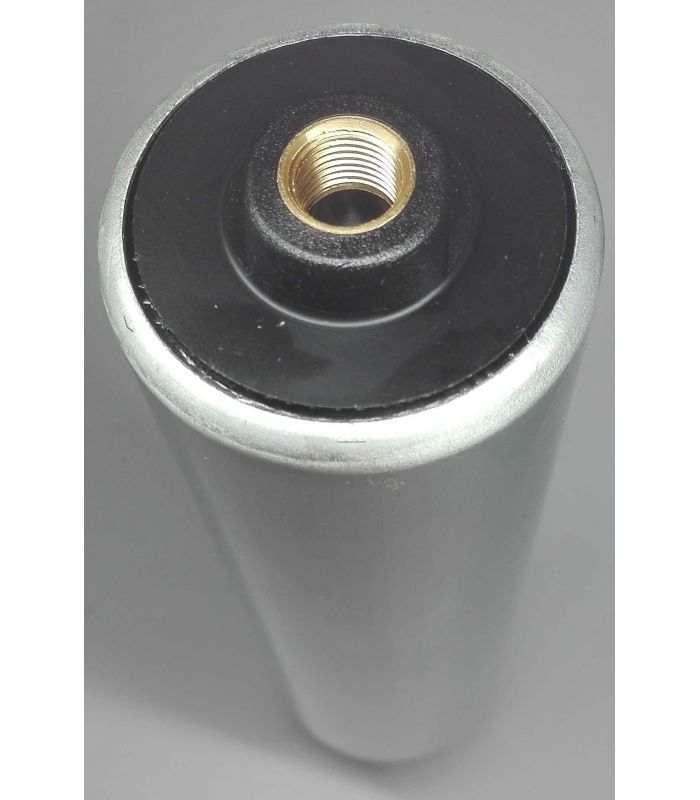

Air inlet thread 1/8"
Working pressure 2-10 bar.
Temperature -10ºC / 70ºC
- Working force at 6 bar in diameter 40,600 N
- Working force at 6 bar in diameter 45,800 N

€94.38 (tax included)

€78.00 (tax excl.)

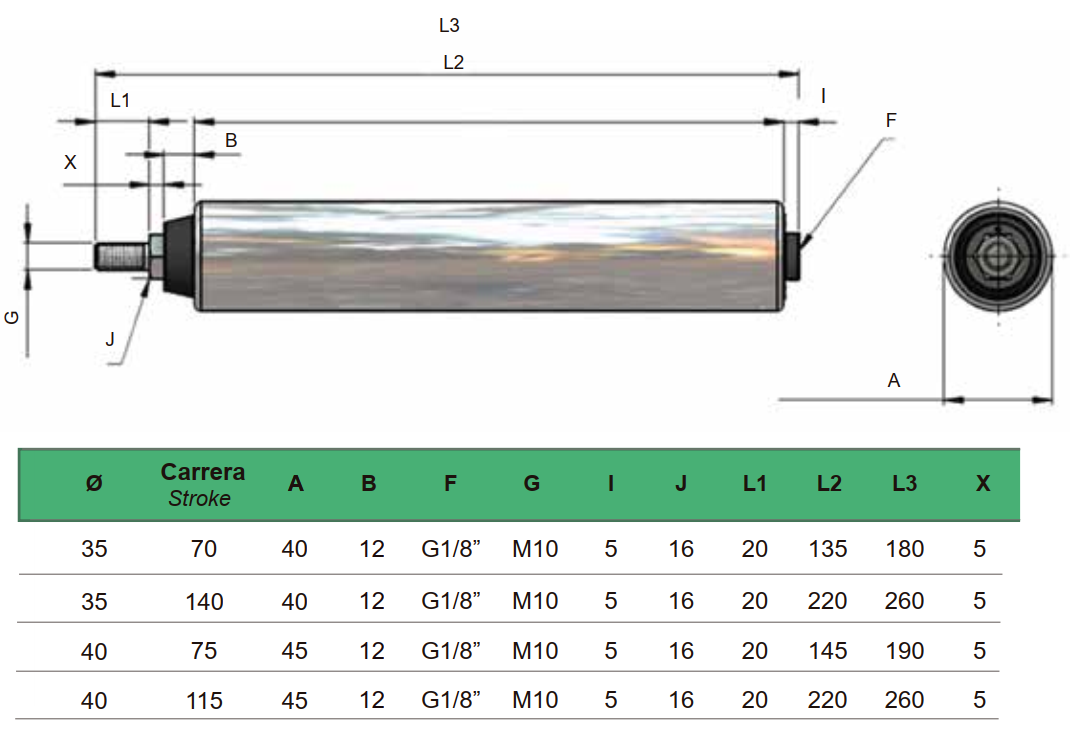

BORE x STROKE

Ø45-115
Ø40-70
Ø45-75
Ø40-140

Reference:

50060108

Description
Comments

Description

Single acting pressure cylinder

Product Details

Reference 50060108

Comments
