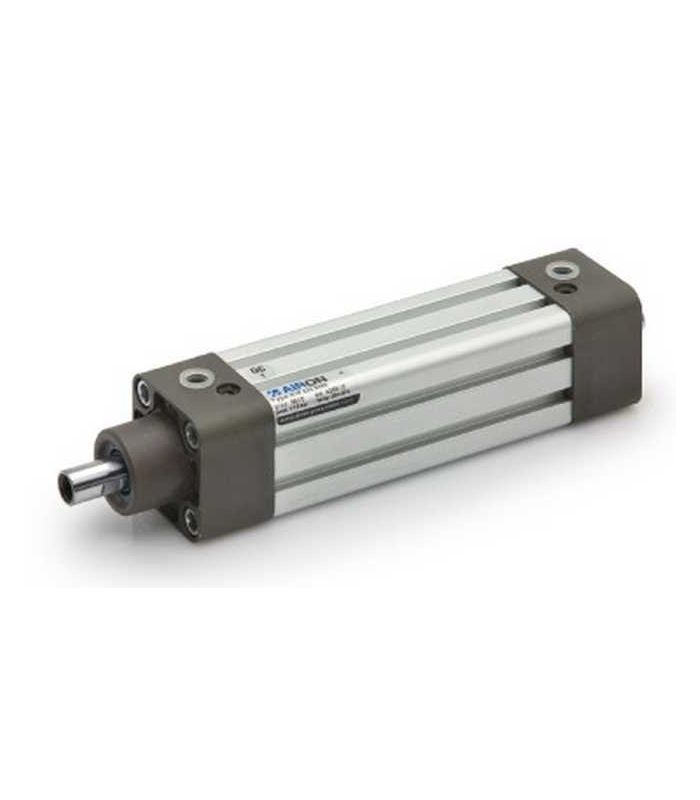

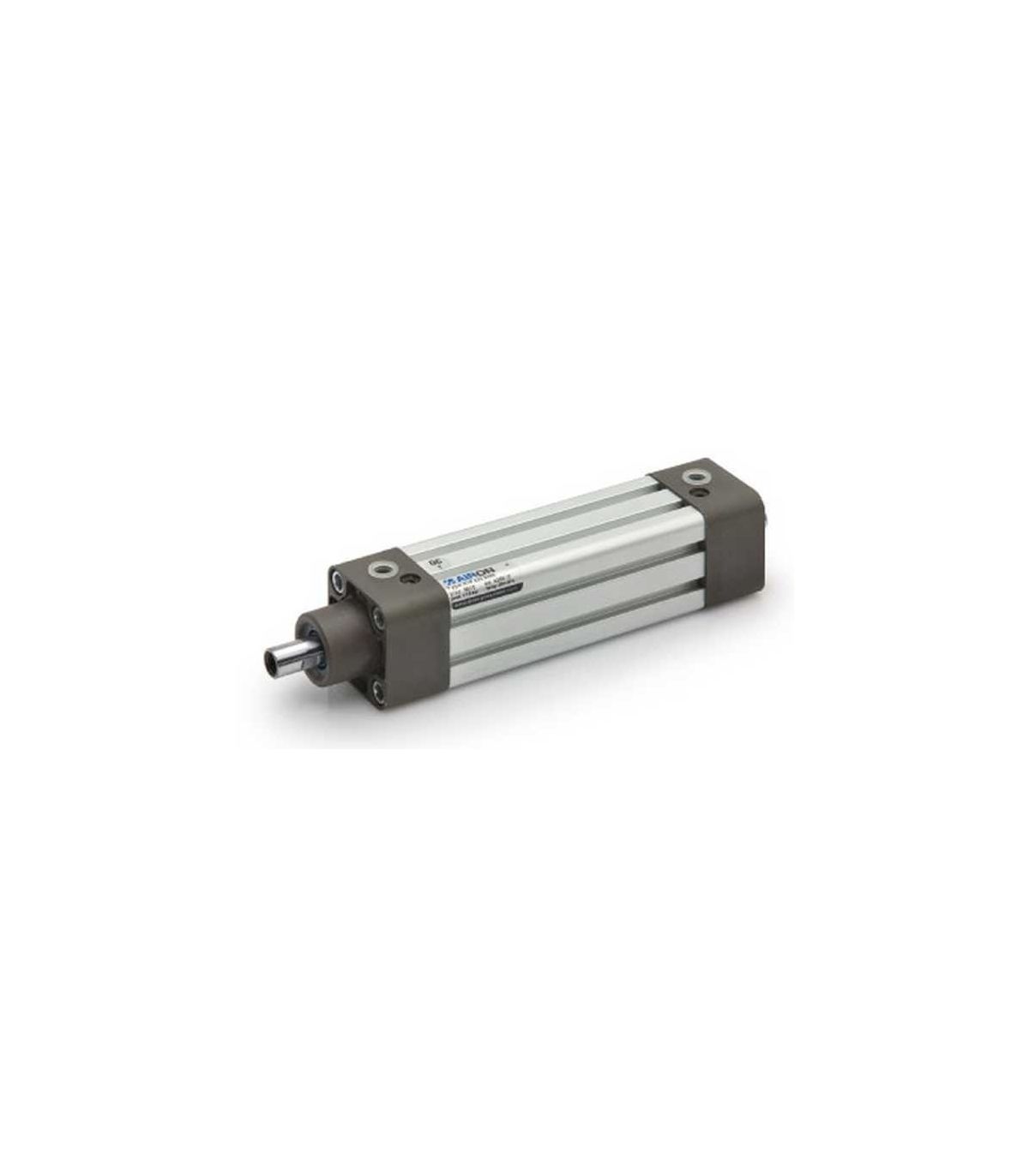

ISO 15552 CYLINDER HOLLOW STEM K1F

ISO 15552 CYLINDER HOLLOW STEM K1F

ISO-15552 CYLINDER WITH THROUGH HOLLOW ROD USED FOR VACUUM APPLICATIONS

  • Cylinder manufactured under ISO-15552 standard except the stem thread.
  • By having a hollow stem, it allows the circulation of fluids, vacuum etc etc...
  • Double effect.
  • Max speed of the cylinder 1 m/sg.
  • Aluminum profile with hidden braces.
  • Intended for magnetic detection.
  • The sensors are integrated into the profile (no additional support needed)
  • Pressure 10 bar.
  • Working temperature -20ºC / 70ºC.
  • Polyurethane gaskets that ensure low-friction and long-lasting operation.
  • Available in the following diameters 32 - 40 - 50

CHECK OUT OTHER CAREERS OR OPTIONS

€253.54 (tax included)
€209.54 (tax excl.)
BORE x STROKE
  • Ø32-25
  • Ø32-50
  • Ø32-80
  • Ø32-100
  • Ø32-125
  • Ø32-160
  • Ø32-200
  • Ø32-250
  • Ø32-300
  • Ø32-320
  • Ø32-400
  • Ø32-500
  • Ø32-600
  • Ø32-700
  • Ø32-800
  • Ø32-900
  • Ø32-1000
  • Ø40-25
  • Ø40-50
  • Ø40-80
  • Ø40-100
  • Ø40-125
  • Ø40-160
  • Ø40-200
  • Ø40-250
  • Ø40-300
  • Ø40-320
  • Ø40-400
  • Ø40-500
  • Ø40-600
  • Ø40-700
  • Ø40-800
  • Ø40-900
  • Ø40-1000
  • Ø50-25
  • Ø50-50
  • Ø50-80
  • Ø50-100
  • Ø50-125
  • Ø50-160
  • Ø50-200
  • Ø50-250
  • Ø50-300
  • Ø50-320
  • Ø50-400
  • Ø50-500
  • Ø50-600
  • Ø50-700
  • Ø50-800
  • Ø50-900
  • Ø50-1000
Reference:
50230077
Description

CILINDRO ISO 15552 VASTAGO HUECO K1FCILINDRO ISO 15552 VASTAGO HUECO K1F

Product Details
50230077
