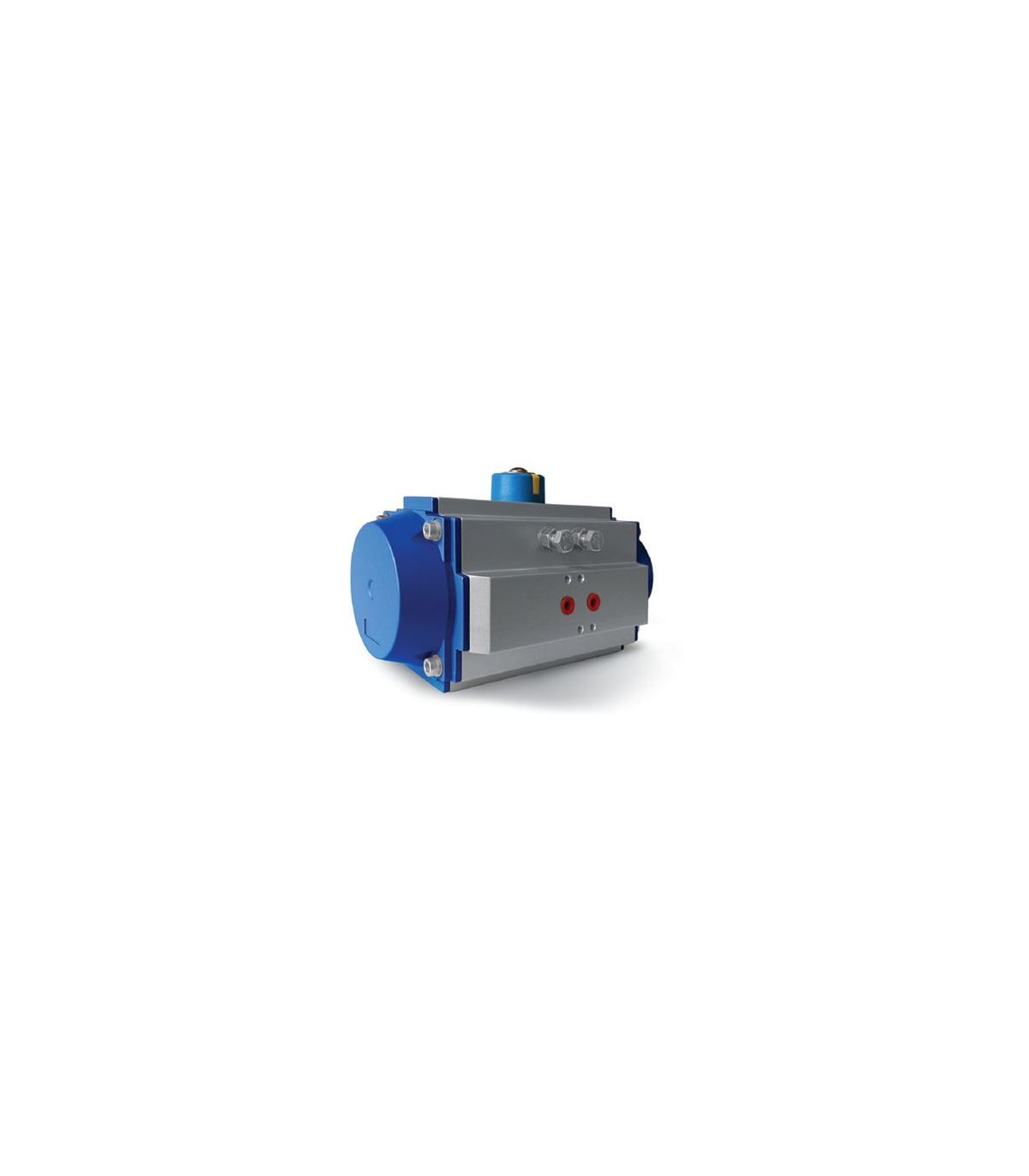

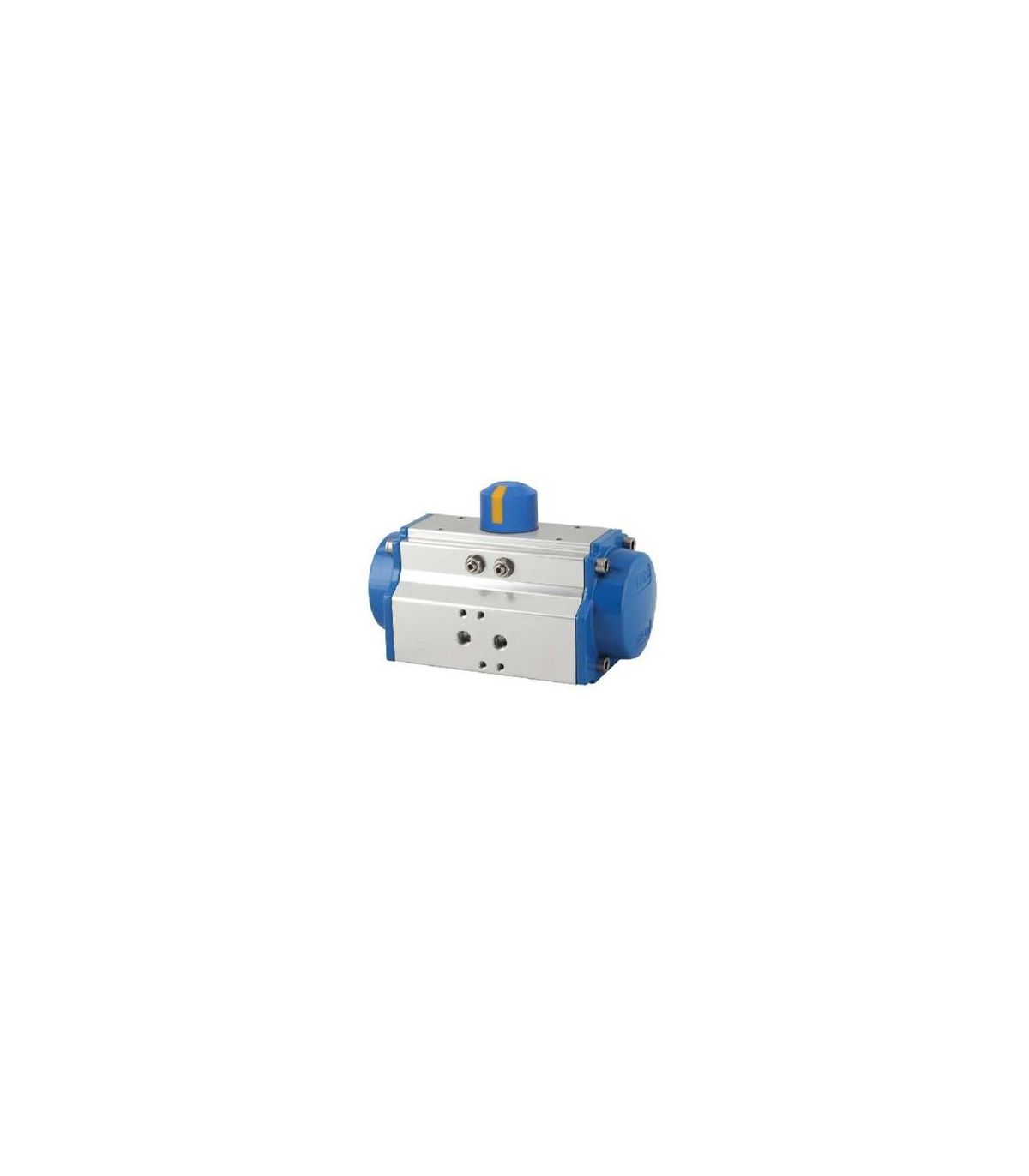

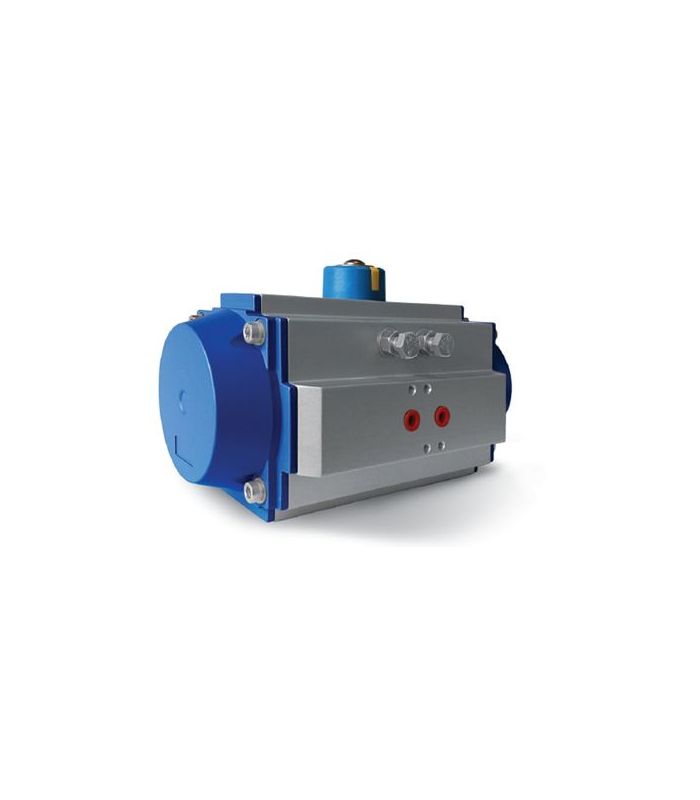

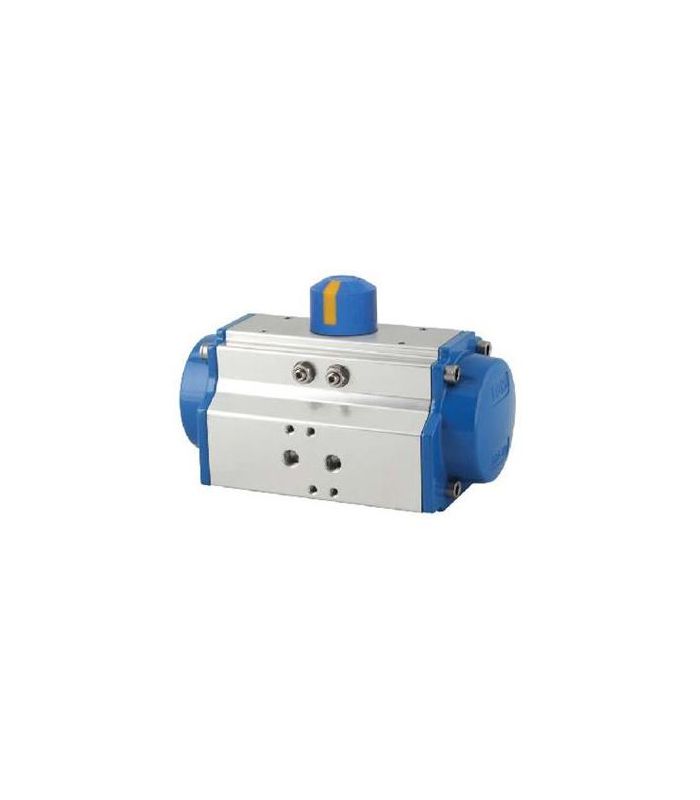

DOUBLE-ACTING PNEUMATIC ACTUATOR

Double acting pneumatic actuator

  • External regulation of the opening of a wide range of models ranging from 9 to 48833 Nm.
  • Polyester epoxy caps, chemical nickel shaft, AISI 316 body or hard anodized.
  • They are used for the control and regulation of butterfly, ball, gate valves, etc., with different operating torques and diameters ranging from DN 15 to DN 1000.
  • Power: Filtered, dry or lubricated compressed air,
  • Minimum pressure 2.5 bar, maximum pressure 10 bar.
  • Lubrication carried out in the factory and guaranteed for a minimum of 1.000.000 maneuvers.
  • Finishing the inner surface of the body (Ra 0.4-0.6 um) to minimize friction and maximize actuator life.
  • Sliding pads made of low friction coefficient material (LAT LUB) to avoid metal-metal contact, easily replaceable for maintenance.
  • Double bottom drilling for anchoring and centering the valve according to ISO 5211 and DIN 3337.
  • Lower connection female square shaft according to ISO 5211/DIN 3337 standard for mounting at 45° or 90° either.
  • Direct mounting of solenoid valve according to NAMUR standard.
  • Accessories assembly according to NAMUR VDI/VDE 3845 standard.
  • Working temperature: -20°C to +80°C.
  • External body protection: Hard Anodized. 500 hours
  • Salt fog chamber according to ASTMB117-73.
  • External protection covers: Epoxy-Polyester coating.
  • Stroke limiter on opening and closing.
  • 100% operation and tightness control through an electronic system with certification.

Buy online DOUBLE-ACTING PNEUMATIC ACTUATOR at the best price

€35.00 (tax excl.)
CHOOSE MODEL
  • 40
  • 52
  • 63
  • 75
  • 83
  • 92
  • 105
  • 125
  • 140
  • 160
  • 190
  • 210
  • 240
  • 270
Reference:
510300051
Consult price for large quantities
Related products
€3.50 (tax excl.)
Converter socket or square to adapt to pneumatic actuators. They are used to couple the actuator with the valve shaft, when there is a distance between them.
€25.00 (tax excl.)
Electromechanical limit switch. Highly visible Open/Closed position indicator. Includes 2 universal stainless steel fixing brackets to mount on any actuator. Easy access to the interior of the box, for cable...
€32.72 (tax excl.)
A NAMUR connection electrical distributor is an electromechanical device used to connect and disconnect a pneumatic actuator to an electrical power source. NAMUR connection electrical distributors are used in a wide...
Description

Product Details
510300051
Reference ABILITY Price Add to cart
510300071 63
€50.00
510300081 75
€70.00
510300091 83
€80.00
510300101 92
€90.00
510300111 105
€110.00
510300121 125
€272.25
510300131 140
€377.03
510300141 160
€537.90
510300151 190
€737.55
510300161 210
€1,060.13
510300171 240
€1,472.63
510300181 270
€2,064.15
510300061 52
€39.00
510300051 40
€35.00
