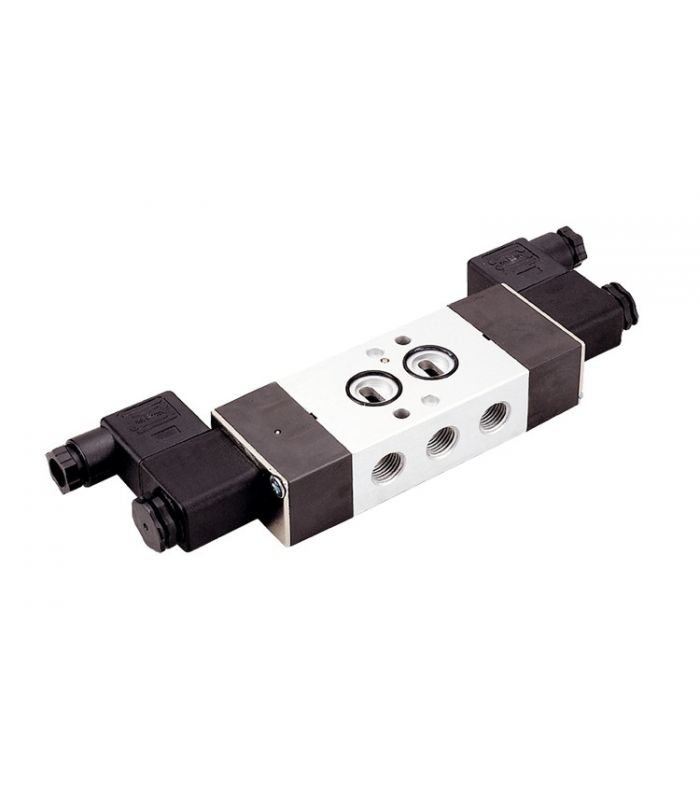

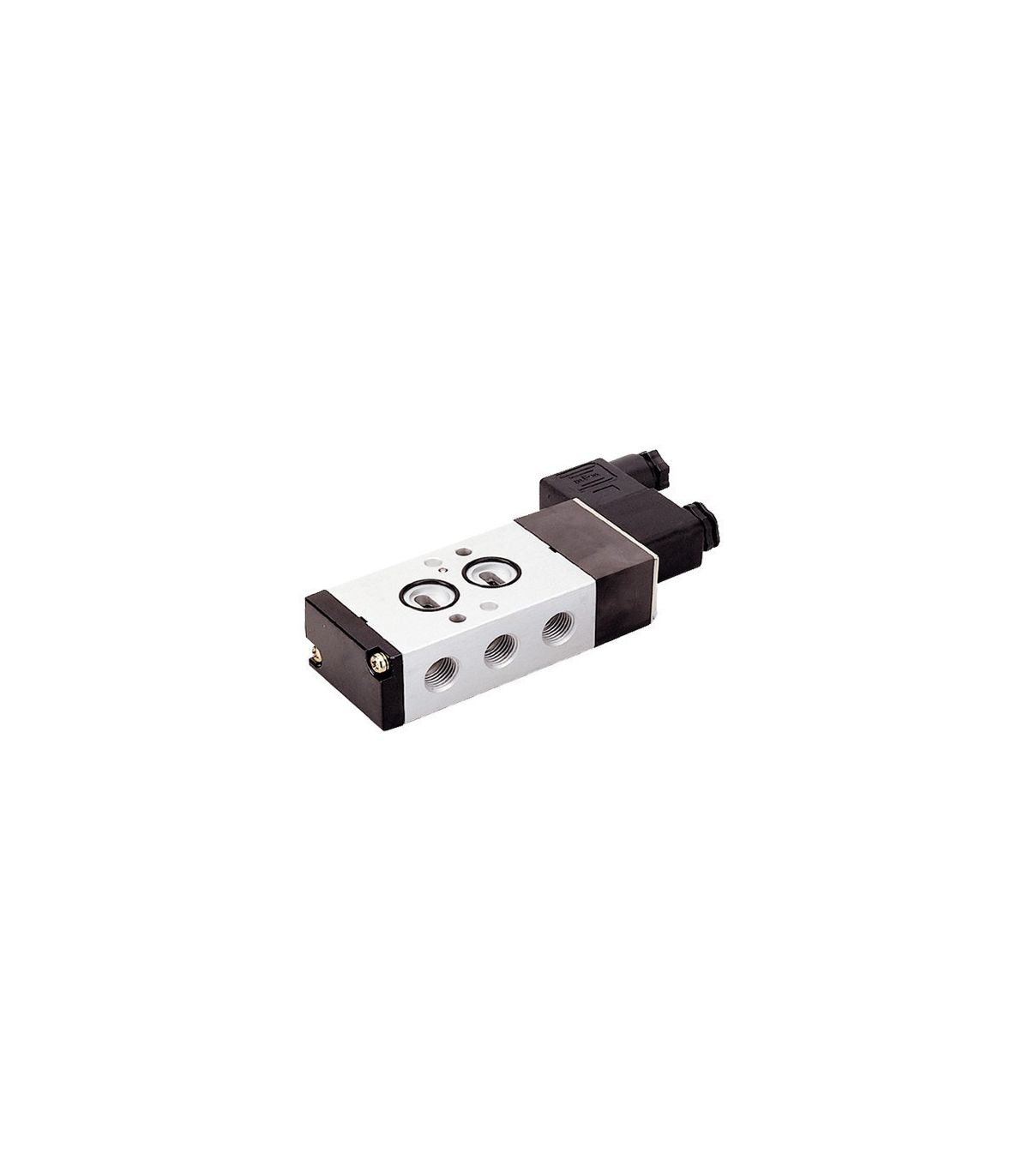

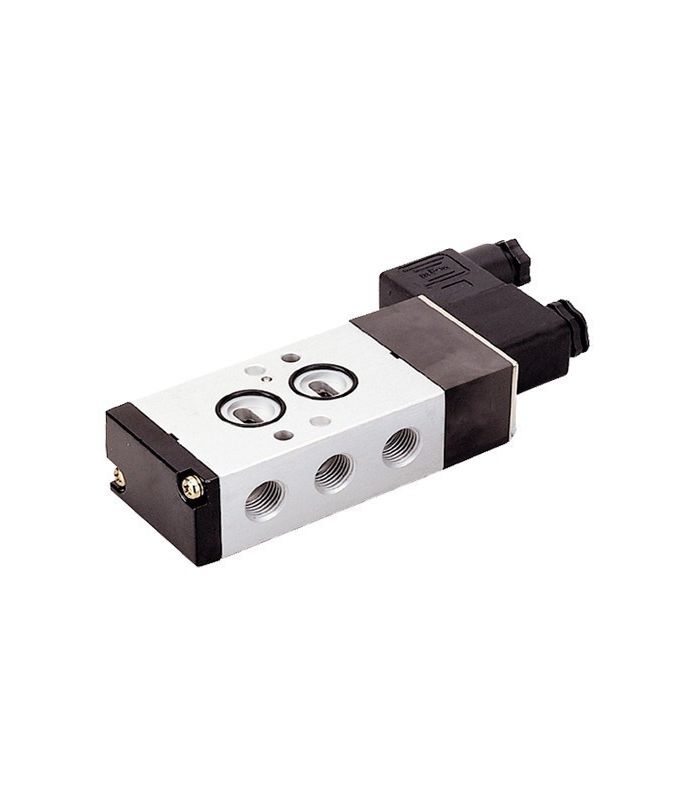

ELECTRICAL DISTRIBUTOR NAMUR CONNECTION
ELECTRICAL DISTRIBUTOR NAMUR CONNECTION
ELECTRICAL DISTRIBUTOR NAMUR CONNECTION
ELECTRICAL DISTRIBUTOR NAMUR CONNECTION

ELECTRICAL DISTRIBUTOR NAMUR CONNECTION

A NAMUR electrical connection distributor is used to connect and disconnect a pneumatic actuator to an electrical power source.

It is used in a wide range of applications such as industrial machines, transportation equipment and automation equipment.

Technical data sheet:

  • Materials: Pilot in brass and stainless steel, operator, base and piston in POM,
  • Aluminum alloy body, aluminum slide, stainless steel spring, brass bushings and NBR seals.
  • Ø Pitch: 6.7 mm
  • Flow rate: 2100 l/min (6 bar)
  • Pressure: 2 ÷ 10 bar
  • Temperature: -5º ÷ +50º C
  • Threads: NAMUR 1/4
  • Fluids: Filtered air with or without lubrication.
  • Coil: SP22 (NOT INCLUDED)
  • Available voltage 12 VDC, 24 VDC, 24 VAC, 110 VAC, 220 VAC
  • Power: 3 W (DC), 5 VA (AC)
  • Protection class: IP65 (with connector)
  • Cable passage: PG9
€47.35 (tax included)
€39.13 (tax excl.)
SELECT TYPE
  • 3/2 MONOSTABLE
  • 5/2 MONOSTABLE
  • 5/2 BISTABLE
  • 5/3 CLOSED DOCK CENTER
  • 5/3 CENTER TO DOCK EXHAUST
  • 5/3 SPRING PRESSURE CENTER
Reference:
21440008
Description

electrical distributor NAMUR connection

DISTRIBUIDOR CONEXION NAMURDISTRIBUIDOR CONEXION NAMUR

Product Details
21440008
