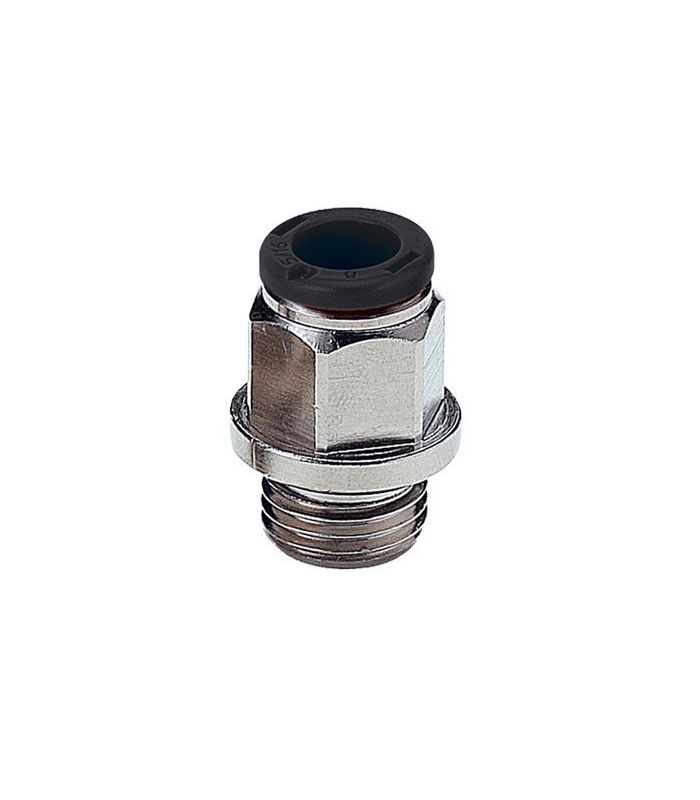

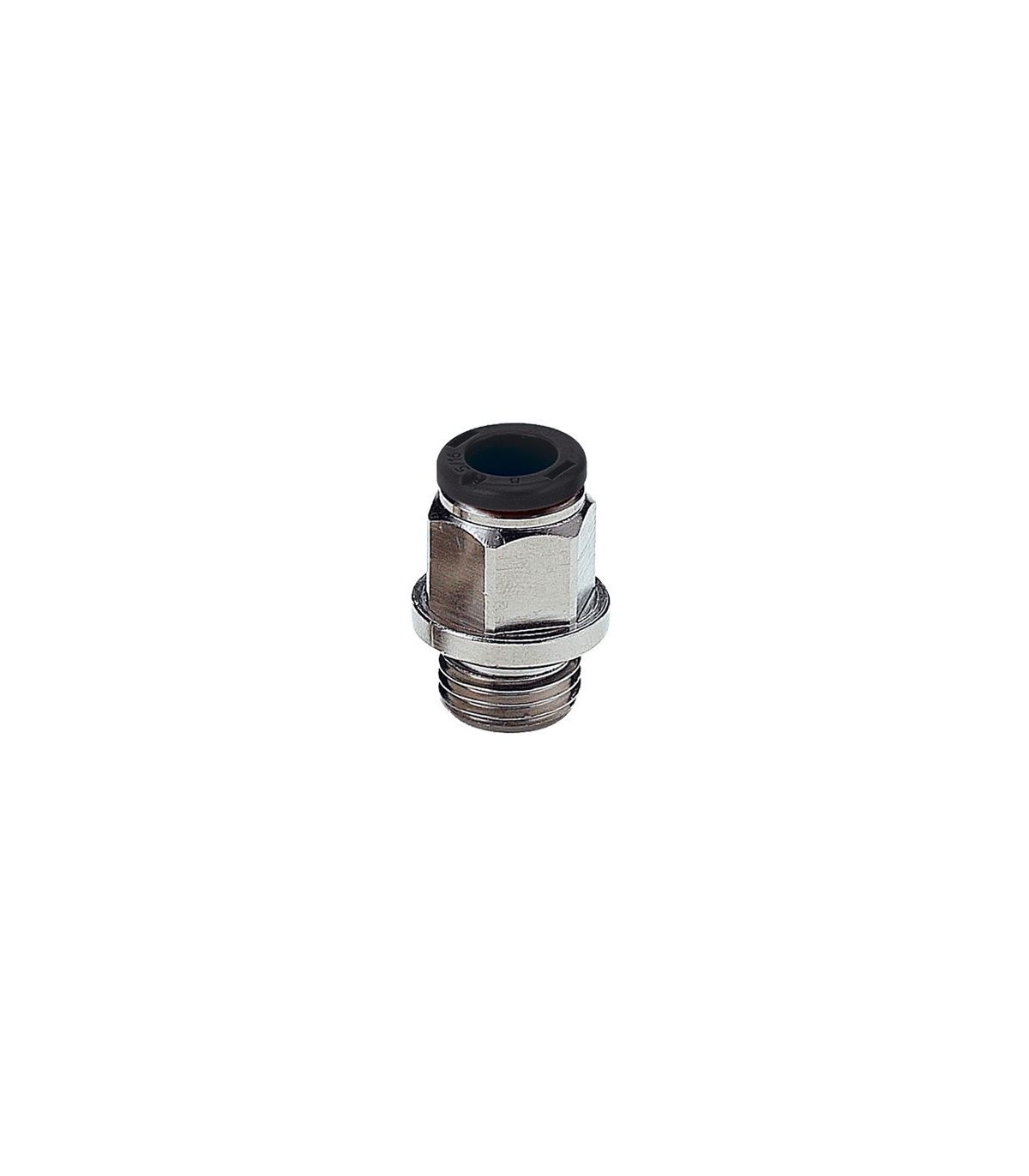

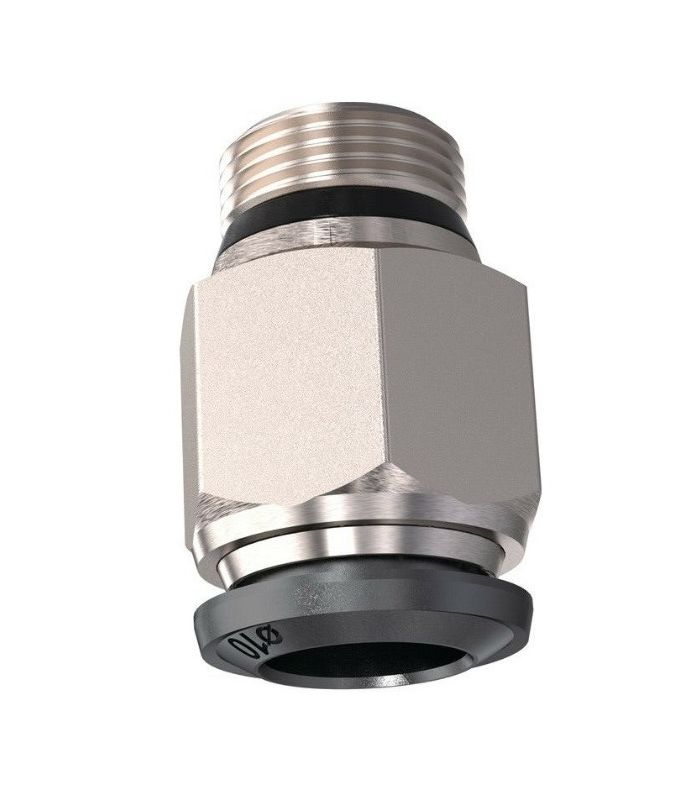

INSTANT FITTING STRAIGHT UNION PIPE CYLINDRICAL THREAD
INSTANT FITTING STRAIGHT UNION PIPE CYLINDRICAL THREAD
INSTANT FITTING STRAIGHT UNION PIPE CYLINDRICAL THREAD
INSTANT FITTING STRAIGHT UNION PIPE CYLINDRICAL THREAD

INSTANT FITTING STRAIGHT UNION PIPE CYLINDRICAL THREAD

An instant straight union fitting for cylindrical threaded tubes is a component used to connect two tubes quickly and easily, without the need for special tools.

Applications: irrigation systems, compressed air networks, water supply lines, industrial facilities, cleaning equipment, etc.

Main features:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 / 60ºC
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Nickel-plated brass and PBT body
  • Stainless steel gripping pliers (301)
  • POM resin push ring
€1.49 (tax included)
€1.23 (tax excl.)
Tube diameter - Thread
  • Ø 3-M5
  • Ø 4-M3
  • Ø 4-M5
  • Ø 4-M6
  • Ø 4-1/8
  • Ø 5 M-5
  • Ø 4-1/4
  • Ø 6-M5
  • Ø 6-M6
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 6-1/2
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 14-3/8
  • Ø 14-1/2
  • Ø 16-3/8
  • Ø 16-1/2
  • Ø 3-M3
Reference:
30010001
Description

Instant straight fitting for cylindrical threaded tube

The instant straight union fitting for cylindrical threaded tube is a pneumatic or hydraulic connector designed to quickly and securely join a flexible or semi-rigid tube to a threaded port with a cylindrical thread, maintaining the straight alignment of the conduit.

It is a connection accessory that allows the immediate coupling of the tube by means of a push-in system and its attachment to equipment, valves or manifolds by means of a cylindrical thread.

Advantages

  • Quick assembly without special tools
  • Secure and watertight connection
  • Easy disassembly and maintenance
  • Reduced installation times

Common applications

  • Pneumatic systems
  • Industrial automation
  • Compressed air equipment
  • Packaging machinery
  • Low-pressure fluid circuits

Technical specifications for the instant straight union fitting for cylindrical threaded tube:

UNION RECTA TUBO ROSCA CILINDRICA

Product Details
30010001
