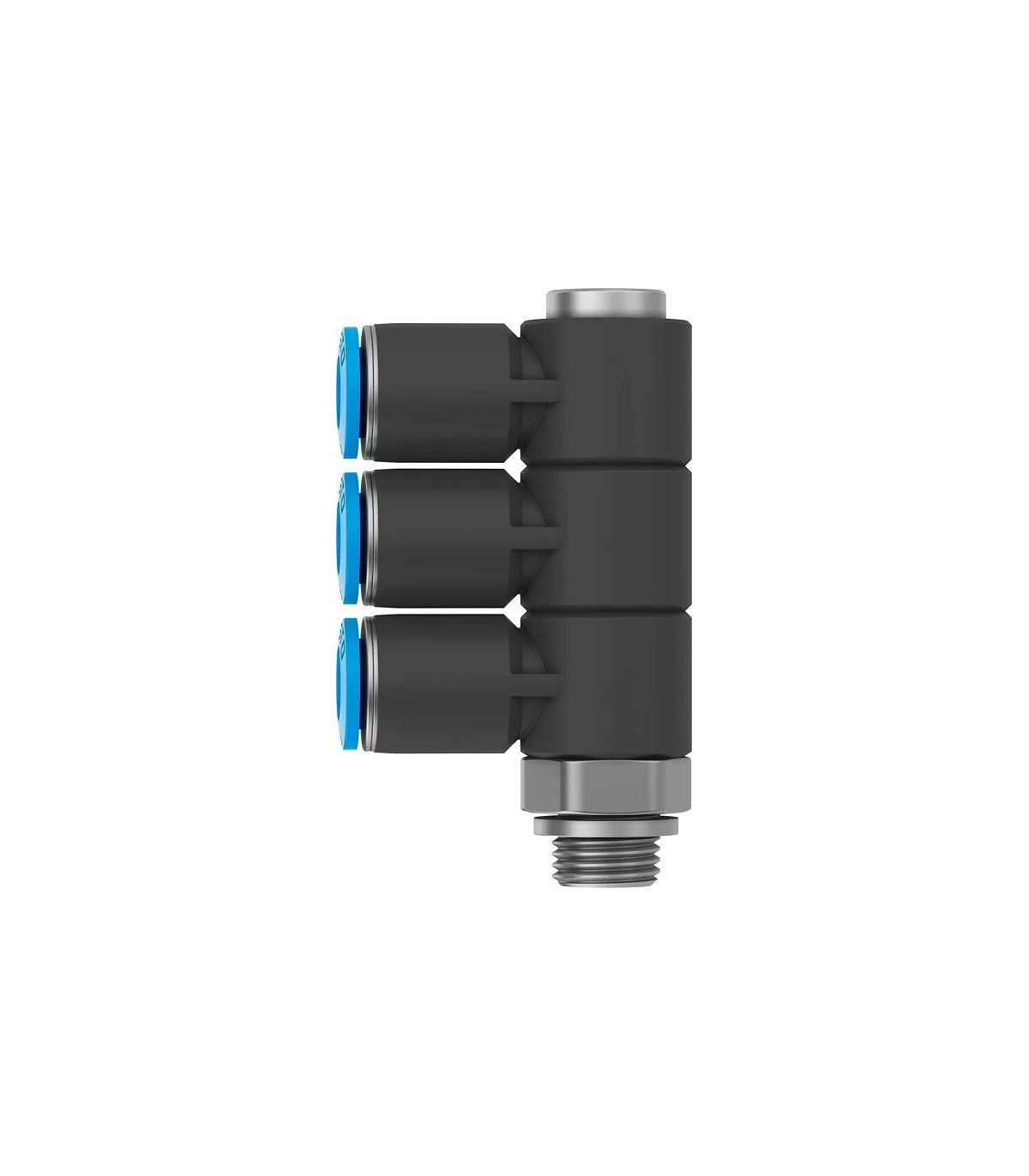

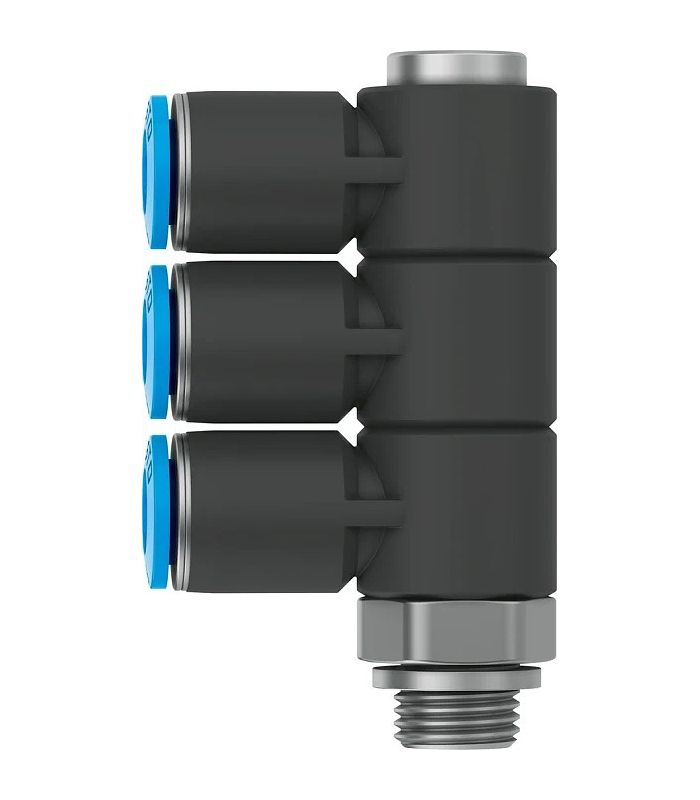

INSTANT FITTING MALE ELBOW OUTLET TRIPLE PIPE

INSTANT FITTING MALE ELBOW OUTLET TRIPLE PIPE

A male elbow instant fitting with triple tube outlet is a pneumatic connector designed to split a compressed air line from a male threaded port into three flexible tube outlets, with a 90° angle configuration.

Applications: Industrial automation, Packaging machinery, Pneumatic panels and control panels, Robotics, Production lines

Technical specifications:

  • Working pressure -0.99/10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Nickel-plated brass and PBT body.
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€11.57 (tax included)
€9.56 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
Reference:
30180003
Description

Instant fitting male elbow triple pipe outlet

A male elbow male triple tube outlet instant fitting is a pneumatic connector designed to change the direction of airflow by 90°, with a male thread for direct connection to a female port and a multiple outlet for three tubes using a push-in system.

This type of fitting allows three pneumatic lines to be fed from the same point, optimizing space and simplifying the distribution of compressed air in industrial installations.

Characteristics

  • 90° design for changes of direction on the track
  • Male thread for connection to components with female thread
  • Triple outlet for pipe with instant connection
  • Efficient distribution of compressed air from a single point
  • Quick and safe assembly, no special tools required.
  • High sealing and pressure resistance

Applications

  • Industrial automation systems
  • Air distribution in pneumatic machinery
  • Powering multiple actuators from a single line
  • Pneumatic control and command circuits
  • Installations requiring multiple compact branch circuits

Technical specifications of an instant male elbow fitting for triple pipe outlet:

CODO MACHO SALIDA TUBO TRIPLE

Product Details
30180003
