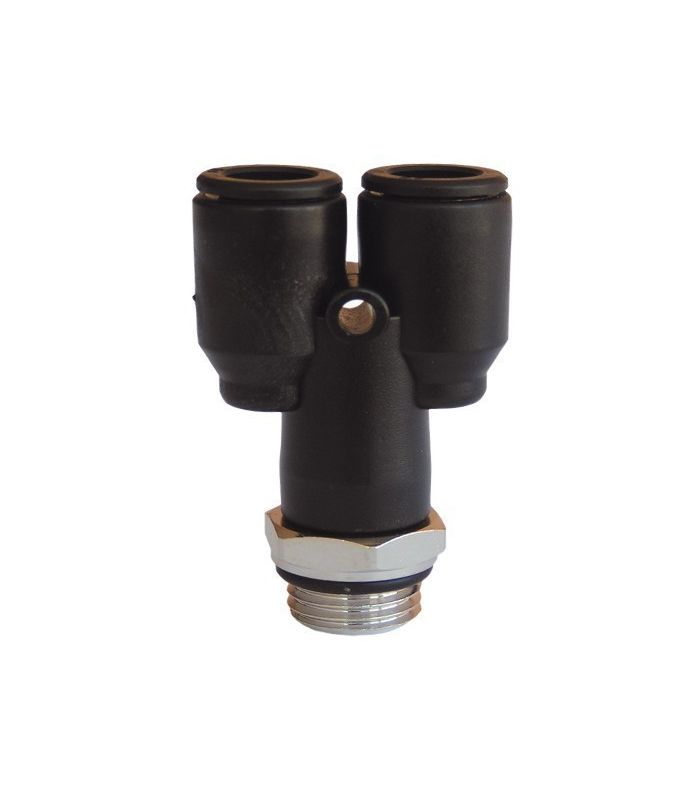

INSTANT FITTING AND MALE THREADED TUBE
INSTANT FITTING AND MALE THREADED TUBE
INSTANT FITTING AND MALE THREADED TUBE
INSTANT FITTING AND MALE THREADED TUBE

INSTANT FITTING AND MALE THREADED TUBE

A Y-fitting with male thread is used in pneumatic or low-pressure fluid systems that allows two tubes to be quickly and easily joined in a "Y" configuration, while the third connection is a male thread.

Applications: Pneumatic systems, Low-pressure fluid systems, Automation, Robotics

Technical specifications:

  • Working pressure -0.99/10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Body in nickel-plated brass and PBT
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€3.85 (tax included)
€3.18 (tax excl.)
Tube diameter - Thread
  • Ø 4-M5
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-M5
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30120001
Description

Instant fitting and male threaded tube

A Y-fitting with male thread is a pneumatic connector designed to split or branch a compressed air line in two directions, while maintaining a third connection via a male thread.

This type of fitting combines a "Y" shaped structure with two inlets/outlets for tubing using an instant system and a male threaded connection for direct mounting on a female port of another component or installation.

Common applications

  • Industrial automation systems
  • Air distribution in pneumatic machinery
  • Powering multiple actuators from the same line
  • Pneumatic control and command circuits
  • Installations where a compact and efficient branch circuit is required

Technical specifications of an instant fitting and male threaded tube:

Y TUBO ROSCA MACHO

Product Details
30120001
