INSTANT FITTING ELBOW PIPE SWIVEL THREAD SCREW
INSTANT FITTING ELBOW PIPE SWIVEL THREAD SCREW
INSTANT FITTING ELBOW PIPE SWIVEL THREAD SCREW
INSTANT FITTING ELBOW PIPE SWIVEL THREAD SCREW

INSTANT FITTING ELBOW PIPE SWIVEL THREAD SCREW

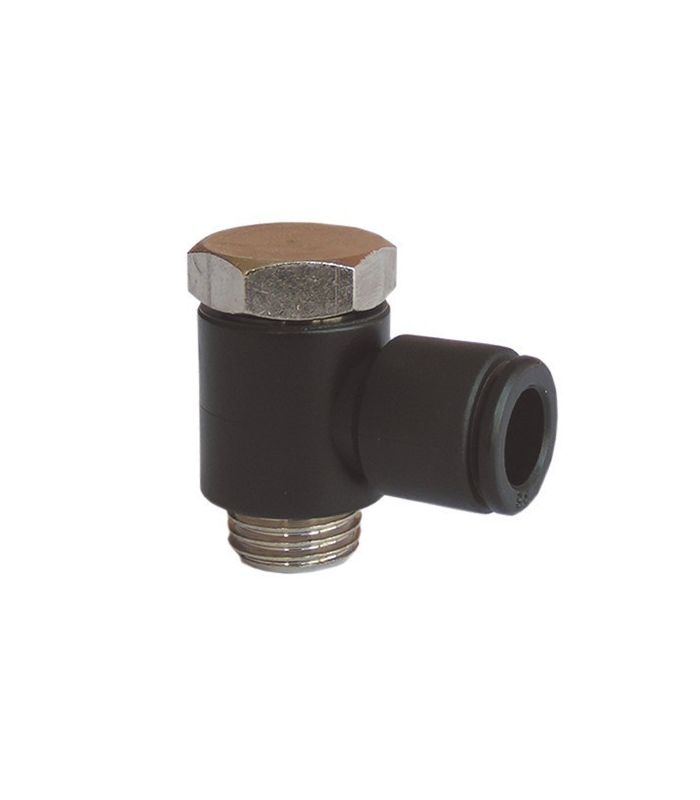

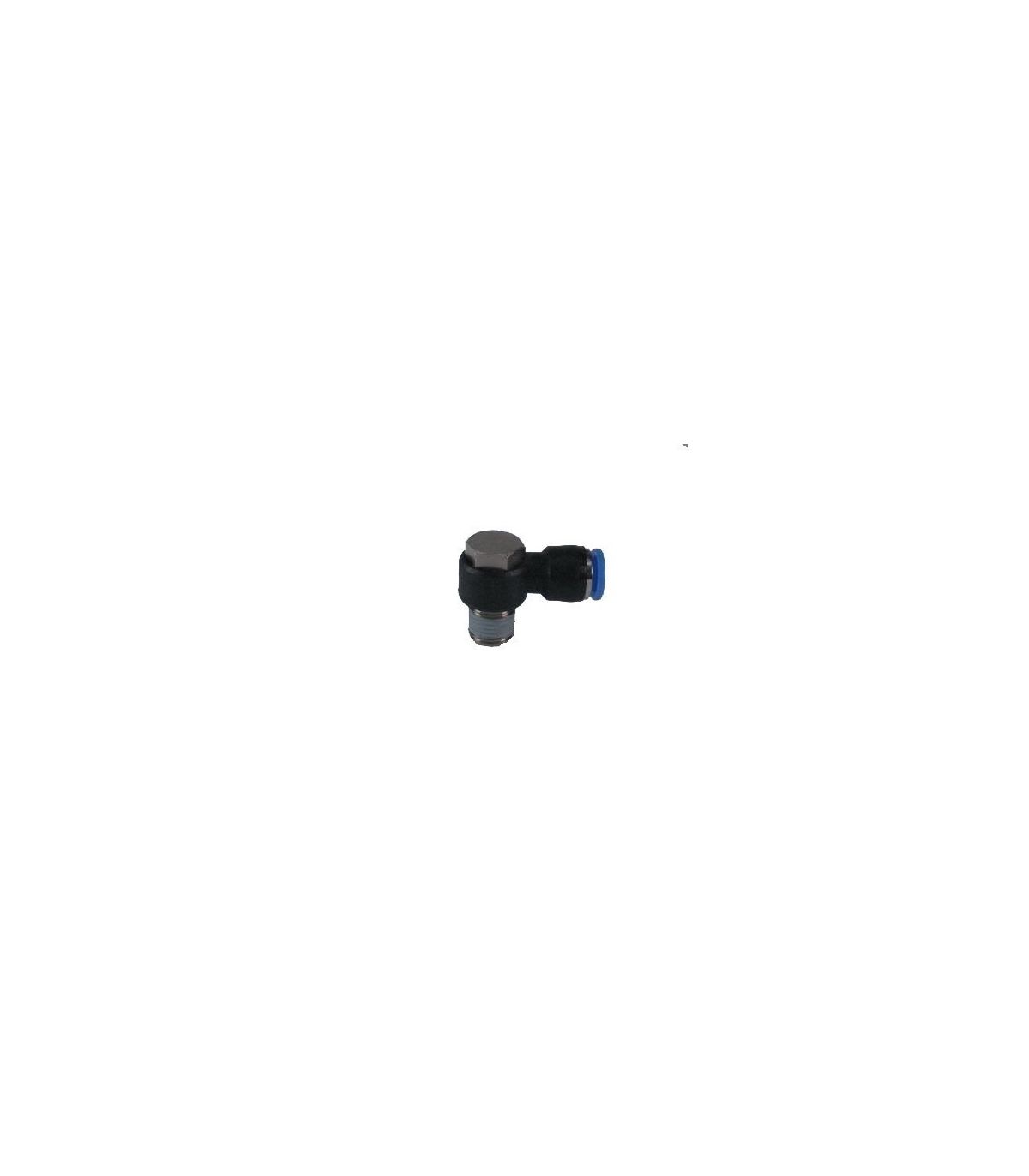

Instant fitting elbow pipe thread swivel screw

An instant fitting, elbow, tube, threaded, swivel screw, is a connector used primarily in pneumatic systems to join a flexible tube to a threaded component, allowing a change of direction and orientation adjustment.

Applications: Industrial automation, pneumatic cylinders, valves, regulators, actuators or installations where space is limited.

Main features:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16.
  • Ease of connection.
  • Cylindrical or conical thread.
  • Body in nickel-plated brass and PBT.
  • Stainless steel gripping clamp (301)
  • POM resin push-button ring.
€2.38 (tax included)
€1.97 (tax excl.)
Tube diameter - Thread
  • Ø 4-M5
  • Ø 4-M6
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-M5
  • Ø 6-M6
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30160002
Description

Instant fitting elbow pipe thread swivel screw

An instant fitting with an adjustable threaded elbow tube connects a pneumatic tube to a piece of equipment or a valve quickly, allowing a change of direction while maintaining a precise and stable orientation.

Its adjustable system allows you to reposition the tube after assembly, while the locking screw ensures stable orientation. Ideal for pneumatic installations where changes in direction, secure mounting, and space saving are required.

Applications

  • Industrial automation
  • Valves
  • Pneumatic cylinders
  • Compressed air systems.

Technical specifications of an instant fitting, elbow, pipe, threaded, adjustable screw:

CODO TUBO ROSCA ORIENTABLE TORNILLO

Product Details
30160002
