INSTANT FITTING UNION ELBOW CONICAL THREAD PIPE

INSTANT FITTING UNION ELBOW CONICAL THREAD PIPE

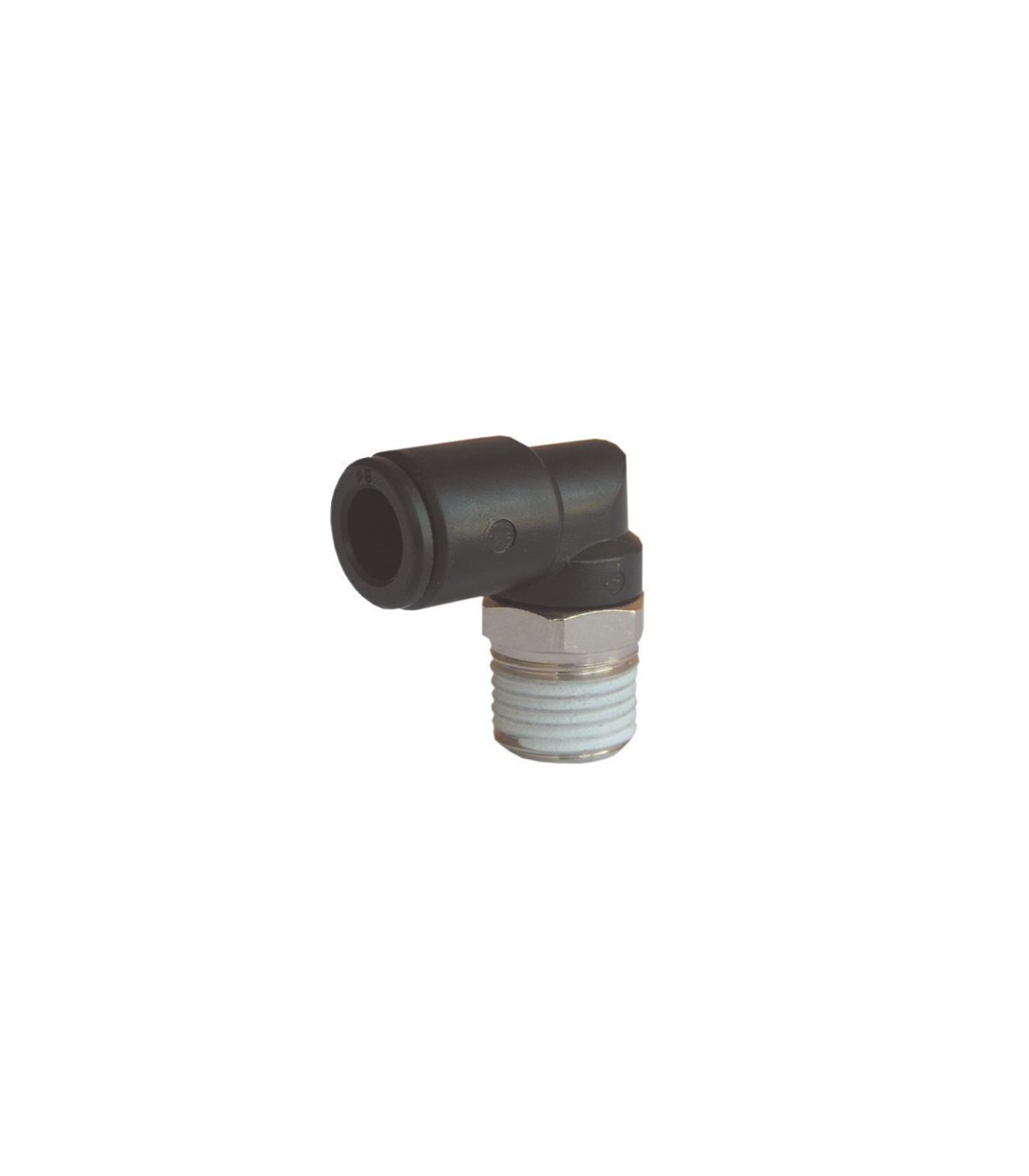

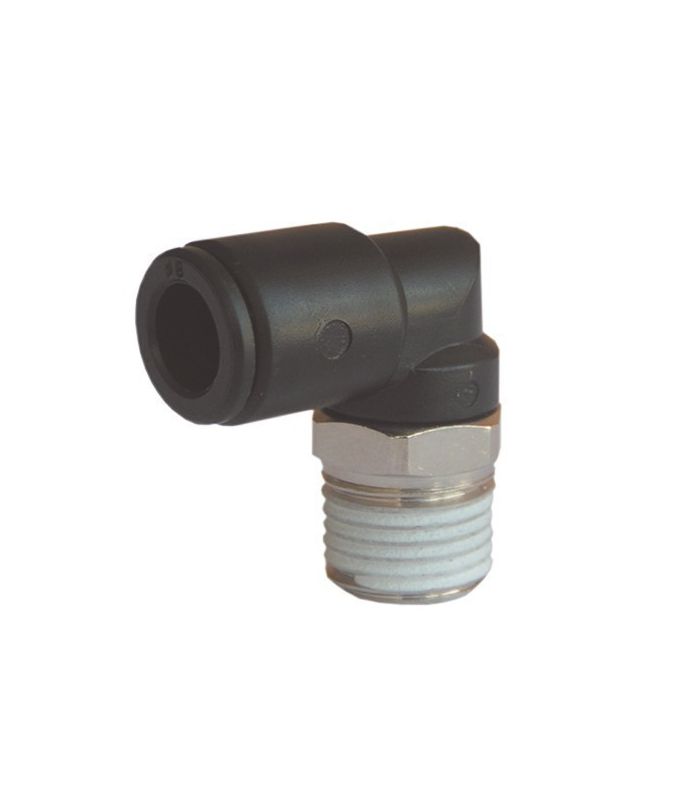

An instant fitting, a tapered threaded elbow joint, is used in pneumatic and vacuum systems to change the direction of the pipe run by 90° and connect that pipe to a threaded port or component.

Applications: Industrial automation and pneumatics, Robotics, Packaging, Industrial vacuum systems.

Technical specifications:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Tapered thread
  • Body in nickel-plated brass and PBT.
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€1.49 (tax included)
€1.23 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 6-1/2
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 14-3/8
  • Ø 14-1/2
  • Ø 16-3/8
  • Ø 16-1/2
Reference:
30090003
Description

Instant fitting for elbow joint, tapered thread, pipe

An instant fitting to a tapered threaded elbow joint is a pneumatic connector designed to join a pneumatic tube to a threaded component, allowing a 90° change of direction in the installation.

It features an instant connection system for the tube and a tapered thread that guarantees a tight and secure connection in compressed air circuits.

Technical specifications

  • 90° elbow design for easy installation in confined spaces.
  • Instant tube connection without the need for tools.
  • Tapered thread that improves the sealing of the connection.
  • Quick and easy assembly.
  • High resistance to pressure and vibrations.

Common applications

It is used in industrial pneumatic installations, automation, machinery and compressed air systems where it is necessary to redirect the flow of air while maintaining a safe and efficient connection.

Technical specifications for an instant fitting to join elbow to tapered thread pipe:

UNION CODO ROSCA CONIICA TUBO

Product Details
30090003
Comments
12 other products in the same category:
INSTANT REDUCING FITTING M-H PIPE

€1.63 (tax excl.)
€1.97 (tax included)
An MH instant reducing tube fitting is used in pneumatic or low-pressure fluid systems that allows two tubes of different diameters to be joined quickly and easily in a straight line. Applications: Pneumatic systems,...
INSTANT FITTING MALE ELBOW OUTLET DOUBLE ADJUSTABLE PIPE

€6.76 (tax excl.)
€8.18 (tax included)
Instant fitting male elbow for double adjustable pipe outlet An instant male elbow fitting with adjustable double tube outlet is a pneumatic connector designed to join two tubes to a male threaded socket, allowing for...
INSTANT FITTING WALL PULL-IN ELBOW

€3.79 (tax excl.)
€4.59 (tax included)
An instant fitting, pipe fitting, or elbow fitting is a connector primarily used in pneumatic or low-pressure fluid systems. The fitting is designed to join two pipes and pass through and be secured to a panel or...
INSTANT FITTING ELBOW PIPE SWIVEL THREAD SCREW

€1.97 (tax excl.)
€2.38 (tax included)
Instant fitting elbow pipe thread swivel screw An instant fitting, elbow, tube, threaded, swivel screw, is a connector used primarily in pneumatic systems to join a flexible tube to a threaded component, allowing a...
INSTANT FITTING INSERTABLE THREADED JOINT

€0.58 (tax excl.)
€0.70 (tax included)
A threaded insert fitting is primarily used in pneumatic systems. It is designed to connect flexible or semi-rigid tubing to a threaded port on a component. Applications: Industrial automation, Robotics, Packaging...
INSTANT FITTING ELBOW TO PIPE UNION CYLINDRICAL THREAD

€1.51 (tax excl.)
€1.83 (tax included)
A quick-connect fitting with a cylindrical threaded elbow joint is a connection component used primarily in pneumatic and low-pressure fluid systems. It allows for the quick and easy connection of a flexible or...
INSTANT T-FITTING WITH SIDE THREAD

€2.07 (tax excl.)
€2.50 (tax included)
A side-threaded T-fitting is used in industrial pneumatic and vacuum systems whose function is to divide the flow of air or fluid into two branches. Applications: Automation, industrial machinery, robotics and...
INSTANT FITTING TUBE CONNECTION 45º THREAD

€2.00 (tax excl.)
€2.42 (tax included)
A 45° tube threaded quick-connect fitting is a connector for pneumatic or low-pressure fluid systems that allows a tube to be connected to a threaded component using a quick-connect system. The tube connection has a...
INSTANT FITTING AND MALE THREADED TUBE

€3.18 (tax excl.)
€3.85 (tax included)
A Y-fitting with male thread is used in pneumatic or low-pressure fluid systems that allows two tubes to be quickly and easily joined in a "Y" configuration, while the third connection is a male thread. Applications:...
INSTANT REDUCING PIPE FITTING AND

€2.16 (tax excl.)
€2.61 (tax included)
A Y-tube reducer is primarily used in pneumatic or low-pressure fluid systems, allowing for quick and easy connection and disconnection of three tubes of different diameters. Its key feature is its instant connection...
INSTANT T-FITTING FOR MALE THREADED TUBE WITH CENTER

€2.18 (tax excl.)
€2.64 (tax included)
A T-fitting with a center male threaded tube is used. in pneumatic and low-pressure fluid systems to split or divert flow from a threaded component to two flexible pipe lines. Applications: Textile and packaging...
INSTANT PIPE-TO-PIPE REDUCING FITTING

€1.52 (tax excl.)
€1.84 (tax included)
Instant reducing tube-to-tube fitting An instant tube-to-tube reducing fitting is a pneumatic connector designed to join two tubes of different diameters using a quick-connect system. It allows for reduction or...
