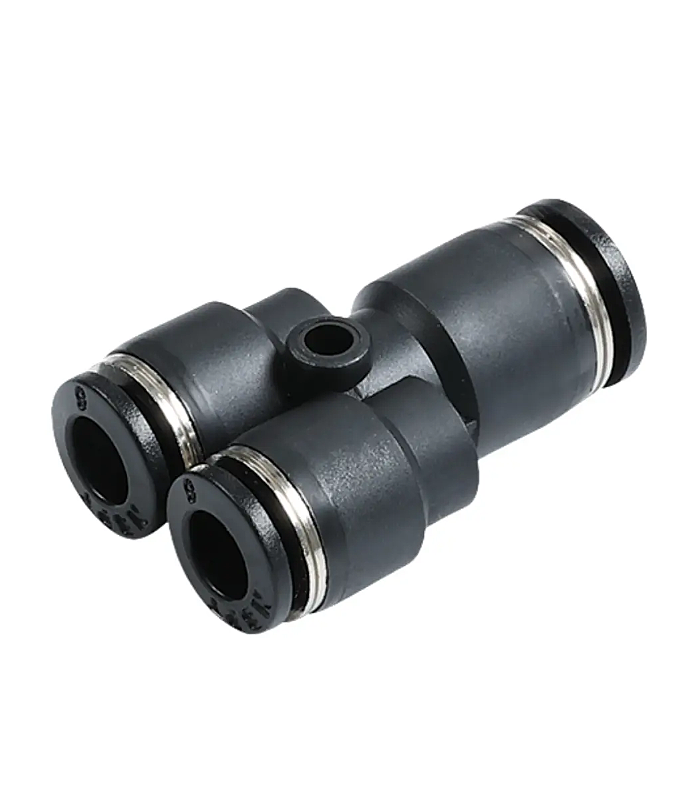

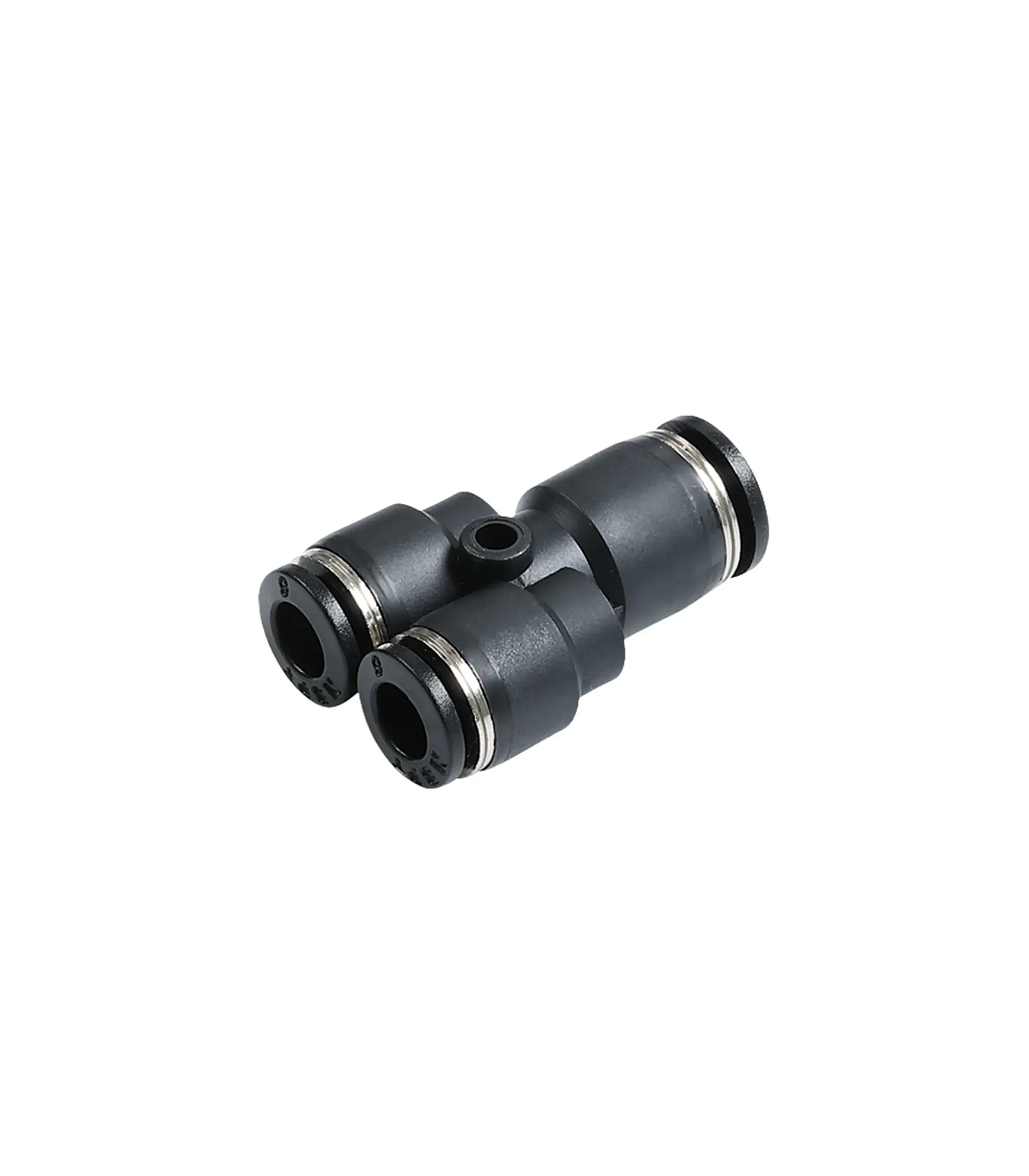

INSTANT REDUCING PIPE FITTING AND

A Y-tube reducer is primarily used in pneumatic or low-pressure fluid systems, allowing for quick and easy connection and disconnection of three tubes of different diameters. Its key feature is its instant connection mechanism, which requires no tools for joining the tubes.

Applications: Pneumatic systems, Low pressure fluid systems, Laboratory equipment, Automation, Robotics.

Technical specifications:

Working pressure -0.99/10 bar.
Temperature 0 /- 60ºC.
Ø4 to Ø16
Ease of connection
Cylindrical or tapered thread
Nickel-plated brass and PBT body
Stainless steel gripping pliers (301)
POM resin push ring

€2.61 (tax included)

€2.16 (tax excl.)

DIAMETERS

Reference:

30260017

Description
Comments

Description

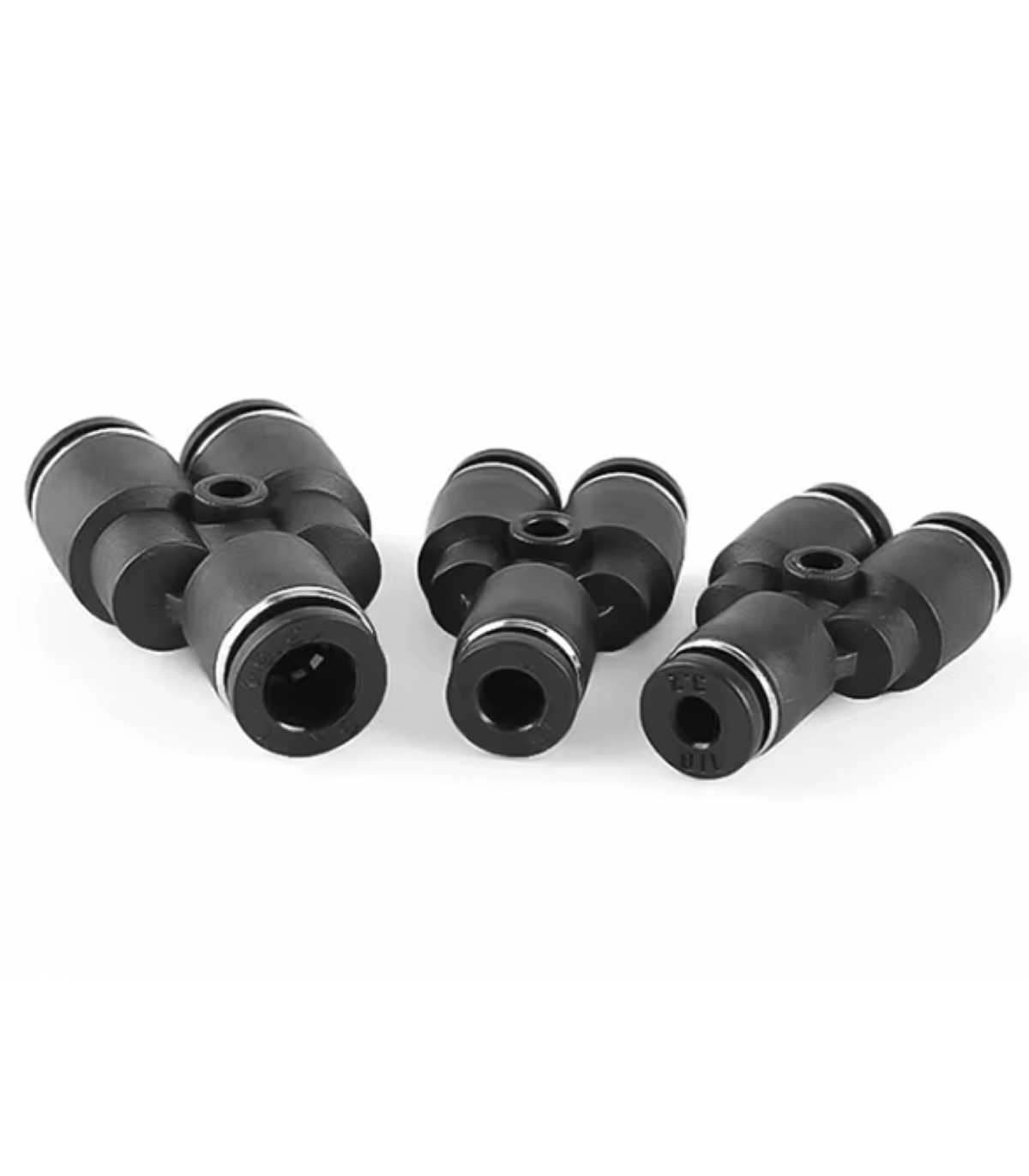

Instant reducer fitting Y-shaped tube

A Y-tube reducing instant fitting is a pneumatic connector designed to split a single compressed air line into two Y-shaped outlets, with a diameter reduction on both branches.

Main features

Instant connection via push-in system.
“Y” configuration for line branching.
Integrated diameter reduction in one or more outlets.
High sealing, preventing compressed air leaks.
Quick and reusable assembly, ideal for maintenance.

Common applications

It is used in industrial pneumatic systems where it is necessary to feed two circuits from the same main line, such as in automation, industrial machinery, packaging equipment and pneumatic control systems.

Technical specifications of an instant Y-tube reducing fitting:

REDUCCION TUBO Y

Product Details

Reference 30260017

Comments
