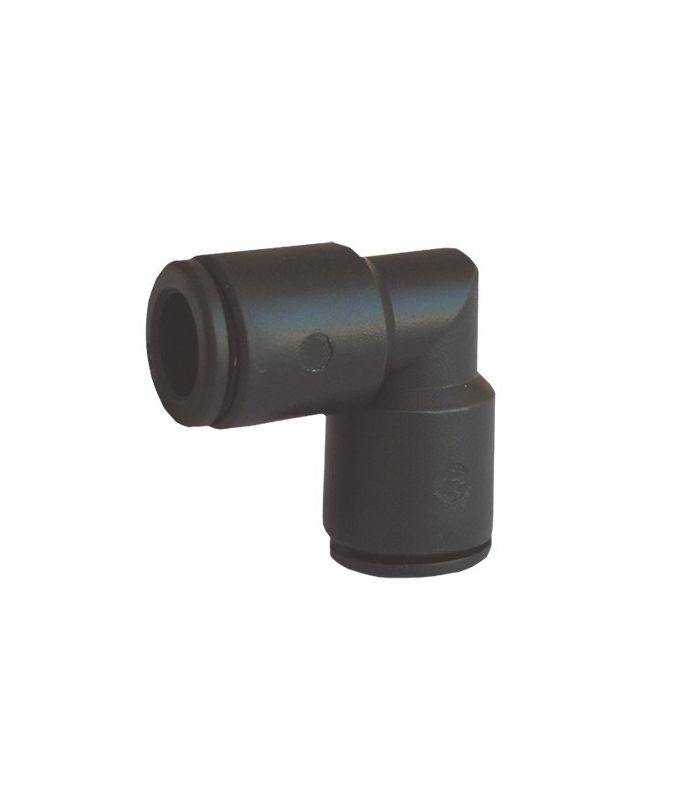

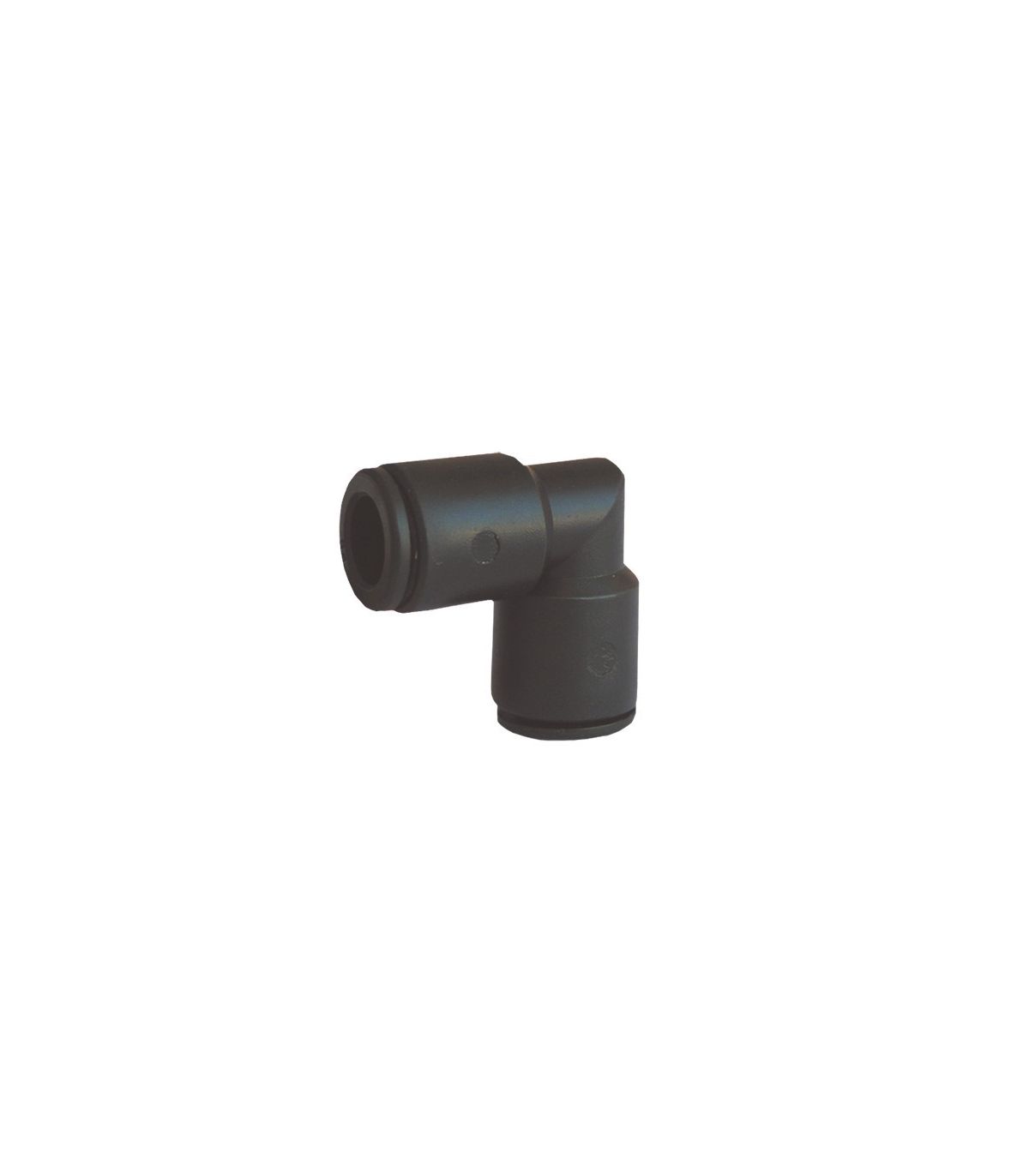

An instant fitting, tube elbow coupling, is a connector used primarily in pneumatic or low-pressure fluid systems that allows for quick and easy connection and disconnection of two tubes of the same diameter, with a 90° angle configuration.
Applications: Pneumatic systems, Low pressure fluid systems, Automation, Robotics or Laboratory equipment.
Technical specifications:
An instant fitting, a tube elbow splice, is a pneumatic connection element designed to join two lengths of flexible tubing by changing direction at a 90° angle (elbow shape), using a quick-connect system.
This type of fitting allows the direct insertion of the tubes at both ends, guaranteeing a secure, watertight and easy-to-assemble joint without the need for tools.
It is used in industrial pneumatic installations where it is necessary to redirect the airflow without losing efficiency, especially in machinery, automation and compressed air systems with confined spaces or complex layouts.
Technical specifications of an instant elbow pipe fitting:
