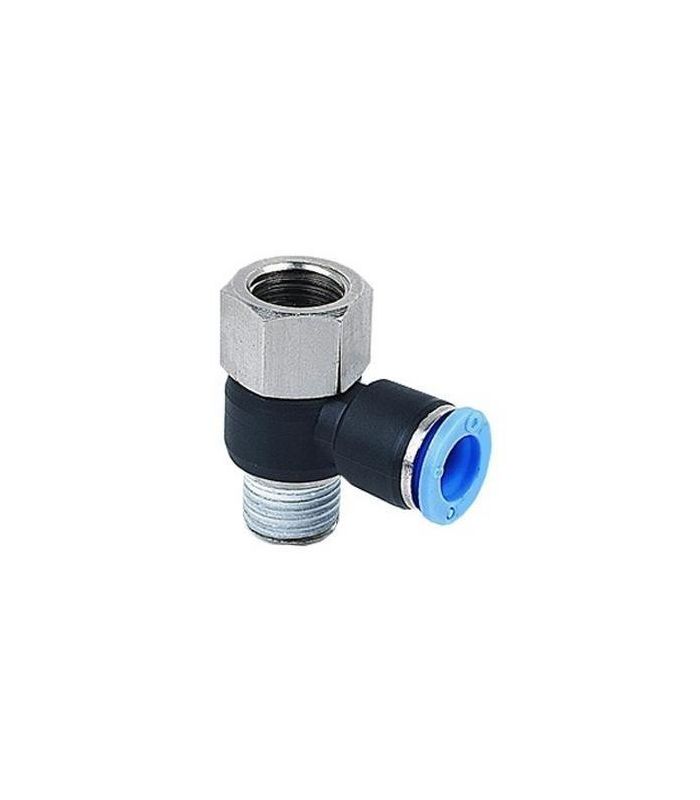

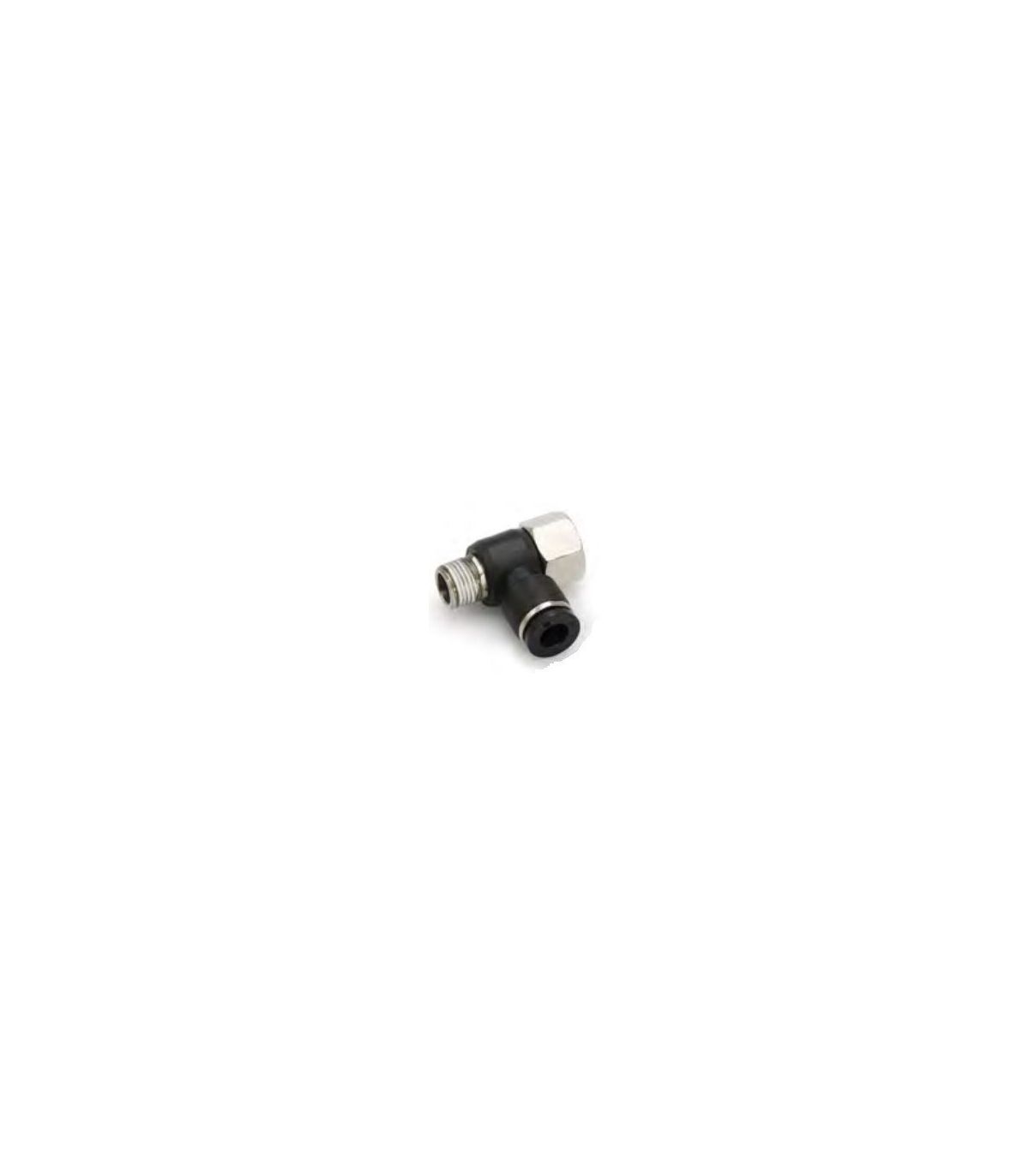

INSTANT FITTING SWIVEL ELBOW WITH EXTENSION
INSTANT FITTING SWIVEL ELBOW WITH EXTENSION
INSTANT FITTING SWIVEL ELBOW WITH EXTENSION
INSTANT FITTING SWIVEL ELBOW WITH EXTENSION

INSTANT FITTING SWIVEL ELBOW WITH EXTENSION

rating Read the review

Instant fitting, adjustable elbow with extension

An instant swivel elbow fitting with extension is a pneumatic connector designed to make a quick connection to a tube, incorporating an angled change of direction and a body extension that facilitates assembly in hard-to-reach areas.

Applications: compressed air systems and industrial pneumatics.

Main features:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Body in nickel-plated brass and PBT
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€2.67 (tax included)
€2.21 (tax excl.)
Tube diameter - Thread
  • Ø 4-M5
  • Ø 4-M6
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-M5
  • Ø 6-M6
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30390005
Description

Instant fitting, adjustable elbow with extension

An instant swivel elbow fitting with extension is a pneumatic quick-connect fitting for tubing , featuring a 90° swivel elbow and integrated extension. This allows for adjusting the tubing position after assembly and facilitates installation in confined spaces. Designed for compressed air networks , it guarantees a leak-proof seal, reliability, and quick assembly without the need for tools.

Applications

It is used in compressed air systems and industrial pneumatics, especially when space is limited, obstacles need to be overcome, or the tube needs to be oriented after assembly.

Technical specifications of an instant adjustable elbow fitting with extension:

CODO ORIENTABLE CON PROLONGACION

Product Details
30390005
Comments

   Opiniones

Todas las calificaciones proceden de clientes verificados que compraron este artículo. La valoración general es el promedio de todas las calificaciones recibidas.

Spare part  rating
10
satisfied
