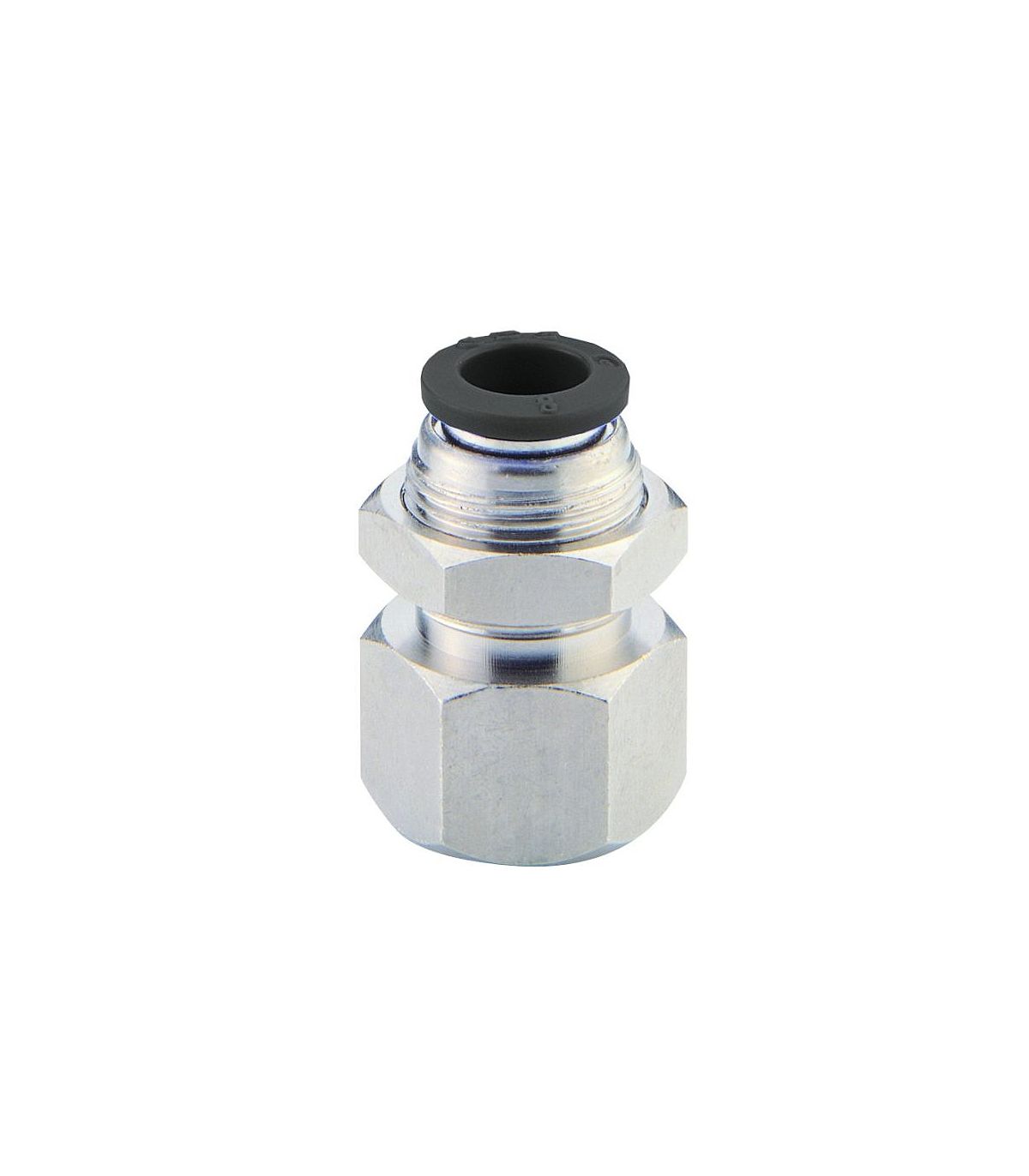

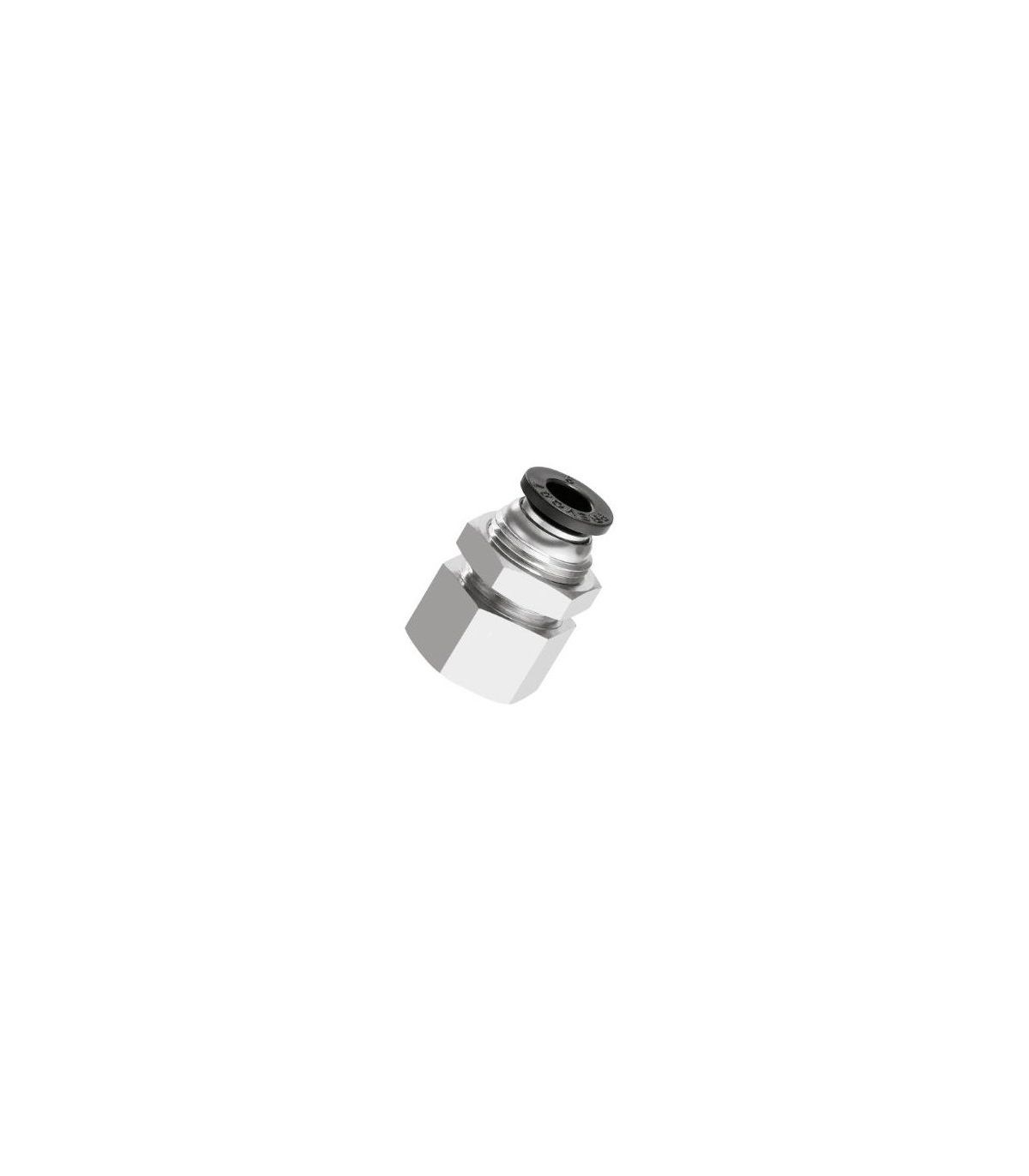

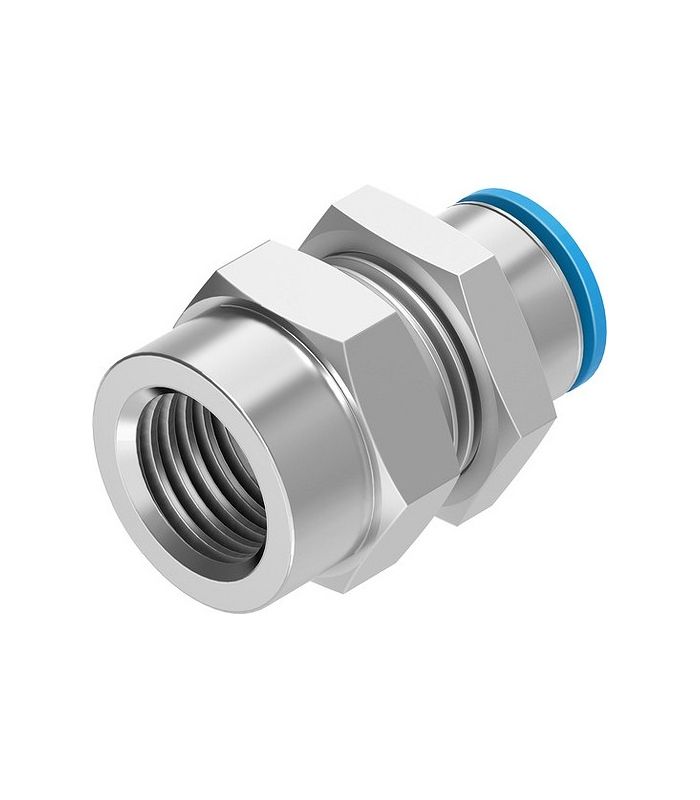

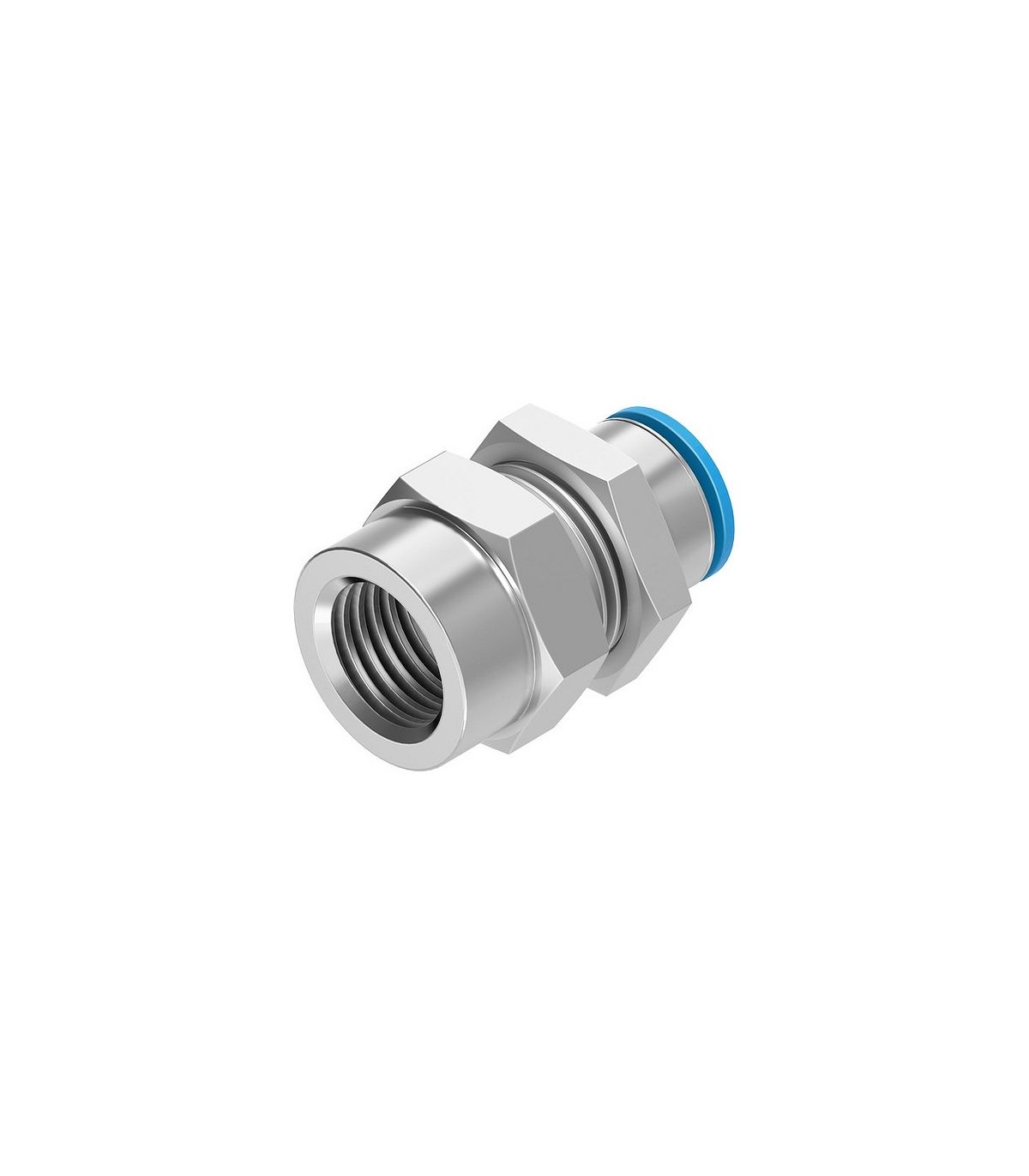

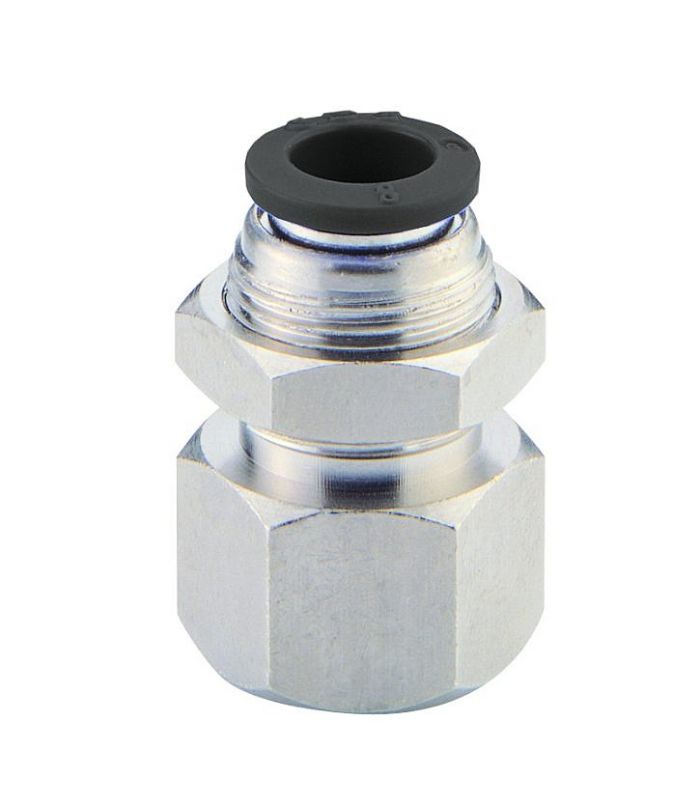

INSTANT WALL FITTING FOR FEMALE THREADED PIPE
INSTANT WALL FITTING FOR FEMALE THREADED PIPE
INSTANT WALL FITTING FOR FEMALE THREADED PIPE
INSTANT WALL FITTING FOR FEMALE THREADED PIPE
INSTANT WALL FITTING FOR FEMALE THREADED PIPE
INSTANT WALL FITTING FOR FEMALE THREADED PIPE

INSTANT WALL FITTING FOR FEMALE THREADED PIPE

An instant female threaded pipe bulkhead fitting is designed to pass a flexible or semi-rigid pipe through a wall or panel, while allowing a quick connection for the pipe on one side and a female threaded connection on the other.

Applications: Pneumatic control panels, Automated machinery and equipment, Robotics, Packaging, Laboratory systems

Technical specifications:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Body in nickel-plated brass and PBT
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€3.59 (tax included)
€2.97 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30130003
Description

Instant fitting for female threaded pipe bulkhead

An instant female threaded pipe bulkhead fitting is a pneumatic connector designed to pass through panels, walls or housings and allow the connection of a pipe by means of an instant system, also incorporating a female thread for its fixing or connection to another component.

This fitting is used when it is necessary to run a compressed air line across a surface , maintaining a tidy, safe and watertight installation.

Common applications

  • Pneumatic control panels
  • Industrial automation panels
  • Machines and equipment with internal and external circuits
  • Installations where it is necessary to pass a line through a casing

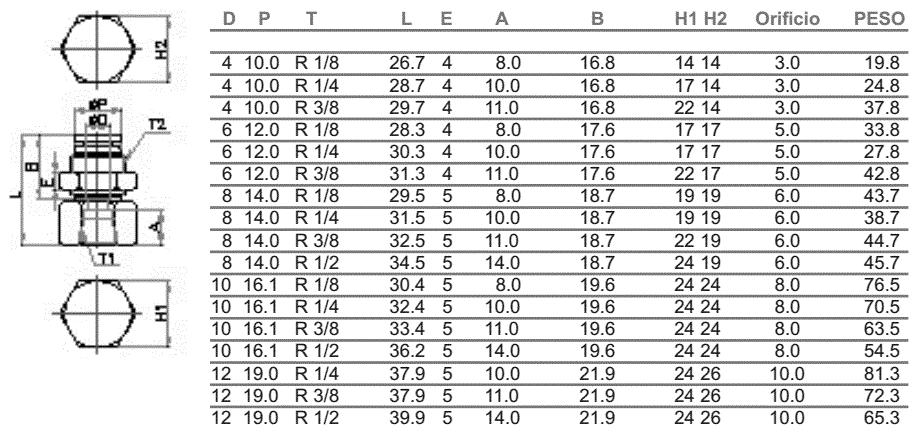

Technical specifications of an instant female threaded pipe bulkhead fitting:

PASAMUROS TUBO ROSCA HEMBRA

Product Details
30130003
