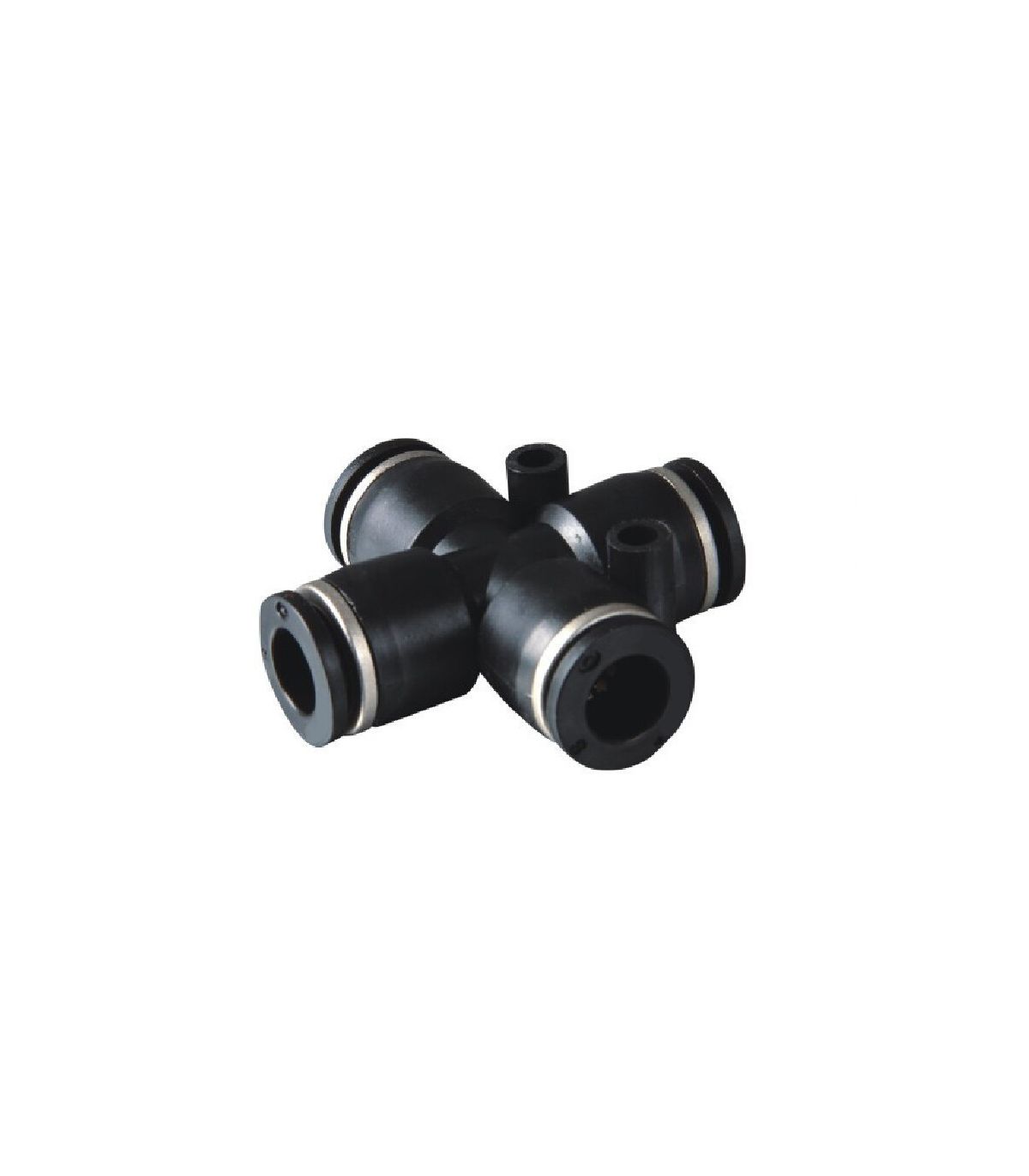

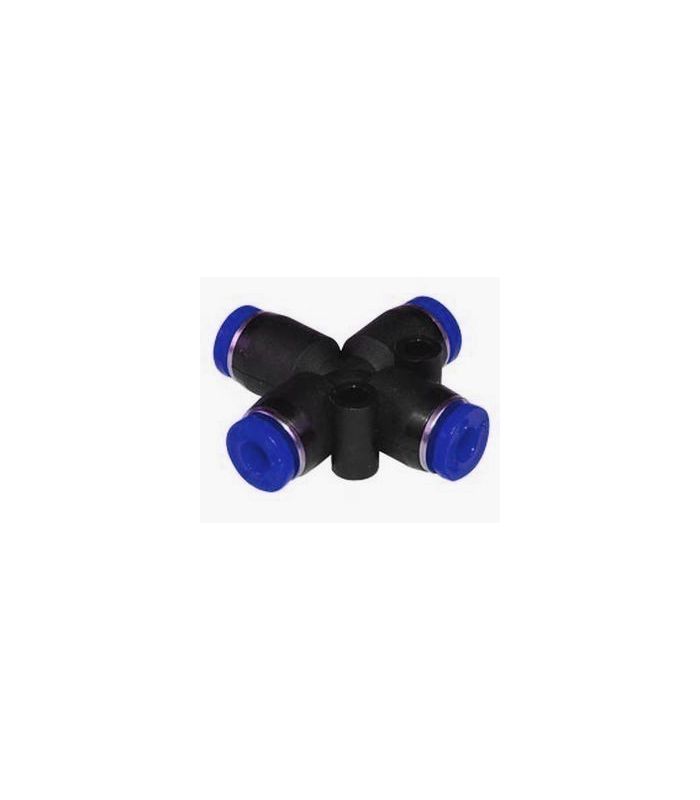

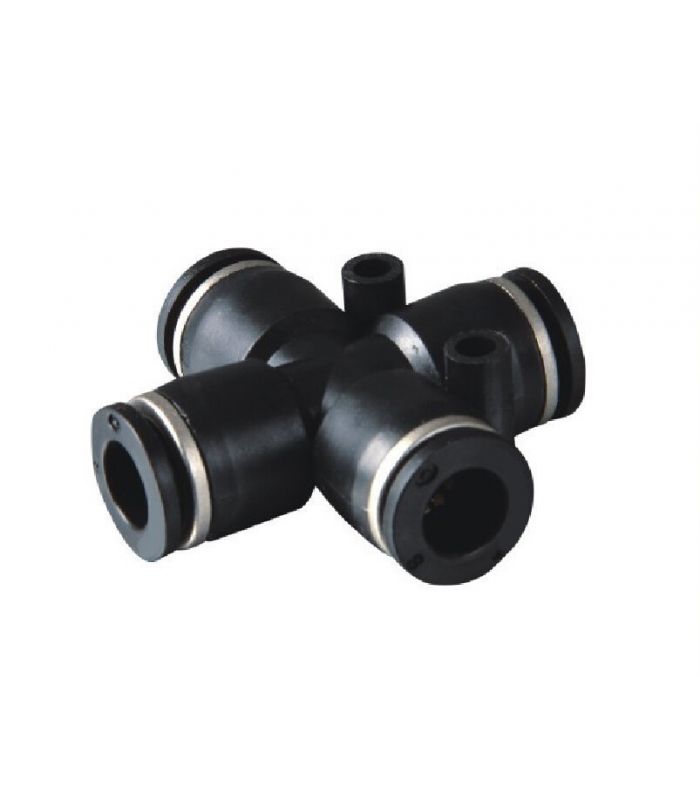

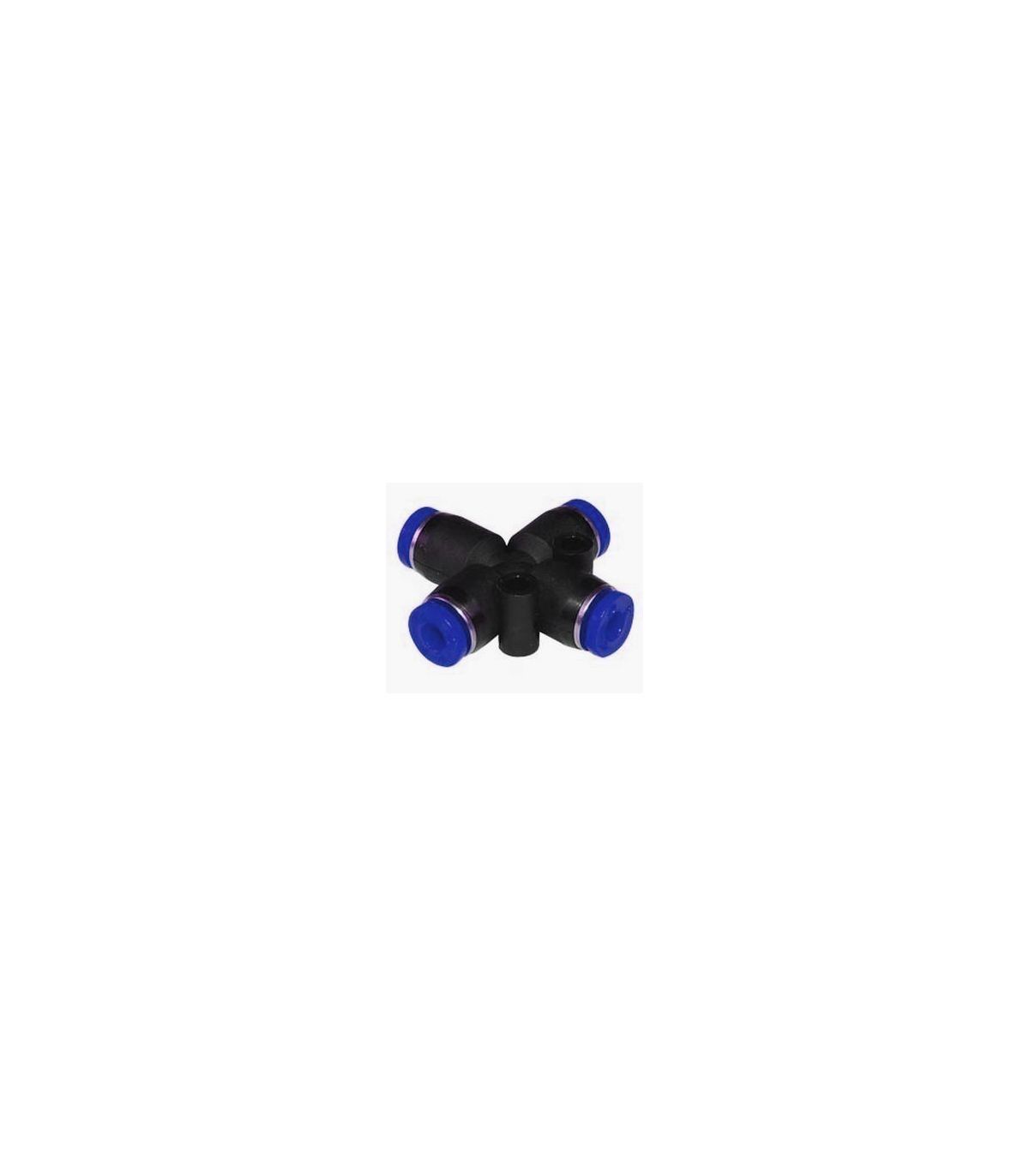

INSTANT FITTING CROSS PIPE JOINT
INSTANT FITTING CROSS PIPE JOINT
INSTANT FITTING CROSS PIPE JOINT
INSTANT FITTING CROSS PIPE JOINT

INSTANT FITTING CROSS PIPE JOINT

An instant cross-tube splice fitting is a Connector used in pneumatic or low-pressure fluid systems that allows quick and easy connection and disconnection of four tubes of the same diameter, with a cross-shaped configuration to distribute flow in multiple directions or join four sections of pipe at one point.

Applications: Pneumatic systems, Low pressure fluid systems, Automation, Robotics and Laboratory equipment.

Technical specifications:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 to -60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Body in nickel-plated brass and PBT
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€3.56 (tax included)
€2.94 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
Reference:
30240001
Description

Instant fitting, cross pipe splice

An instant cross tube splice fitting is a pneumatic connector designed to join four pneumatic tubes in a cross shape, allowing airflow to be distributed in different directions within a pneumatic circuit.

Technical specifications

  • Four-tube cross-configuration connection.
  • Instant quick assembly system.
  • High sealing and reliability in pneumatic circuits.
  • It facilitates the branching and distribution of compressed air.
  • Compatible with different pneumatic tube diameters.

Common applications

It is used in industrial pneumatic installations, automation and machinery where it is necessary to divide or distribute compressed air to various points in the system efficiently and compactly.

Technical specifications of an instant cross-tube fitting:

EMPALME TUBO CRUZ

Product Details
30240001
