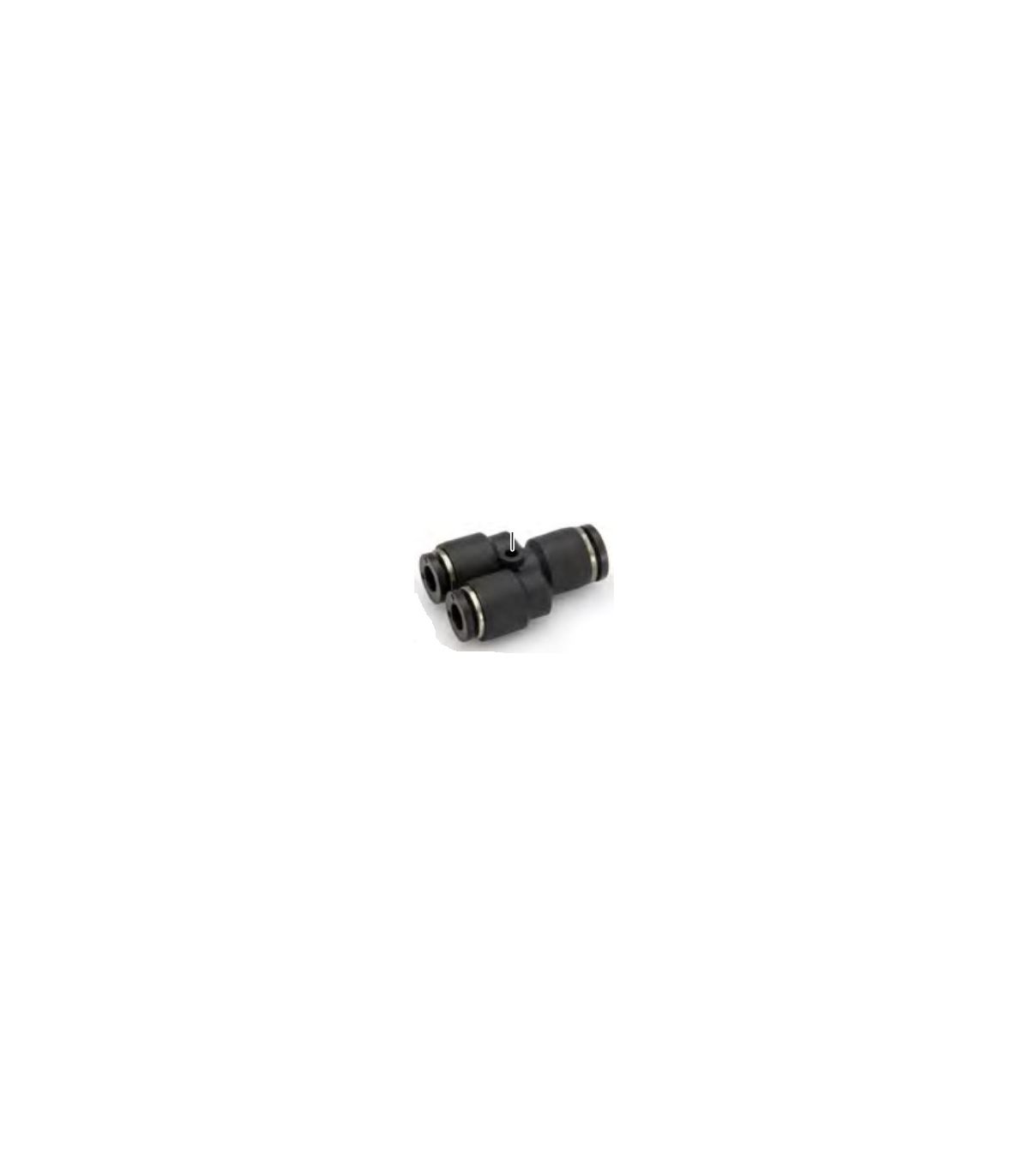

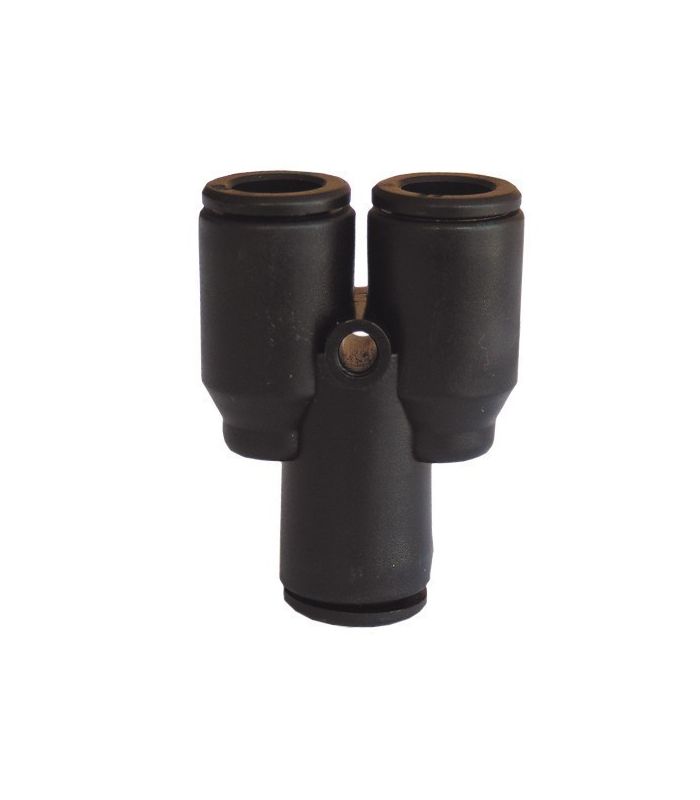

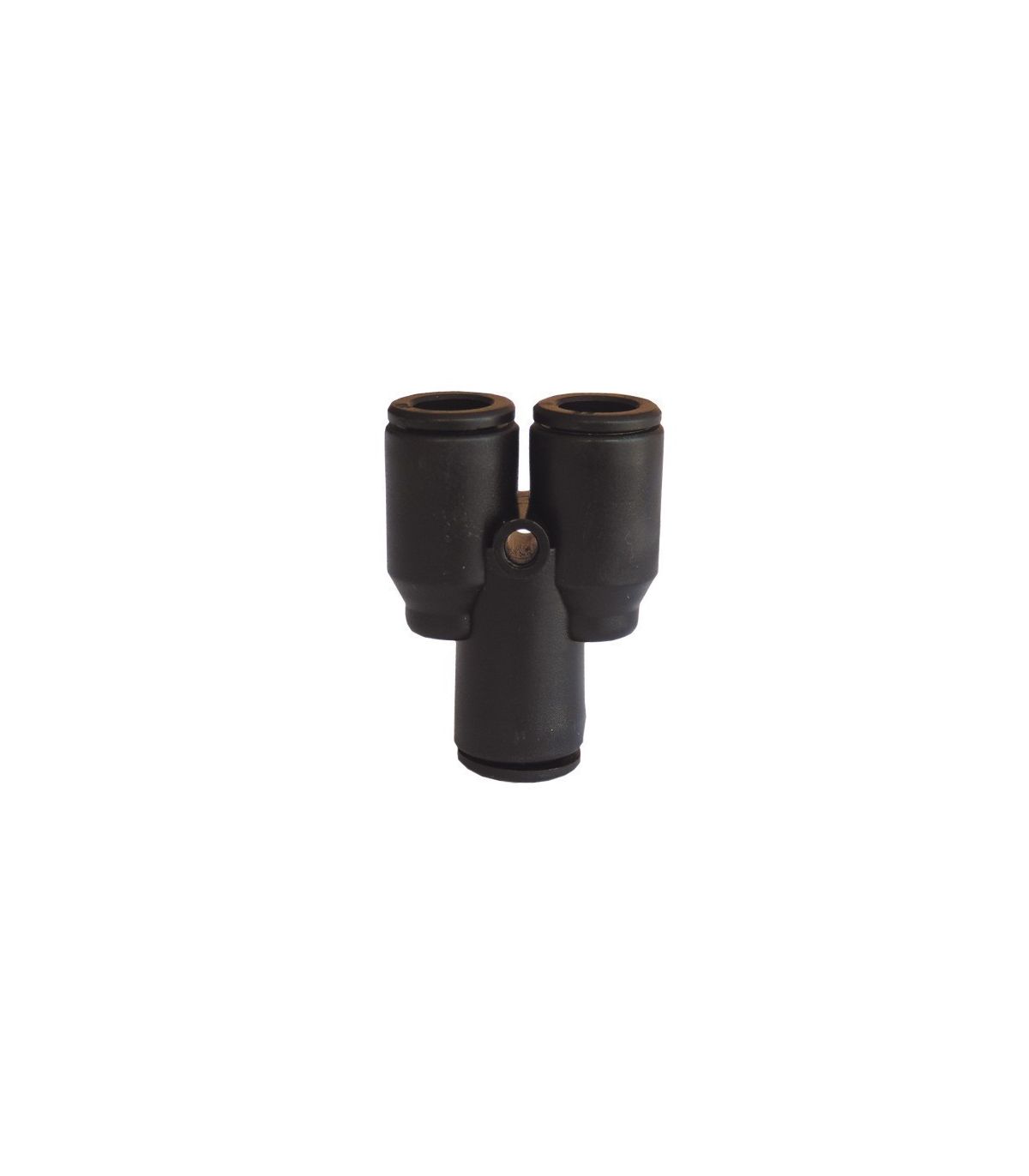

INSTANT FITTING PIPE AND JOINT
INSTANT FITTING PIPE AND JOINT
INSTANT FITTING PIPE AND JOINT
INSTANT FITTING PIPE AND JOINT

INSTANT FITTING PIPE AND JOINT

A quick-connect fitting, also known as a Y-tube coupling, is a type of quick-connect fitting primarily used in pneumatic and low-pressure fluid systems.

Common applications: pneumatic systems, low-pressure fluid systems, and automation.

Technical specifications:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 / -60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Nickel-plated brass and PBT body
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€2.66 (tax included)
€2.20 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
Reference:
30250001
Description

Instant fitting for Y-tube splice

A Y-tube instant fitting is a pneumatic connector designed to join three tubes using a "Y" shaped configuration, allowing the airflow to be split or combined within a pneumatic circuit.

Main features

  • Y-shaped design for branching or joining pneumatic lines.
  • Instant connection by direct insertion of the tube.
  • Quick and easy assembly.
  • High sealing and connection security.
  • Compatible with different pneumatic tube diameters.

Common applications

It is used in industrial pneumatic installations to distribute compressed air to different lines, optimize installation spaces and facilitate pneumatic circuit configurations in machinery and automation systems.

Technical specifications of an instant Y-tube splice fitting:

EMPALME TUBO Y

Product Details
30250001
