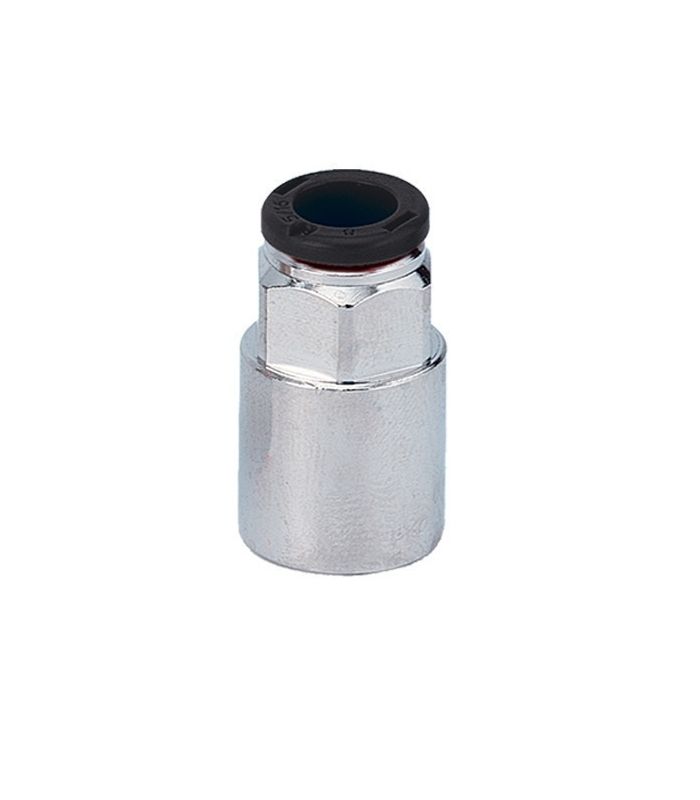

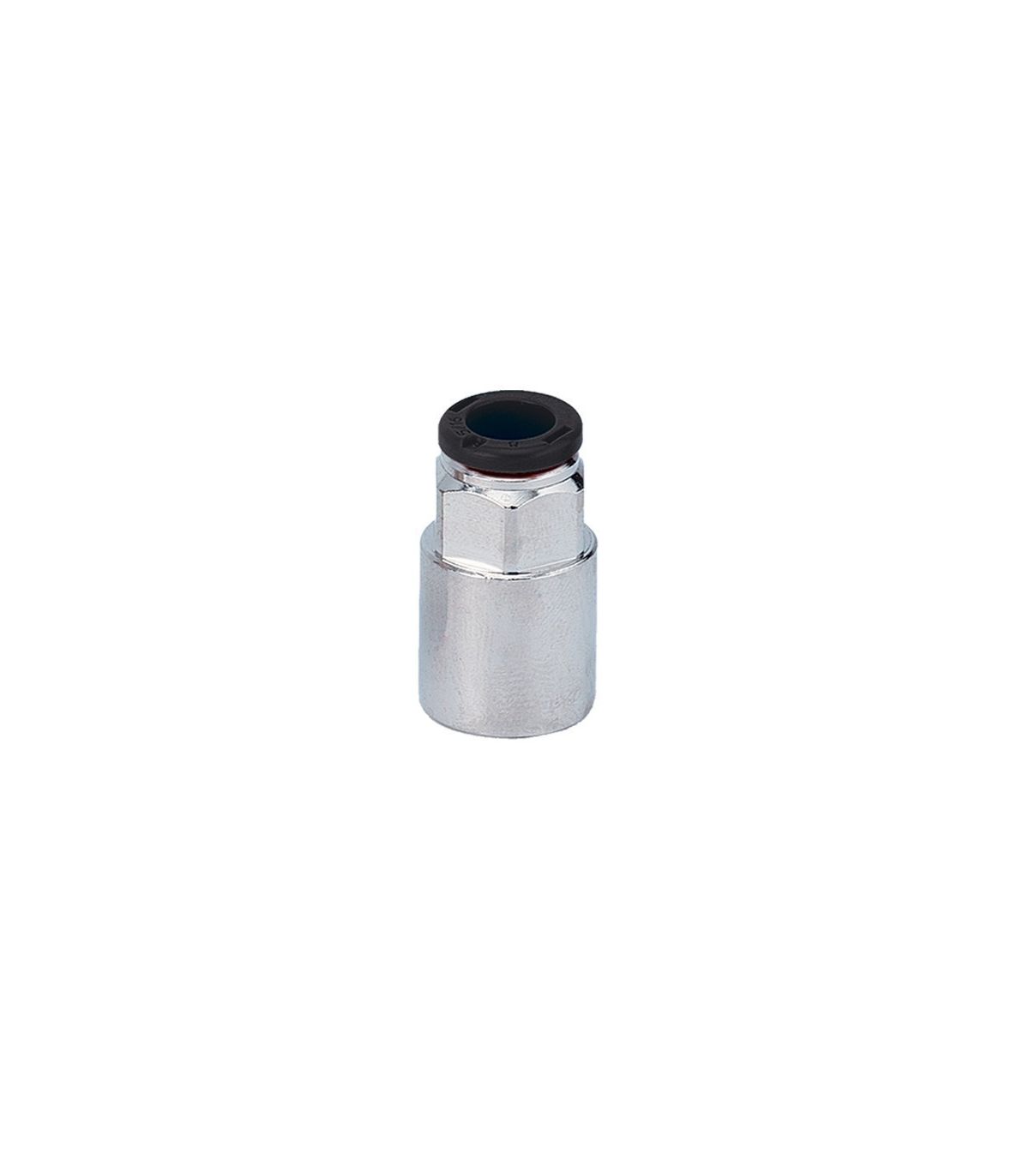

INSTANT FITTING FOR STRAIGHT FEMALE TUBE UNION

INSTANT FITTING FOR STRAIGHT FEMALE TUBE UNION

A female straight tube union instant fitting is a pneumatic or low-pressure fluid connection used to join a flexible or semi-rigid tube to a component or port that has a female thread.

Applications: automation, automotive, robotics, packaging, food and pharmaceutical.

Technical specifications:

  • Working pressure -0.99 / 10 bar.
  • Temperature 0 /- 60ºC.
  • Wide range of Ø 4-16
  • Ease of connection
  • Cylindrical or tapered thread
  • Body in nickel-plated brass and PBT.
  • Stainless steel gripping clamp (301)
  • POM resin push ring
€1.79 (tax included)
€1.48 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 4-1/4
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
Reference:
30060003
Description

Instant fitting for female straight pipe union

An instant female straight tube union fitting is a type of pneumatic connection designed to quickly and securely join a tube with a female thread in a straight line.

It allows the tube to be connected by a direct insertion system, without the need for tools, while the female threaded end is coupled to a component with a male thread (valve, cylinder, distributor, etc.).

Main features

  • Instant tube connection via direct insertion.
  • Straight end that facilitates in-line installations.
  • Female thread for connection to elements with male thread.
  • High sealing for compressed air systems.
  • Quick and safe assembly, no special tools required.

Technical specifications for an instant female straight tube coupling:

UNION TUBO RECTO HEMBRA

Product Details
30060003
