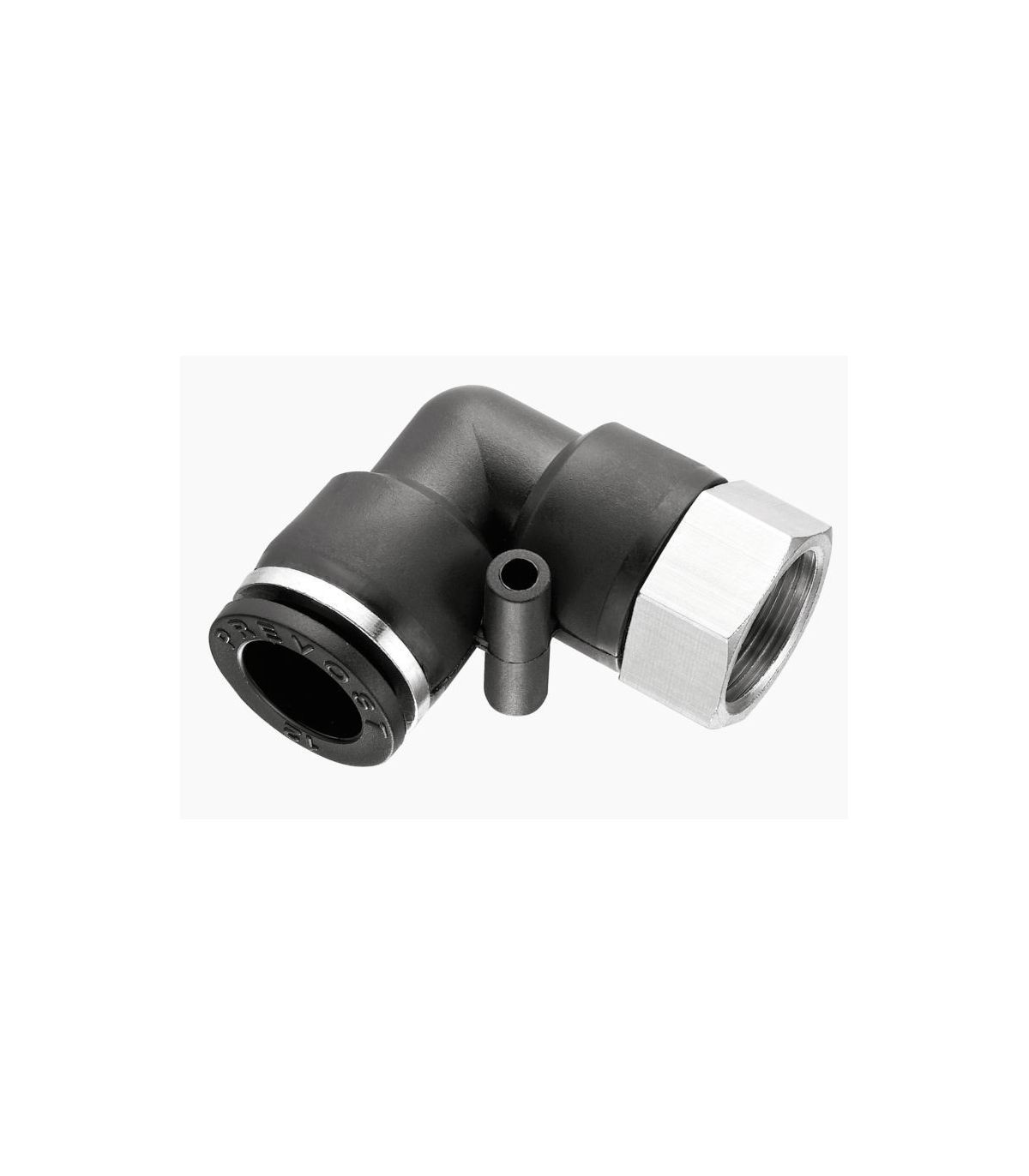

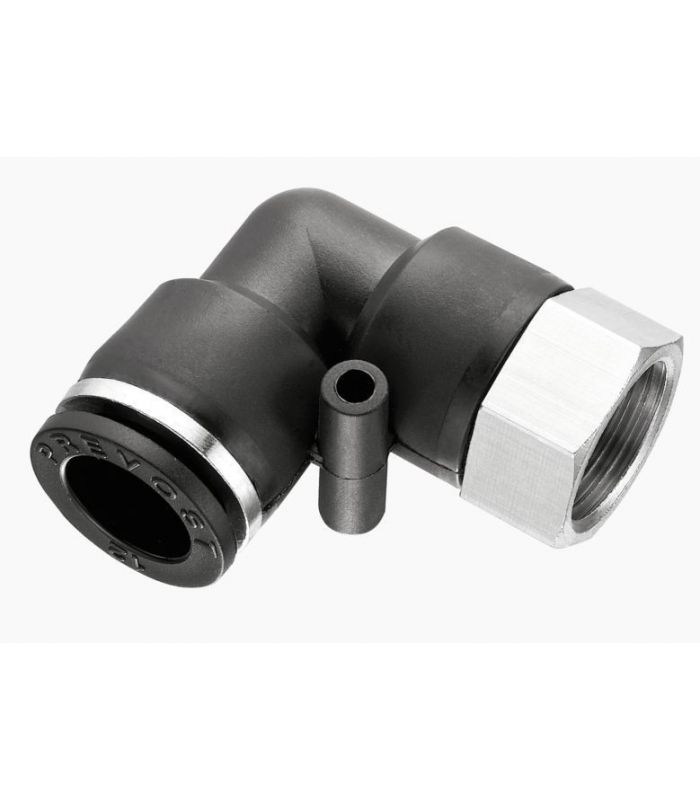

An instant elbow fitting with female threads is a quick-connect fitting used to join flexible tubing to a pipe or component with female threads at a 90° angle. It can be installed without special tools.
The most common applications are found in pneumatics, hydraulics, the food industry, and refrigeration.
Technical specifications:
An instant fitting with female threaded elbow joint is a pneumatic connector designed to change the direction of airflow by 90° and, at the same time, connect a tube using a quick-insert system to a female thread.
This type of fitting combines an elbow connection with a female threaded outlet, allowing it to be installed on components with male threads, optimizing space and facilitating assembly in confined areas.
It is used in industrial pneumatic systems where it is necessary to redirect the tube at a right angle , such as in automated machinery, control panels, pneumatic cylinders, and compressed air distribution circuits.
Technical specifications of an instant fitting for elbow-to-tube female thread union:
