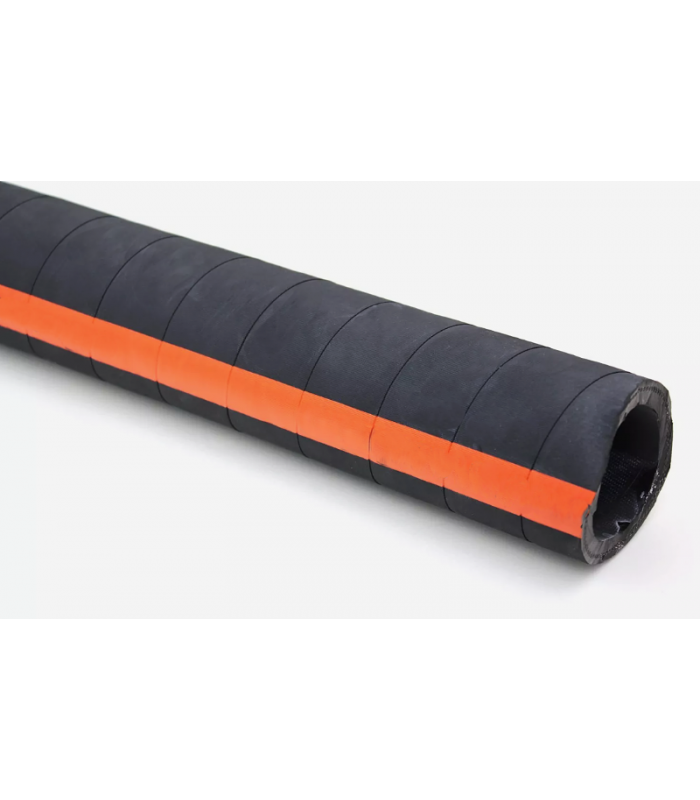

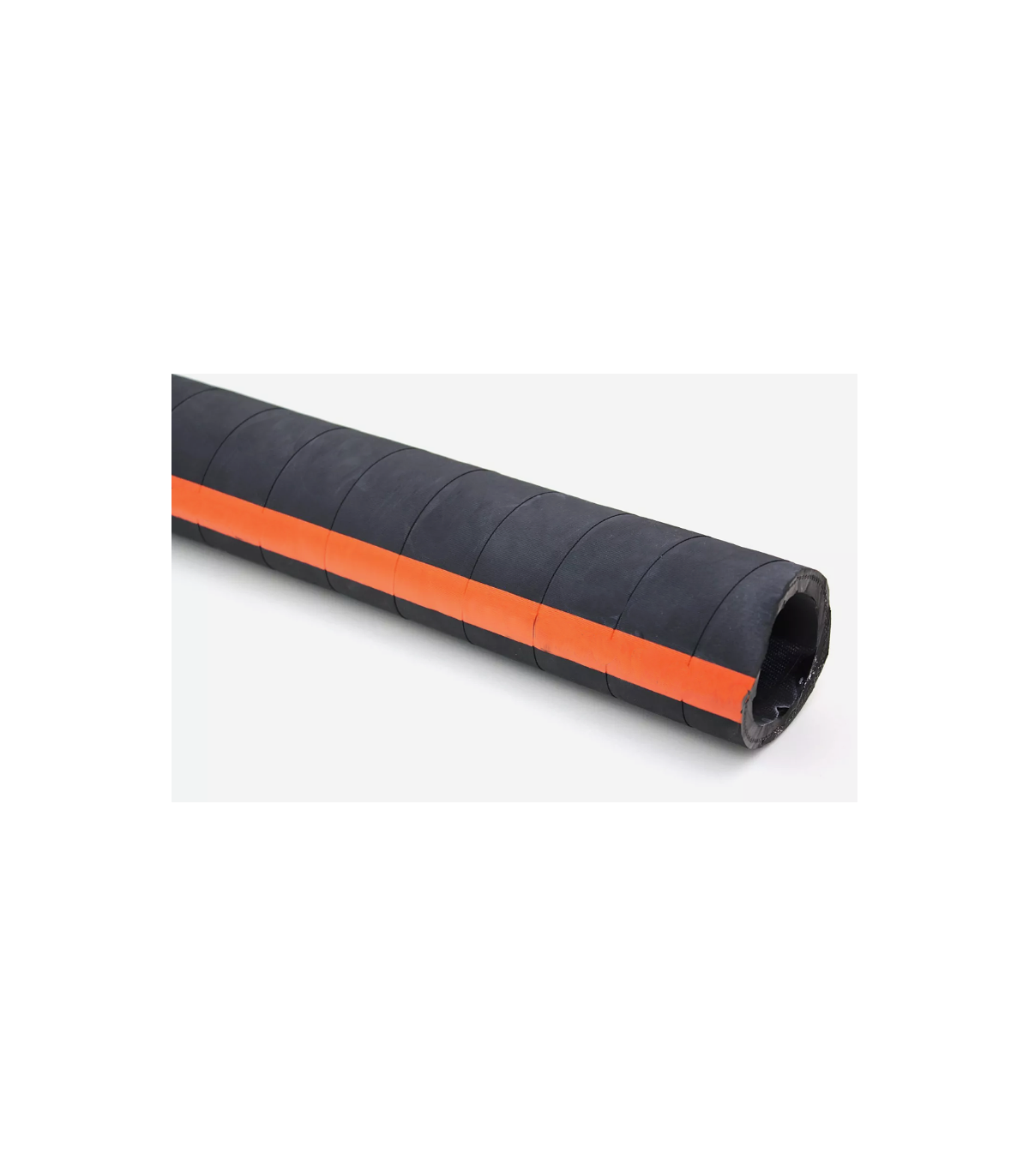

The 12 bar concrete and mortar pump hose is a thick tube intended for pumping concrete and mortar for dry construction.
Special application in boom trucks, pressure pumping machines and sandblasting.
Main features:
Choose full rolls or linear meters, according to your needs
The 12 bar concrete and mortar delivery hose is designed for the pressurized transport of abrasive mixtures used in construction, such as concrete, cement, mortar, plaster and other materials with solid particles in suspension.
Its manufacture with high-strength materials allows it to withstand the demanding conditions of concrete pumps, where a hose capable of working with high pressure, continuous abrasion, and mechanical stress is required.
Technical data sheet for the concrete and mortar pumping hose:
| Code | Inner diameter (mm) | Outer diameter (mm) | Thickness (mm) | Working pressure (bar) | Curve radius (mm) | Weight kg/m | Roll length (m) |
| 156001 | 13 | 25 | 6.00 | 12 | 80 | 0.450 | 40 |
| 156002 | 16 | 28 | 6.00 | 12 | 95 | 0.500 | 40 |
| 156003 | 19 | 31 | 6.00 | 12 | 105 | 0.550 | 40 |
| 156004 | 25 | 40 | 7.50 | 12 | 125 | 0.850 | 40 |
| 156005 | 32 | 48 | 8.00 | 12 | 160 | 1,200 | 40 |
| 156006 | 40 | 57 | 8.50 | 12 | 200 | 1,500 | 40 |
| 156007 | 51 | 69 | 9.00 | 12 | 250 | 2,100 | 40 |
| 156008 | 60 | 80 | 10.00 | 12 | 300 | 2,750 | 40 |
| 156009 | 65 | 85 | 10.00 | 12 | 330 | 2,950 | 40 |
| 156010 | 70 | 90 | 10.00 | 12 | 370 | 3,250 | 40 |
