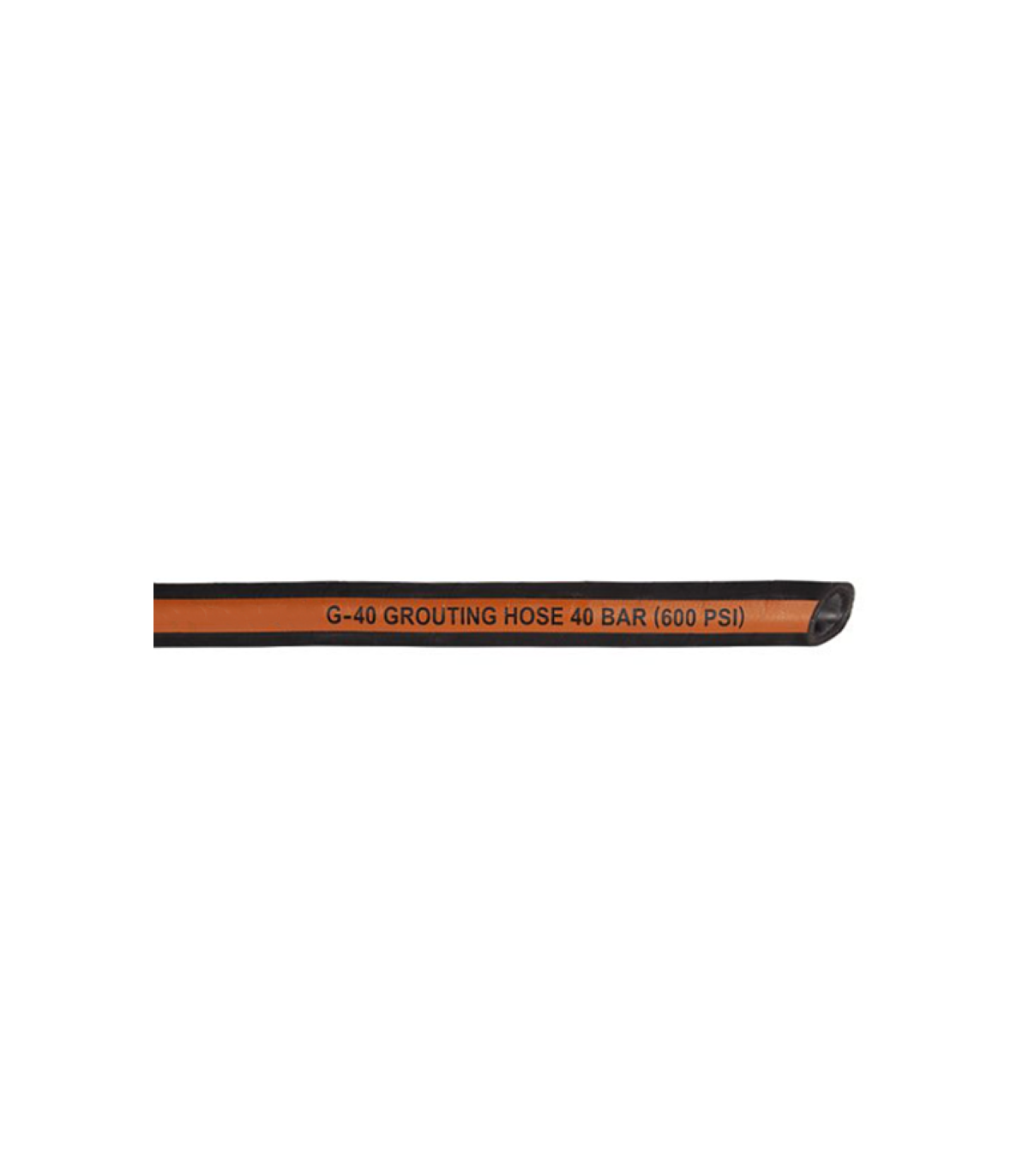

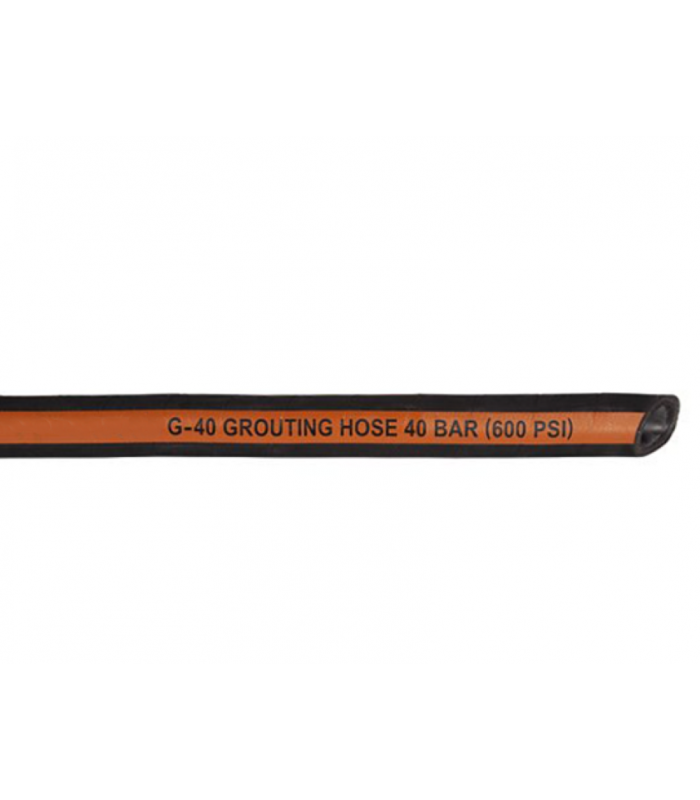

The hose is for propelling and spraying abrasive materials at 40 bar (cement, plaster, concrete, aggregates and ceramics) using a wet method.
Applications: Shotcrete, Pumping of concrete and mortar in construction works, Grout injection in soil stabilization.
Technical specifications:
Choose full rolls or linear meters, according to your needs.
The 40 bar abrasive materials propulsion and projection hose is specially designed for industrial applications of shot blasting, sandblasting and particle transport using pressurized air.
Its construction is designed to withstand the wear caused by the continuous passage of abrasive materials, offering a flexible and suitable solution for demanding applications. It is suitable for applications with a working pressure of up to 40 bar , depending on the specific service conditions.
Primarily intended for the spraying and transport of abrasive materials in industrial applications, including:
Technical data sheet for a hose for pumping and spraying abrasive materials at 40 bar:
| Reference | Inner diameter (mm) | Outer diameter (mm) | Thickness (mm) | Working pressure (bar) | Curve radius (mm) | Weight kg/m | Roll length (m) |
| 153001 | 25 | 37 | 6.00 | 40 | 250 | 0.700 | 40 |
| 153002 | 35 | 49 | 7.00 | 40 | 350 | 1,100 | 40 |
| 153003 | 51 | 68 | 8.50 | 40 | 400 | 2.00 | 40 |
