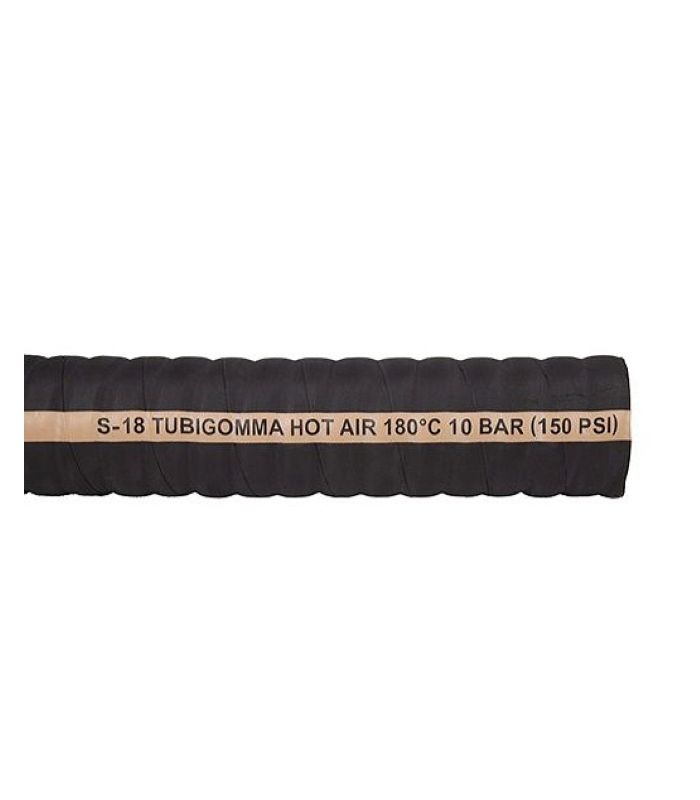

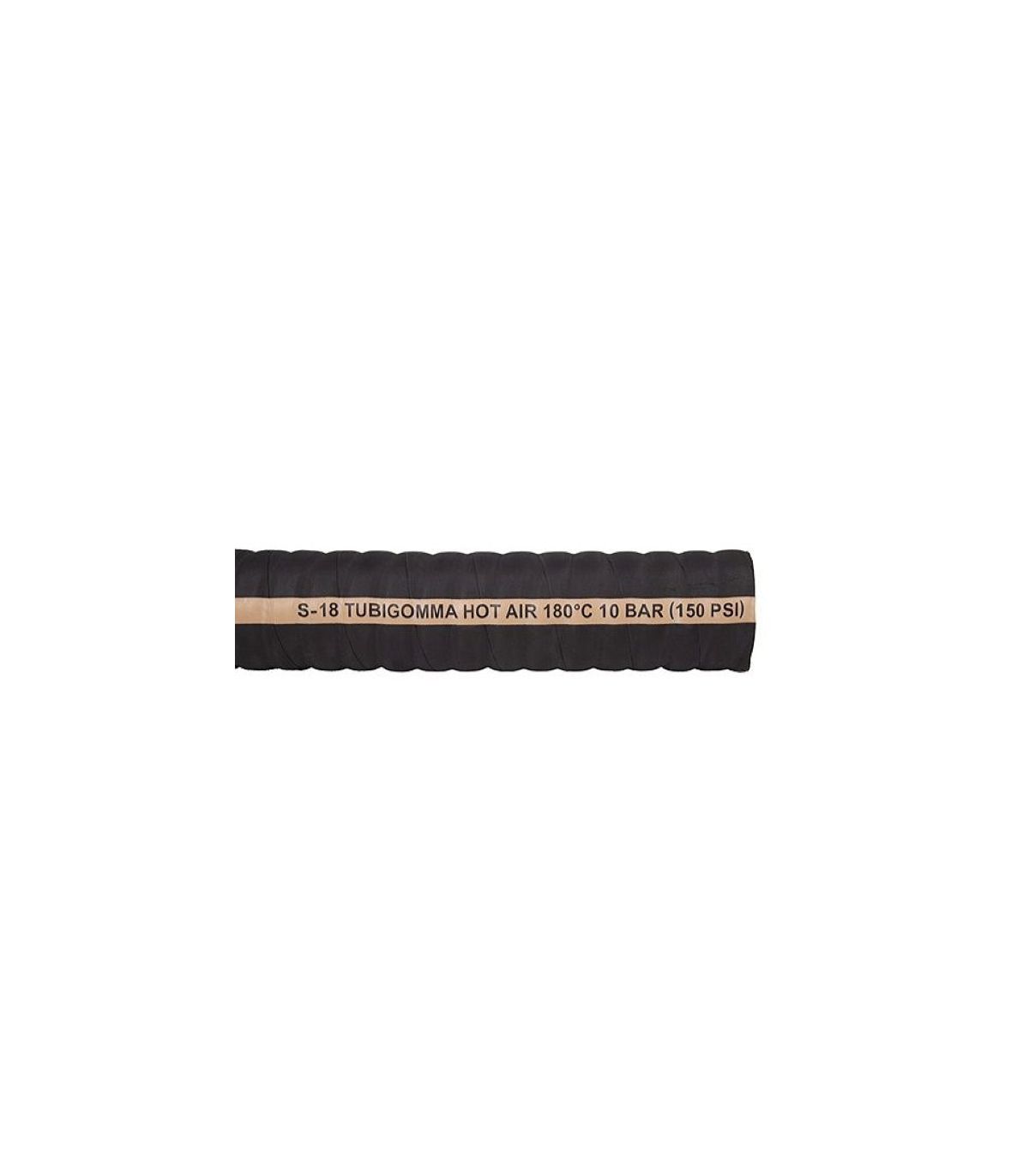

The 10 bar hot air suction and discharge hose for tankers is a high-strength, flexible hose specifically designed for handling dry, hot air under positive or negative pressure (vacuum). Its primary use is in tankers transporting bulk materials (powders, granules) that require loading or unloading by blowing or suction of air at elevated temperatures, thanks to its corrugated cover.
Applications: Pneumatic conveying of bulk materials, food industry, chemical and pharmaceutical industry, drying systems.
Technical specifications:
Choose full rolls or linear meters, according to your needs.
The 10 bar hot air suction and discharge hose for cisterns offers a suitable solution for installations that require working with air at high temperature and a service pressure of up to 10 bar.
Its construction is geared towards providing flexibility and strength in industrial applications, facilitating connection and handling operations between the tank and the different loading, unloading or transfer points.
Primarily intended for installations and tank vehicles where it is necessary to conduct hot air during loading, unloading, pressurization or transfer operations.
It can be used in industrial sectors where a flexible connection between the tank and the air ducting system is required, especially in product transport and handling processes.

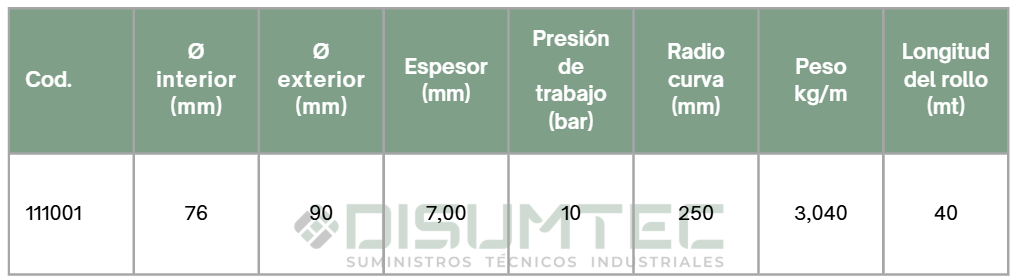

Technical specifications for a hot air suction and discharge hose for a 10 bar cistern:
| Reference | Inner diameter (mm) | Outer diameter (mm) | Thickness (mm) | Working pressure (bar) | Curve radius (mm) | Weight kg/m | Roll length (m) |
| 111001 | 76 | 90 | 7.00 | 10 | 250 | 3,040 | 40 |
