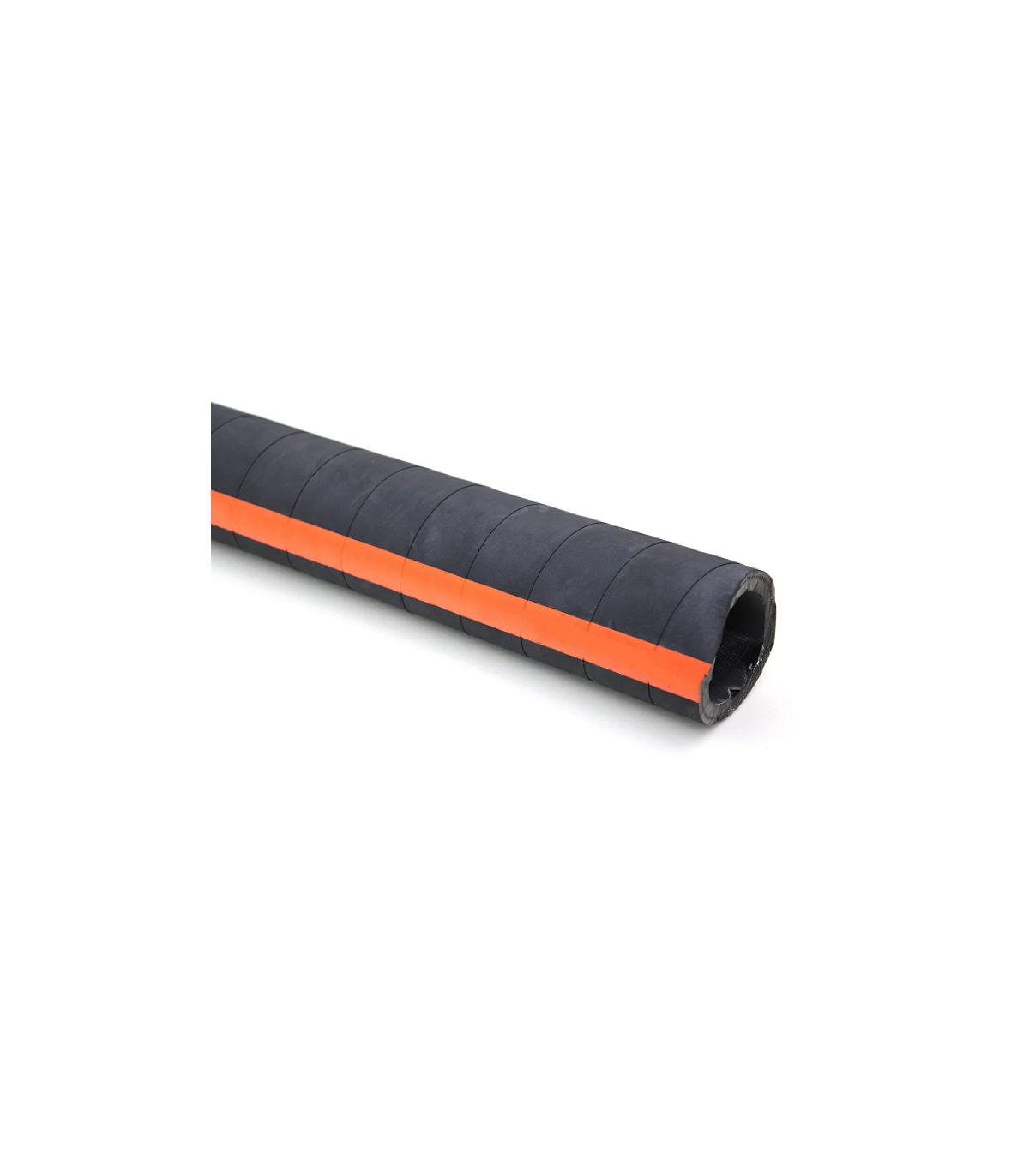

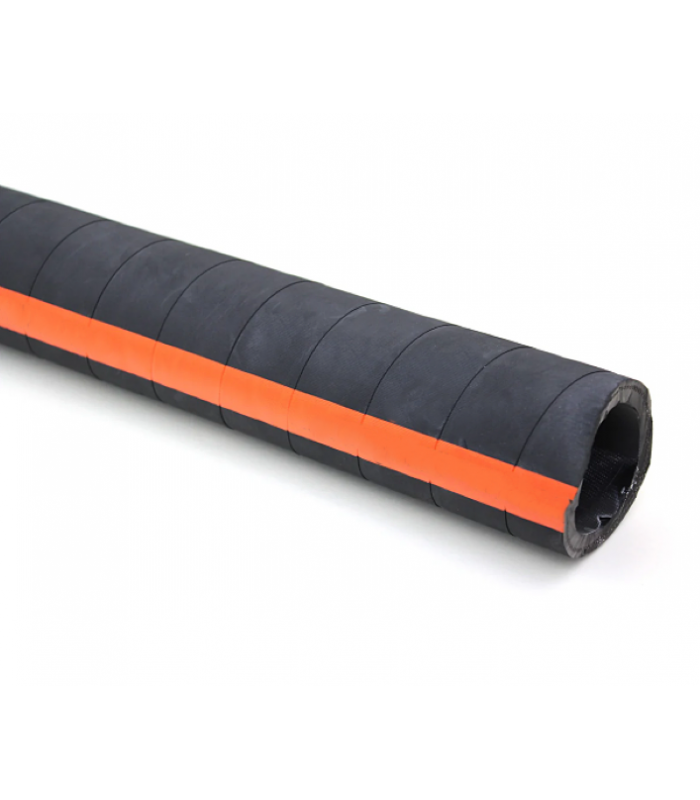

The 5 bar cement discharge and delivery hose is a high-strength hose, specifically designed for transporting powdered cement, concrete and granular materials at low pressure.
Applications: Tanker trucks and silos, Concrete and prefabricated plants, Civil construction, Mining industry.
Technical specifications:
Choose full rolls or linear meters, according to your needs
The 5 bar cement delivery and discharge hose is designed for the transport of dry or liquid abrasive materials, such as cement, concrete, mortars, fine aggregates and other products used in construction and industry.
Its manufacture with high-strength materials allows it to withstand demanding working conditions, where a hose capable of resisting abrasion, pressure and internal wear caused by solid particles is required.
Technical data sheet for cement discharge and delivery hose:
| Code | Inner diameter (mm) | Outer diameter (mm) | Thickness (mm) | Working pressure (bar) | Curve radius (mm) | Weight kg/m | Roll length (m) |
| 150001 | 70 | 82 | 6.00 | 6 | 300 | 2010 | 40 |
| 150002 | 76 | 86 | 5.00 | 5 | 350 | 1,400 | 40 |
| 150003 | 80 | 90 | 5.00 | 5 | 400 | 1,550 | 40 |
| 150004 | 90 | 100 | 5.00 | 5 | 450 | 1,800 | 40 |
| 150005 | 102 | 112 | 5.00 | 5 | 500 | 2,150 | 40 |
