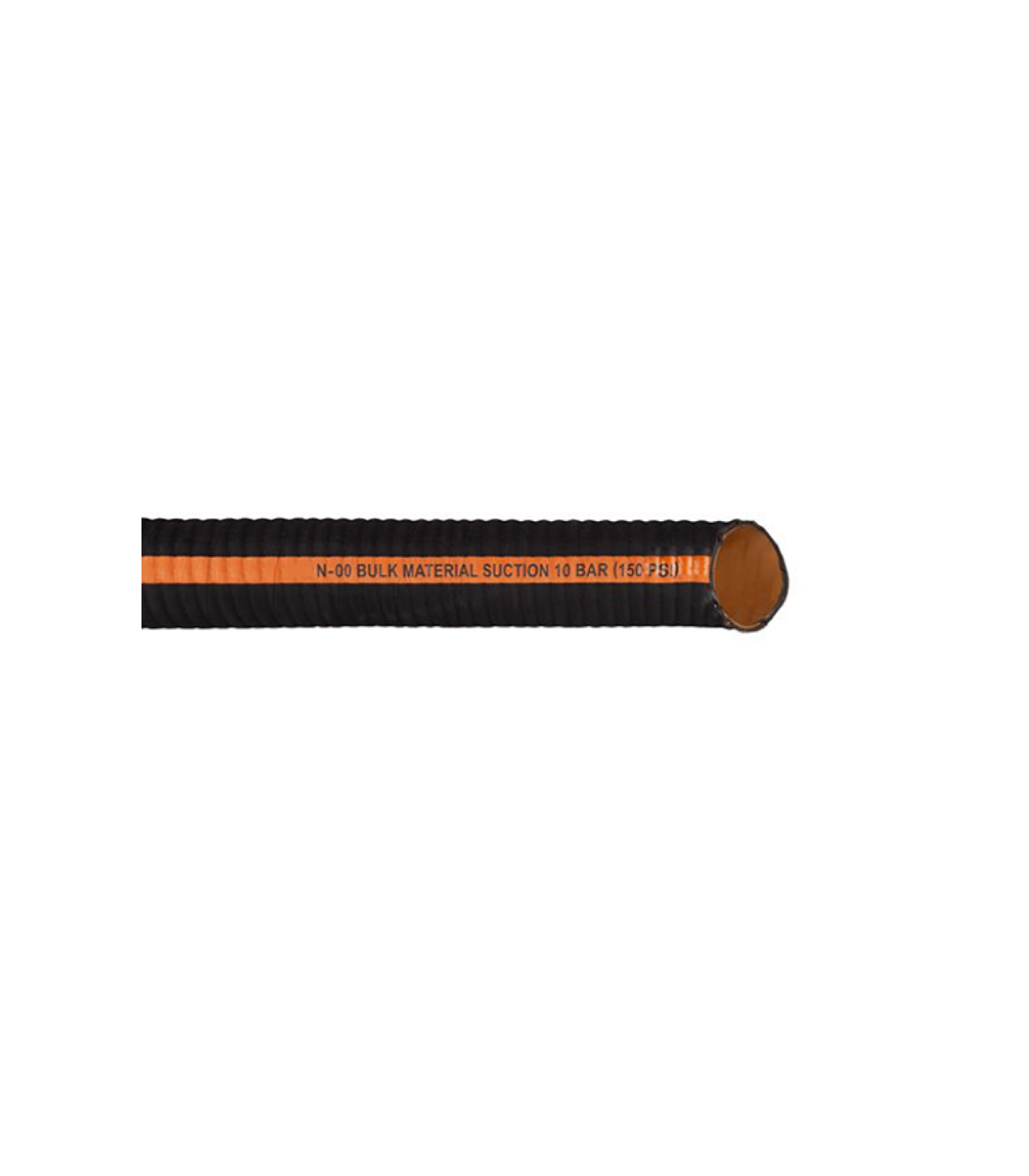

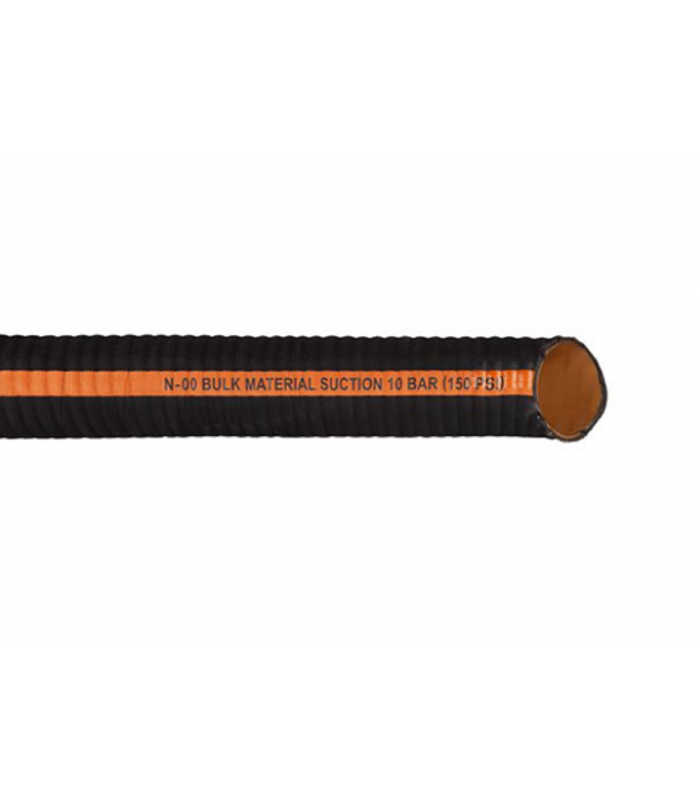

The 10 bar suction and discharge hose for highly abrasive materials is designed to withstand the extreme wear and abrasion caused by materials such as sand, gravel, cement, concrete, crushed glass, or industrial sludge.
Applications: Mining and construction, Dredging systems, Cement and concrete plants, Ceramics and glass industry, Agriculture
Technical specifications:
Choose full rolls or linear meters, according to your needs.
The 10 bar suction and discharge hose for highly abrasive materials offers reliable performance in industrial applications subject to high internal wear.
Its design is specifically geared towards the transport of aggregates, granules, minerals, sand, and other abrasive solid materials , in both suction and discharge systems. With a working pressure of up to 10 bar , it provides a suitable solution for demanding material handling and transport applications.
Technical data sheet for a suction and discharge hose for highly abrasive materials, 10 bar:
| Reference | Inner diameter (mm) | Outer diameter (mm) | Thickness (mm) | Working pressure (bar) | Curve radius (mm) | Weight kg/m | Roll length (m) |
| 155001 | 51 | 66 | 7.50 | 10 | 145 | 1,990 | 40 |
| 155002 | 76 | 91 | 7.50 | 10 | 210 | 2,980 | 40 |
| 155003 | 90 | 107 | 8.50 | 10 | 315 | 3,800 | 40 |
| 155004 | 102 | 120 | 9.00 | 10 | 390 | 4,750 | 40 |
| 155005 | 127 | 148 | 10.50 | 10 | 480 | 7,020 | 20 |
| 155006 | 152 | 175 | 11.50 | 10 | 575 | 8,940 | 20 |
