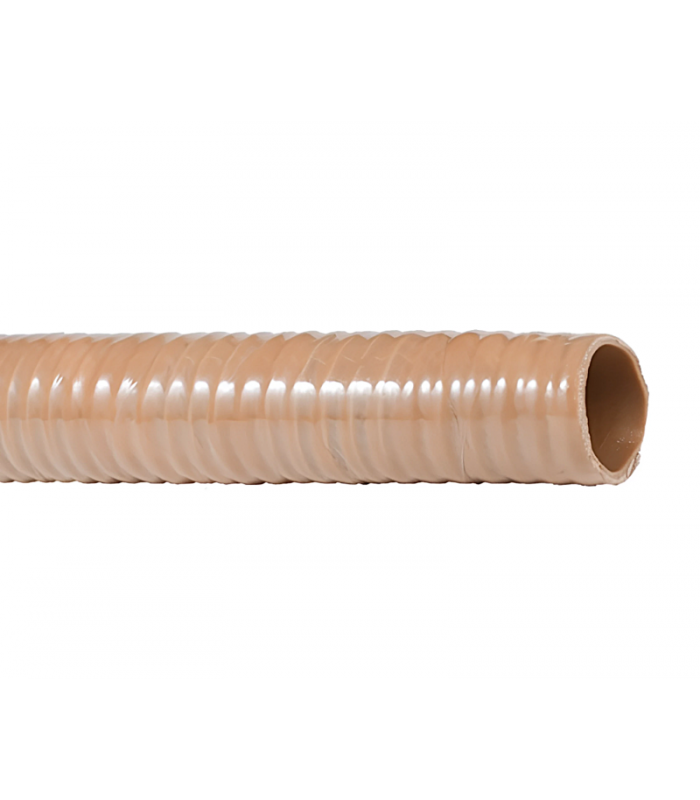

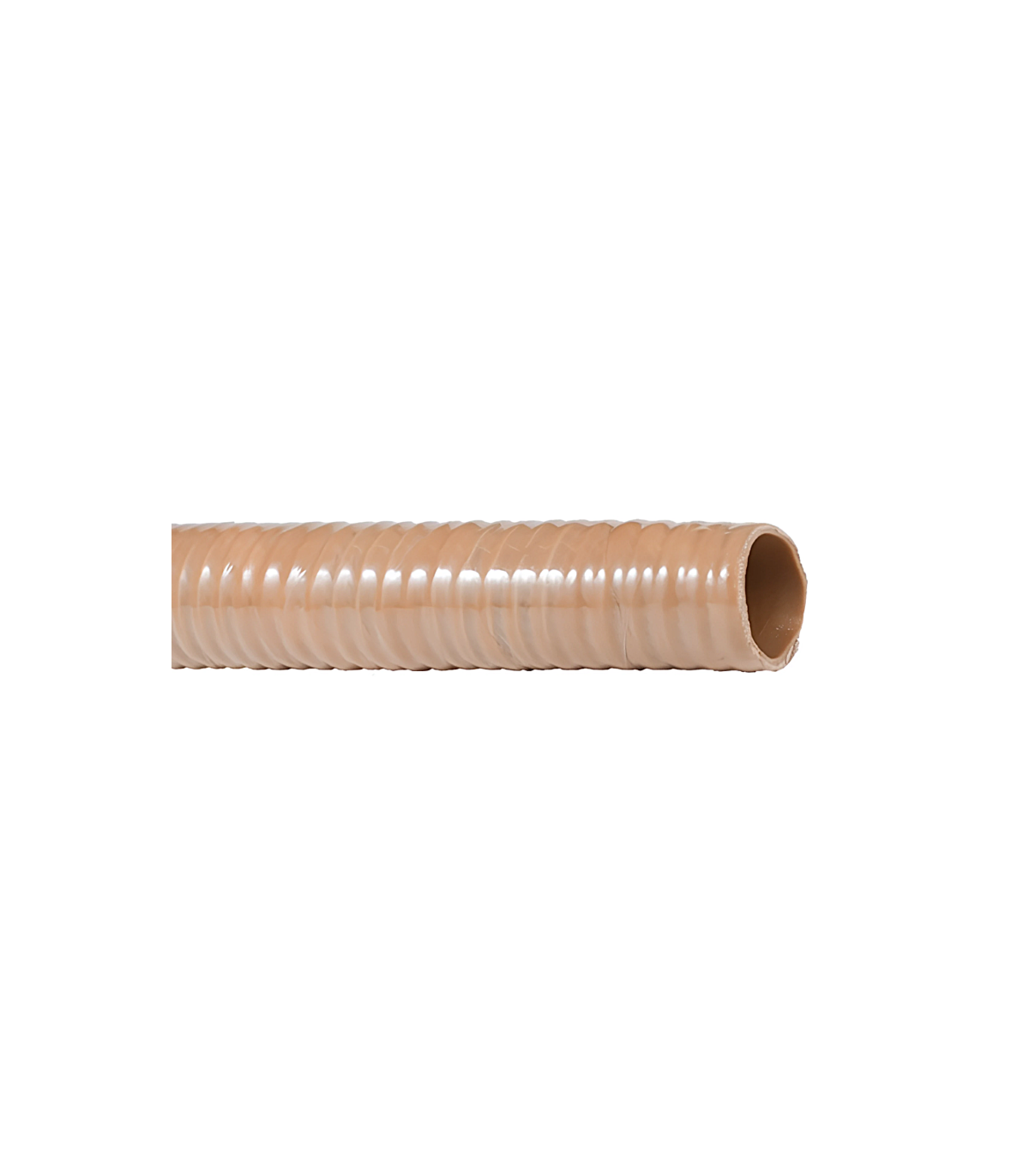

The hose is designed for suction and discharge of abrasive materials such as sand, grit, cement powder, and powdered solids, in both dry and wet states. It offers excellent flexibility thanks to its corrugated cover. Extremely lightweight and easy to handle.
Applications: Tanker trucks, Pneumatic conveying systems, Industrial cleaning machinery, Sand injection systems.
Main features:
Choose full rolls or linear meters, according to your needs.
An abrasive suction and discharge hose is a flexible hose designed for the suction, transport and discharge of abrasive solid materials, such as sand, shot, aggregates, mineral powder or granules.
It is manufactured to offer high resistance to wear from abrasion caused by the continuous passage of particles, and its flexibility allows it to adapt to material handling facilities and equipment.
Suitable for the suction, propulsion and transport of abrasive materials , such as:
Technical data sheet for an abrasive suction and discharge hose:
| Reference | Inner diameter (mm) | Outer diameter (mm) | Thickness (mm) | Working pressure (bar) | Curve radius (mm) | Weight kg/m | Roll length (m) |
| 154001 | 51 | 60 | 4.50 | 10 | 140 | 1,050 | 40 |
| 154002 | 80 | 90 | 5.00 | 10 | 280 | 2,000 | 20 |
| 154003 | 102 | 112 | 5.00 | 10 | 370 | 2,490 | 20 |
| 154004 | 127 | 138 | 5.50 | 10 | 460 | 3,640 | 20 |
| 154005 | 152 | 164 | 6.00 | 10 | 580 | 4,900 | 20 |
