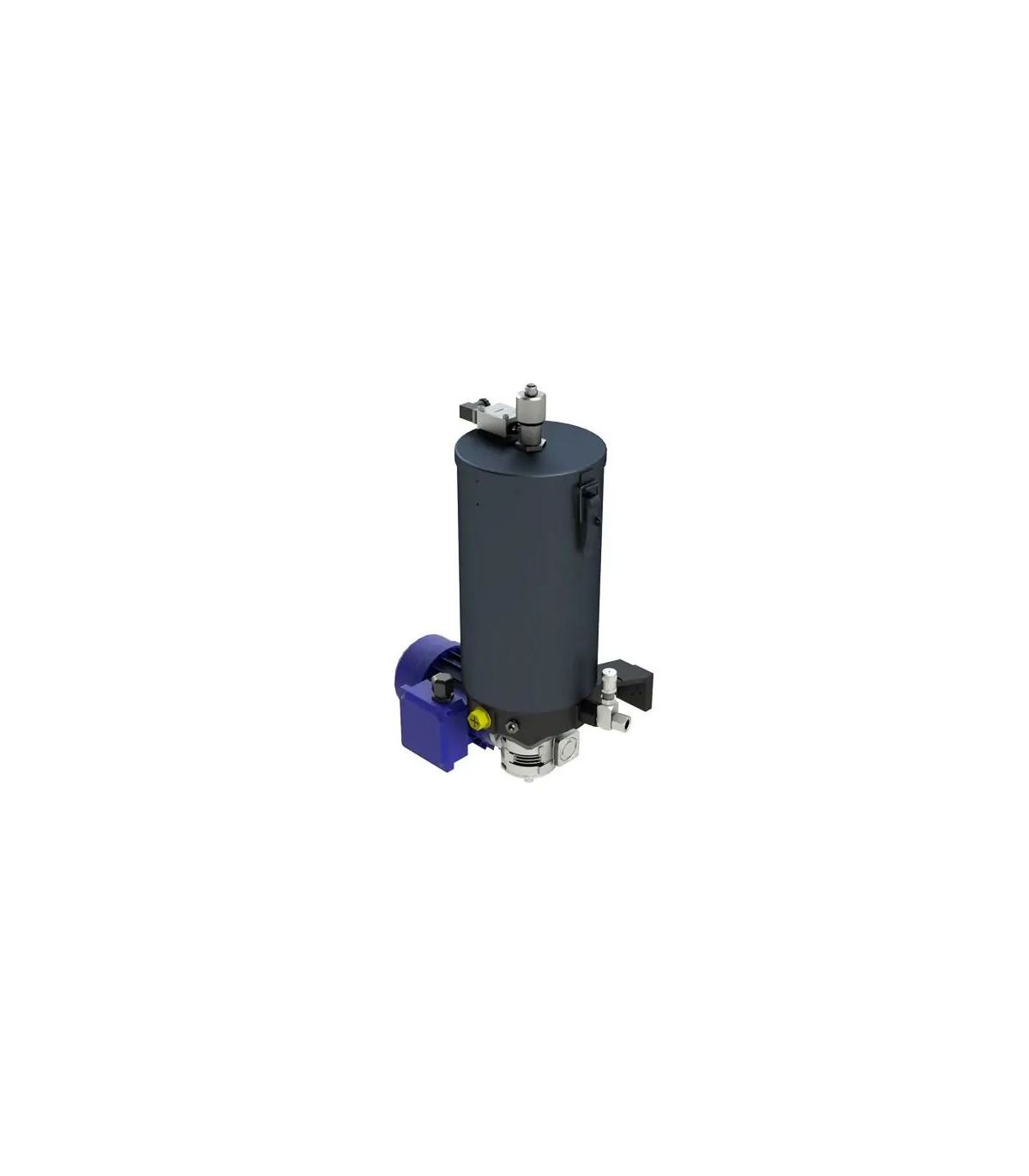

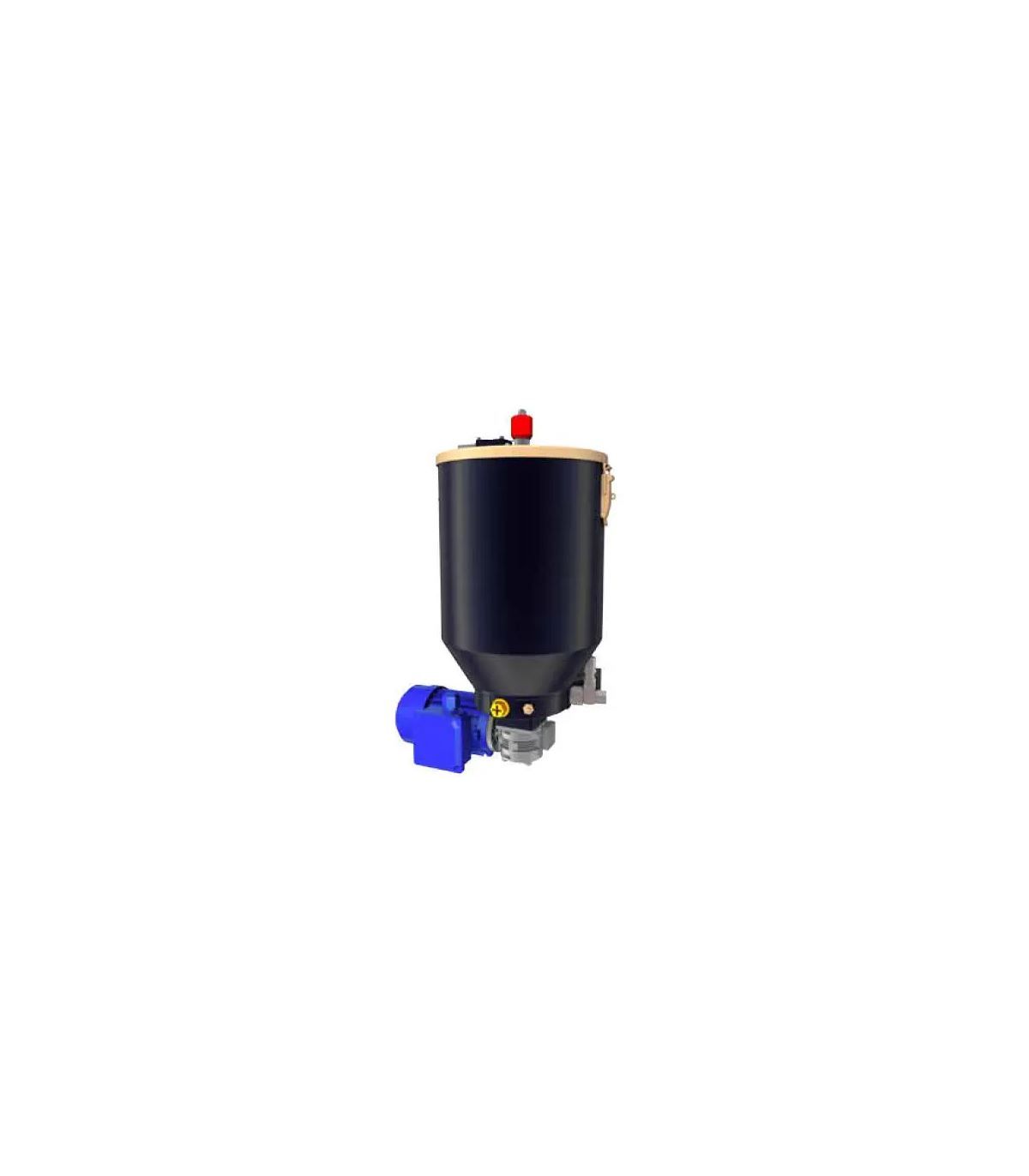

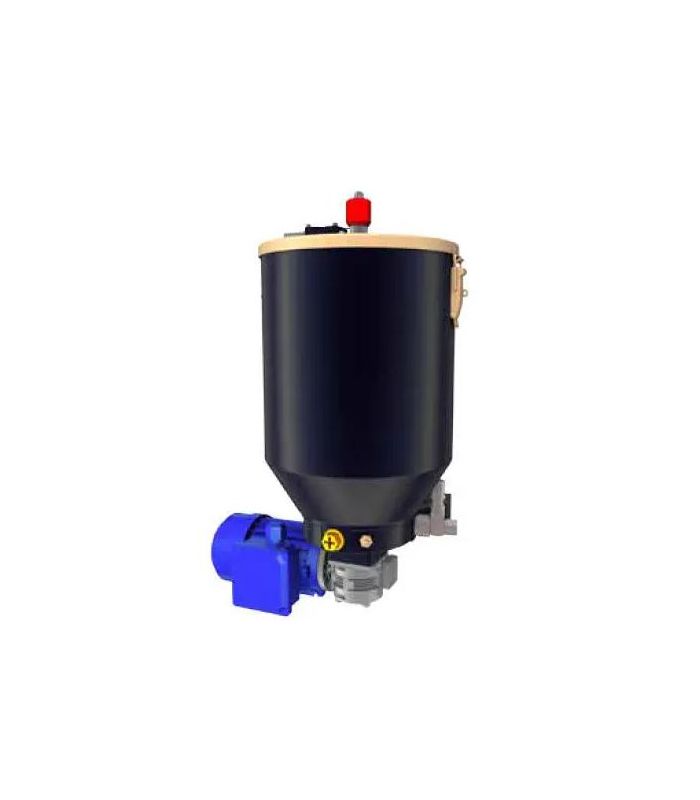

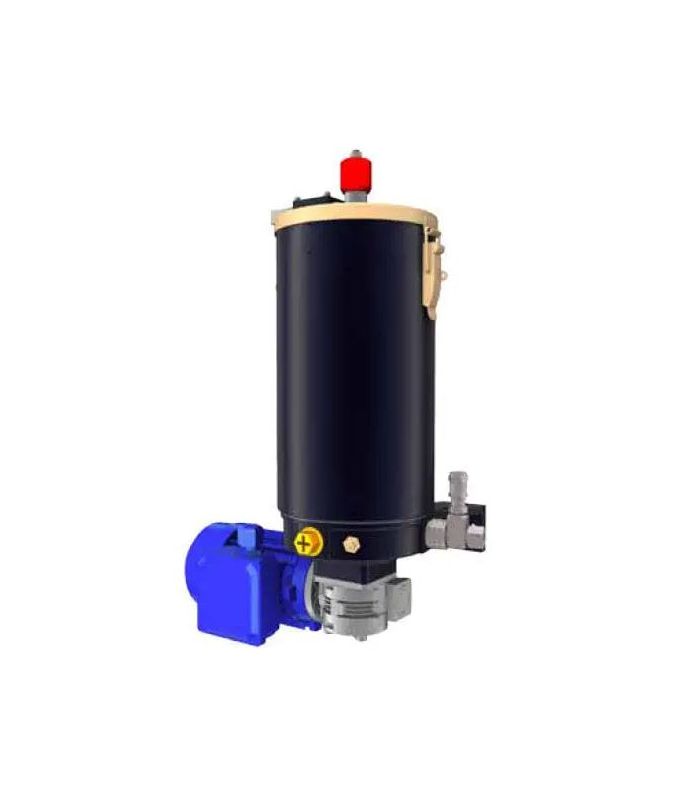

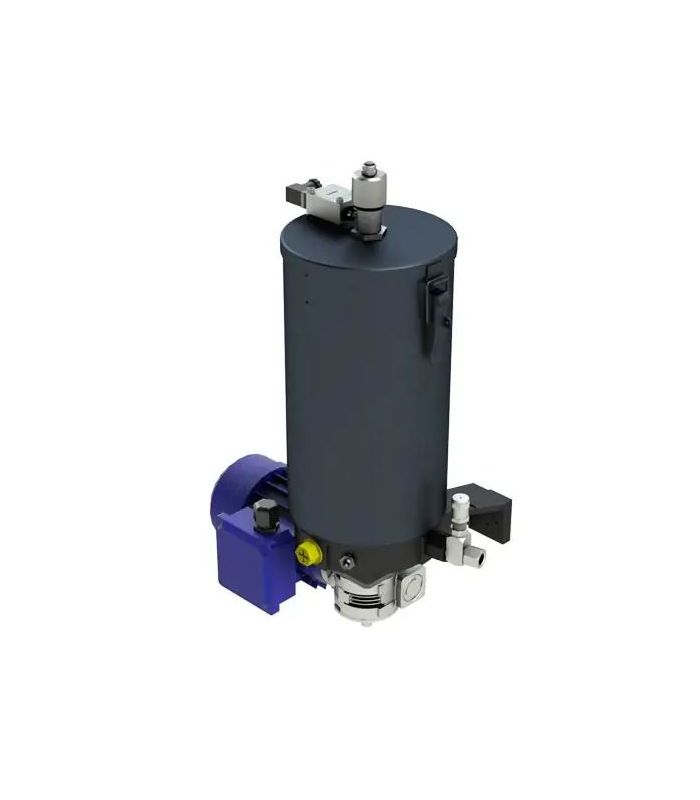

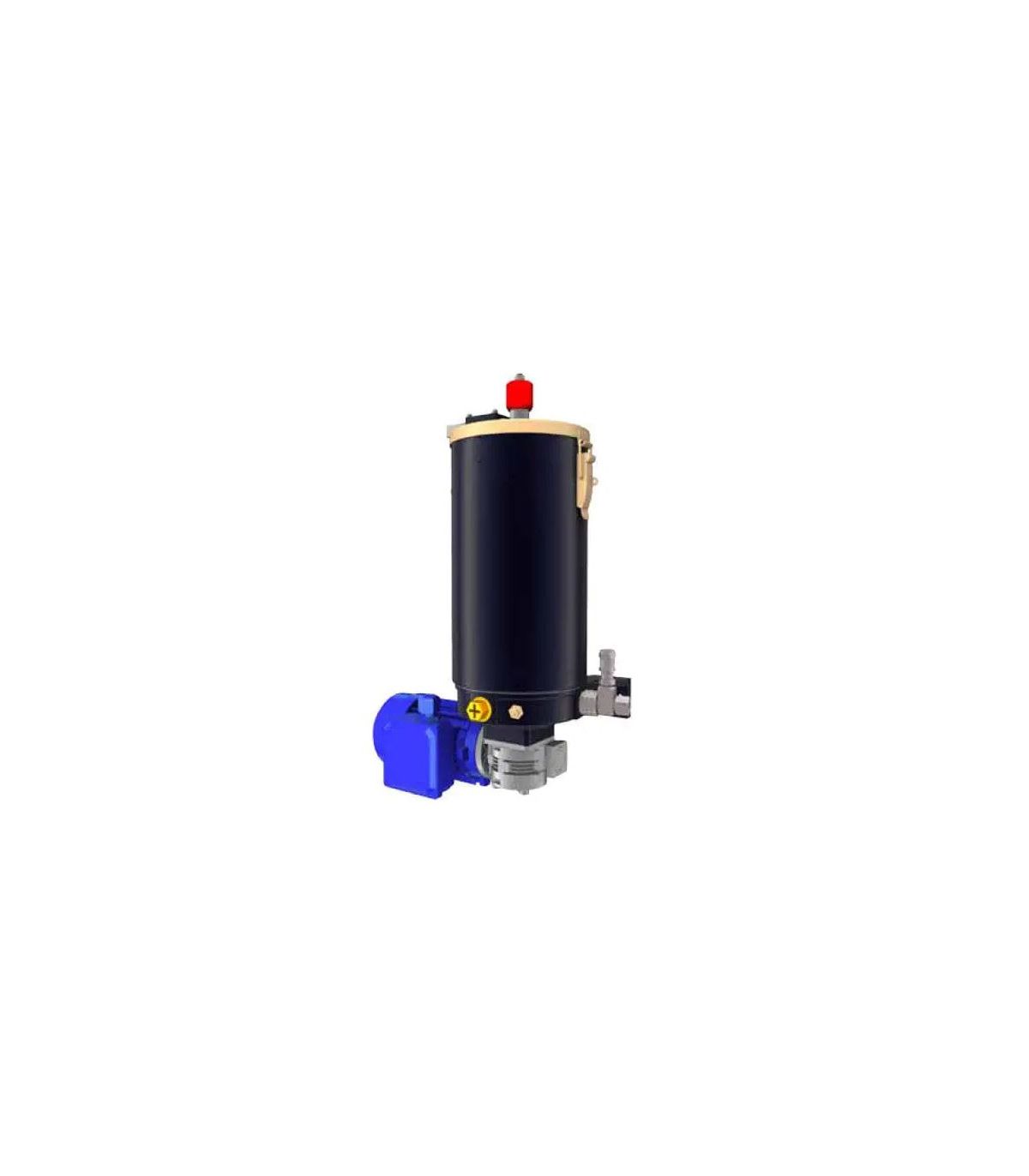

ELECTRIC GREASE PUMP

The electric grease pump is ideal for automatic lubrication with progressive distributors on any type of industrial or agricultural machinery. Together with progressive distributors, a single pump can lubricate more than 300 points. Lubrication cycles can be programmed via an external PLC according to application requirements.

Main features:

  • Maximum recommended pressure 350 bar. Standard setting 250 bar.
  • Motor power 90W THREE-PHASE
  • Motor voltage 220-240/380-420 V 50 Hz
  • Recommended lubricants: NLGI class 2 max grease.
  • Two tank capacities 5 or 10 Kg. Metallic.
  • Cycle flow rate with fixed pumping element 0.16 cc
  • Operating temperature: -30ºC to +80ºC
  • Vertical installation
  • It is supplied with one pumping element. (Possibility of 2 more outlets)
  • 1/4" Gas Drive Fitting
  • IP-65 protection rating

*See other configurations

DOWNLOAD TECHNICAL CATALOGUE

Read moreShow less
€1,694.00 (tax incl.)
€1,400.00 (tax excl.)
CHOOSE MODEL
  • 5 Kg.
  • 10 Kg.
VOLTAGE/VOLUME
  • 220VAC
Reference:
630801
Description

Electric grease pump

The electric grease pump is a device designed for the dosing and continuous supply of lubricating grease in centralized lubrication systems or industrial maintenance applications. It allows for precise, uniform, and automated application, optimizing the service life of mechanical components subjected to friction.

Technical advantages

  • Precise and automated lubrication
  • Reduced wear and maintenance
  • Improved operational efficiency
  • Reduction of human errors
  • Longer equipment lifespan

Applications

  • Centralized lubrication systems
  • Industrial machinery (presses, bearings, linear guides)
  • Agricultural and public works equipment
  • Automotive and fleet maintenance
  • Automated production lines

Technical specifications of an electric grease pump:

Read moreShow less
Product Details
630801
