VOLUMETRIC OIL LUBRICATION PUMP
VOLUMETRIC OIL LUBRICATION PUMP
VOLUMETRIC OIL LUBRICATION PUMP
VOLUMETRIC OIL LUBRICATION PUMP
VOLUMETRIC OIL LUBRICATION PUMP
VOLUMETRIC OIL LUBRICATION PUMP

VOLUMETRIC OIL LUBRICATION PUMP

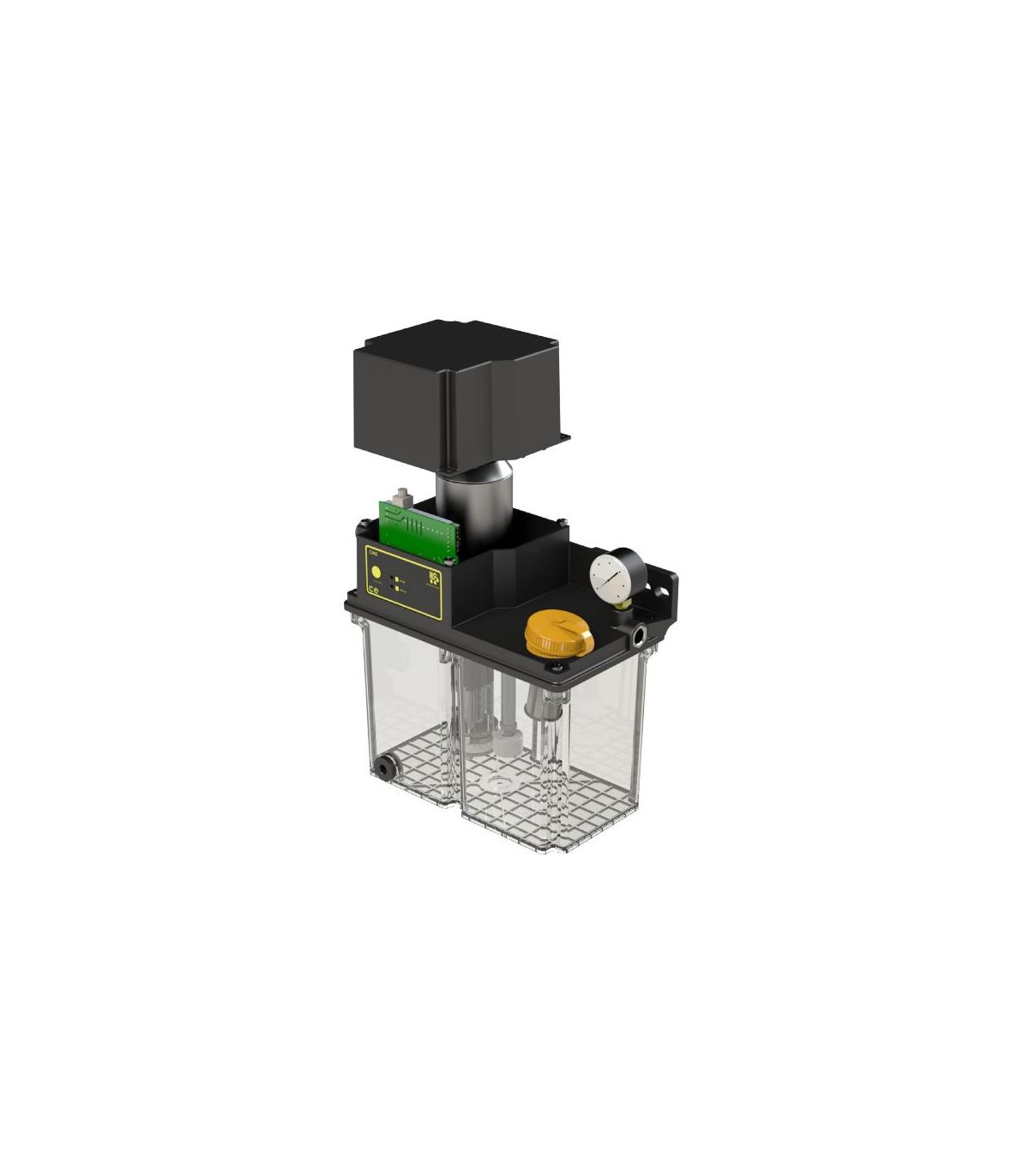

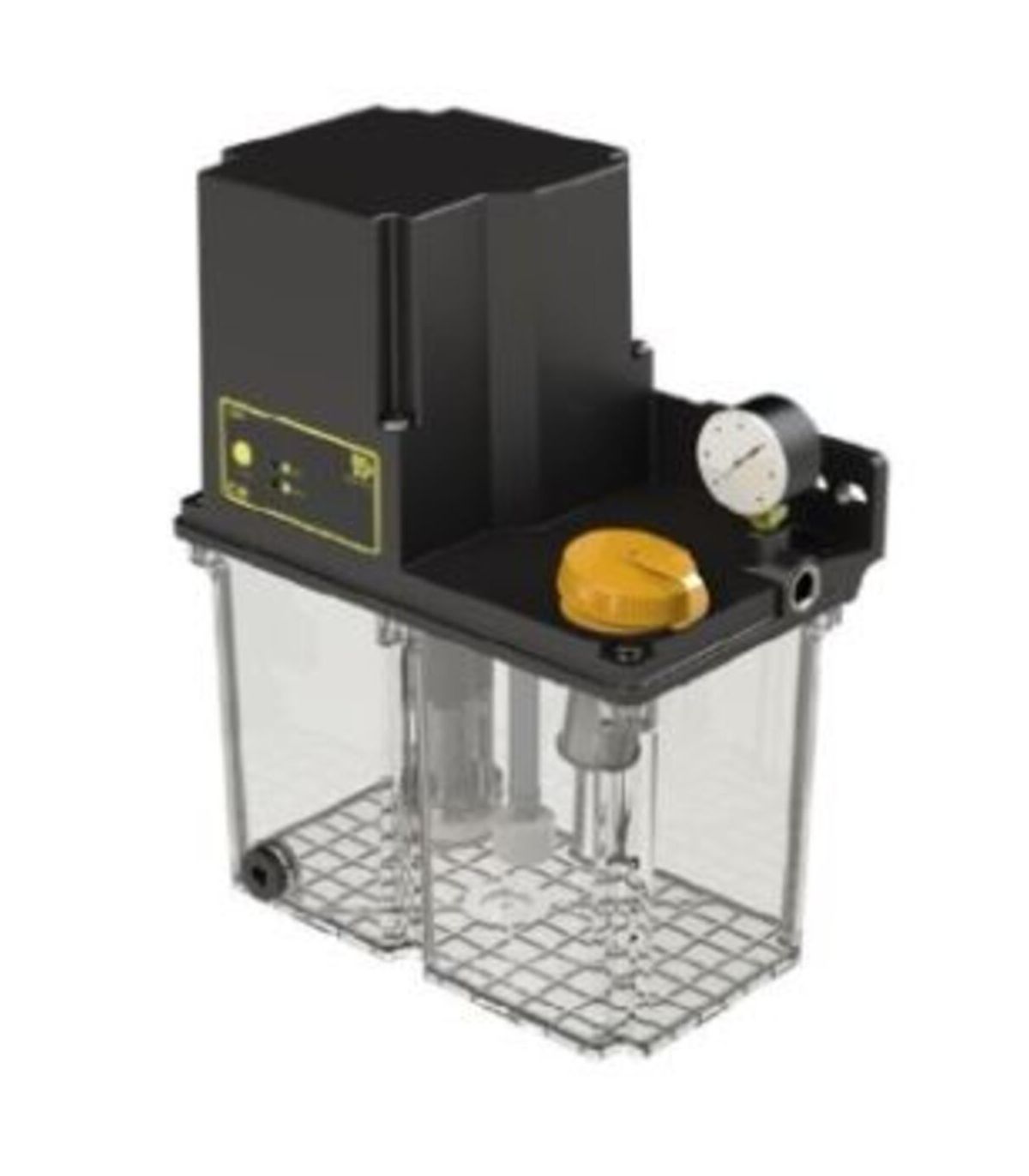

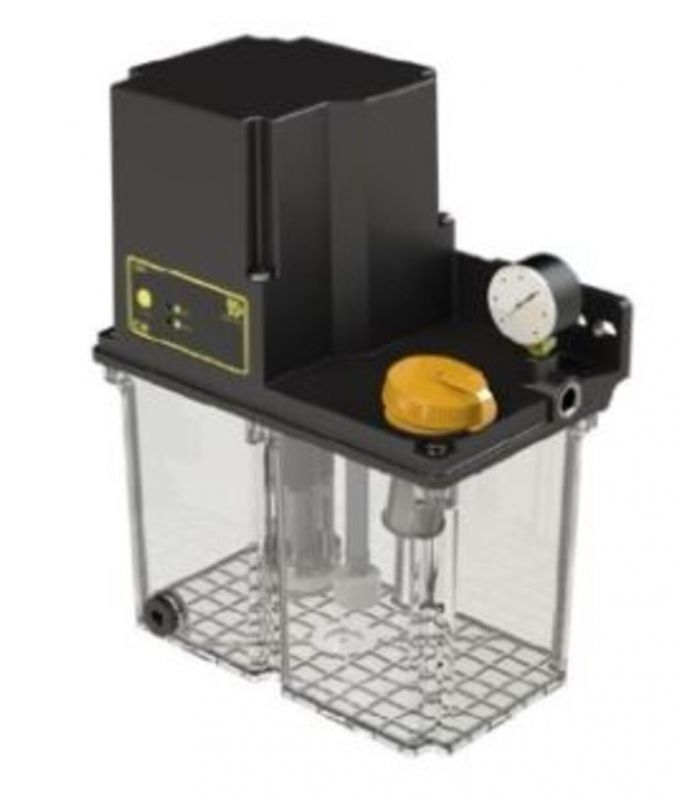

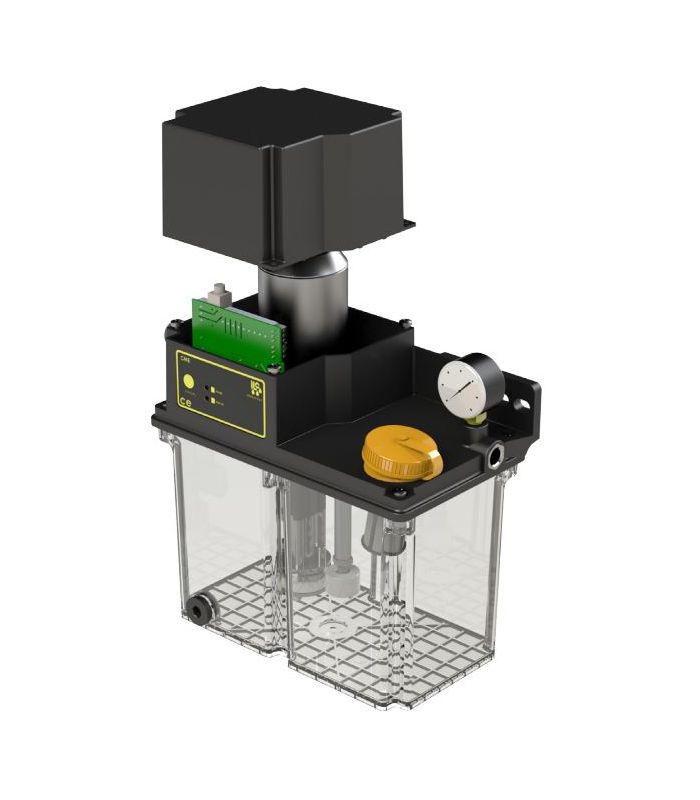

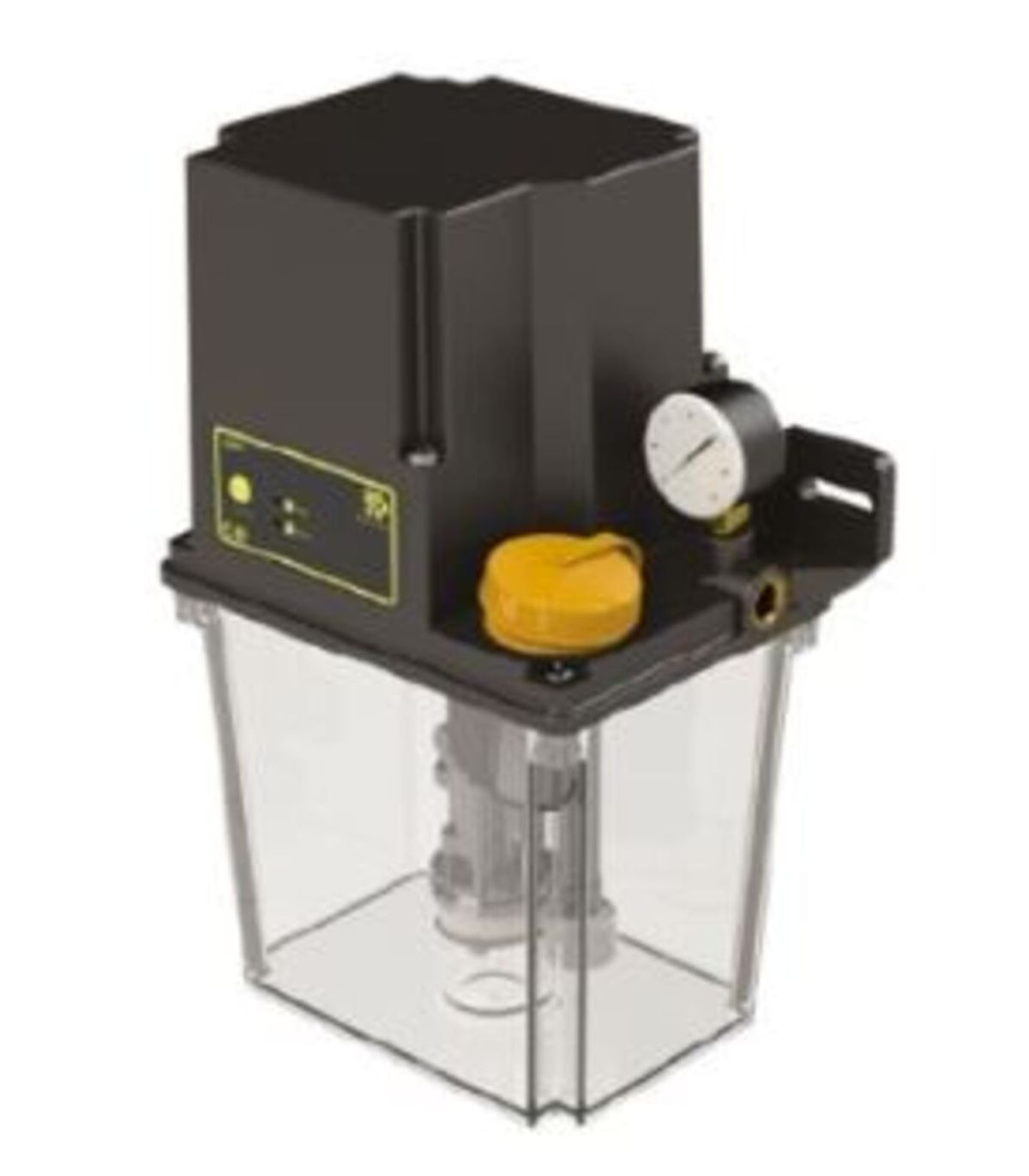

The volumetric oil lubrication pump is intended for supplying single-line lubrication systems with volumetric metering valves.

Applications: Industrial machinery, Centralized lubrication systems, Hydraulic equipment

Main features:

  • Tank capacity 2 or 3 liters.
  • Available voltages: 24 VDC, 115 VAC and 220 VAC.
  • 1/4" BSP threaded outlet.
  • Pressure 20 bar.
  • Permissible oils from 50 to 1000 mm²/s
  • Operating temperature 0/50ºC
  • Option to serve with a timer.

DOWNLOAD CATALOGUE

€499.73 (tax included)
€413.00 (tax excl.)
CHOOSE MODEL
  • 2 liters
  • 3 liters
VOLTAGE/VOLUME
  • 24V DC
  • 110V AC
  • 220VAC
Reference:
6307224C
Description

Volumetric oil lubrication pump

A volumetric oil lubrication pump is a mechanical device designed to supply a precise and constant amount of lubricating oil to one or more points in a system, regardless of pressure variations.

The pump is PLC-controlled. It includes a manual button for intermediate lubrication, an LED indicating input voltage, and an LED indicating pump operation. It also features a pressure switch for pressure control and a minimum electrical level sensor. The pressure gauge reads 60 bar.

Main features

  • Precise dosing: always delivers the same amount of oil per cycle.
  • Independent of pressure: the flow rate does not depend on the resistance of the circuit.
  • High reliability: widely used in automatic lubrication systems.
  • Cyclical operation: can be manual, mechanical or electrically driven.

Common applications

  • Industrial machinery
  • Centralized lubrication systems
  • Hydraulic equipment
  • Engines and transmissions

Technical specifications of a volumetric oil lubrication pump:

Product Details
6307224C
