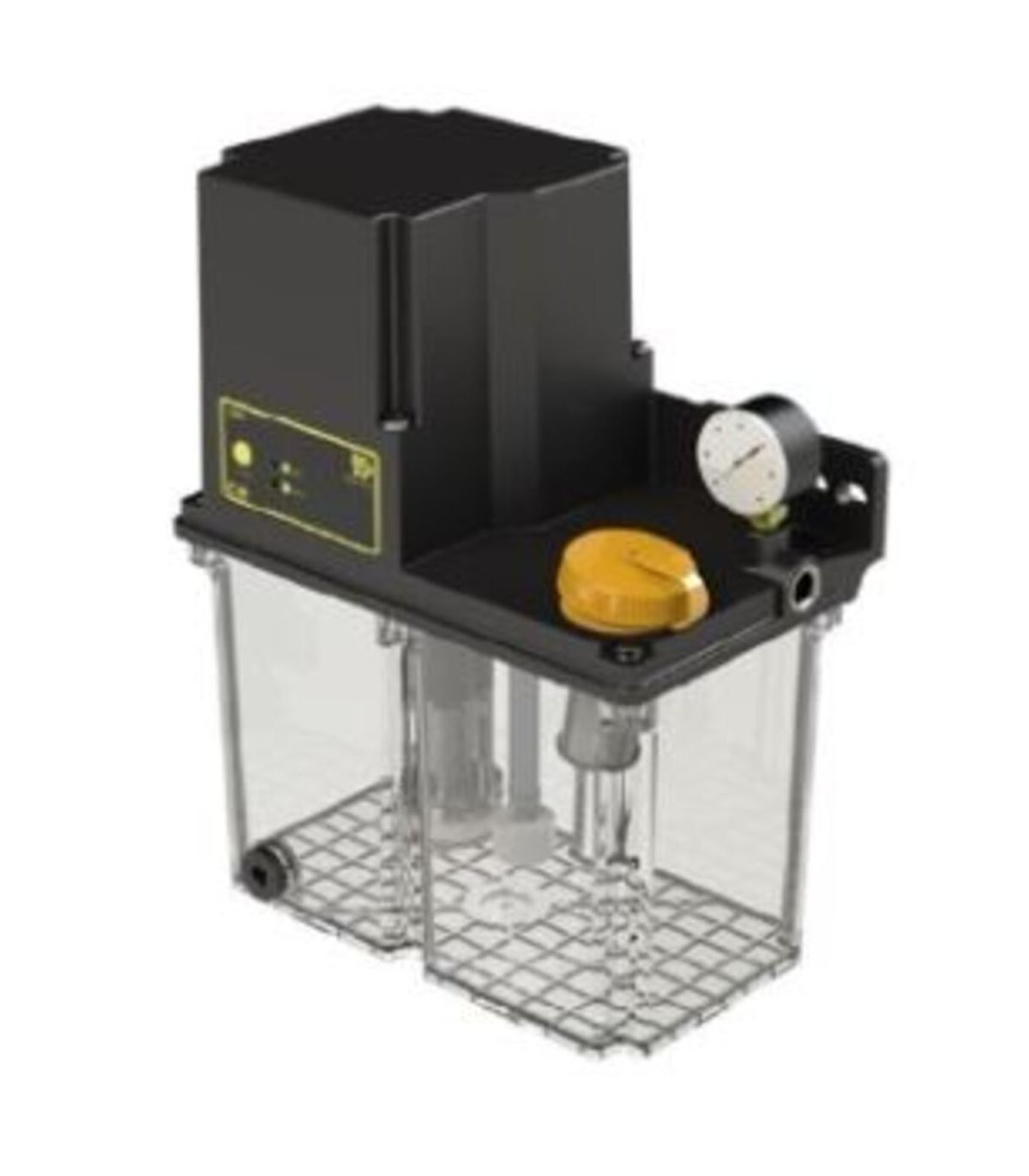

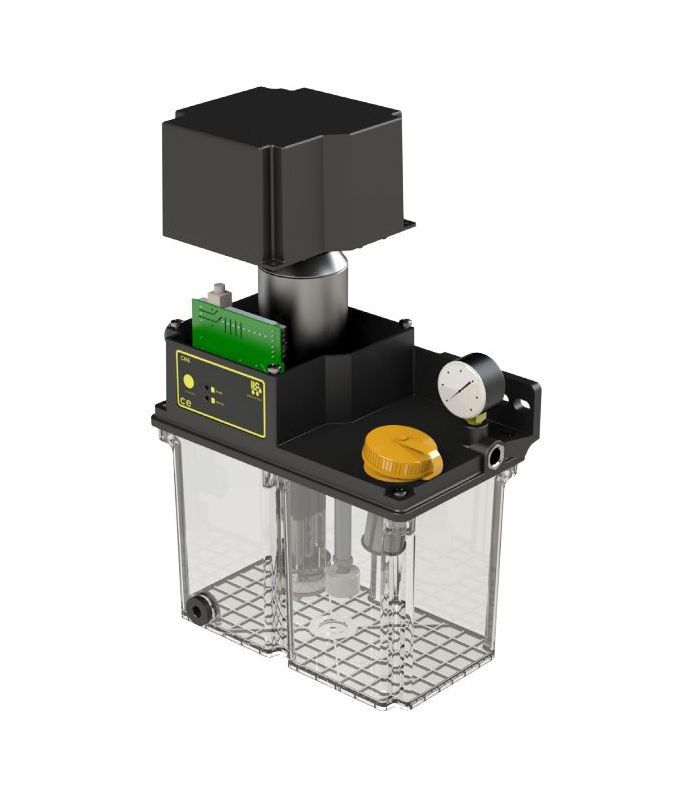

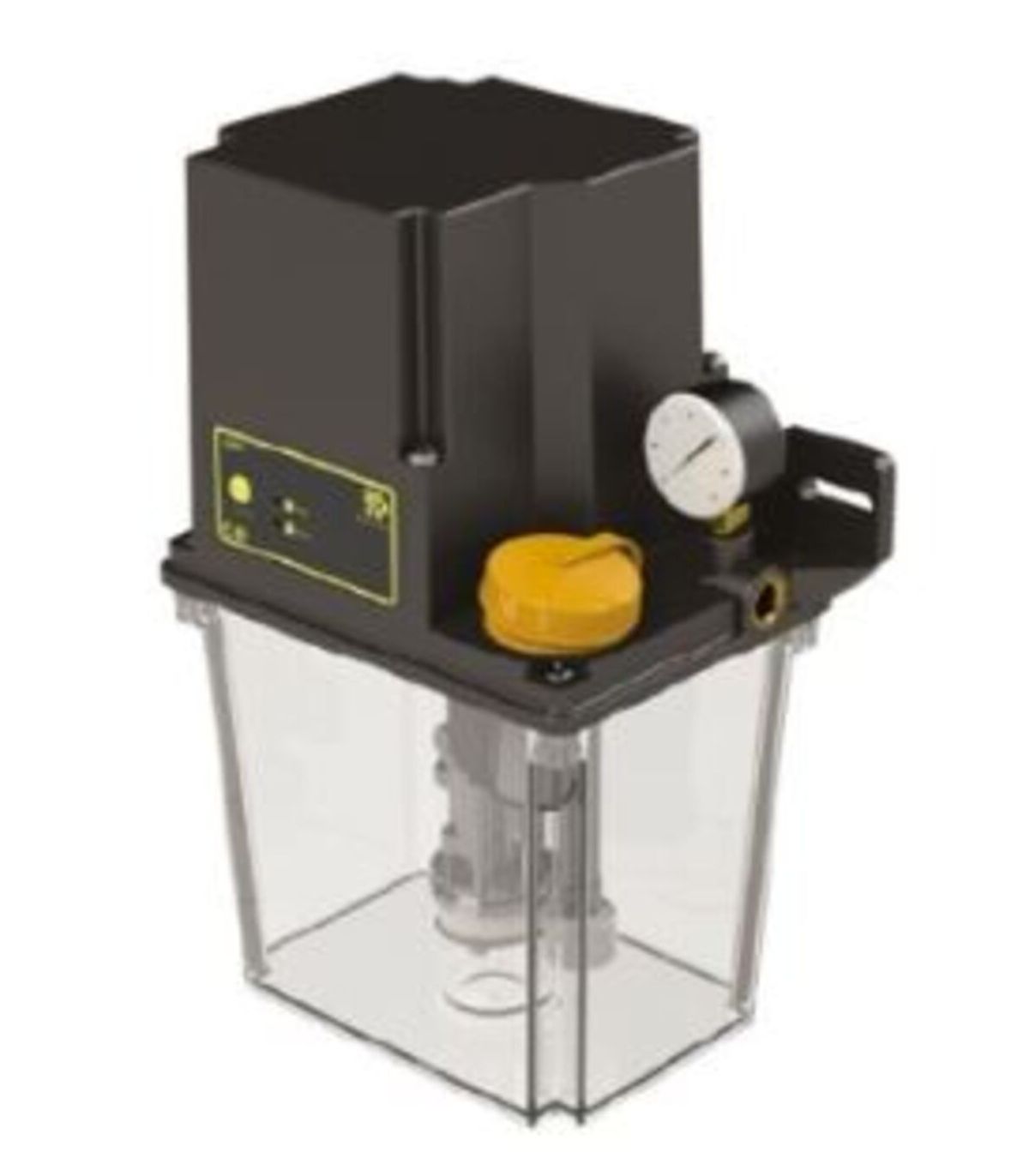

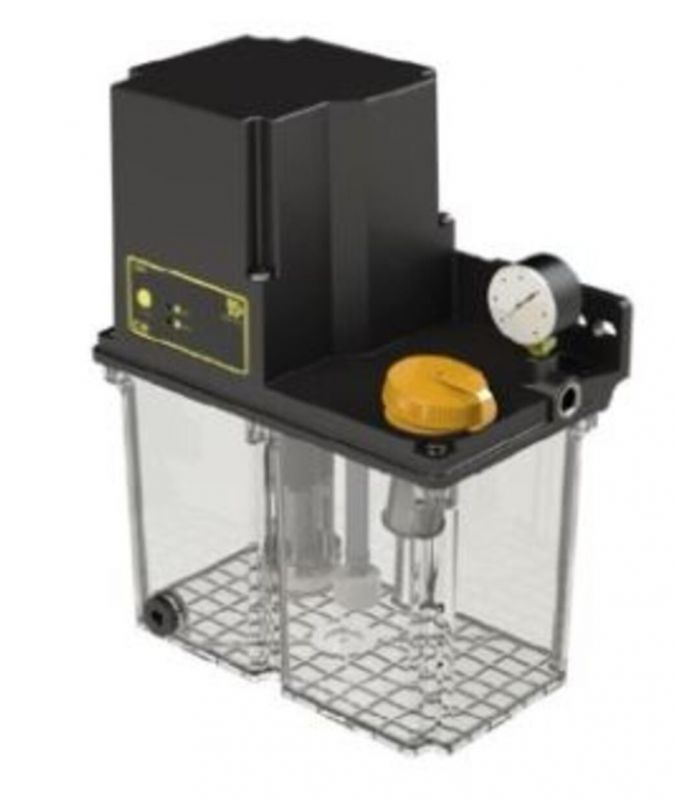

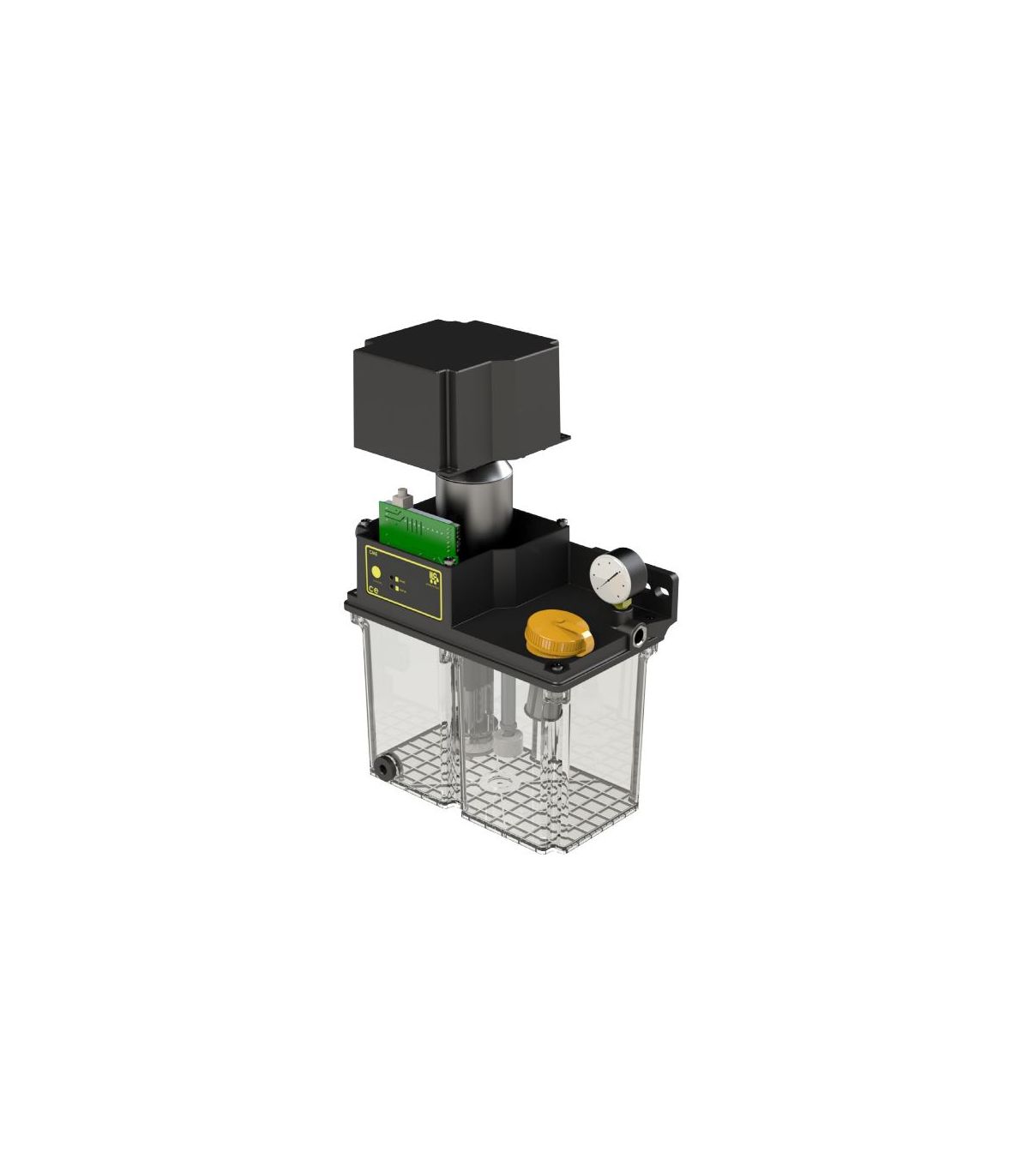

VOLUMETRIC GREASE PUMP

The volumetric grease pump is intended for feeding single-line lubrication systems with volumetric metering valves.

Applications: Industrial machinery, Centralized lubrication systems, Agricultural equipment

Main features:

  • Tank capacity 2 or 3 liters.
  • Available voltages: 24 VDC, 115 VAC and 220 VAC.
  • 1/4" BSP threaded outlet.
  • Pressure 20 bar.
  • Acceptable fat types of NLGI 00 and NLGI 000 consistency
  • Operating temperature 0/50ºC
  • Option to serve with a timer.

DOWNLOAD CATALOGUE

Read moreShow less
€536.03 (tax incl.)
€443.00 (tax excl.)
CHOOSE MODEL
  • 2 liters
  • 3 liters
VOLTAGE/VOLUME
  • 24V DC
  • 110V AC
  • 220VAC
Reference:
6315224C
Description

Volumetric grease pump

A volumetric grease pump is a device designed to dose and supply precise amounts of lubricating grease to different points of a mechanical system, in a controlled and repetitive manner.

The pump is PLC-controlled. It includes a manual button for intermediate lubrication, an LED indicating input voltage, and an LED indicating pump operation. It also features a pressure switch for pressure control and a minimum electrical level sensor. The pressure gauge reads 60 bar.

Main features

  • Precise dosage: each cycle delivers a constant amount of fat.
  • High precision: ideal for systems where lubrication must be uniform.
  • Automatic or manual operation: can be integrated into centralized lubrication systems.
  • Use with grease (not oil): designed for high viscosity lubricants.

Common applications

  • Industrial machinery
  • Centralized lubrication systems
  • Agricultural and public works equipment
  • Mechanical components with multiple lubrication points

Technical specifications of a volumetric grease pump:

Read moreShow less
Product Details
6315224C
Comments (0)
