HIGH PRESSURE ADJUSTABLE THREAD ELBOW UNION
HIGH PRESSURE ADJUSTABLE THREAD ELBOW UNION
HIGH PRESSURE ADJUSTABLE THREAD ELBOW UNION
HIGH PRESSURE ADJUSTABLE THREAD ELBOW UNION

HIGH PRESSURE ADJUSTABLE THREAD ELBOW UNION

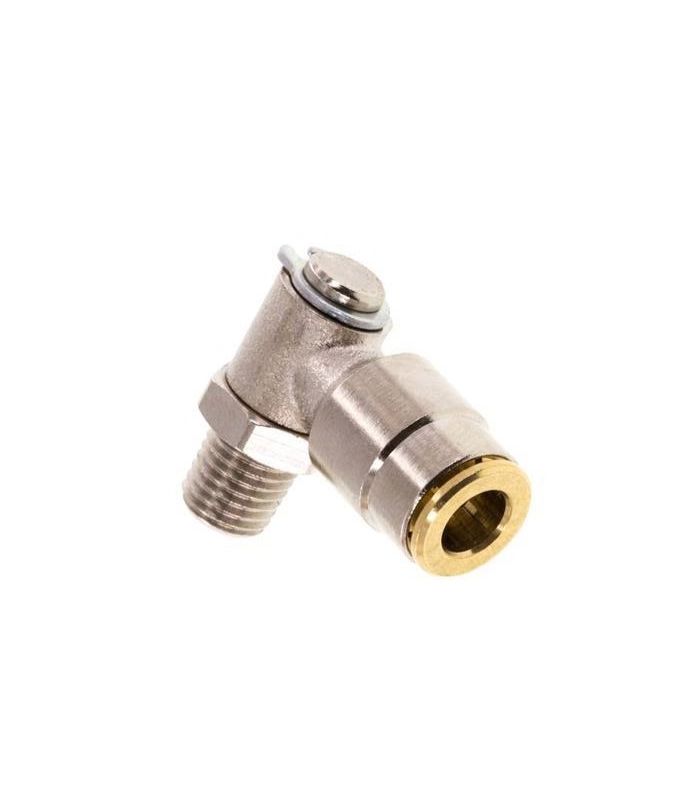

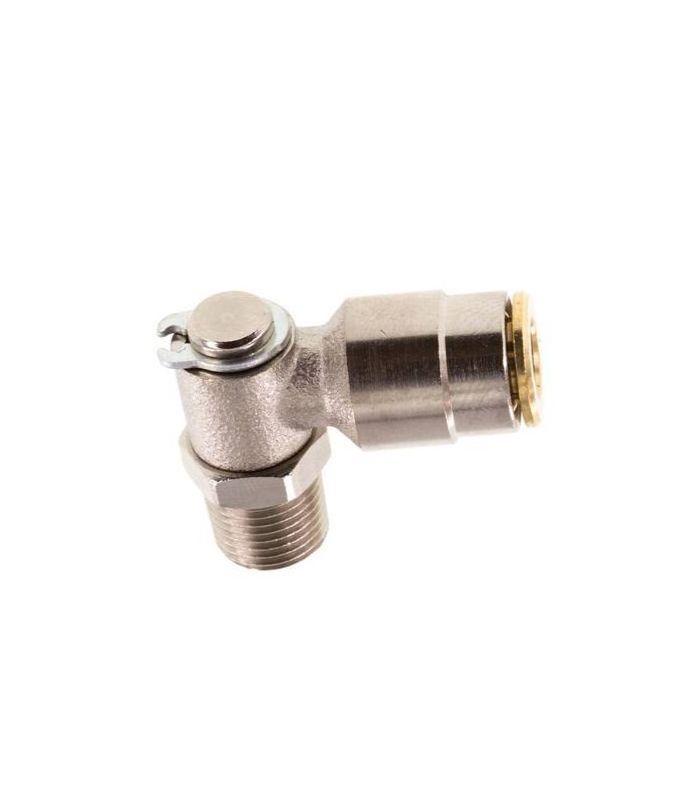

High pressure adjustable threaded elbow union

It is used to join two pipes in a high pressure line and orient it at a 90 degree angle.

The male thread is attached to a rotating body that allows the connection to be oriented in any direction within a range of movement, facilitating installation in tight spaces.

It is used in: hydraulic systems, pneumatics, chemical industry, industrial automation.

Technical data sheet:

  • Made of nickel-plated brass UNI-12164-5
  • Available for Ø4 and 6 mm.
  • Pipe tolerance +/- 0.05 mm.
  • Maximum working pressure 150 bar.
  • Temperature -20 / 70ºC.
  • Suitable for centralized lubrication circuits and high pressure pilot systems.
€4.36 (tax included)
€3.60 (tax excl.)
Tube diameter - Thread
  • Ø 4-M6
  • Ø 4-M8
  • Ø 4-M10
  • Ø 4-1/8
  • Ø 6-M6
  • Ø 6- M6x0.75
  • Ø 6-M8
  • Ø 6-M10
  • Ø 6-1/8
  • Ø 6-1/4
Reference:
17520006
Description

High pressure adjustable threaded elbow union

Product Details
17520006
