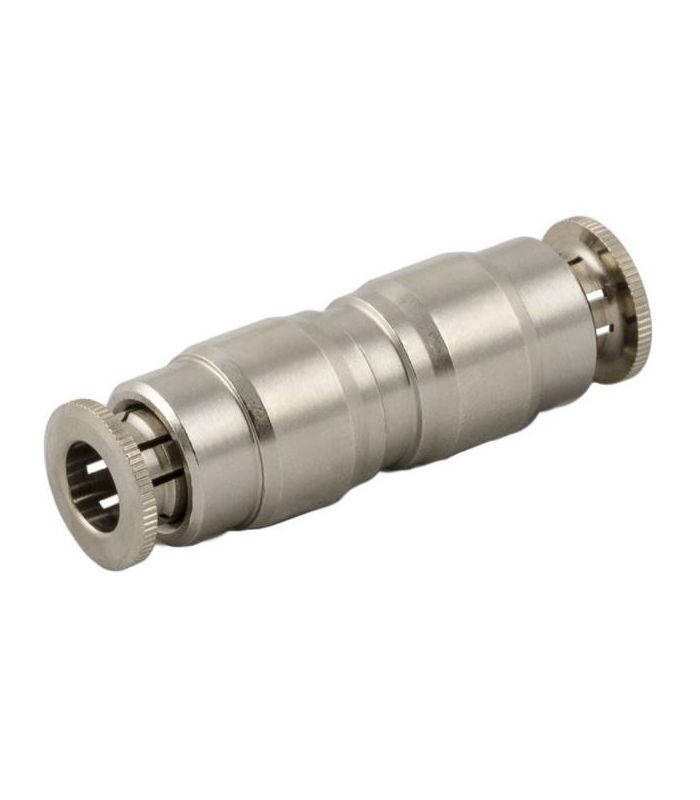

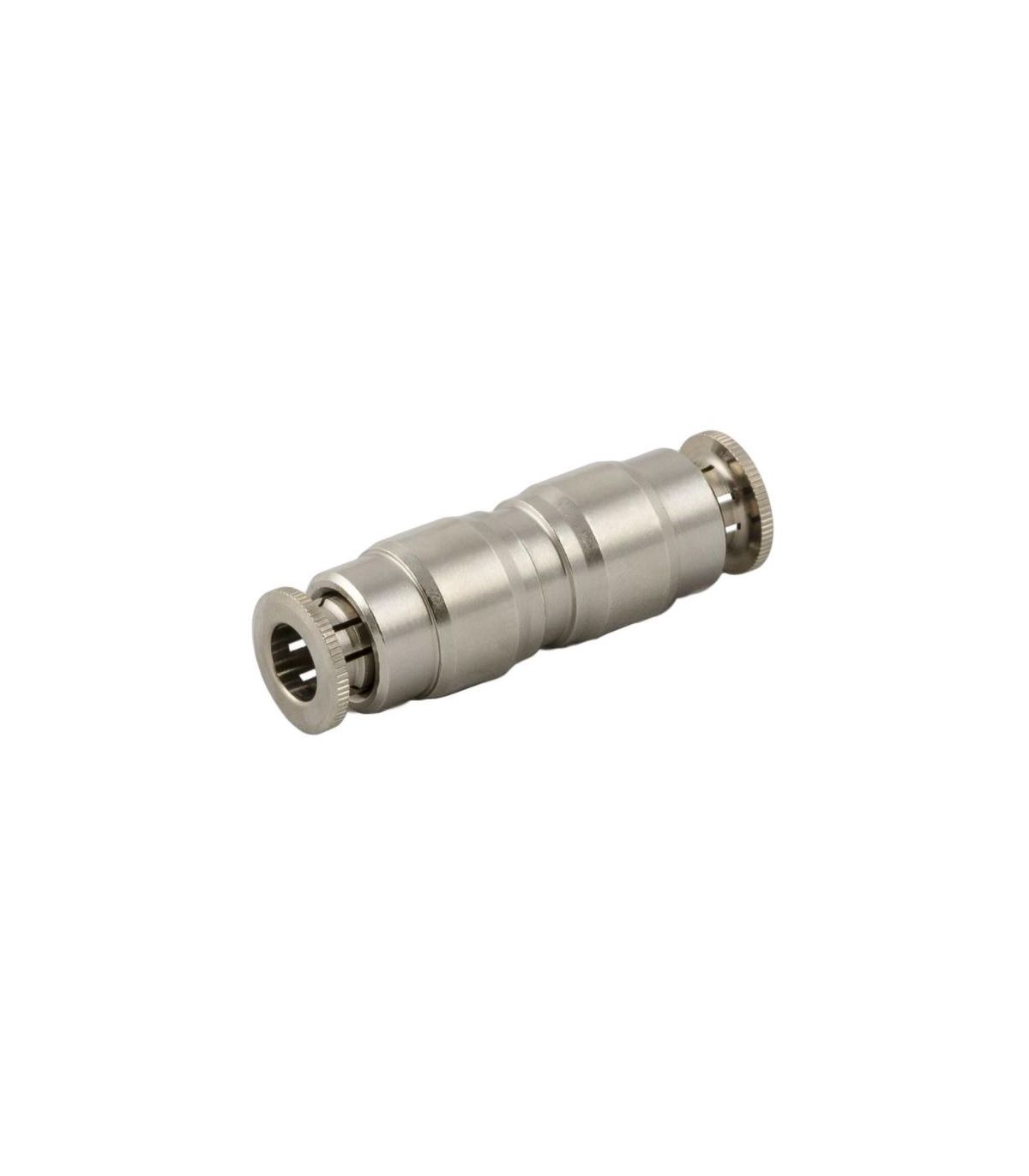

HIGH PRESSURE STRAIGHT TUBE CONNECTION

High pressure straight pipe connection

It is designed to join two lengths of pipe in a straight line and withstand high pressures without leaks.

Applications: Hydraulic systems, Pneumatics, Chemical industry, Power plants.

Technical data sheet:

Made of nickel-plated brass UNI-12164-5
Available for Ø4 and 6 mm.
Pipe tolerance +/- 0.05 mm.
Maximum working pressure 150 bar.
Temperature -20 / 70ºC.
Suitable for centralized lubrication circuits and high pressure pilot systems.

€4.36 (tax included)

€3.60 (tax excl.)

DIAMETERS

Ø 4
Ø 6

Reference:

17530006

Description
Comments

Description

High pressure straight pipe connection

Product Details

Reference 17530006

Comments
