FIXED MALE PIPE FITTING WITH SPRING 1/4"
FIXED MALE PIPE FITTING WITH SPRING 1/4"
FIXED MALE PIPE FITTING WITH SPRING 1/4"
FIXED MALE PIPE FITTING WITH SPRING 1/4"
FIXED MALE PIPE FITTING WITH SPRING 1/4"
FIXED MALE PIPE FITTING WITH SPRING 1/4"

FIXED MALE PIPE FITTING WITH SPRING 1/4"

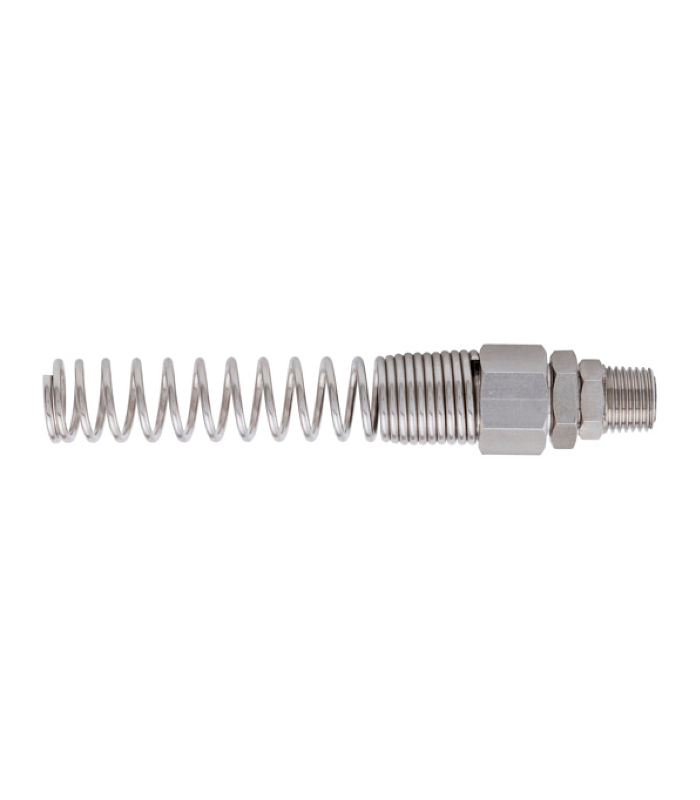

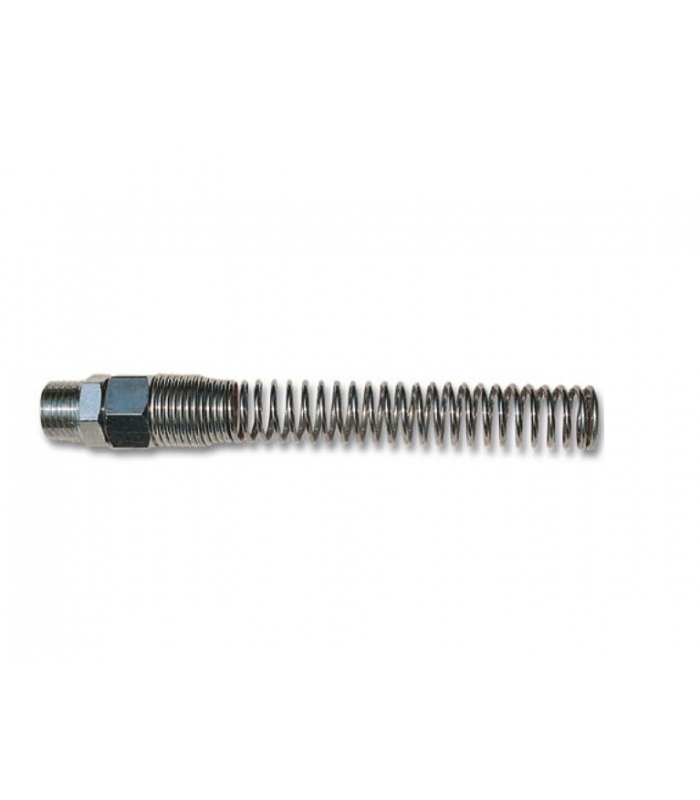

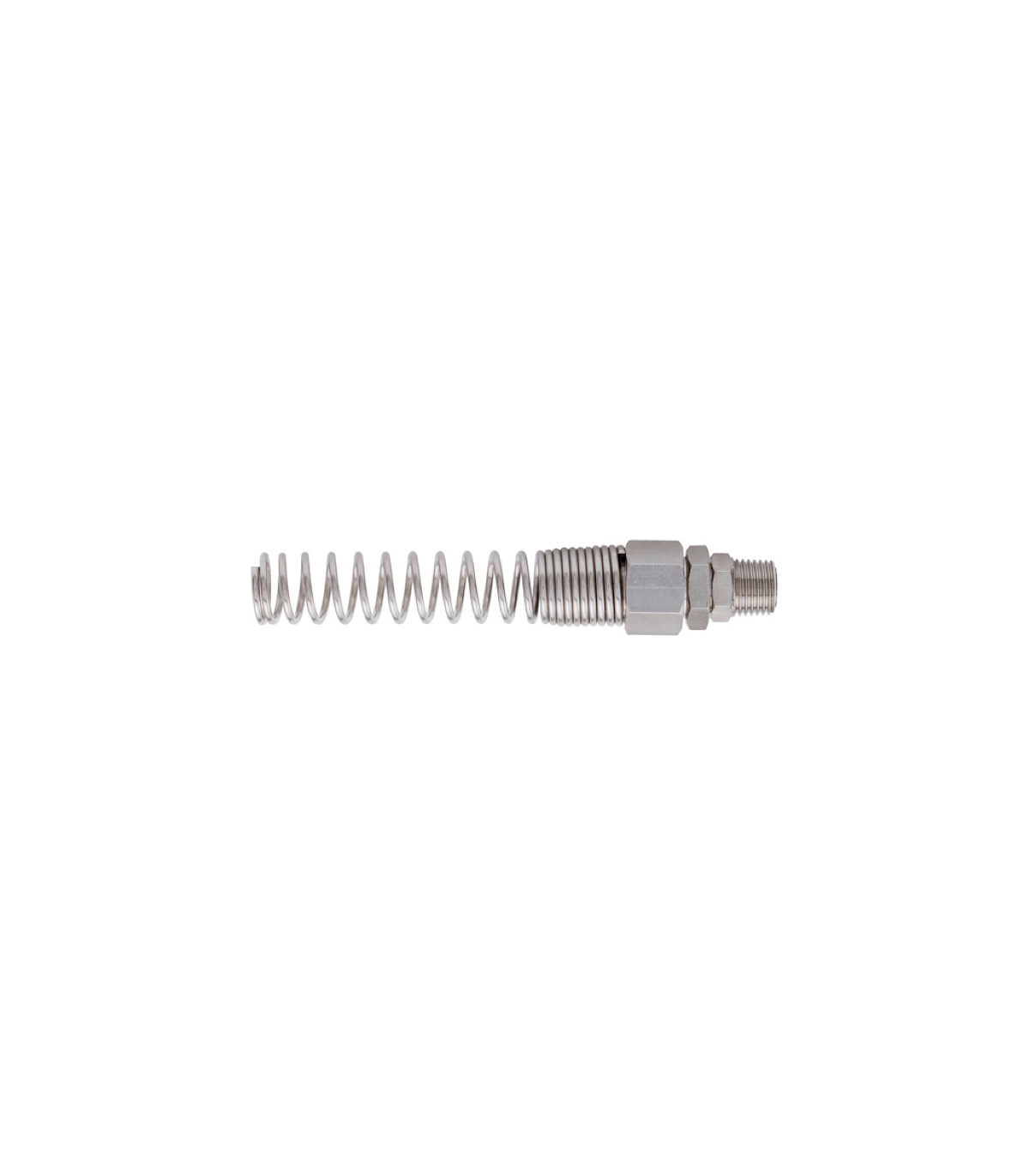

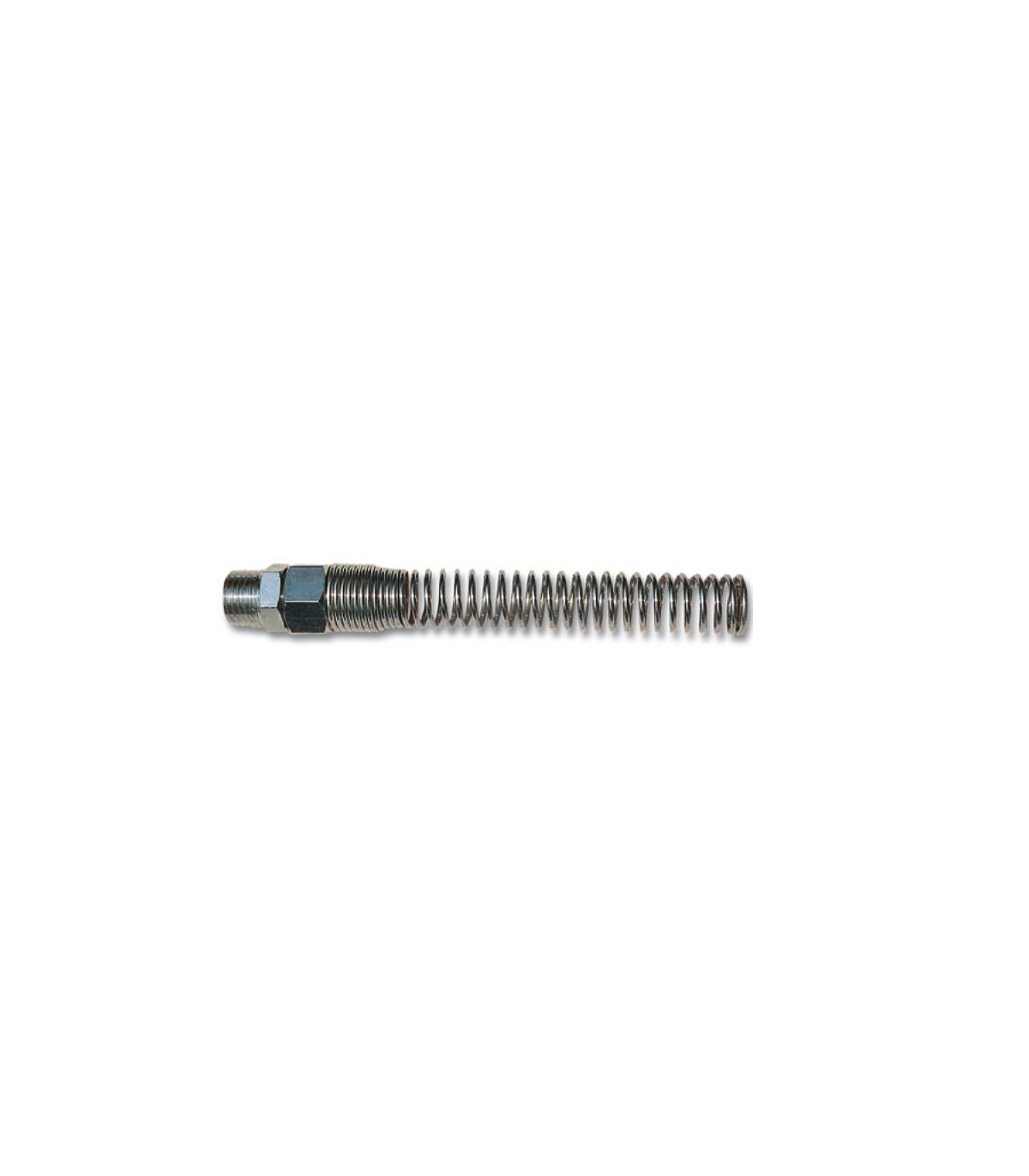

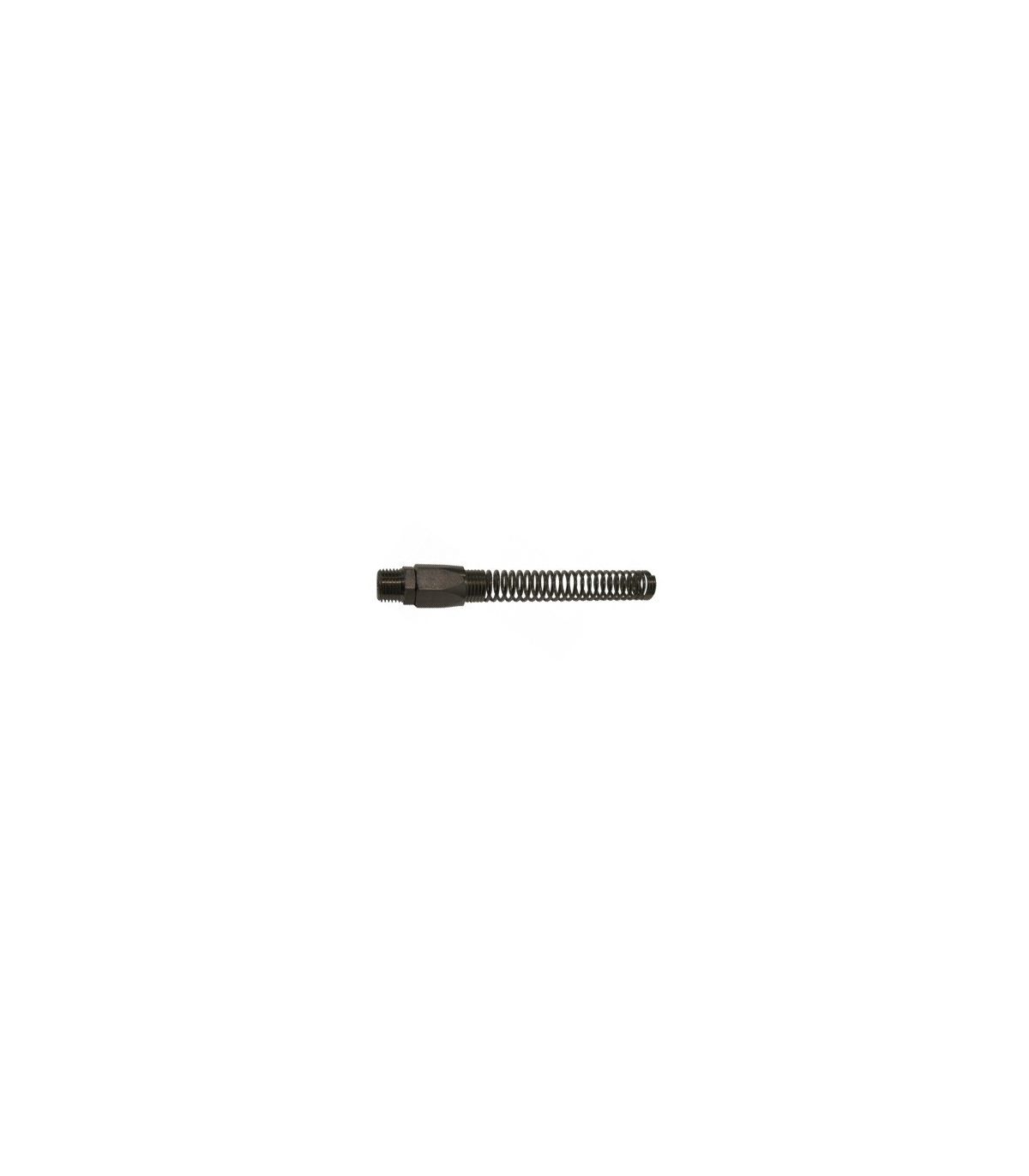

The 1/4" fixed male PA tube fitting with spring is a pneumatic connector designed to make quick and secure connections between polyamide (PA) tubes and components with a 1/4" male thread. It incorporates a protective spring that reinforces the tube outlet, preventing folds, kinks, and damage caused by repeated flexing, thus extending the service life of the installation.

Applications: compressed air installations, industrial machinery, automation, control equipment.

Main features:

  • Material: BRASS OT-58 - UNI5705 nickel plated.
  • Large nominal step.
  • Ideal for PA-POLYAMIDE tube protection.
  • Steel safety dock.
€4.20 (tax included)
€3.47 (tax excl.)
Ø TUBE
  • Ø 6x4
  • Ø 8x6
  • Ø 10x8
  • Ø 12x10
  • Ø 15x12
Reference:
20190007
Description

Fixed male PA tube fitting with spring 1/4"

The 1/4" fixed male PA tube fitting with spring is a pneumatic fitting designed for the quick and secure connection of polyamide (PA) tubes in compressed air installations.

It incorporates a protective spring that prevents kinking and excessive bending of the tube in the connection area, increasing its lifespan and reducing the risk of damage from bending.

Its instant connection system allows for quick insertion and removal of the tube without tools, ensuring a leak-proof and reliable connection. Made with high-quality materials, it offers excellent resistance to wear, vibration, and the typical operating conditions of pneumatic systems.

Applications

  • Pneumatic installations.
  • Industrial automation.
  • Production machinery.
  • Assembly equipment.
  • Compressed air systems.
  • Robotics.
  • Pneumatic tools
Product Details
20190007
