STRAIGHT CONNECTION TO CONICAL THREADED PIPE
STRAIGHT CONNECTION TO CONICAL THREADED PIPE
STRAIGHT CONNECTION TO CONICAL THREADED PIPE
STRAIGHT CONNECTION TO CONICAL THREADED PIPE

STRAIGHT CONNECTION TO CONICAL THREADED PIPE

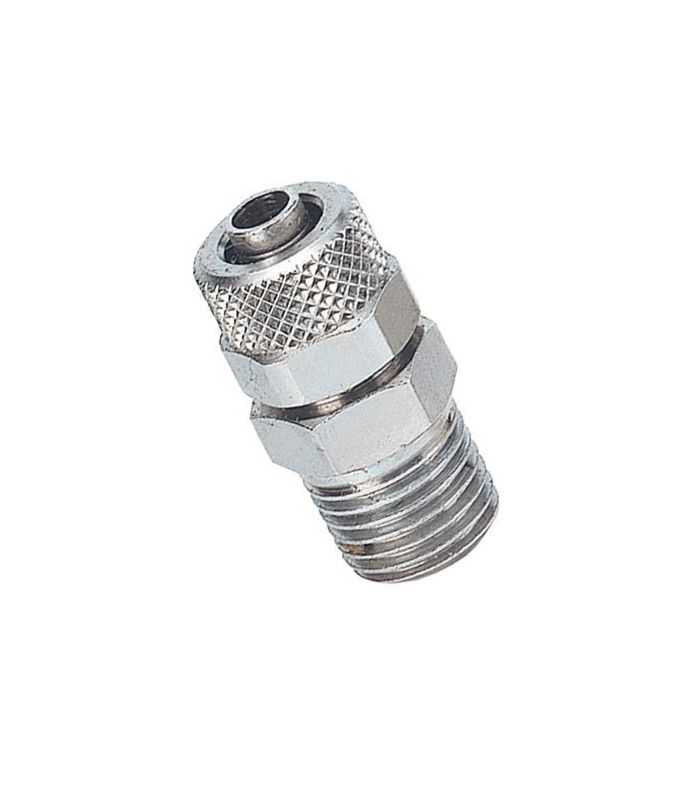

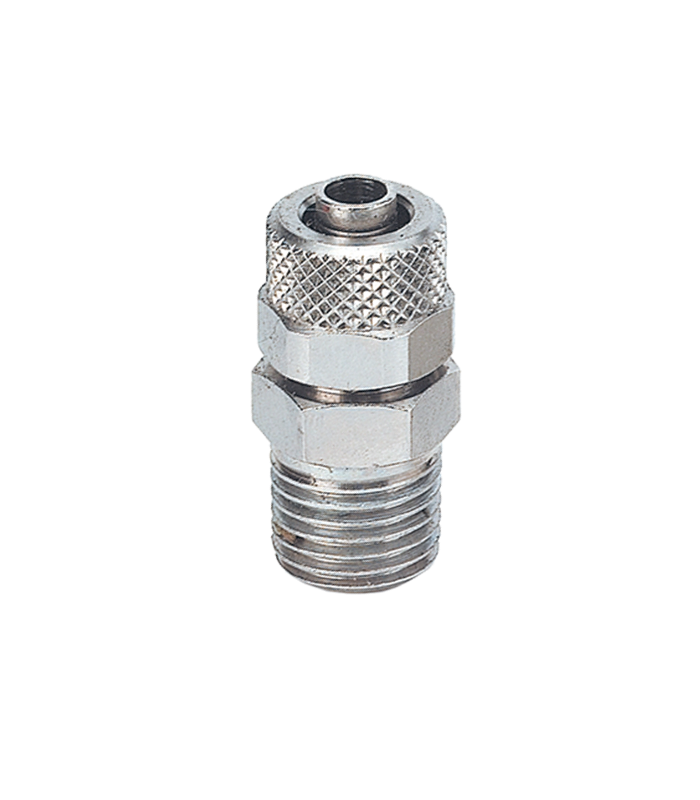

Straight union pipe tapered thread

A straight pipe-to-tapered thread coupling is used to quickly and securely join two sections of pipe with tapered threads. It provides a watertight and durable seal, thanks to the tapered shape of the threads which, when tightened, create a leak-proof joint.

Applications: Pneumatic systems, Hydraulic systems, Chemical industry and Construction

Technical specifications:

  • Maximum pressure: 15 bar (1.5 MPa)
  • Minimum temperature: -20° C
  • Maximum temperature: +80° C
  • The fittings are available in the following sizes:
  • Tubes: from 4/2.7 to 15/12.5;
  • Threads: from 1/8 to 1/2.
€1.82 (tax included)
€1.50 (tax excl.)
Tube diameter - Thread
  • Ø 4-1/8
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 15-1/2
Reference:
11010003
Description

Straight union pipe tapered thread

A straight pipe-to-tapered union is a connecting fitting used to join a pipe to a threaded port or component using a male tapered thread that ensures a tight seal. This type of fitting allows for a direct, linear connection, guaranteeing a strong, leak-proof joint suitable for lubrication, pneumatic, or light hydraulic systems.

Advantages

  • Excellent sealing without the need for internal gaskets.
  • Compatible with rigid or semi-rigid tubes (depending on the version).
  • Easy installation.
  • High resistance to pressure and vibrations.

Applications

  • Automatic lubrication systems.
  • Industrial pneumatics.
  • Low and medium pressure hydraulics.
  • Connections in machinery, automation and industrial equipment.
Product Details
11010003
