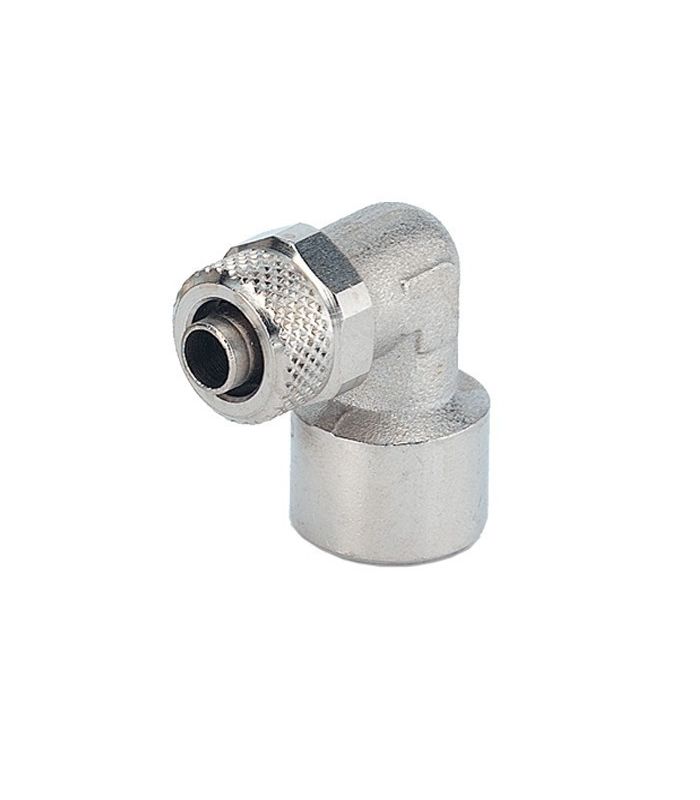

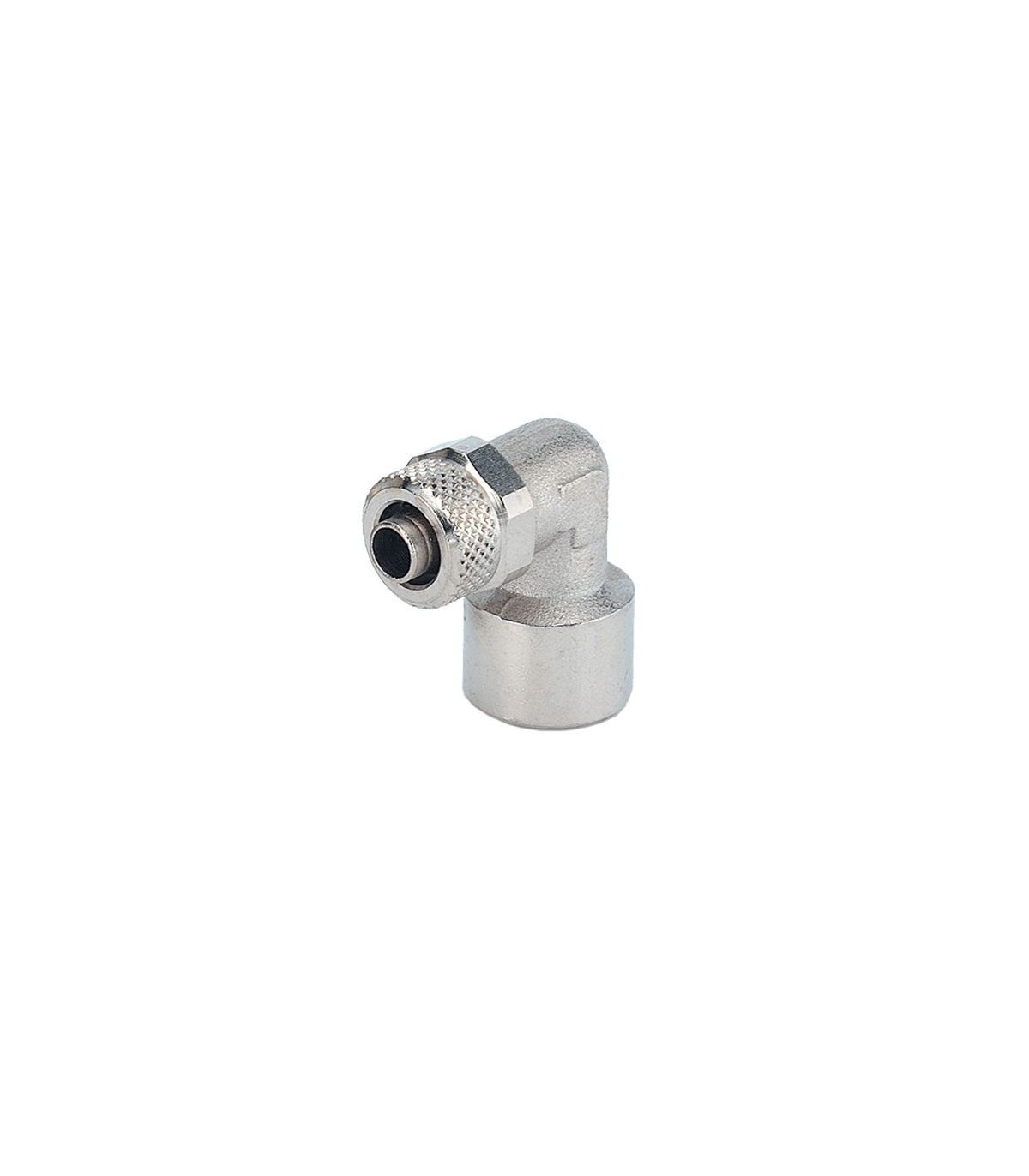

ELBOW CONNECTION FEMALE THREAD PIPE

ELBOW CONNECTION FEMALE THREAD PIPE

Female threaded elbow joint for pipe

A female threaded elbow fitting allows for the semi-quick connection of a pipe to a female threaded fitting. It offers easy assembly, a good seal, and mechanical strength.

Suitable for compressed air networks and industrial pneumatic applications.

Main features:

  • Made of nickel-plated brass
  • Maximum pressure: 15 bar (1.5 MPa)
  • Minimum temperature: -20° C
  • Maximum temperature: +80° C
  • The fittings are available in the following sizes:
  • Tubes: from 4/2.7 to 15/12.5;
  • Threads: from 1/8 to 1/2.
€1.90 (tax included)
€1.57 (tax excl.)
Tube diameter - Thread
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 10-1/4
  • Ø 10-3/8
Reference:
11040007
Description

Female threaded elbow joint for pipe

The female threaded elbow fitting is made of nickel-plated brass , offering corrosion resistance and a long service life in fluid installations. Its 90° elbow design allows for changes in pipe direction, while the female thread ensures a secure and leak-proof connection with compatible components. Ideal for hydraulic, pneumatic, or water and other fluid conveyance systems.

Main features

  • Material: High-strength nickel-plated brass
  • Joint type: Semi-fast
  • Configuration: 90° Elbow
  • Connection: Female thread to pipe
  • Applications: Hydraulic systems, pneumatic systems, fluid handling
  • Corrosion resistant, easy installation, secure connection
Product Details
11040007
