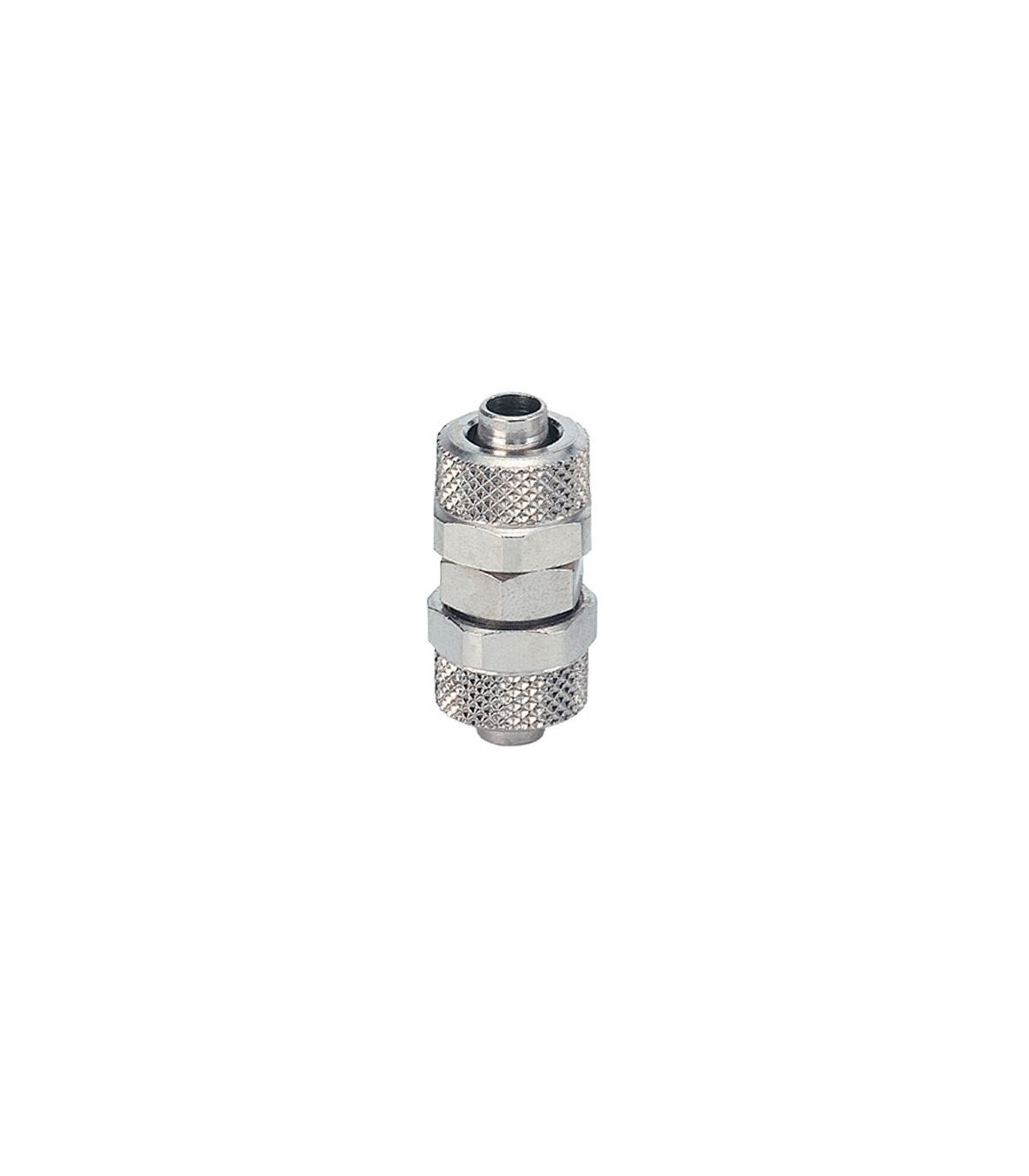

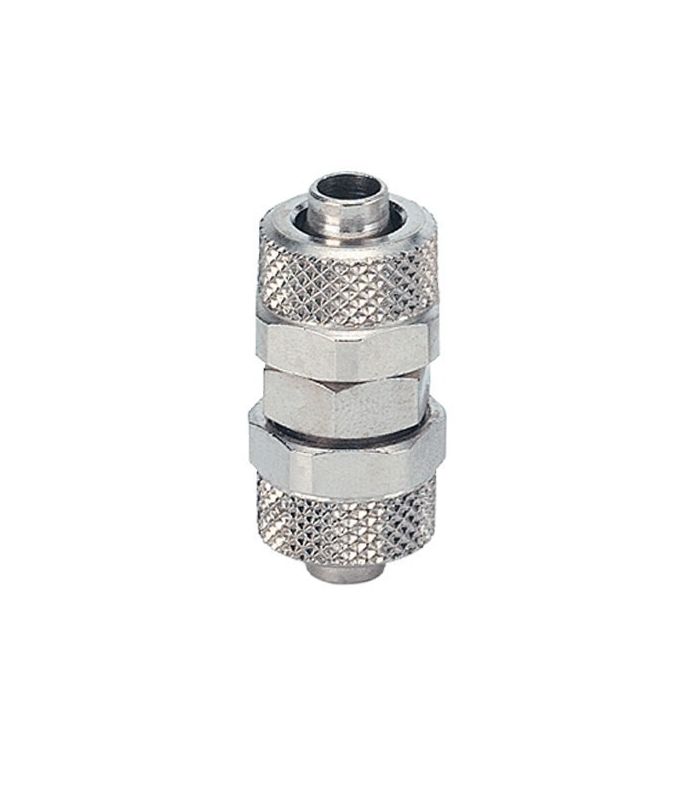

STRAIGHT TUBE UNION

STRAIGHT TUBE UNION

A straight tube union is a type of connector used in piping systems (usually pneumatic or low-pressure fluids) that allows quick and easy connection and disconnection of one tube to another tube in a straight line.

Common Applications: Pneumatic Systems, Low Pressure Fluid Systems, Automation, Lubrication Systems

Technical sheet:

  • Maximum pressure: 15 bar (1.5 MPa)
  • Minimum temperature: -20° C
  • Maximum temperature: +80° C
  • Fittings are available for the following sizes:

Tubes: from 4/2.7 to 15/12.5

Threads: 1/8 to 1/2.

€2.02 (tax included)
€1.67 (tax excl.)
DIAMETERS
  • Ø 4
  • Ø 6
  • Ø8
  • Ø 10
  • Ø 12
  • Ø 15
  • Ø6-Ø8
  • Ø6-Ø10
  • Ø8-Ø10
Reference:
11100001
Description

straight tube union

Product Details
11100001
