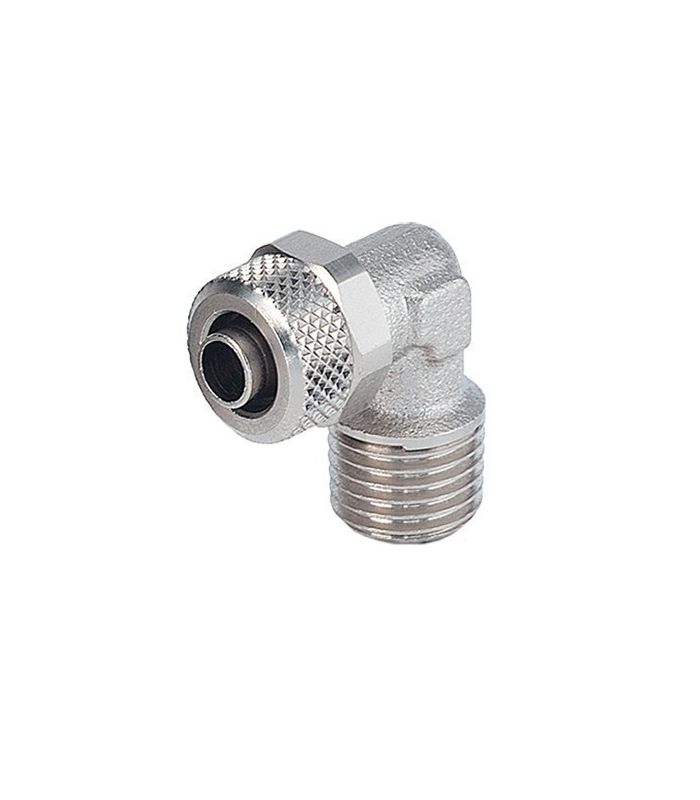

CONICAL THREADED ELBOW UNION FOR SEMI-RAPID PIPE

CONICAL THREADED ELBOW UNION FOR SEMI-RAPID PIPE

elbow joint with tapered thread for semi-fast pipe

A 90° elbow fitting with tapered threads is designed to connect semi-rigid or semi-rapid pipe to a port with a male tapered thread. It allows for a 90° change in flow direction, facilitating installations in confined spaces and ensuring a watertight seal.

Main features:

  • Maximum pressure: 15 bar (1.5 MPa)
  • Minimum temperature: -20° C
  • Maximum temperature: +80° C
  • Made of nickel-plated brass
  • The fittings are available in the following sizes:
  • Tubes: from 4/2.7 to 15/12.5;
  • Threads: from 1/8 to 1/2.
€1.60 (tax included)
€1.32 (tax excl.)
Tube diameter - Thread
  • Ø 4-M5
  • Ø 4-M6
  • Ø 4-1/8
  • Ø 6-1/8
  • Ø 6-1/4
  • Ø 6-3/8
  • Ø 8-1/8
  • Ø 8-1/4
  • Ø 8-3/8
  • Ø 8-1/2
  • Ø 10-1/8
  • Ø 10-1/4
  • Ø 10-3/8
  • Ø 10-1/2
  • Ø 12-1/4
  • Ø 12-3/8
  • Ø 12-1/2
  • Ø 15-1/2
  • Ø 6x100
  • Ø 6x125
  • Ø 6x150
Reference:
11020003
Description

elbow joint with tapered thread for semi-fast pipe

The semi-fast conical thread elbow fitting is a 90° elbow fitting that offers quick installation and excellent sealing. It is the ideal solution for changes of direction in confined spaces.

Advantages

  • It allows you to redirect the tube without bending it.
  • Guaranteed watertightness thanks to the conical thread.
  • Easy and safe assembly.
  • Ideal for small spaces and circuits with changes of direction.
  • Resistant to pressure and vibration.

Applications

  • Automatic lubrication systems.
  • Pneumatic and control installations.
  • Light hydraulics.
  • Industrial machinery and automation.
  • Connections where a 90° elbow is required between pipe and tapered thread.
Product Details
11020003
